【Android】基于SurfaceControlViewHost實現跨進程渲染

1 前言

? 本文將介紹基于 SurfaceControlViewHost 實現跨進程渲染普通 View 和 GlSurfaceView，力求用最簡單的 Demo，介紹 SurfaceControlViewHost 的應用，方便讀者輕松扣出核心代碼應用到自己的業務中。

? 核心代碼片段如下。

? 1）服務端

public SurfaceControlViewHost.SurfacePackage getSurfacePackage(int displayId, IBinder hostToken, int width, int height) {
    // 創建SurfaceControlViewHost
    Display display = mContext.getSystemService(DisplayManager.class).getDisplay(displayId);
    mSurfaceControlViewHost = new SurfaceControlViewHost(mContext, display, hostToken);
    // 創建要渲染的View
    mView = new CustomView(mContext);
    // 將View附加到SurfaceControlViewHost
    mSurfaceControlViewHost.setView(mView, width, height);
    SurfacePackage surfacePackage = mSurfaceControlViewHost.getSurfacePackage();
    return surfacePackage;
}

? 2）客戶端

IBinder hostToken = mSurfaceView.getHostToken();
SurfaceControlViewHost.SurfacePackage surfacePackage = mRemoteRender.getSurfacePackage(0, hostToken, 1000, 2000);
mSurfaceView.setChildSurfacePackage(surfacePackage);

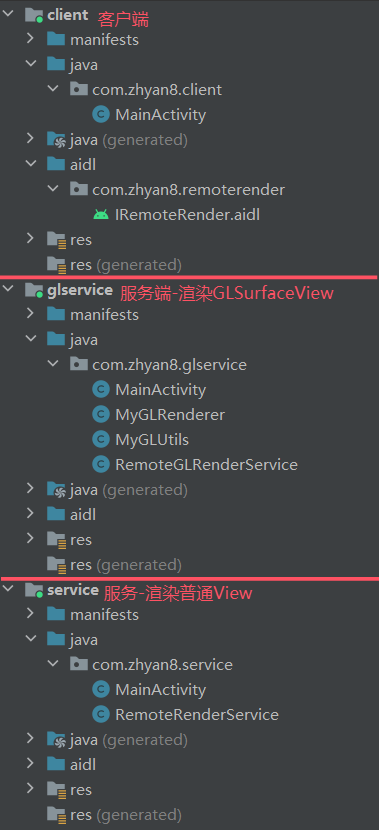

? 本文案例項目結構如下，完整資源見 → 基于SurfaceControlViewHost實現跨進程渲染。

2 AIDL 配置

? Android 跨進程通信可以使用 AIDL 或 messenger，它們本質都是 Binder，本文使用 AIDL 實現跨進程通信。

? 1）aidl 文件

// IRemoteRender.aidl
package com.zhyan8.remoterender;

import android.view.SurfaceControlViewHost.SurfacePackage;
import android.os.IBinder;

interface IRemoteRender {
    SurfacePackage getSurfacePackage(int displayId, IBinder hostToken, int width, int height);
}

? 2）gradle 配置

sourceSets {
    main {
        aidl.srcDirs = ['src/main/aidl']
    }
}

buildFeatures.aidl true

? 3）manifest 配置

? 客戶端配置如下。

<queries>
    <package android:name="com.zhyan8.service" />
    <package android:name="com.zhyan8.glservice" />
</queries>

? 服務端配置如下。

<service
    android:name=".RemoteRenderService"
    android:exported="true">
    <intent-filter>
        <action android:name="com.zhyan8.remoterender.IRemoteRender"/>
    </intent-filter>
</service>

<service
    android:name=".RemoteGLRenderService"
    android:exported="true">
    <intent-filter>
        <action android:name="com.zhyan8.remoterender.IRemoteRender"/>
    </intent-filter>
</service>

3 客戶端

? MainActivity.java

package com.zhyan8.client;

import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.util.Log;
import android.view.SurfaceControlViewHost.SurfacePackage;
import android.view.SurfaceView;
import android.view.View;

import androidx.appcompat.app.AppCompatActivity;

import com.zhyan8.remoterender.IRemoteRender;

public class MainActivity extends AppCompatActivity {
    private static final String TAG = "MainActivity";

    private IRemoteRender mRemoteRender;
    private IBinder mService;
    private SurfaceView mSurfaceView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        mSurfaceView = findViewById(R.id.surface_view);
        startService();
    }

    public void onClickDraw(View view) {
        try {
            IBinder hostToken = mSurfaceView.getHostToken();
            SurfacePackage surfacePackage = mRemoteRender.getSurfacePackage(0, hostToken, 1000, 2000);
            mSurfaceView.setChildSurfacePackage(surfacePackage);
        } catch (RemoteException e) {
            e.printStackTrace();
        }
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        unbindService(mConnection);
    }

    private void startService() {
        Log.d(TAG, "startService");
        Intent intent = new Intent("com.zhyan8.remoterender.IRemoteRender");
        //intent.setPackage("com.zhyan8.service"); // 渲染普通View的服務
        intent.setPackage("com.zhyan8.glservice"); // 基于OpenGL ES渲染的服務
        bindService(intent, mConnection, Context.BIND_AUTO_CREATE);
    }

    private void clearBind() {
        Log.d(TAG, "clearBind");
        if (mService != null) {
            mService.unlinkToDeath(mDeathRecipient, 0);
        }
        mRemoteRender = null;
        mService = null;
    }

    private ServiceConnection mConnection = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            Log.d(TAG, "onServiceConnected");
            mRemoteRender = IRemoteRender.Stub.asInterface(service);
            mService = service;
            try {
                mService.linkToDeath(mDeathRecipient, 0);
            } catch (RemoteException e) {
                Log.e(TAG, "e=" + e.getMessage());
            }
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {
            Log.d(TAG, "onServiceDisconnected");
            clearBind();
        }
    };

    private IBinder.DeathRecipient mDeathRecipient = new IBinder.DeathRecipient() {

        @Override
        public void binderDied() {
            Log.d(TAG, "binderDied");
            clearBind();
        }
    };
}

? activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp">

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="draw"
        android:onClick="onClickDraw"/>

    <android.view.SurfaceView
        android:id="@+id/surface_view"
        android:layout_width="1000px"
        android:layout_height="2000px"
        android:layout_gravity="center"/>
</LinearLayout>

4 跨進程渲染普通 View

? RemoteRenderService.java

package com.zhyan8.service;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.hardware.display.DisplayManager;
import android.os.Handler;
import android.os.IBinder;
import android.os.Looper;
import android.util.Log;
import android.view.Display;
import android.view.SurfaceControlViewHost;
import android.view.SurfaceControlViewHost.SurfacePackage;
import android.view.ViewGroup;
import android.widget.ImageView;

import com.zhyan8.remoterender.IRemoteRender;

import java.util.concurrent.CountDownLatch;

public class RemoteRenderService extends Service {
    private static final String TAG = "RemoteRenderService";

    private SurfaceControlViewHost mSurfaceControlViewHost;
    private ImageView mImageView;
    private Handler mHandler = new Handler(Looper.getMainLooper());

    @Override
    public void onCreate() {
        super.onCreate();
        Log.i(TAG, "onCreate");
    }

    @Override
    public IBinder onBind(Intent intent) {
        Log.i(TAG, "onBind");
        return mBinder;
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        Log.i(TAG, "onDestroy");
        if (mSurfaceControlViewHost != null) {
            mSurfaceControlViewHost.release();
        }
    }

    private final IRemoteRender.Stub mBinder = new IRemoteRender.Stub() {

        @Override
        public SurfacePackage getSurfacePackage(int displayId, IBinder hostToken, int width, int height) {
            Log.i(TAG, "getSurfacePackage, displayId=" + displayId + ", hostToken=" + hostToken + ", width=" + width + ", height=" + height);
            final SurfacePackage[] result = new SurfaceControlViewHost.SurfacePackage[1];
            final CountDownLatch latch = new CountDownLatch(1);
            mHandler.post( () -> {
                // 創建SurfaceControlViewHost
                Context context = getBaseContext();
                Display display = context.getSystemService(DisplayManager.class).getDisplay(displayId);
                mSurfaceControlViewHost = new SurfaceControlViewHost(context, display, hostToken);
                // 創建要渲染的內容
                mImageView = new ImageView(RemoteRenderService.this);
                mImageView.setLayoutParams(new ViewGroup.LayoutParams(width, height));
                mImageView.setScaleType(ImageView.ScaleType.FIT_XY);
                mImageView.setImageResource(R.drawable.girl);
                // 將視圖附加到SurfaceControlViewHost
                mSurfaceControlViewHost.setView(mImageView, width, height);
                result[0] = mSurfaceControlViewHost.getSurfacePackage();
                latch.countDown();
            });

            try {
                latch.await(); // 等待主線程完成操作
                return result[0];
            } catch (InterruptedException e) {
                Log.i(TAG, "getSurfacePackage, e=" + e.getMessage());
            }
            return null;
        }
    };
}

? 運行效果如下。

5 跨進程渲染 GLSurfaceView

? RemoteGLRenderService.java

package com.zhyan8.glservice;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.hardware.display.DisplayManager;
import android.opengl.GLSurfaceView;
import android.os.Handler;
import android.os.IBinder;
import android.os.Looper;
import android.util.Log;
import android.view.Display;
import android.view.SurfaceControlViewHost;
import android.view.SurfaceControlViewHost.SurfacePackage;
import android.view.ViewGroup;

import com.zhyan8.remoterender.IRemoteRender;

import java.util.concurrent.CountDownLatch;

public class RemoteGLRenderService extends Service {
    private static final String TAG = "RemoteGLRenderService";

    private SurfaceControlViewHost mSurfaceControlViewHost;
    private GLSurfaceView mGLSurfaceView;
    private Handler mHandler = new Handler(Looper.getMainLooper());

    @Override
    public void onCreate() {
        super.onCreate();
        Log.i(TAG, "onCreate");
    }

    @Override
    public IBinder onBind(Intent intent) {
        Log.i(TAG, "onBind");
        return mBinder;
    }

    @Override
    public void onDestroy() {
        Log.i(TAG, "onDestroy");
        super.onDestroy();
        if (mSurfaceControlViewHost != null) {
            mSurfaceControlViewHost.release();
        }
    }

    private final IRemoteRender.Stub mBinder = new IRemoteRender.Stub() {

        @Override
        public SurfacePackage getSurfacePackage(int displayId, IBinder hostToken, int width, int height) {
            Log.i(TAG, "getSurfacePackage, displayId=" + displayId + ", hostToken=" + hostToken + ", width=" + width + ", height=" + height);
            final SurfacePackage[] result = new SurfaceControlViewHost.SurfacePackage[1];
            final CountDownLatch latch = new CountDownLatch(1);
            mHandler.post( () -> {
                // 創建SurfaceControlViewHost
                Context context = getBaseContext();
                Display display = context.getSystemService(DisplayManager.class).getDisplay(displayId);
                mSurfaceControlViewHost = new SurfaceControlViewHost(context, display, hostToken);
                // 創建要渲染的內容
                mGLSurfaceView = new GLSurfaceView(RemoteGLRenderService.this);
                mGLSurfaceView.setEGLContextClientVersion(3);
                mGLSurfaceView.setLayoutParams(new ViewGroup.LayoutParams(width, height));
                mGLSurfaceView.setRenderer(new MyGLRenderer(RemoteGLRenderService.this));
                // 將視圖附加到SurfaceControlViewHost
                mSurfaceControlViewHost.setView(mGLSurfaceView, width, height);
                result[0] = mSurfaceControlViewHost.getSurfacePackage();
                latch.countDown();
            });

            try {
                latch.await(); // 等待主線程完成操作
                return result[0];
            } catch (InterruptedException e) {
                Log.i(TAG, "getSurfacePackage, e=" + e.getMessage());
            }
            return null;
        }
    };
}

? MyGLRenderer.java

package com.zhyan8.glservice;

import android.opengl.GLES30;
import android.opengl.GLSurfaceView;

import javax.microedition.khronos.egl.EGLConfig;
import javax.microedition.khronos.opengles.GL10;

import android.content.Context;

import java.nio.FloatBuffer;

public class MyGLRenderer implements GLSurfaceView.Renderer {
    private FloatBuffer vertexBuffer;
    private FloatBuffer textureBuffer;
    private MyGLUtils mGLUtils;
    private int mTextureId;
    private int mTimeLocation;
    private long mStartTime = 0L;
    private long mRunTime = 0L;

    public MyGLRenderer(Context context) {
        mGLUtils = new MyGLUtils(context);
        getFloatBuffer();
        mStartTime = System.currentTimeMillis();
    }

    @Override
    public void onSurfaceCreated(GL10 gl, EGLConfig eglConfig) {
        //設置背景顏色
        GLES30.glClearColor(0.1f, 0.2f, 0.3f, 0.4f);
        //編譯著色器
        final int vertexShaderId = mGLUtils.compileShader(GLES30.GL_VERTEX_SHADER, R.raw.vertex_shader);
        final int fragmentShaderId = mGLUtils.compileShader(GLES30.GL_FRAGMENT_SHADER, R.raw.fragment_shader);
        //鏈接程序片段
        int programId = mGLUtils.linkProgram(vertexShaderId, fragmentShaderId);
        GLES30.glUseProgram(programId);
        mTextureId = mGLUtils.loadTexture(R.drawable.girl);
        mTimeLocation = GLES30.glGetUniformLocation(programId, "u_time");
    }

    @Override
    public void onSurfaceChanged(GL10 gl, int width, int height) {
        //設置視圖窗口
        GLES30.glViewport(0, 0, width, height);
    }

    @Override
    public void onDrawFrame(GL10 gl) {
        mRunTime = System.currentTimeMillis() - mStartTime;
        //將顏色緩沖區設置為預設的顏色
        GLES30.glClear(GLES30.GL_COLOR_BUFFER_BIT);
        GLES30.glUniform1f(mTimeLocation, mRunTime / 1000f);
        //啟用頂點的數組句柄
        GLES30.glEnableVertexAttribArray(0);
        GLES30.glEnableVertexAttribArray(1);
        //準備頂點坐標和紋理坐標
        GLES30.glVertexAttribPointer(0, 3, GLES30.GL_FLOAT, false, 0, vertexBuffer);
        GLES30.glVertexAttribPointer(1, 2, GLES30.GL_FLOAT, false, 0, textureBuffer);
        //激活紋理
        GLES30.glActiveTexture(GLES30.GL_TEXTURE);
        //綁定紋理
        GLES30.glBindTexture(GLES30.GL_TEXTURE_2D, mTextureId);
        //繪制貼圖
        GLES30.glDrawArrays(GLES30.GL_TRIANGLE_FAN, 0, 4);
        //禁止頂點數組句柄
        GLES30.glDisableVertexAttribArray(0);
        GLES30.glDisableVertexAttribArray(1);
    }

    private void getFloatBuffer() {
        float[] vertex = new float[] {
                1f, 1f, 0f,     //V0
                -1f, 1f, 0f,    //V1
                -1f, -1f, 0f,   //V2
                1f, -1f, 0f     //V3
        };
        float[] texture = {
                1f, 0f,     //V0
                0f, 0f,     //V1
                0f, 1.0f,   //V2
                1f, 1.0f    //V3
        };
        vertexBuffer = mGLUtils.getFloatBuffer(vertex);
        textureBuffer = mGLUtils.getFloatBuffer(texture);
    }
}

? MyGLUtils.java

package com.zhyan8.glservice;

import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.opengl.GLES30;
import android.opengl.GLUtils;
import android.opengl.Matrix;
import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;

public class MyGLUtils {
    private Context mContext;
    private Bitmap mBitmap;

    public MyGLUtils(Context context) {
        mContext = context;
    }

    public FloatBuffer getFloatBuffer(float[] floatArr) {
        FloatBuffer fb = ByteBuffer.allocateDirect(floatArr.length * Float.BYTES)
                .order(ByteOrder.nativeOrder())
                .asFloatBuffer();
        fb.put(floatArr);
        fb.position(0);
        return fb;
    }

    //通過代碼片段編譯著色器
    public int compileShader(int type, String shaderCode){
        int shader = GLES30.glCreateShader(type);
        GLES30.glShaderSource(shader, shaderCode);
        GLES30.glCompileShader(shader);
        return shader;
    }

    //通過外部資源編譯著色器
    public int compileShader(int type, int shaderId){
        String shaderCode = readShaderFromResource(shaderId);
        return compileShader(type, shaderCode);
    }

    //鏈接到著色器
    public int linkProgram(int vertexShaderId, int fragmentShaderId) {
        final int programId = GLES30.glCreateProgram();
        //將頂點著色器加入到程序
        GLES30.glAttachShader(programId, vertexShaderId);
        //將片元著色器加入到程序
        GLES30.glAttachShader(programId, fragmentShaderId);
        //鏈接著色器程序
        GLES30.glLinkProgram(programId);
        return programId;
    }

    //從shader文件讀出字符串
    private String readShaderFromResource(int shaderId) {
        InputStream is = mContext.getResources().openRawResource(shaderId);
        BufferedReader br = new BufferedReader(new InputStreamReader(is));
        String line;
        StringBuilder sb = new StringBuilder();
        try {
            while ((line = br.readLine()) != null) {
                sb.append(line);
                sb.append("\n");
            }
            br.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        return sb.toString();
    }

    //加載紋理貼圖
    public int loadTexture(int resourceId) {
        BitmapFactory.Options options = new BitmapFactory.Options();
        options.inScaled = false;
        mBitmap = BitmapFactory.decodeResource(mContext.getResources(), resourceId, options);
        final int[] textureIds = new int[1];
        // 生成紋理id
        GLES30.glGenTextures(1, textureIds, 0);
        // 綁定紋理到OpenGL
        GLES30.glBindTexture(GLES30.GL_TEXTURE_2D, textureIds[0]);
        GLES30.glTexParameteri(GLES30.GL_TEXTURE_2D, GLES30.GL_TEXTURE_MIN_FILTER, GLES30.GL_LINEAR_MIPMAP_LINEAR);
        GLES30.glTexParameteri(GLES30.GL_TEXTURE_2D, GLES30.GL_TEXTURE_MAG_FILTER, GLES30.GL_LINEAR);
        // 加載bitmap到紋理中
        GLUtils.texImage2D(GLES30.GL_TEXTURE_2D, 0, mBitmap, 0);
        // 生成MIP貼圖
        GLES30.glGenerateMipmap(GLES30.GL_TEXTURE_2D);
        // 取消綁定紋理
        GLES30.glBindTexture(GLES30.GL_TEXTURE_2D, 0);
        return textureIds[0];
    }
}

? vertex_shader.glsl

attribute vec4 aPosition;
attribute vec2 aTextureCoord;
varying vec2 vTexCoord;

void main() {
     gl_Position = aPosition;
     vTexCoord = aTextureCoord;
}

? fragment_shader.glsl

precision mediump float;
uniform sampler2D uTextureUnit;
varying vec2 vTexCoord;
uniform float u_time;

void main() {
     vec3 color = texture2D(uTextureUnit, vTexCoord).rgb;
     color.x += sin(u_time * 1.3 + 0.4) * 0.2;
     color.y += cos(u_time * 1.7 + 7.1) * 0.2;
     color.z += (sin(u_time) + cos(u_time)) * 0.2;
     gl_FragColor = vec4(color, 1.0);
}

? 運行效果如下。

? 聲明：本文轉自【Android】基于SurfaceControlViewHost實現跨進程渲染。

posted @ 2025-10-05 11:27 little_fat_sheep 閱讀(85) 評論(0) 收藏舉報

刷新頁面返回頂部

little_fat_sheep
