nacos適配達夢數據庫

這是nacos適配達夢數據庫的解決方案,已經在深圳市某政府部門的信創系統環境下穩定運行2年了

點擊這里直接看作者開源的成品
遇到問題可在評論區給我留言
加微信：pky86676022 有償提供技術支持(請說明來意)
從2.2.0版本開始，nacos可通過SPI機制注入多數據源實現插件,并在引入對應數據源實現后,便可在Nacos啟動時通過讀取application.properties配置文件中spring.datasource.platform配置項選擇加載對應多數據源插件。
下面我來演示通過多數據源插件實現nacos適配達夢數據庫

一、準備工作

首先要下載nacos源碼，nacos-plugin源碼，還要準備好達夢數據庫環境。
這里我采用nacos2.3.2的源碼，下載路徑https://github.com/alibaba/nacos/archive/refs/tags/2.3.2.zip
nacos插件源碼，下載路徑https://github.com/pkyit/nacos-plugin/archive/refs/heads/develop.zip

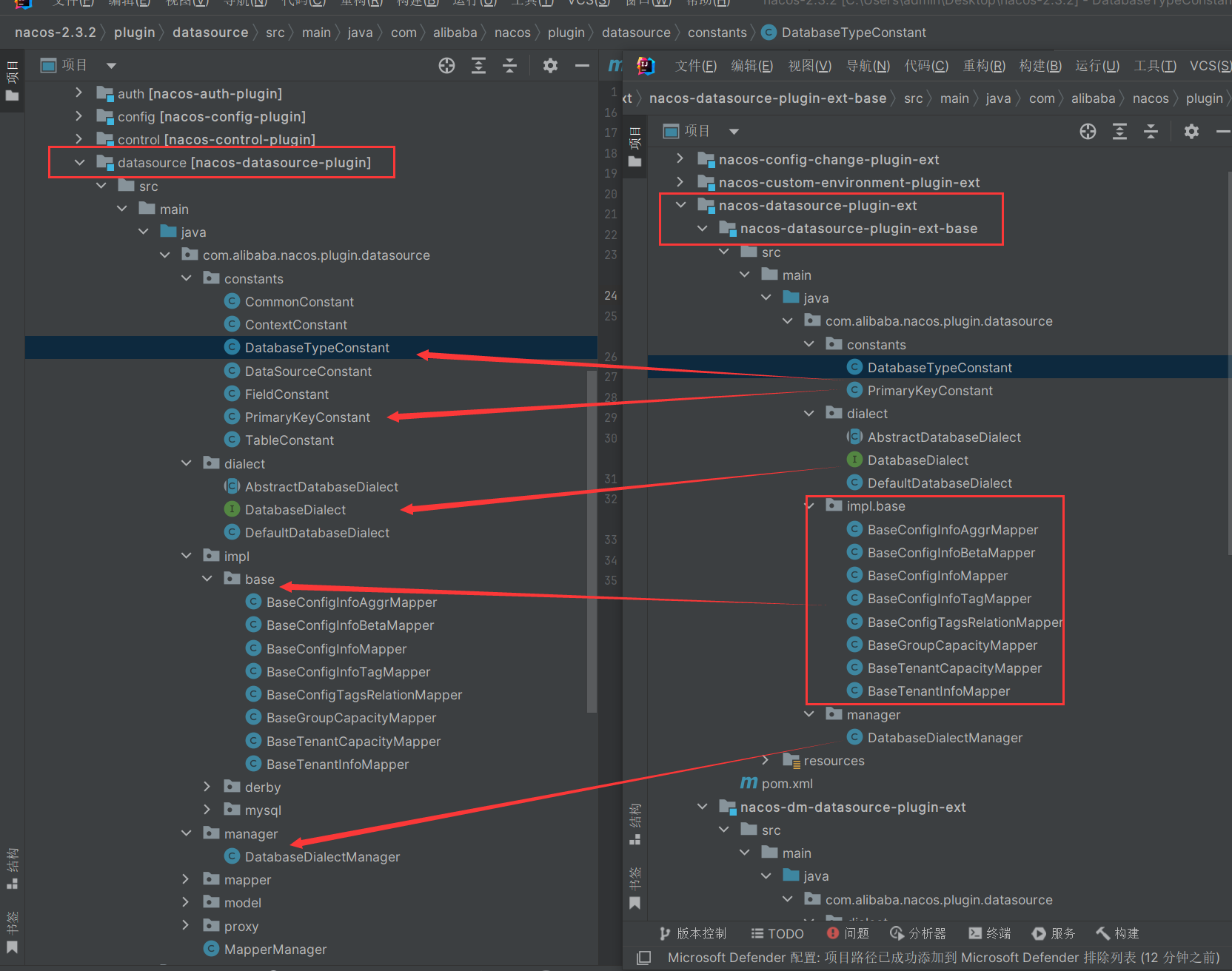

將下載的2個壓縮包解壓縮并用idea打開：

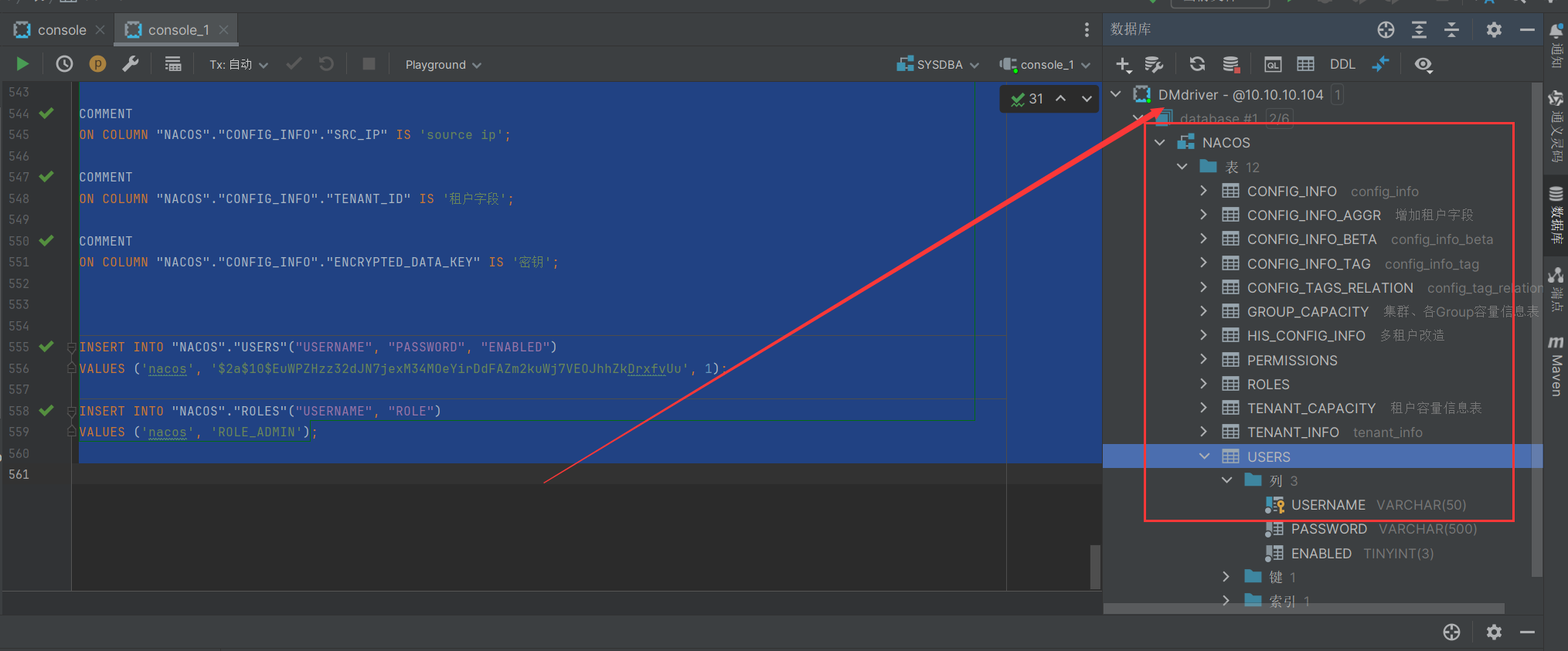

在達夢數據庫中新建一個名叫NACOS的數據庫，然后在NACOS數據庫下創建如下表：(注意最后有個commit提交事務)

CREATE TABLE "NACOS"."USERS"
(
    "USERNAME" VARCHAR(50)  NOT NULL,
    "PASSWORD" VARCHAR(500) NOT NULL,
    "ENABLED"  TINYINT      NOT NULL
);
CREATE TABLE "NACOS"."TENANT_INFO"
(
    "ID"            BIGINT IDENTITY(1,1) NOT NULL,
    "KP"            VARCHAR(128) NOT NULL,
    "TENANT_ID"     VARCHAR(128) DEFAULT ''
        NULL,
    "TENANT_NAME"   VARCHAR(128) DEFAULT ''
        NULL,
    "TENANT_DESC"   VARCHAR(256) NULL,
    "CREATE_SOURCE" VARCHAR(32) NULL,
    "GMT_CREATE"    BIGINT       NOT NULL,
    "GMT_MODIFIED"  BIGINT       NOT NULL
);
CREATE TABLE "NACOS"."TENANT_CAPACITY"
(
    "ID"                BIGINT IDENTITY(1,1) NOT NULL,
    "TENANT_ID"         VARCHAR(128) DEFAULT ''
        NOT NULL,
    "QUOTA"             BIGINT       DEFAULT 0
        NOT NULL,
    "USAGE"             BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_SIZE"          BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_AGGR_COUNT"    BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_AGGR_SIZE"     BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_HISTORY_COUNT" BIGINT       DEFAULT 0
        NOT NULL,
    "GMT_CREATE"        TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
        NOT NULL,
    "GMT_MODIFIED"      TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
        NOT NULL
);
CREATE TABLE "NACOS"."ROLES"
(
    "USERNAME" VARCHAR(50) NOT NULL,
    "ROLE"     VARCHAR(50) NOT NULL
);
CREATE TABLE "NACOS"."PERMISSIONS"
(
    "ROLE"     VARCHAR(50)  NOT NULL,
    "RESOURCE" VARCHAR(255) NOT NULL,
    "ACTION"   VARCHAR(8)   NOT NULL
);
CREATE TABLE "NACOS"."HIS_CONFIG_INFO"
(
    "ID"                 DECIMAL(20, 0) NOT NULL,
    "NID"                BIGINT IDENTITY(1,1) NOT NULL,
    "DATA_ID"            VARCHAR(255)   NOT NULL,
    "GROUP_ID"           VARCHAR(128)   NOT NULL,
    "APP_NAME"           VARCHAR(128) NULL,
    "CONTENT"            CLOB           NOT NULL,
    "MD5"                VARCHAR(32) NULL,
    "GMT_CREATE"         TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                        NOT NULL,
    "GMT_MODIFIED"       TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                        NOT NULL,
    "SRC_USER"           TEXT NULL,
    "SRC_IP"             VARCHAR(50) NULL,
    "OP_TYPE"            CHAR(10) NULL,
    "TENANT_ID"          VARCHAR(128) DEFAULT ''
        NULL,
    "ENCRYPTED_DATA_KEY" TEXT           NOT NULL
);
CREATE TABLE "NACOS"."GROUP_CAPACITY"
(
    "ID"                BIGINT IDENTITY(1,1) NOT NULL,
    "GROUP_ID"          VARCHAR(128) DEFAULT ''
        NOT NULL,
    "QUOTA"             BIGINT       DEFAULT 0
        NOT NULL,
    "USAGE"             BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_SIZE"          BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_AGGR_COUNT"    BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_AGGR_SIZE"     BIGINT       DEFAULT 0
        NOT NULL,
    "MAX_HISTORY_COUNT" BIGINT       DEFAULT 0
        NOT NULL,
    "GMT_CREATE"        TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
        NOT NULL,
    "GMT_MODIFIED"      TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
        NOT NULL
);
CREATE TABLE "NACOS"."CONFIG_TAGS_RELATION"
(
    "ID"        BIGINT       NOT NULL,
    "TAG_NAME"  VARCHAR(128) NOT NULL,
    "TAG_TYPE"  VARCHAR(64) NULL,
    "DATA_ID"   VARCHAR(255) NOT NULL,
    "GROUP_ID"  VARCHAR(128) NOT NULL,
    "TENANT_ID" VARCHAR(128) DEFAULT ''
        NULL,
    "NID"       BIGINT IDENTITY(1,1) NOT NULL
);
CREATE TABLE "NACOS"."CONFIG_INFO_TAG"
(
    "ID"           BIGINT IDENTITY(1,1) NOT NULL,
    "DATA_ID"      VARCHAR(255) NOT NULL,
    "GROUP_ID"     VARCHAR(128) NOT NULL,
    "TENANT_ID"    VARCHAR(128) DEFAULT ''
        NULL,
    "TAG_ID"       VARCHAR(128) NOT NULL,
    "APP_NAME"     VARCHAR(128) NULL,
    "CONTENT"      CLOB         NOT NULL,
    "MD5"          VARCHAR(32) NULL,
    "GMT_CREATE"   TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                NOT NULL,
    "GMT_MODIFIED" TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                NOT NULL,
    "SRC_USER"     TEXT NULL,
    "SRC_IP"       VARCHAR(50) NULL
);
CREATE TABLE "NACOS"."CONFIG_INFO_BETA"
(
    "ID"                 BIGINT IDENTITY(1,1) NOT NULL,
    "DATA_ID"            VARCHAR(255) NOT NULL,
    "GROUP_ID"           VARCHAR(128) NOT NULL,
    "APP_NAME"           VARCHAR(128) NULL,
    "CONTENT"            CLOB         NOT NULL,
    "BETA_IPS"           VARCHAR(1024) NULL,
    "MD5"                VARCHAR(32) NULL,
    "GMT_CREATE"         TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                      NOT NULL,
    "GMT_MODIFIED"       TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                      NOT NULL,
    "SRC_USER"           TEXT NULL,
    "SRC_IP"             VARCHAR(50) NULL,
    "TENANT_ID"          VARCHAR(128) DEFAULT ''
        NULL,
    "ENCRYPTED_DATA_KEY" TEXT         NOT NULL
);
CREATE TABLE "NACOS"."CONFIG_INFO_AGGR"
(
    "ID"           BIGINT IDENTITY(1,1) NOT NULL,
    "DATA_ID"      VARCHAR(255) NOT NULL,
    "GROUP_ID"     VARCHAR(128) NOT NULL,
    "DATUM_ID"     VARCHAR(255) NOT NULL,
    "CONTENT"      CLOB         NOT NULL,
    "GMT_MODIFIED" TIMESTAMP(0) NOT NULL,
    "APP_NAME"     VARCHAR(128) NULL,
    "TENANT_ID"    VARCHAR(128) DEFAULT ''
        NULL
);
CREATE TABLE "NACOS"."CONFIG_INFO"
(
    "ID"                 BIGINT IDENTITY(1,1) NOT NULL,
    "DATA_ID"            VARCHAR(255) NOT NULL,
    "GROUP_ID"           VARCHAR(128) NULL,
    "CONTENT"            CLOB         NOT NULL,
    "MD5"                VARCHAR(32) NULL,
    "GMT_CREATE"         TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                      NOT NULL,
    "GMT_MODIFIED"       TIMESTAMP(0) DEFAULT CURRENT_TIMESTAMP()
                                      NOT NULL,
    "SRC_USER"           TEXT NULL,
    "SRC_IP"             VARCHAR(50) NULL,
    "APP_NAME"           VARCHAR(128) NULL,
    "TENANT_ID"          VARCHAR(128) DEFAULT ''
        NULL,
    "C_DESC"             VARCHAR(256) NULL,
    "C_USE"              VARCHAR(64) NULL,
    "EFFECT"             VARCHAR(64) NULL,
    "TYPE"               VARCHAR(64) NULL,
    "C_SCHEMA"           TEXT NULL,
    "ENCRYPTED_DATA_KEY" TEXT         NOT NULL
);
ALTER TABLE "NACOS"."USERS"
    ADD CONSTRAINT PRIMARY KEY ("USERNAME");

ALTER TABLE "NACOS"."TENANT_INFO"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."TENANT_INFO"
    ADD CONSTRAINT "UK_TENANT_INFO_KPTENANTID" UNIQUE ("KP", "TENANT_ID");

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CONSTRAINT "UK_TENANT_ID" UNIQUE ("TENANT_ID");

ALTER TABLE "NACOS"."ROLES"
    ADD CONSTRAINT "IDX_USER_ROLE" UNIQUE ("USERNAME", "ROLE");

ALTER TABLE "NACOS"."PERMISSIONS"
    ADD CONSTRAINT "UK_ROLE_PERMISSION" UNIQUE ("ROLE", "RESOURCE", "ACTION");

ALTER TABLE "NACOS"."HIS_CONFIG_INFO"
    ADD CONSTRAINT PRIMARY KEY ("NID");

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CONSTRAINT "UK_GROUP_ID" UNIQUE ("GROUP_ID");

ALTER TABLE "NACOS"."CONFIG_TAGS_RELATION"
    ADD CONSTRAINT PRIMARY KEY ("NID");

ALTER TABLE "NACOS"."CONFIG_TAGS_RELATION"
    ADD CONSTRAINT "UK_CONFIGTAGRELATION_CONFIGIDTAG" UNIQUE ("ID", "TAG_NAME", "TAG_TYPE");

ALTER TABLE "NACOS"."CONFIG_INFO_TAG"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."CONFIG_INFO_TAG"
    ADD CONSTRAINT "UK_CONFIGINFOTAG_DATAGROUPTENANTTAG" UNIQUE ("DATA_ID", "GROUP_ID", "TENANT_ID", "TAG_ID");

ALTER TABLE "NACOS"."CONFIG_INFO_BETA"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."CONFIG_INFO_BETA"
    ADD CONSTRAINT "UK_CONFIGINFOBETA_DATAGROUPTENANT" UNIQUE ("DATA_ID", "GROUP_ID", "TENANT_ID");

ALTER TABLE "NACOS"."CONFIG_INFO_AGGR"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."CONFIG_INFO_AGGR"
    ADD CONSTRAINT "UK_CONFIGINFOAGGR_DATAGROUPTENANTDATUM" UNIQUE ("DATA_ID", "GROUP_ID", "TENANT_ID", "DATUM_ID");

ALTER TABLE "NACOS"."CONFIG_INFO"
    ADD CONSTRAINT PRIMARY KEY ("ID");

ALTER TABLE "NACOS"."CONFIG_INFO"
    ADD CONSTRAINT "UK_CONFIGINFO_DATAGROUPTENANT" UNIQUE ("DATA_ID", "GROUP_ID", "TENANT_ID");

CREATE INDEX "IDX_TENANT_ID"
    ON "NACOS"."TENANT_INFO" ("TENANT_ID");

COMMENT
ON TABLE "NACOS"."TENANT_INFO" IS 'tenant_info';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."KP" IS 'kp';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."TENANT_ID" IS 'tenant_id';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."TENANT_NAME" IS 'tenant_name';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."TENANT_DESC" IS 'tenant_desc';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."CREATE_SOURCE" IS 'create_source';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."TENANT_INFO"."GMT_MODIFIED" IS '修改時間';

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("QUOTA" >= 0) ENABLE;

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("MAX_HISTORY_COUNT" >= 0) ENABLE;

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("MAX_AGGR_SIZE" >= 0) ENABLE;

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("MAX_AGGR_COUNT" >= 0) ENABLE;

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("MAX_SIZE" >= 0) ENABLE;

ALTER TABLE "NACOS"."TENANT_CAPACITY"
    ADD CHECK ("USAGE" >= 0) ENABLE;

COMMENT
ON TABLE "NACOS"."TENANT_CAPACITY" IS '租戶容量信息表';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."ID" IS '主鍵ID';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."TENANT_ID" IS 'Tenant ID';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."QUOTA" IS '配額，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."USAGE" IS '使用量';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."MAX_SIZE" IS '單個配置大小上限，單位為字節，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."MAX_AGGR_COUNT" IS '聚合子配置最大個數';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."MAX_AGGR_SIZE" IS '單個聚合數據的子配置大小上限，單位為字節，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."MAX_HISTORY_COUNT" IS '最大變更歷史數量';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."TENANT_CAPACITY"."GMT_MODIFIED" IS '修改時間';

ALTER TABLE "NACOS"."HIS_CONFIG_INFO"
    ADD CHECK ("ID" >= 0) ENABLE;

CREATE INDEX "IDX_GMT_MODIFIED"
    ON "NACOS"."HIS_CONFIG_INFO" ("GMT_MODIFIED");

CREATE INDEX "IDX_GMT_CREATE"
    ON "NACOS"."HIS_CONFIG_INFO" ("GMT_CREATE");

CREATE INDEX "IDX_DID"
    ON "NACOS"."HIS_CONFIG_INFO" ("DATA_ID");

COMMENT
ON TABLE "NACOS"."HIS_CONFIG_INFO" IS '多租戶改造';

COMMENT
ON COLUMN "NACOS"."HIS_CONFIG_INFO"."APP_NAME" IS 'app_name';

COMMENT
ON COLUMN "NACOS"."HIS_CONFIG_INFO"."TENANT_ID" IS '租戶字段';

COMMENT
ON COLUMN "NACOS"."HIS_CONFIG_INFO"."ENCRYPTED_DATA_KEY" IS '密鑰';

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("QUOTA" >= 0) ENABLE;

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("MAX_HISTORY_COUNT" >= 0) ENABLE;

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("MAX_AGGR_SIZE" >= 0) ENABLE;

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("MAX_AGGR_COUNT" >= 0) ENABLE;

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("MAX_SIZE" >= 0) ENABLE;

ALTER TABLE "NACOS"."GROUP_CAPACITY"
    ADD CHECK ("USAGE" >= 0) ENABLE;

COMMENT
ON TABLE "NACOS"."GROUP_CAPACITY" IS '集群、各Group容量信息表';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."ID" IS '主鍵ID';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."GROUP_ID" IS 'Group ID，空字符表示整個集群';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."QUOTA" IS '配額，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."USAGE" IS '使用量';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."MAX_SIZE" IS '單個配置大小上限，單位為字節，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."MAX_AGGR_COUNT" IS '聚合子配置最大個數，，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."MAX_AGGR_SIZE" IS '單個聚合數據的子配置大小上限，單位為字節，0表示使用默認值';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."MAX_HISTORY_COUNT" IS '最大變更歷史數量';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."GROUP_CAPACITY"."GMT_MODIFIED" IS '修改時間';

COMMENT
ON TABLE "NACOS"."CONFIG_TAGS_RELATION" IS 'config_tag_relation';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."TAG_NAME" IS 'tag_name';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."TAG_TYPE" IS 'tag_type';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."DATA_ID" IS 'data_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."GROUP_ID" IS 'group_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_TAGS_RELATION"."TENANT_ID" IS 'tenant_id';

COMMENT
ON TABLE "NACOS"."CONFIG_INFO_TAG" IS 'config_info_tag';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."DATA_ID" IS 'data_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."GROUP_ID" IS 'group_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."TENANT_ID" IS 'tenant_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."TAG_ID" IS 'tag_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."APP_NAME" IS 'app_name';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."CONTENT" IS 'content';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."MD5" IS 'md5';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."GMT_MODIFIED" IS '修改時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."SRC_USER" IS 'source user';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_TAG"."SRC_IP" IS 'source ip';

COMMENT
ON TABLE "NACOS"."CONFIG_INFO_BETA" IS 'config_info_beta';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."DATA_ID" IS 'data_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."GROUP_ID" IS 'group_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."APP_NAME" IS 'app_name';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."CONTENT" IS 'content';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."BETA_IPS" IS 'betaIps';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."MD5" IS 'md5';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."GMT_MODIFIED" IS '修改時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."SRC_USER" IS 'source user';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."SRC_IP" IS 'source ip';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."TENANT_ID" IS '租戶字段';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_BETA"."ENCRYPTED_DATA_KEY" IS '密鑰';

COMMENT
ON TABLE "NACOS"."CONFIG_INFO_AGGR" IS '增加租戶字段';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."DATA_ID" IS 'data_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."GROUP_ID" IS 'group_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."DATUM_ID" IS 'datum_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."CONTENT" IS '內容';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."GMT_MODIFIED" IS '修改時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO_AGGR"."TENANT_ID" IS '租戶字段';

COMMENT
ON TABLE "NACOS"."CONFIG_INFO" IS 'config_info';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."ID" IS 'id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."DATA_ID" IS 'data_id';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."CONTENT" IS 'content';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."MD5" IS 'md5';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."GMT_CREATE" IS '創建時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."GMT_MODIFIED" IS '修改時間';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."SRC_USER" IS 'source user';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."SRC_IP" IS 'source ip';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."TENANT_ID" IS '租戶字段';

COMMENT
ON COLUMN "NACOS"."CONFIG_INFO"."ENCRYPTED_DATA_KEY" IS '密鑰';



INSERT INTO "NACOS"."USERS"("USERNAME", "PASSWORD", "ENABLED")
VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', 1);

INSERT INTO "NACOS"."ROLES"("USERNAME", "ROLE")
VALUES ('nacos', 'ROLE_ADMIN');

commit;

二、實現步驟

2.1 nacos源碼中引入達夢8數據庫的驅動包

建議使用達夢數據庫自帶的驅動,達夢數據庫安裝目錄下drivers/jdbc下的驅動，否則可能會出現驅動版本不兼容的問題（讀取超長CLOB，TEXT）
在naming模塊和console模塊的resources目錄下新建lib目錄，把DmJdbcDriver18.jar包拷貝進去，自行找一個合適的驅動jar包。
分別在naming模塊和console模塊的pom.xml下新增依賴項：

  <dependency>
            <groupId>com.dameng</groupId>
            <artifactId>DmJdbcDriver18</artifactId>
            <version>8.1.3.140</version>
        </dependency>

2.2 修改nacos源碼

（1）.把下載的nacos-plugin-develop中的nacos-datasource-plugin-ext模塊下的nacos-datasource-plugin-ext-base中的源碼依次拷貝進入nacos-2.3.2中的datasource模塊下，注意路徑。如圖所示：

（2）.把下載的nacos-plugin-develop中的nacos-datasource-plugin-ext模塊下的nacos-dm-datasource-plugin-ext中的源碼依次拷貝進入nacos-2.3.2中的datasource模塊下，注意路徑。
注意不要拷貝src/main/resources/META-INF/services/com.alibaba.nacos.plugin.datasource.mapper.Mapper這個文件，防止覆蓋，等下我們要自己新增一些內容。

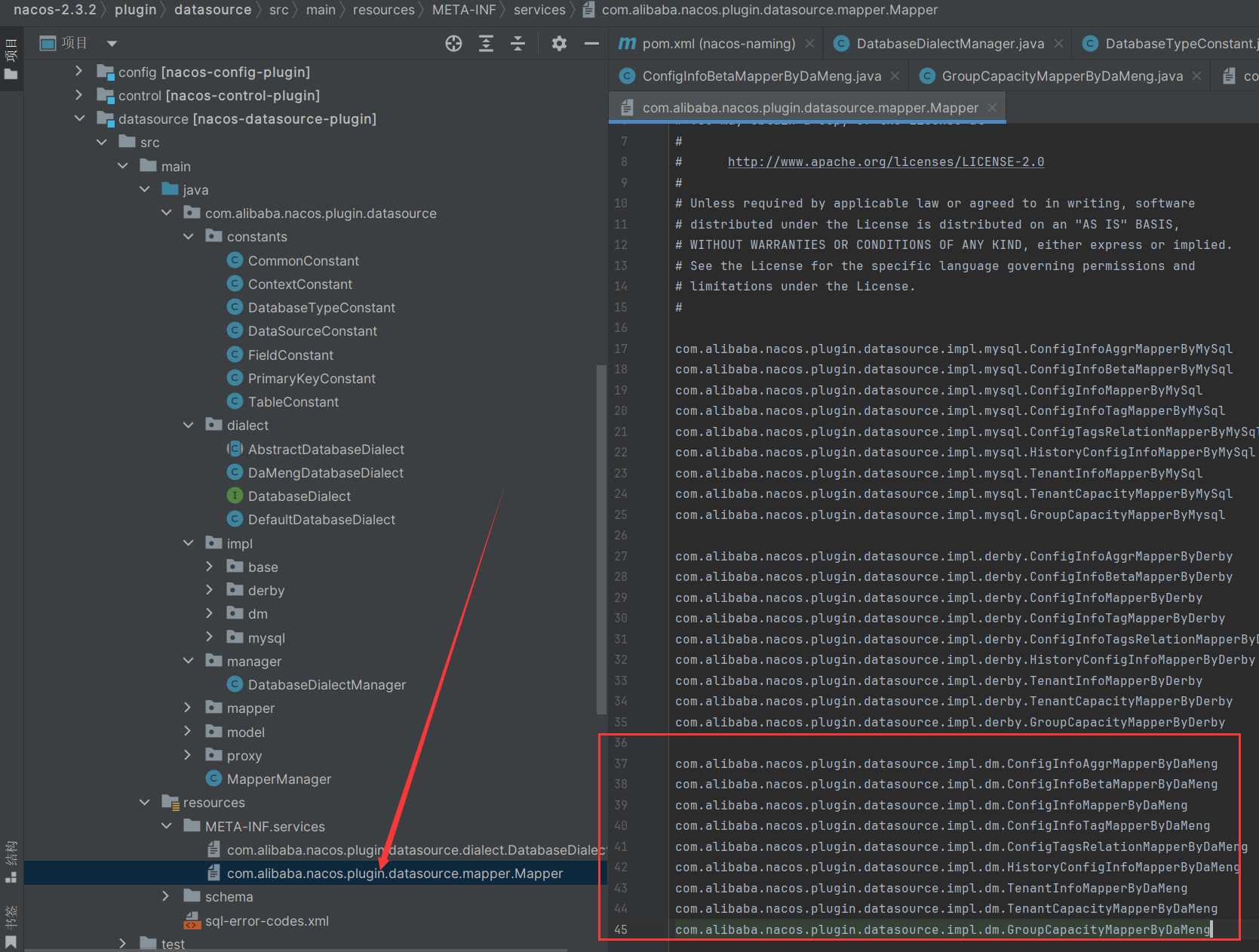

（3）.修改nacos-2.3.2\plugin\datasource\src\main\resources\META-INF\services\com.alibaba.nacos.plugin.datasource.mapper.Mapper的這個文件，在最下面新增如下：

com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoAggrMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoBetaMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigInfoTagMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.ConfigTagsRelationMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.HistoryConfigInfoMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.TenantInfoMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.TenantCapacityMapperByDaMeng
com.alibaba.nacos.plugin.datasource.impl.dm.GroupCapacityMapperByDaMeng

2.3 編譯打包

在終端打開nacos-2.3.2，運行如下命令：

mvn -Prelease-nacos -Dmaven.test.skip=true -Dpmd.skip=true -Drat.skip=true -Dcheckstyle.skip=true clean install -U

如果構建成功，則在distribution模塊下有生成的nacos包：

三、運行驗證

把nacos-server-2.3.2.zip取出解壓縮，修改conf目錄下的application.properties配置文件：

### Default web context path:
server.servlet.contextPath=/nacos
### Include message field
server.error.include-message=ALWAYS
### Default web server port:
server.port=8848

### Count of DB:
db.num=1

### Connect URL of DB:
spring.sql.init.platform=dm
db.url.0=jdbc:dm://10.10.10.104:5236?schema=NACOS
db.user.0=SYSDBA
db.password.0=SYSDBA001
db.pool.config.driverClassName=dm.jdbc.driver.DmDriver

### Connection pool configuration: hikariCP
db.pool.config.connectionTimeout=30000
db.pool.config.validationTimeout=10000
db.pool.config.maximumPoolSize=20
db.pool.config.minimumIdle=2

### the maximum retry times for push
nacos.config.push.maxRetryTime=50

#***********Metrics for tomcat **************************#
server.tomcat.mbeanregistry.enabled=true

#***********Expose prometheus and health **************************#
#management.endpoints.web.exposure.include=prometheus,health

### Metrics for elastic search
management.metrics.export.elastic.enabled=false
#management.metrics.export.elastic.host=http://localhost:9200

### Metrics for influx
management.metrics.export.influx.enabled=false

#*************** Access Log Related Configurations ***************#
### If turn on the access log:
server.tomcat.accesslog.enabled=true

### file name pattern, one file per hour
server.tomcat.accesslog.rotate=true
server.tomcat.accesslog.file-date-format=.yyyy-MM-dd-HH
### The access log pattern:
server.tomcat.accesslog.pattern=%h %l %u %t "%r" %s %b %D %{User-Agent}i %{Request-Source}i

### The directory of access log:
server.tomcat.basedir=file:.

#*************** Access Control Related Configurations ***************#
### If enable spring security, this option is deprecated in 1.2.0:
#spring.security.enabled=false

### The ignore urls of auth
nacos.security.ignore.urls=/,/error,/**/*.css,/**/*.js,/**/*.html,/**/*.map,/**/*.svg,/**/*.png,/**/*.ico,/console-ui/public/**,/v1/auth/**,/v1/console/health/**,/actuator/**,/v1/console/server/**

### The auth system to use, currently only 'nacos' and 'ldap' is supported:
nacos.core.auth.system.type=nacos

### If turn on auth system:
nacos.core.auth.enabled=true

### Turn on/off caching of auth information. By turning on this switch, the update of auth information would have a 15 seconds delay.
nacos.core.auth.caching.enabled=true

### Since 1.4.1, Turn on/off white auth for user-agent: nacos-server, only for upgrade from old version.
nacos.core.auth.enable.userAgentAuthWhite=false

### Since 1.4.1, worked when nacos.core.auth.enabled=true and nacos.core.auth.enable.userAgentAuthWhite=false.
### The two properties is the white list for auth and used by identity the request from other server.
nacos.core.auth.server.identity.key=nacos
nacos.core.auth.server.identity.value=nacos

### worked when nacos.core.auth.system.type=nacos
### The token expiration in seconds:
nacos.core.auth.plugin.nacos.token.cache.enable=false
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
### The default token (Base64 String):
nacos.core.auth.plugin.nacos.token.secret.key=SecretKey012345678901234567890123456789012345678901234567890123456789

nacos.istio.mcp.server.enabled=false

具體的配置規則參考官網：https://nacos.io/docs/latest/concepts/
在bin目錄下運行cmd，輸入startup.cmd -m standalone

訪問localhost:8848/nacos

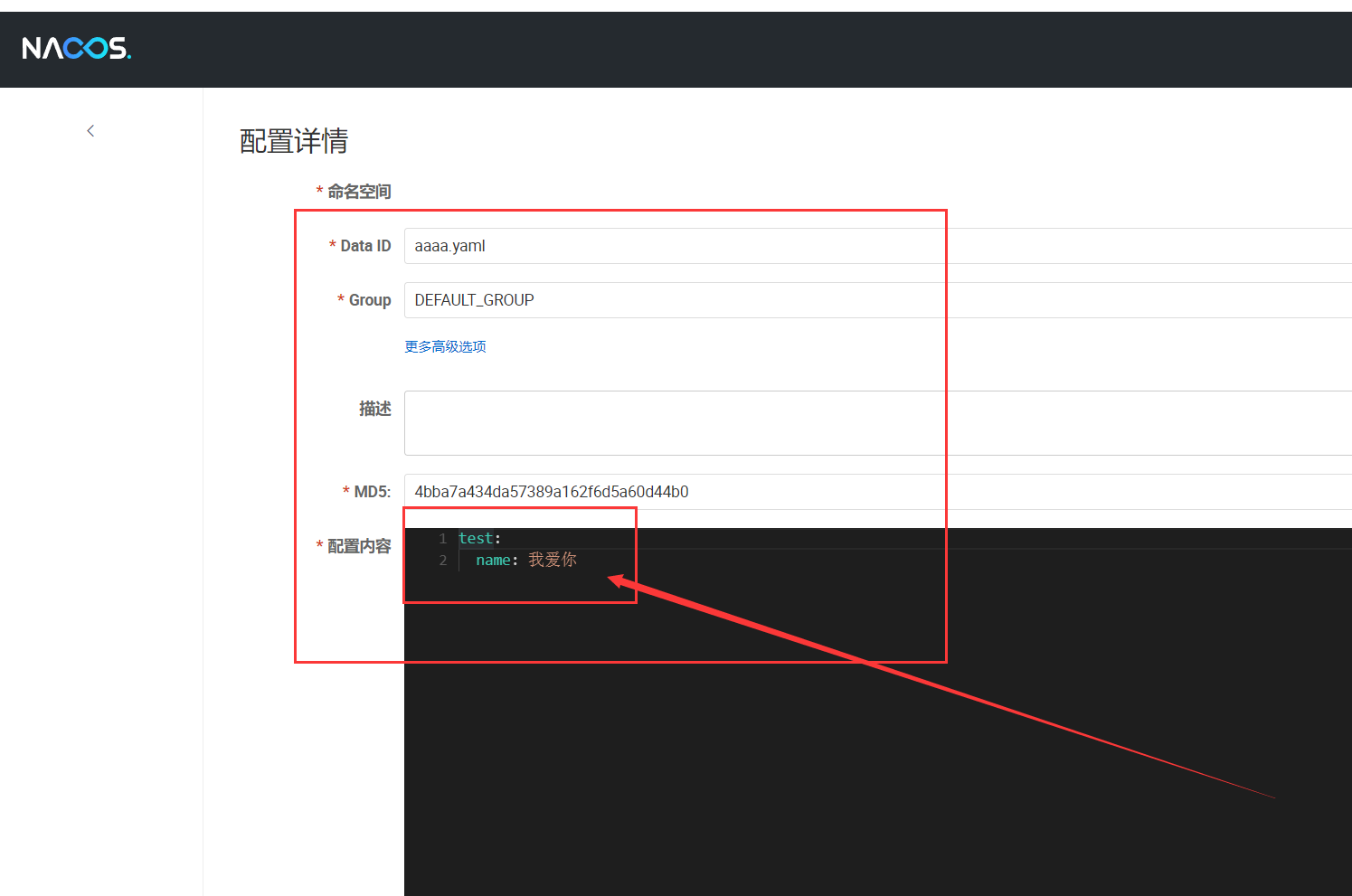

新增一些配置文件，在達夢數據庫的NACOS.CONFIG——INFO表中看到如下：

也可以創建一個簡單的spring cloud的demo來實驗注冊中心和配置中心：

如上圖，springcloud-demo已經成功注冊到nacos，并且能讀出nacos中的配置文件的值，說明此達夢數據庫版nacos可用。
至此nacos適配達夢數據庫成功！

四、福利（直接看這里可以拿到已經做好的成品）

2025-7-12 新版本的nacos2.4.3達夢版在這里： https://gitee.com/pengkaiyan/nacos-dm

我這里已經把弄好的源碼發布在了github上，需要的話可以下載直接運行mvn編譯就好了
https://github.com/pkyit/nacos-2.3.2
點擊這里下載源碼和nacos達夢版壓縮包
如果不想編譯也可以直接用我已經構建好的nacos,解壓縮就可以使用了。
點擊這里免費下載達夢版nacos-2.3.2.tar.gz
https://github.com/pkyit/nacos-2.3.2/releases/download/v2.3.2/nacos-server-2.3.2.tar.gz
docker版的也有哦，請看這里(arm64和amd64) 點這里看docker的nacos-dm8
docker pull pkyit/nacos:2.3.2-dm8
參考：https://github.com/nacos-group/nacos-plugin
參考：https://github.com/alibaba/nacos
參考：https://nacos.io/
參考：https://blog.csdn.net/zhuyangyong/article/details/136215650
參考：https://blog.csdn.net/weixin_45726578/article/details/129835862
如果我的文章對您有幫助，還請您多多支持我。支付寶幫忙掃一下吧

posted on 2025-07-28 10:47 彭狗頭閱讀(484) 評論(1) 收藏舉報

刷新頁面返回頂部
