基于CentOS7安裝Openstack （Train版）
安裝參考：https://docs.openstack.org/zh_CN/install-guide/
| 角色 | 配置 | IP | |
|---|---|---|---|
| 控制節點（controller） | CPU 4+ MEM 6G+ DISK 50G+ |
172.173.10.110 (管理網) 10.1.1.10 (外部網絡) |
|
| 計算節點（compute） | CPU 4+ MEM 6G+ DISK 50G+ |
172.173.10.111 (管理網) 10.1.1.11 (外部網絡) |
|
| 存儲節點（cinder） | CPU 4+ MEM 6G+ DISK1 50G+ DISK2 50G+ |
172.173.10.112 (管理網) |
一、環境初始化
1.1 配置靜態IP并禁用NetworkManager
# 略過配置ip
systemctl disable NetworkManager --now
1.2 主機名解析
cat <<EOF>> /etc/hosts
172.173.10.110 controller
172.173.10.111 compute
172.173.10.112 cinder
EOF
1.3 關閉防火墻和selinux
systemctl disable firewalld --now && setenforce 0 && sed -i 's/^SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
1.4 配置時間同步
sed -i '/^server [0-3]\.centos\.pool\.ntp\.org iburst/d' /etc/chrony.conf
sed -i '3i server ntp.aliyun.com iburst' /etc/chrony.conf
systemctl restart chronyd && systemctl enable chronyd
1.5 配置yum源
rm -rf /etc/yum.repos.d/*
curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.huaweicloud.com/repository/conf/CentOS-7-anon.repo
cat <<EOF> /etc/yum.repos.d/CentOS-OpenStack-train.repo
[openstack-train]
name=openstack-train
baseurl=https://mirrors.huaweicloud.com/centos-vault/7.9.2009/cloud/x86_64/openstack-train/
gpgcheck=0
enabled=1
[qumu-kvm]
name=qume-kvm
baseurl=https://mirrors.huaweicloud.com/centos-vault/7.9.2009/virt/x86_64/kvm-common/
gpgcheck=0
enabled=1
EOF
yum clean all && yum makecache
二、安裝
2.1 所有節點安裝openstack基礎工具
yum install -y python-openstackclient
2.2 計算節點安裝基本軟件包
[root@compute ~]# yum install qemu-kvm libvirt bridge-utils -y
[root@compute ~]# ln -sv /usr/libexec/qemu-kvm /usr/bin/
三、安裝支撐性服務
3.1 數據庫
在控制節點安裝mariadb(也可以安裝單獨的節點,甚至安裝數據庫集 群)
yum install mariadb mariadb-server python2-PyMySQL -y
增加子配置文件：
cat >/etc/my.cnf.d/openstack.cnf<<'EOF'
[mysqld]
bind-address = 0.0.0.0
default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
EOF
啟動數據庫
systemctl enable mariadb --now
安裝初始化
mysql_secure_installation
root密碼建議就先不設置，他只允許本地登錄
3.2 消息隊列
消息隊列rabbitmq的目的:
? ·組件之間相互通訊的工具
? ·異步方式信息同步
1.在控制節點安裝rabbitmq：
yum install erlang socat rabbitmq-server -y
2.啟動服務：
systemctl enable rabbitmq-server --now
3.創建openstack并授權：
rabbitmqctl add_user openstack guojie.com
rabbitmqctl set_user_tags openstack administrator
rabbitmqctl set_permissions openstack ".*" ".*" ".*"
3.3 memcache部署
memcache作用:
? ·memcached緩存openstack各類服務的驗證的token令牌。
1.在控制節點安裝相關軟件包
yum install memcached python-memcached -y
2.配置memcached監聽
sed -i 's#127.0.0.1#0.0.0.0#g' /etc/sysconfig/memcached
3.啟動
systemctl enable memcached --now
四、安裝認證服務keystone
4.1 配置數據庫
在安裝和配置身份服務之前，您必須創建一個數據庫
1.使用數據庫訪問客戶端以root用戶身份連接到數據庫服務器:
mysql -u root -p
2.創建keystone數據庫:
CREATE DATABASE keystone;
GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%' IDENTIFIED BY 'guojie.com';
FLUSH PRIVILEGES;
QUIT;
4.2 安裝keystone組件
在控制節點安裝keystone相關軟件
1.運行以下命令安裝包:
yum install -y openstack-keystone httpd mod_wsgi
keystone基于httpd啟動
httpd需要mod_wsgi模塊才能運行python開發的程序
2.編輯/etc/keystone/keystone.conf 文件并完成以下操作:
配置：
cp /etc/keystone/keystone.conf{,.bak}
grep -Ev '^$|#' /etc/keystone/keystone.conf.bak > /etc/keystone/keystone.conf
sed -i '/^\[database\]/a connection = mysql+pymysql://keystone:guojie.com@controller/keystone' /etc/keystone/keystone.conf
sed -i '/^\[token\]/a provider = fernet' /etc/keystone/keystone.conf
sed -i '/^\[DEFAULT\]/a transport_url = rabbit://openstack:guojie.com@controller:5672' /etc/keystone/keystone.conf
sed -i '/^\[DEFAULT\]/a log_file = /var/log/keystone/keystone.log' /etc/keystone/keystone.conf
3.初始化數據庫
su -s /bin/sh -c "keystone-manage db_sync" keystone
4.初始化Fernet密鑰存儲庫：
keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
keystone-manage credential_setup --keystone-user keystone --keystone-group keystone
5.引導身份服務:
keystone-manage bootstrap --bootstrap-password guojie.com \
--bootstrap-admin-url http://controller:35357/v3/ \
--bootstrap-internal-url http://controller:5000/v3/ \
--bootstrap-public-url http://controller:5000/v3/ \
--bootstrap-region-id RegionOne
guojie.com是我設置的openstack的管理員密碼。
4.3 配置Apache HTTP服務器
1.編輯/etc/httpd/conf/httpd.conf文件，將ServerName選項配置為引用控制器節點:
sed -i 's/^#ServerName www.example.com:80/ServerName controller:80/' /etc/httpd/conf/httpd.conf
ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/
2.啟動服務
systemctl enable httpd --now
4.4 創建domain,project,user和role
1.配置管理賬戶
cat << EOF > ~/.admin-openrc
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=guojie.com
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
EOF
2.依次創建domain, projects, users, roles，需要先安裝好python3-openstackclient：
yum -y install python-openstackclient
3.導入環境變量
source ~/.admin-openrc
創建project service，其中 domain default 在 keystone-manage bootstrap 時已創建
openstack domain create --description "An Example Domain" example
openstack project create --domain default --description "Service Project" service
五、鏡像服務glance
鏡像服務使用戶能夠發現、注冊和檢索虛擬機映像。它提供了一個RESTAPI，允許您查詢虛擬機映像元數據并檢索實際映像。
您可以將通過鏡像服務提供的虛擬機映像存儲在各種位置，從簡單的文件系統到對象存儲系統，如 Openstack 對象存儲。
參考文檔：OpenStack Docs: Install and configure (Red Hat)
5.1 配置數據庫
在安裝和配置 lmage 服務之前，您必須創建數據庫、服務憑證和 API終端節點。
1.要創建數據庫，請完成以下步驟:
使用數據庫訪問客戶端以root用戶身份連接到數據庫服務器:
mysql -uroot -p
創建glance數據庫
CREATE DATABASE glance;
GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'localhost' IDENTIFIED BY 'guojie.com';
GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'%' IDENTIFIED BY 'guojie.com';
FLUSH PRIVILEGES;
QUIT;
5.2 權限配置
1.創建用戶
source .admin-openrc
openstack user create --domain default --password guojie.com glance
openstack role add --project service --user glance admin
3.創建 glance服務
openstack service create --name glance --description "OpenStack Image" image
4.創建glance服務的API的endpoint(url訪問)
openstack endpoint create --region RegionOne image public http://controller:9292
openstack endpoint create --region RegionOne image internal http://controller:9292
openstack endpoint create --region RegionOne image admin http://controller:9292
5.3 glance安裝與配置
1.安裝：
yum -y install openstack-glance
2.備份配置文件：
cp /etc/glance/glance-api.conf{,.bak}
grep -Ev '^#|^$' /etc/glance/glance-api.conf.bak > /etc/glance/glance-api.conf
vim /etc/glance/glance-api.conf
[DEFAULT]
log_file = /var/log/glance/glance-api.log
[database]
connection = mysql+pymysql://glance:guojie.com@controller/glance
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = guojie.com
[paste_deploy]
flavor = keystone
完整配置：
[root@controller ~]# cat /etc/glance/glance-api.conf
[DEFAULT]
log_file = /var/log/glance/glance-api.log
[cinder]
[cors]
[database]
connection = mysql+pymysql://glance:guojie.com@controller/glance
[file]
[glance.store.http.store]
[glance.store.rbd.store]
[glance.store.sheepdog.store]
[glance.store.swift.store]
[glance.store.vmware_datastore.store]
[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
[image_format]
[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = guojie.com
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[paste_deploy]
flavor = keystone
[profiler]
[store_type_location_strategy]
[task]
[taskflow_executor]
導入數據
su -s /bin/sh -c "glance-manage db_sync" glance
5.4 啟動服務
systemctl enable openstack-glance-api --now
5.5 驗證
1.下載測試鏡像
wget http://download.cirros-cloud.net/0.3.5/cirros-0.3.5-x86_64-disk.img
2.上傳鏡像
openstack image create --disk-format qcow2 --container-format bare --file cirros-0.4.0-x86_64-disk.img --public cirros
public表示所有項目可用
3.驗證鏡像是否上傳
[root@controller ~]# openstack image list
+--------------------------------------+--------+--------+
| ID | Name | Status |
+--------------------------------------+--------+--------+
| 03a823ea-6883-4a4b-9629-1b4839f0644a | cirros | active |
+--------------------------------------+--------+--------+
六、計算組件nova
參考：OpenStack Docs: Install and configure controller node for Red Hat Enterprise Linux and CentOS
6.1 nova控制節點部署
6.1 .1 配置數據庫
[root@controller ~]# mysql -uroot -p
創建 nova_api, nova, nova_cell0數據庫:
MariaDB [(none)]> CREATE DATABASE nova_api;
MariaDB [(none)]> CREATE DATABASE nova;
MariaDB [(none)]> CREATE DATABASE nova_cell0;
數據庫授權給用戶：
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' IDENTIFIED BY 'guojie.com';
# 刷新授權
MariaDB [(none)]> FLUSH PRIVILEGES;
MariaDB [(none)]> QUIT;
驗證：
[root@controller ~]# mysql -h controller -u nova -pguojie.com -e 'show databases'
+--------------------+
| Database |
+--------------------+
| information_schema |
| nova |
| nova_api |
| nova_cell0 |
+--------------------+
6.1.2 權限配置
獲取管理員憑據以訪問僅管理員的CLI命令:
[root@controller ~]# source admin-openrc.sh
1.創建nova用戶：
[root@controller ~]# openstack user create --domain default --password guojie.com nova
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | 31f7b758bfe64f16b47d3f934b8ff94b |
| name | nova |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
# 驗證
[root@controller ~]# openstack user list
+----------------------------------+--------+
| ID | Name |
+----------------------------------+--------+
| 281ca4a010a44d56bc3ad29ccadf15d8 | glance |
| 31f7b758bfe64f16b47d3f934b8ff94b | nova |
| 4093e7a9f5454322ba9987581b564fe4 | admin |
| e05800abc0c64c3ea73db2557dda4cb7 | demo |
+----------------------------------+--------+
2.把nova用戶加入到Service項目的admin角色組
[root@controller ~]# openstack role add --project service --user nova admin
3.創建nova服務
[root@controller ~]# openstack service create --name nova --description "OpenStack Compute" compute
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Compute |
| enabled | True |
| id | 5628e23741b1491697d811c84bfefd1c |
| name | nova |
| type | compute |
+-------------+----------------------------------+
#驗證

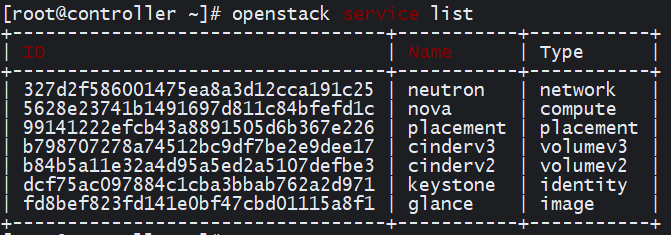

[root@controller ~]# openstack service list
+----------------------------------+----------+----------+
| ID | Name | Type |
+----------------------------------+----------+----------+
| 5628e23741b1491697d811c84bfefd1c | nova | compute |
| dcf75ac097884c1cba3bbab762a2d971 | keystone | identity |
| fd8bef823fd141e0bf47cbd01115a8f1 | glance | image |
+----------------------------------+----------+----------+

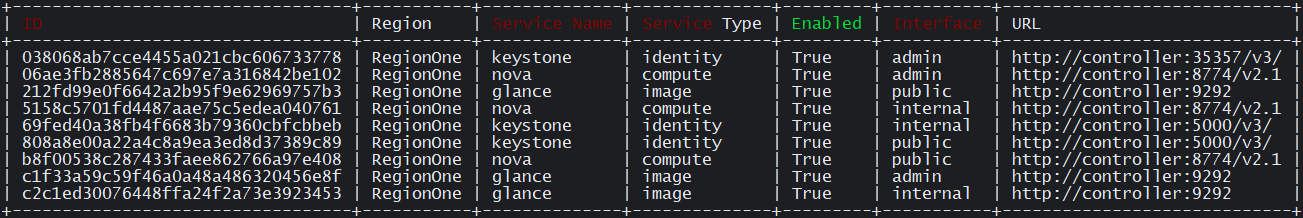

4.配置nova服務的api地址記錄
[root@controller ~]# openstack endpoint create --region RegionOne compute public http://controller:8774/v2.1
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | b8f00538c287433faee862766a97e408 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 5628e23741b1491697d811c84bfefd1c |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne compute internal http://controller:8774/v2.1
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 5158c5701fd4487aae75c5edea040761 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 5628e23741b1491697d811c84bfefd1c |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne compute admin http://controller:8774/v2.1
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 06ae3fb2885647c697e7a316842be102 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 5628e23741b1491697d811c84bfefd1c |
| service_name | nova |
| service_type | compute |
| url | http://controller:8774/v2.1 |
+--------------+----------------------------------+
驗證：

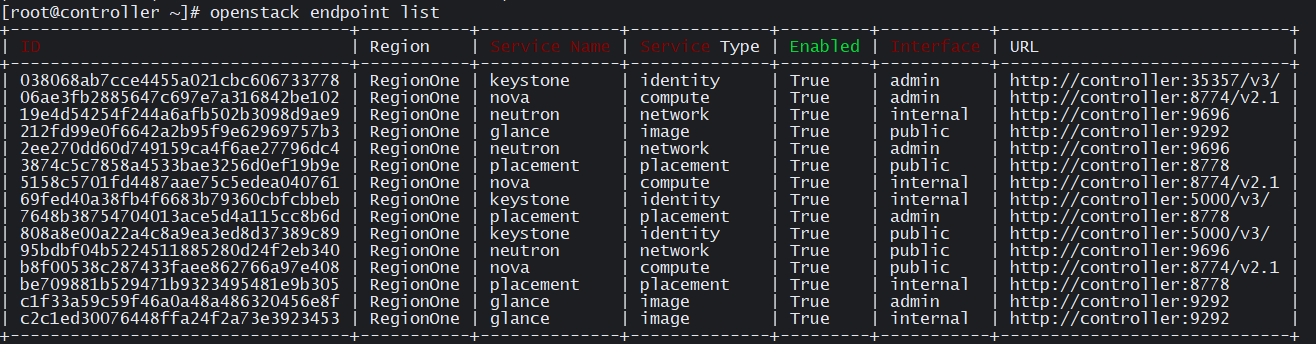

[root@controller ~]# openstack endpoint list
5.創建placement用戶，用于資源的追蹤記錄
[root@controller ~]# openstack user create --domain default --password guojie.com placement
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | 4ff73c3f796f424d94ad92de74132525 |
| name | placement |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
# 驗證
[root@controller ~]# openstack user list
+----------------------------------+-----------+
| ID | Name |
+----------------------------------+-----------+
| 281ca4a010a44d56bc3ad29ccadf15d8 | glance |
| 31f7b758bfe64f16b47d3f934b8ff94b | nova |
| 4093e7a9f5454322ba9987581b564fe4 | admin |
| 4ff73c3f796f424d94ad92de74132525 | placement |
| e05800abc0c64c3ea73db2557dda4cb7 | demo |
+----------------------------------+-----------+
- 把placement用戶加入到Service項目的admin角色組
[root@controller ~]# openstack role add --project service --user placement admin
7.創建placement服務
[root@controller ~]# openstack service create --name placement --description "Placement API" placement
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | Placement API |
| enabled | True |
| id | 99141222efcb43a8891505d6b367e226 |
| name | placement |
| type | placement |
+-------------+----------------------------------+
# 驗證
[root@controller ~]# openstack service list
+----------------------------------+-----------+-----------+
| ID | Name | Type |
+----------------------------------+-----------+-----------+
| 5628e23741b1491697d811c84bfefd1c | nova | compute |
| 99141222efcb43a8891505d6b367e226 | placement | placement |
| dcf75ac097884c1cba3bbab762a2d971 | keystone | identity |
| fd8bef823fd141e0bf47cbd01115a8f1 | glance | image |
+----------------------------------+-----------+-----------+
8.創建placement服務的api地址記錄
[root@controller ~]# openstack endpoint create --region RegionOne placement public http://controller:8778
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 3874c5c7858a4533bae3256d0ef19b9e |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 99141222efcb43a8891505d6b367e226 |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne placement internal http://controller:8778
+--------------+----------------------------------++--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | be709881b529471b9323495481e9b305 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 99141222efcb43a8891505d6b367e226 |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne placement admin http://controller:8778
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 7648b38754704013ace5d4a115cc8b6d |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 99141222efcb43a8891505d6b367e226 |
| service_name | placement |
| service_type | placement |
| url | http://controller:8778 |
+--------------+----------------------------------+
驗證：

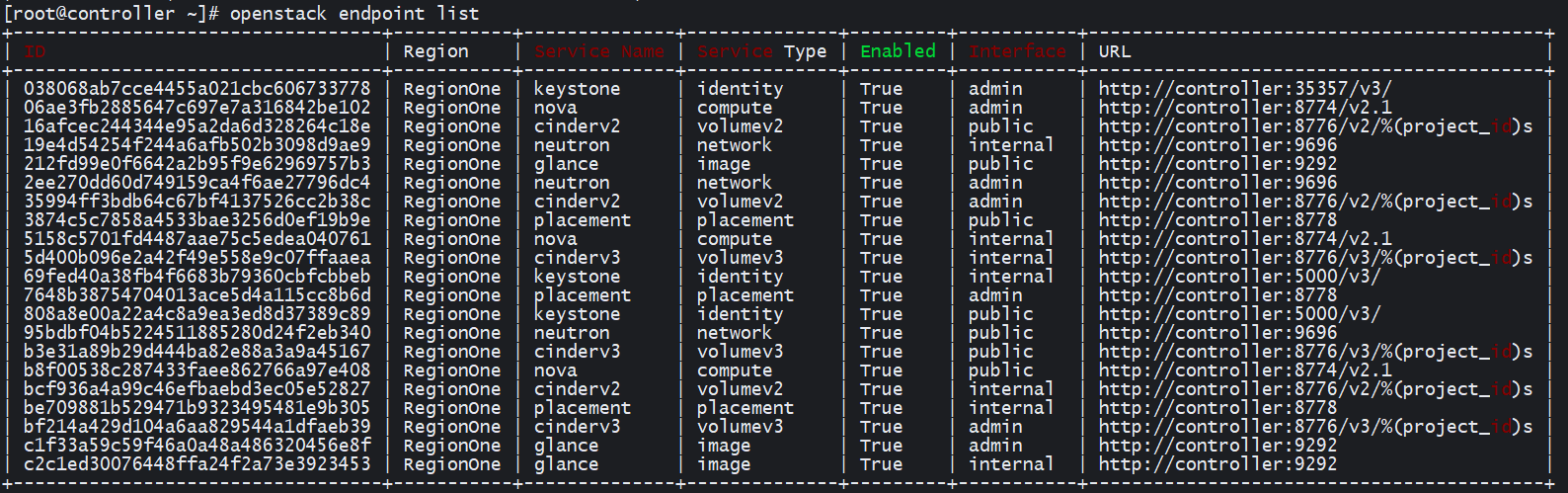

[root@controller ~]# openstack endpoint list
6.1.3 nova安裝與配置
1.在控制節點安裝nova相關組件
[root@controller ~]# yum -y install openstack-nova-api openstack-nova-conductor openstack-nova-console openstack-nova-novncproxy openstack-nova-scheduler openstack-nova-placement-api
2.備份配置文件
[root@controller ~]# cp /etc/nova/nova.conf /etc/nova/nova.conf.bak
[root@controller ~]# cp /etc/httpd/conf.d/00-nova-placement-api.conf /etc/httpd/conf.d/00-nova-placement-api.conf.bak
3.修改nova.conf配置文件
改的東西比較多，建議直接去后面復制改好的。
2753 enabled_apis=osapi_compute,metadata
3479 connection=mysql+pymysql://nova:guojie.com@controller/nova_api
4453 connection=mysql+pymysql://nova:guojie.com@controller/nova
3130 transport_url=rabbit://openstack:guojie.com@controller
3193 auth_strategy=keystone
5771 [keystone_authtoken] #自帶的，不用改
5772 uth_uri = http://controller:5000
5773 auth_url = http://controller:35357
5774 memcached_servers = controller:11211
5775 auth_type = password
5776 project_domain_name = default
5777 user_domain_name = default
5778 project_name = service
5779 username = nova
5780 password = guojie.com #寫上一步權限配置忠nova的密碼。
1817 use_neutron=true
2479 firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
9896 enabled=true
9918 vncserver_listen=172.173.10.110 #這里寫控制節點IP
9929 vncserver_proxyclient_address=172.173.10.110 #這里寫控制節點IP
5067 api_servers=http://controller:9292
7488 lock_path=/var/lib/nova/tmp
8303 [placement] #自帶的，不用改
8304 os_region_name = RegionOne
8305 project_domain_name = Default
8306 project_name = service
8307 auth_type = password
8308 user_domain_name = Default
8309 auth_url = http://controller:35357/v3
8310 username = placement
8311 password = guojie.com #填上一章節權限配置placement用戶的密碼
驗證：
[root@controller ~]# egrep -v '^#|^$' /etc/nova/nova.conf
[DEFAULT]
use_neutron=true
firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
enabled_apis=osapi_compute,metadata
transport_url=rabbit://openstack:guojie.com@controller
[api]
auth_strategy=keystone
[api_database]
connection=mysql+pymysql://nova:guojie.com@controller/nova_api
[barbican]
[cache]
[cells]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[crypto]
[database]
connection=mysql+pymysql://nova:guojie.com@controller/nova
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers=http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
uth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = guojie.com
[libvirt]
[matchmaker_redis]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path=/var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = guojie.com
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled=true
vncserver_listen=172.173.10.110
vncserver_proxyclient_address=172.173.10.110
[workarounds]
[wsgi]
[xenserver]
[xvp]
4.配置00-nova-placement-api.conf配置文件
將下面的內容加到</VirtualHost>標簽當中
<Directory /usr/bin>
<IfVersion >= 2.4>
Require all granted
</IfVersion>
<IfVersion < 2.4>
Order allow,deny
Allow from all
</IfVersion>
</Directory>
如下：
[root@controller ~]# cat /etc/httpd/conf.d/00-nova-placement-api.conf
Listen 8778
<VirtualHost *:8778>
WSGIProcessGroup nova-placement-api
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
WSGIDaemonProcess nova-placement-api processes=3 threads=1 user=nova group=nova
WSGIScriptAlias / /usr/bin/nova-placement-api
<IfVersion >= 2.4>
ErrorLogFormat "%M"
</IfVersion>
ErrorLog /var/log/nova/nova-placement-api.log
#SSLEngine On
#SSLCertificateFile ...
#SSLCertificateKeyFile ...
<Directory /usr/bin>
<IfVersion >= 2.4>
Require all granted
</IfVersion>
<IfVersion < 2.4>
Order allow,deny
Allow from all
</IfVersion>
</Directory>
</VirtualHost>
Alias /nova-placement-api /usr/bin/nova-placement-api
<Location /nova-placement-api>
SetHandler wsgi-script
Options +ExecCGI
WSGIProcessGroup nova-placement-api
WSGIApplicationGroup %{GLOBAL}
WSGIPassAuthorization On
</Location>
6.1.4重啟apache服務
[root@controller ~]# systemctl restart httpd
6.1.5 導入相關nova相關數據庫
#導入數據到nova_api庫
[root@controller ~]# su -s /bin/sh -c "nova-manage api_db sync" nova
# 注冊cell0數據庫
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova
# 創建cell1數據庫
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova
3c837947-854a-4d61-9af0-722cd9cbebc0
# 再次同步信息到nova庫(nova庫與nova_cell0庫里有相關的表數據)
[root@controller ~]# su -s /bin/sh -c "nova-manage db sync" nova ##忽略告警信息
驗證：

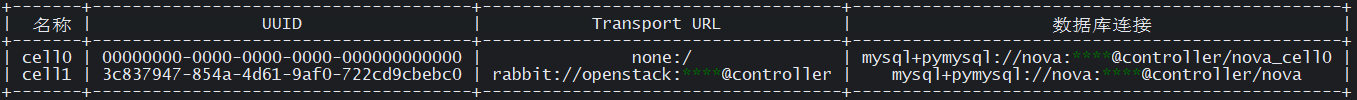

[root@controller ~]# nova-manage cell_v2 list_cells
[root@controller ~]# mysql -hcontroller -unova -pguojie.com -e 'use nova;show tables;' |wc -l
111
[root@controller ~]# mysql -hcontroller -unova -pguojie.com -e 'use nova_api;show tables;' |wc -l
33
[root@controller ~]# mysql -hcontroller -unova -pguojie.com -e 'use nova_cell0;show tables;' |wc -l
111
6.1.6啟動服務
[root@controller ~]# systemctl enable openstack-nova-api.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service --now
驗證：

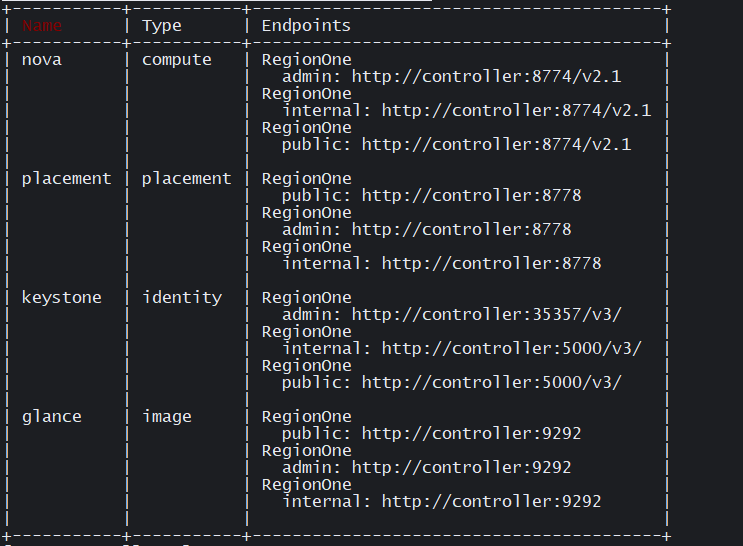

[root@controller ~]# openstack catalog list
6.2 nova計算節點部署
參考：OpenStack Docs: Install and configure a compute node for Red Hat Enterprise Linux and CentOS，以下操作都在計算節點。
6.2.1 安裝與配置
1.安裝軟件
[root@compute ~]# yum -y install openstack-nova-compute sysfsutils
2.備份配置文件
[root@compute ~]# cp /etc/nova/nova.conf /etc/nova/nova.conf.bak
3.修改配置文件
# 這里建議直接復制控制節點的配置文件來修改
[root@compute ~]# scp root@controller:/etc/nova/nova.conf /etc/nova/nova.conf
root@controller's password:
nova.conf 100% 345KB 85.9MB/s 00:00
#修改如下幾個地方：
1.[vnc]下的幾個參數有所不同
vncserver_listen=0.0.0.0 監聽任意地址過來連接vnc控制臺
vncserver_proxyclient_address 接的IP為compute節點管理網絡IP
novncproxy_base_url = http://172.173.10.110:6080/vnc_auto.html #這是控制臺轉發的url,里面的ip寫控制節點的IP，不要寫主機名，主機名試了不好使
2.[libvirt]參數組下面加上virt_type=qemu
不能使用kvm,因為我們本來就在kvm里面搭建的云平臺,cat /proc/cpuinfo |egrep 'vmx|svm'是查不出來的,但如果是生產環境用物理服務器搭建就應該為virt_type=kvm
最終效果：
[root@compute ~]# egrep -v '^#|^$' /etc/nova/nova.conf
[DEFAULT]
use_neutron=true
firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
enabled_apis=osapi_compute,metadata
transport_url=rabbit://openstack:guojie.com@controller
[api]
auth_strategy=keystone
[api_database]
connection=mysql+pymysql://nova:guojie.com@controller/nova_api
[barbican]
[cache]
[cells]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[crypto]
[database]
connection=mysql+pymysql://nova:guojie.com@controller/nova
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers=http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
uth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = guojie.com

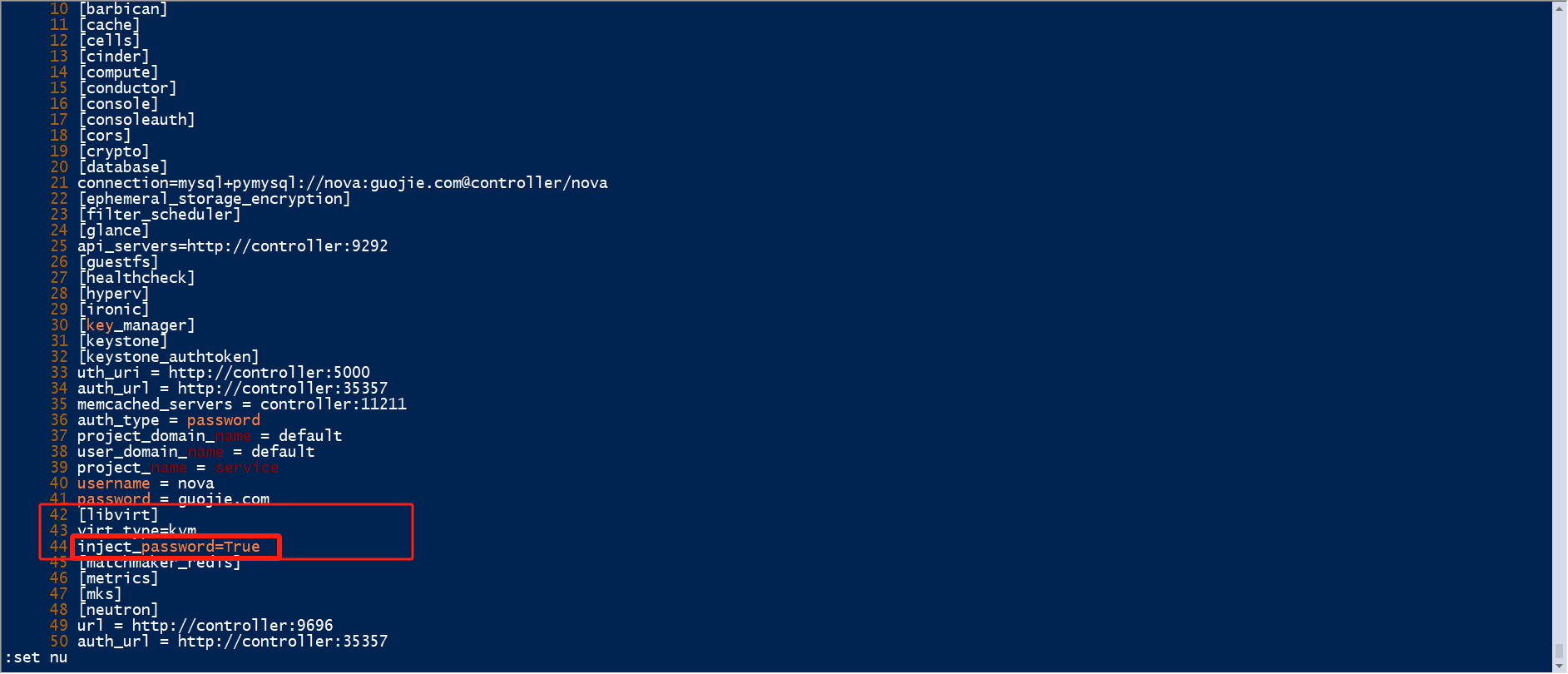

[libvirt]
virt_type=qemu
[matchmaker_redis]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path=/var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = guojie.com
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled=true
vncserver_listen=0.0.0.0
vncserver_proxyclient_address=172.173.10.111
novncproxy_base_url = http://172.173.10.110:6080/vnc_auto.html
[workarounds]
[wsgi]
[xenserver]
[xvp]
啟動服務：
[root@compute ~]# systemctl enable libvirtd.service openstack-nova-compute.service --now
6.2.2 在控制節點上添加計算節點

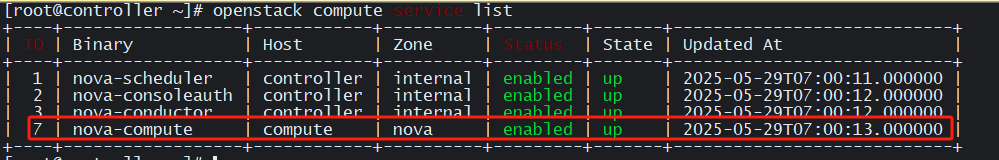

1.查看服務
[root@controller ~]# openstack compute service list
計算節點服務啟動之后在控制節點上看狀態就為UP，如果不是就要檢查nova日志和檢查配置。
2.新增計算節點記錄，增加到nova數據庫中
[root@controller ~]# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova
Found 2 cell mappings.
Getting computes from cell 'cell1': 3c837947-854a-4d61-9af0-722cd9cbebc0
Checking host mapping for compute host 'compute': d9a0c826-ab7f-4b06-8059-0c23cba6adbf
Creating host mapping for compute host 'compute': d9a0c826-ab7f-4b06-8059-0c23cba6adbf
Found 1 unmapped computes in cell: 3c837947-854a-4d61-9af0-722cd9cbebc0
Skipping cell0 since it does not contain hosts.
3.驗證所有API是否正常
[root@controller ~]# nova-status upgrade check
+--------------------------+
| 升級檢查結果 |
+--------------------------+
| 檢查: Cells v2 |
| 結果: 成功 |
| 詳情: None |
+--------------------------+
| 檢查: Placement API |
| 結果: 成功 |
| 詳情: None |
+--------------------------+
| 檢查: Resource Providers |
| 結果: 成功 |
| 詳情: None |
+--------------------------+
七、網絡組件neutron
7.1 neutron控制節點部署
參考文檔：OpenStack Docs: Install and configure controller node
7.1.1 數據庫配置
登錄數據庫
[root@controller ~]# mysql -uroot -p
創建neutron數據庫：
MariaDB [(none)]> CREATE DATABASE neutron;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> FLUSH PRIVILEGES;
MariaDB [(none)]> QUIT;
驗證：
[root@controller ~]# mysql -h controller -u neutron -pguojie.com -e 'show databases';
+--------------------+
| Database |
+--------------------+
| information_schema |
| neutron |
+--------------------+
7.1.2 權限配置
1.創建neutron用戶
[root@controller ~]# source admin-openrc.sh
[root@controller ~]# openstack user create --domain default --password guojie.com neutron
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | be3796e423e0417d8f71f7fc640e5b48 |
| name | neutron |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
# 驗證
[root@controller ~]# openstack user list
+----------------------------------+-----------+
| ID | Name |
+----------------------------------+-----------+
| 281ca4a010a44d56bc3ad29ccadf15d8 | glance |
| 31f7b758bfe64f16b47d3f934b8ff94b | nova |
| 4093e7a9f5454322ba9987581b564fe4 | admin |
| 4ff73c3f796f424d94ad92de74132525 | placement |
| be3796e423e0417d8f71f7fc640e5b48 | neutron |
| e05800abc0c64c3ea73db2557dda4cb7 | demo |
+----------------------------------+-----------+
2.把neutron用戶到Service項目的admin角色組
[root@controller ~]# openstack role add --project service --user neutron admin
3.創建neutron服務
[root@controller ~]# openstack service create --name neutron --description "OpenStack Networking" network
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Networking |
| enabled | True |
| id | 327d2f586001475ea8a3d12cca191c25 |
| name | neutron |
| type | network |
+-------------+----------------------------------+
# 驗證
[root@controller ~]# openstack service list
+----------------------------------+-----------+-----------+
| ID | Name | Type |
+----------------------------------+-----------+-----------+
| 327d2f586001475ea8a3d12cca191c25 | neutron | network |
| 5628e23741b1491697d811c84bfefd1c | nova | compute |
| 99141222efcb43a8891505d6b367e226 | placement | placement |
| dcf75ac097884c1cba3bbab762a2d971 | keystone | identity |
| fd8bef823fd141e0bf47cbd01115a8f1 | glance | image |
+----------------------------------+-----------+-----------+
4.配置neutron服務的api地址記錄
[root@controller ~]# openstack endpoint create --region RegionOne network public http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 95bdbf04b5224511885280d24f2eb340 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 327d2f586001475ea8a3d12cca191c25 |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne network internal http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 19e4d54254f244a6afb502b3098d9ae9 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 327d2f586001475ea8a3d12cca191c25 |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne network admin http://controller:9696
+--------------+----------------------------------+
| Field | Value |
+--------------+----------------------------------+
| enabled | True |
| id | 2ee270dd60d749159ca4f6ae27796dc4 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | 327d2f586001475ea8a3d12cca191c25 |
| service_name | neutron |
| service_type | network |
| url | http://controller:9696 |
+--------------+----------------------------------+
驗證：
[root@controller ~]# openstack endpoint list
7.1.3 軟件安裝配置
這里選擇第二種，參考文檔：OpenStack Docs: Networking Option 2: Self-service networks
1.在控制節點安裝neutron相關軟件
[root@controller ~]# yum -y install openstack-neutron openstack-neutron-ml2 openstack-neutron-linuxbridge ebtables
2.備份配置文件
[root@controller ~]# cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
[root@controller ~]# cp /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugins/ml2/ml2_conf.ini.bak
[root@controller ~]# cp /etc/neutron/plugins/ml2/linuxbridge_agent.ini /etc/neutron/plugins/ml2/linuxbridge_agent.ini.bak
3.配置neutron.conf文件
27 auth_strategy = keystone
30 core_plugin = ml2
33 service_plugins = router
85 allow_overlapping_ips = True
98 notify_nova_on_port_status_changes = true
102 notify_nova_on_port_data_changes = true
553 transport_url = rabbit://openstack:guojie.com@controller #注意密碼要寫rabbitmq的密碼
560 rpc_backend = rabbit
710 connection = mysql+pymysql://neutron:guojie.com@controller/neutron
794 [keystone_authtoken] #不用改
795 auth_uri = http://controller:5000
796 auth_url = http://controller:35357
797 memcached_servers = controller:11211
798 auth_type = password
799 project_domain_name = default
800 user_domain_name = default
801 project_name = service
802 username = neutron
803 password = guojie.com ##上一章節權限配置中設置的密碼
1022 [nova]
1023 auth_url = http://controller:35357
1024 auth_type = password
1025 project_domain_name = default
1026 user_domain_name = default
1027 region_name = RegionOne
1028 project_name = service
1029 username = nova
1030 password = guojie.com ##6.1.2章節當中navo權限配置nova設置的密碼。
1141 lock_path = /var/lib/neutron/tmp
結果驗證：
[root@controller ~]# egrep -v '^#|^$' /etc/neutron/neutron.conf
[DEFAULT]
auth_strategy = keystone
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = True
notify_nova_on_port_status_changes = true
notify_nova_on_port_data_changes = true
transport_url = rabbit://openstack:guojie.com@controller
rpc_backend = rabbit
[agent]
[cors]
[database]
connection = mysql+pymysql://neutron:guojie.com@controller/neutron
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = guojie.com
[matchmaker_redis]
[nova]
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = guojie.com
[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[quotas]
[ssl]
4.配置Modular Layer 2 (ML2)插件 ml2_conf.ini 配置文件
132 type_drivers = flat,vlan,vxlan
137 tenant_network_types = vxlan
141 mechanism_drivers = linuxbridge,l2population
146 extension_drivers = port_security
182 flat_networks = provider
235 vni_ranges = 1:1000 ##支持1000個隧道網絡(注意:在193行也有1個相同參數,不要配錯位置了,否則無法創建自助的私有網絡)
259 enable_ipset = true
配置檢查：
[root@controller ~]# egrep -v '^$|^#' /etc/neutron/plugins/ml2/ml2_conf.ini
[DEFAULT]
[l2pop]
[ml2]
type_drivers = flat,vlan,vxlan
tenant_network_types = vxlan
mechanism_drivers = linuxbridge,l2population
extension_drivers = port_security
[ml2_type_flat]
flat_networks = provider
[ml2_type_geneve]
[ml2_type_gre]
[ml2_type_vlan]
[ml2_type_vxlan]
vni_ranges = 1:1000
[securitygroup]
enable_ipset = true
5.配置linuxbridge_agent.ini文件
142 physical_interface_mappings = provider:eth1 ##注意網卡為eth1,也就是走外網網卡名
175 enable_vxlan = true
196 local_ip = 172.173.10.110 ##此IP為管理網卡的IP
220 l2_population = true
155 firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
160 enable_security_group = true
驗證：
[root@controller ~]# egrep -v '^$|^#' /etc/neutron/plugins/ml2/linuxbridge_agent.ini
[DEFAULT]
[agent]
[linux_bridge]
physical_interface_mappings = provider:eth1
[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
enable_security_group = true
[vxlan]
enable_vxlan = true
local_ip = 172.173.10.110
l2_population = true
6.配置l3_agent.ini文件
[root@controller ~]# vi /etc/neutron/l3_agent.ini
# 修改第16行配置如下
16 interface_driver = linuxbridge
# 檢查
[root@controller ~]# egrep -v '^$|^#' /etc/neutron/l3_agent.ini
[DEFAULT]
interface_driver = linuxbridge
[agent]
[ovs]
7.配置dhcp_agent.ini文件
[root@controller ~]# vi /etc/neutron/dhcp_agent.ini
#修改如下配置
16 interface_driver = linuxbridge
37 dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
46 enable_isolated_metadata = true
#配置檢查
[root@controller ~]# egrep -v '^$|^#' /etc/neutron/dhcp_agent.ini
[DEFAULT]
interface_driver = linuxbridge
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = true
[agent]
[ovs]
8.配置metadata_agent.ini文件
[root@controller ~]# vi /etc/neutron/metadata_agent.ini
#該如下配置
23 nova_metadata_host = controller
35 metadata_proxy_shared_secret = metadata_daniel
#注意:這里的metadata_daniel僅為一個字符串,需要和nova配置文件里的metadata_proxy_shared_secret對應
檢查：
[root@controller ~]# egrep -v '^$|^#' /etc/neutron/metadata_agent.ini
[DEFAULT]
nova_metadata_host = controller
metadata_proxy_shared_secret = metadata_daniel
[agent]
[cache]
9.在nova.conf配置文件中加上下面一段
在[neutron]配置段下添加下面一段:
[root@controller ~]# vi /etc/nova/nova.conf
[neutron]
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = guojie.com #注意修改成neutron授權中的密碼
service_metadata_proxy = true
metadata_proxy_shared_secret = metadata_daniel
檢查：
[root@controller ~]# egrep -v '^$|^#' /etc/nova/nova.conf
[DEFAULT]
use_neutron=true
firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
enabled_apis=osapi_compute,metadata
transport_url=rabbit://openstack:guojie.com@controller
[api]
auth_strategy=keystone
[api_database]
connection=mysql+pymysql://nova:guojie.com@controller/nova_api
[barbican]
[cache]
[cells]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[crypto]
[database]
connection=mysql+pymysql://nova:guojie.com@controller/nova
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers=http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
uth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = guojie.com
[libvirt]
[matchmaker_redis]
[metrics]
[mks]
[neutron]
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = guojie.com
service_metadata_proxy = true
metadata_proxy_shared_secret = metadata_daniel
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path=/var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = guojie.com
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled=true
vncserver_listen=172.173.10.110
vncserver_proxyclient_address=172.173.10.110
novncproxy_base_url = http://172.173.10.110:6080/vnc_auto.html
[workarounds]
[wsgi]
[xenserver]
[xvp]
10.網絡服務初始化腳本需要訪問/etc/neutron/plugin.ini來指向 ml2_conf.ini配置文件,所以需要做一個軟鏈接
[root@controller ~]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
11.同步數據
[root@controller ~]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron
7.1.4 啟動服務
重啟nova服務：
[root@controller ~]# systemctl restart openstack-nova-api.service --now
啟動neutron服務:
[root@controller ~]# systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service neutron-l3-agent.service --now
7.2 neutron計算節點部署
參考文檔：OpenStack Docs: Install and configure compute node
7.2.1 安裝與配置
1.計算節點安裝相關軟件
[root@compute ~]# yum install openstack-neutron-linuxbridge ebtables ipset -y
2.備份配置文件
[root@compute ~]# cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
[root@compute ~]# cp /etc/neutron/plugins/ml2/linuxbridge_agent.ini /etc/neutron/plugins/ml2/linuxbridge_agent.ini.bak
3..配置neutron.conf文件
27 auth_strategy = keystone
553 transport_url = rabbit://openstack:guojie.com@controller
794 [keystone_authtoken] #自帶的，不用改
795 auth_uri = http://controller:5000
796 auth_url = http://controller:35357
797 memcached_servers = controller:11211
798 auth_type = password
799 project_domain_name = default
800 user_domain_name = default
801 project_name = service
802 username = neutron
803 password = guojie.com
1134 lock_path = /var/lib/neutron/tmp
配置檢查：
[root@compute ~]# egrep -v '^$|^#' /etc/neutron/neutron.conf
[DEFAULT]
auth_strategy = keystone
transport_url = rabbit://openstack:guojie.com@controller
[agent]
[cors]
[database]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = guojie.com
[matchmaker_redis]
[nova]
[oslo_concurrency]
lock_path = /var/lib/neutron/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[quotas]
[ssl]
4.仍然是第2類型網絡配置
參考：OpenStack Docs: Networking Option 2: Self-service networks
配置linuxbridge_agent.ini文件:
[root@compute ~]# vi /etc/neutron/plugins/ml2/linuxbridge_agent.ini
#修改如下配置
142 physical_interface_mappings = provider:eth1 #為走外部網絡網卡名
175 enable_vxlan = true
196 local_ip = 172.173.10.111 #本機管理網絡的IP(重點注意)
220 l2_population = true
155 firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
160 enable_security_group = true
配置檢查：
[root@compute ~]# egrep -v '^$|^#' /etc/neutron/plugins/ml2/linuxbridge_agent.ini
[DEFAULT]
[agent]
[linux_bridge]
physical_interface_mappings = provider:eth1
[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver
enable_security_group = true
[vxlan]
enable_vxlan = true
local_ip = 172.173.10.111
l2_population = true
5.配置nova.conf配置文件
在[neutron]下添如下內容
7185 [neutron]
7186 url = http://controller:9696
7187 auth_url = http://controller:35357
7188 auth_type = password
7189 project_domain_name = default
7190 user_domain_name = default
7191 region_name = RegionOne
7192 project_name = service
7193 username = neutron
7194 password = guojie.com
配置驗證：
[root@compute ~]# egrep -v '^$|^#' /etc/nova/nova.conf
[DEFAULT]
use_neutron=true
firewall_driver=nova.virt.libvirt.firewall.IptablesFirewallDriver
enabled_apis=osapi_compute,metadata
transport_url=rabbit://openstack:guojie.com@controller
[api]
auth_strategy=keystone
[api_database]
connection=mysql+pymysql://nova:guojie.com@controller/nova_api
[barbican]
[cache]
[cells]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[crypto]
[database]
connection=mysql+pymysql://nova:guojie.com@controller/nova
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers=http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
uth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = nova
password = guojie.com
[libvirt]
virt_type=qemu
[matchmaker_redis]
[metrics]
[mks]
[neutron]
url = http://controller:9696
auth_url = http://controller:35357
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = guojie.com
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path=/var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
os_region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:35357/v3
username = placement
password = guojie.com
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[trusted_computing]
[upgrade_levels]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled=true
vncserver_listen=172.173.10.110
vncserver_proxyclient_address=172.173.10.111
[workarounds]
[wsgi]
[xenserver]
[xvp]
7.2.2 啟動服務
[root@compute ~]# systemctl restart openstack-nova-compute.service
[root@compute ~]# systemctl enable neutron-linuxbridge-agent.service --now
7.2.3 控制節點上驗證
[root@controller ~]# source admin-openrc.sh

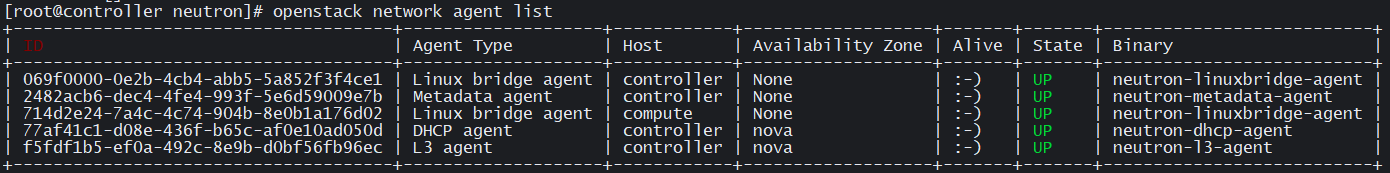

[root@controller ~]# openstack network agent list
八、dashboard組件horizon
參考：OpenStack Docs: Install and configure for Red Hat Enterprise Linux and CentOS
8.1安裝與配置
1.在控制節點安裝組件
[root@controller neutron]# yum -y install openstack-dashboard
2.備份配置文件
[root@controller ~]# cp /etc/openstack-dashboard/local_settings /etc/openstack-dashboard/local_settings.bak
3.配置local_settings文件
38 ALLOWED_HOSTS = ['*',]
64 OPENSTACK_API_VERSIONS = {
65 "data-processing": 1.1,
66 "identity": 3,
67 "image": 2,
68 "volume": 2,
69 "compute": 2,
70 }
75 OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
97 OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = 'Default'
153 SESSION_ENGINE = 'django.contrib.sessions.backends.cache' ##這行沒有，要自己添加
154 CACHES = {
155 'default': {
156 'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache',
157 'LOCATION': 'controller:11211', ##表示把會話給controller的memcache
158 },
159 }
#上面配置好之后下面就要注釋起來
161 #CACHES = {
162 # 'default': {
163 # 'BACKEND': 'django.core.cache.backends.locmem.LocMemCache',
164 # },
165 #}
184 OPENSTACK_HOST = "controller"
185 OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST #改為V3而不是V2.0
186 OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user" #默認角色
# 全打開（全改為True）,我們用的是第2種網絡類型
313 OPENSTACK_NEUTRON_NETWORK = {
314 'enable_router': True,
315 'enable_quotas': True,
316 'enable_ipv6': True,
317 'enable_distributed_router': True,
318 'enable_ha_router': True,
319 'enable_fip_topology_check': True,
453 TIME_ZONE = "Asia/Shanghai" #時區改為上海
4.配置dashborad的httpd子配置文件
[root@controller ~]# vi /etc/httpd/conf.d/openstack-dashboard.conf
在第四行加上如下內容：
4 WSGIApplicationGroup %{GLOBAL}
檢查：
[root@controller ~]# cat /etc/httpd/conf.d/openstack-dashboard.conf
WSGIDaemonProcess dashboard
WSGIProcessGroup dashboard
WSGISocketPrefix run/wsgi
WSGIApplicationGroup %{GLOBAL}
WSGIScriptAlias /dashboard /usr/share/openstack-dashboard/openstack_dashboard/wsgi/django.wsgi
Alias /dashboard/static /usr/share/openstack-dashboard/static
<Directory /usr/share/openstack-dashboard/openstack_dashboard/wsgi>
Options All
AllowOverride All
Require all granted
</Directory>
<Directory /usr/share/openstack-dashboard/static>
Options All
AllowOverride All
Require all granted
</Directory>
第4行加上這一句,在官方centos文檔里沒有,但ubuntu有.我們這里要 加上,否則后面dashboard訪問不了
8.2 啟動服務
[root@controller ~]# systemctl restart httpd memcached

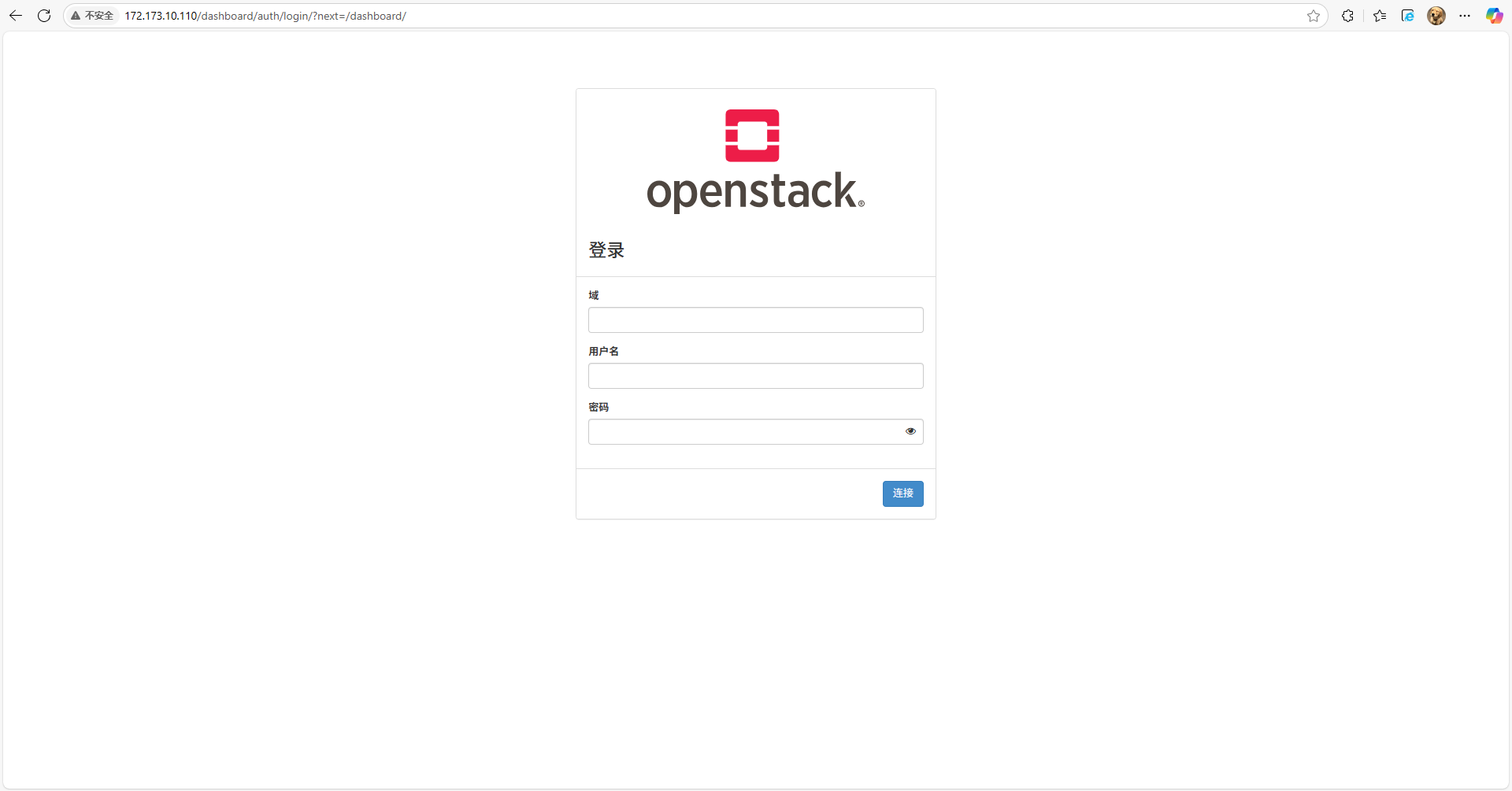

登錄驗證：
http://IP地址/dashboard/auth/login/?next=/dashboard/
域：default
用戶名：admin
密碼：guojie.com
九、塊存儲組件cinder
參考：https://docs.openstack.org/cinder/pike/install/
9.1 控制節點部署cinder
OpenStack Docs: Install and configure controller node
9.1.1 數據庫配置
[root@controller ~]# mysql -uroot -p
MariaDB [(none)]> CREATE DATABASE cinder;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'localhost' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'%' IDENTIFIED BY 'guojie.com';
MariaDB [(none)]> FLUSH PRIVILEGES;
MariaDB [(none)]> QUIT;
#驗證
[root@controller ~]# mysql -h controller -ucinder -pguojie.com -e 'show databases';
+--------------------+
| Database |
+--------------------+
| cinder |
| information_schema |
+--------------------+
9.1.2 權限配置
1.創建用戶
[root@controller ~]# source admin-openrc.sh
[root@controller ~]# openstack user create --domain default --password guojie.com cinder
+---------------------+----------------------------------+
| Field | Value |
+---------------------+----------------------------------+
| domain_id | default |
| enabled | True |
| id | 7f943f4a425840c98749a23eefa0ad69 |
| name | cinder |
| options | {} |
| password_expires_at | None |
+---------------------+----------------------------------+
# 驗證
[root@controller ~]# openstack user list
+----------------------------------+-----------+
| ID | Name |
+----------------------------------+-----------+
| 281ca4a010a44d56bc3ad29ccadf15d8 | glance |
| 31f7b758bfe64f16b47d3f934b8ff94b | nova |
| 4093e7a9f5454322ba9987581b564fe4 | admin |
| 4ff73c3f796f424d94ad92de74132525 | placement |
| 7f943f4a425840c98749a23eefa0ad69 | cinder |
| be3796e423e0417d8f71f7fc640e5b48 | neutron |
| e05800abc0c64c3ea73db2557dda4cb7 | demo |
+----------------------------------+-----------+
2.把cinder用戶添加到service項目中，并賦予admin角色
[root@controller ~]# openstack role add --project service --user cinder admin
3.創建cinderv2和cinderv3服務
[root@controller ~]# openstack service create --name cinderv2 --description "OpenStack Block Storage" volumev2
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage |
| enabled | True |
| id | b84b5a11e32a4d95a5ed2a5107defbe3 |
| name | cinderv2 |
| type | volumev2 |
+-------------+----------------------------------+
[root@controller ~]# openstack service create --name cinderv3 --description "OpenStack Block Storage" volumev3
+-------------+----------------------------------+
| Field | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage |
| enabled | True |
| id | b798707278a74512bc9df7be2e9dee17 |
| name | cinderv3 |
| type | volumev3 |
+-------------+----------------------------------+
4.創建cinder相關endpoint地址記錄
[root@controller ~]# openstack endpoint create --region RegionOne volumev2 public http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 16afcec244344e95a2da6d328264c18e |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b84b5a11e32a4d95a5ed2a5107defbe3 |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne volumev2 internal http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | bcf936a4a99c46efbaebd3ec05e52827 |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b84b5a11e32a4d95a5ed2a5107defbe3 |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne volumev2 admin http://controller:8776/v2/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 35994ff3bdb64c67bf4137526cc2b38c |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b84b5a11e32a4d95a5ed2a5107defbe3 |
| service_name | cinderv2 |
| service_type | volumev2 |
| url | http://controller:8776/v2/%(project_id)s |
+--------------+------------------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne volumev3 public http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | b3e31a89b29d444ba82e88a3a9a45167 |
| interface | public |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b798707278a74512bc9df7be2e9dee17 |
| service_name | cinderv3 |
| service_type | volumev3 |
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne volumev3 internal http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | 5d400b096e2a42f49e558e9c07ffaaea |
| interface | internal |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b798707278a74512bc9df7be2e9dee17 |
| service_name | cinderv3 |
| service_type | volumev3 |
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
[root@controller ~]# openstack endpoint create --region RegionOne volumev3 admin http://controller:8776/v3/%\(project_id\)s
+--------------+------------------------------------------+
| Field | Value |
+--------------+------------------------------------------+
| enabled | True |
| id | bf214a429d104a6aa829544a1dfaeb39 |
| interface | admin |
| region | RegionOne |
| region_id | RegionOne |
| service_id | b798707278a74512bc9df7be2e9dee17 |
| service_name | cinderv3 |
| service_type | volumev3 |
| url | http://controller:8776/v3/%(project_id)s |
+--------------+------------------------------------------+
驗證：
9.1.3 軟件安裝配置
1.控制節點安裝openstack-cinder包
[root@controller ~]# yum -y install openstack-cinder
2.備份配置文件
[root@controller ~]# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak
3.配置cinder.conf配置文件
[root@controller ~]# vi /etc/cinder/cinder.conf
#改如下配置
283 my_ip = 172.173.10.110
288 glance_api_servers = http://controller:9292 #官方文檔沒有這一句,要加上和glance的連接
400 auth_strategy = keystone
1212 transport_url = rabbit://openstack:guojie.com@controller
1219 rpc_backend = rabbit
3782 connection = mysql+pymysql://cinder:guojie.com@controller/cinder
4009 [keystone_authtoken] #自帶，不用改
4010 auth_uri = http://controller:5000
4011 auth_url = http://controller:35357
4012 memcached_servers = controller:11211
4013 auth_type = password
4014 project_domain_name = default
4015 user_domain_name = default
4016 project_name = service
4017 username = cinder
4018 password = guojie.com #改成權限配置中的密碼
4297 lock_path = /var/lib/cinder/tmp
驗證：
[root@controller ~]# egrep -v '^#|^$' /etc/cinder/cinder.conf
[DEFAULT]
my_ip = 172.173.10.110
glance_api_servers = http://controller:9292
auth_strategy = keystone
transport_url = rabbit://openstack:guojie.com@controller
rpc_backend = rabbit
[backend]
[backend_defaults]
[barbican]
[brcd_fabric_example]
[cisco_fabric_example]
[coordination]
[cors]
[database]
connection = mysql+pymysql://cinder:guojie.com@controller/cinder
[fc-zone-manager]
[healthcheck]
[key_manager]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = guojie.com
[matchmaker_redis]
[nova]
[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[oslo_reports]
[oslo_versionedobjects]
[profiler]
[ssl]
4.配置nova.conf配置文件
[root@controller ~]# vi /etc/nova/nova.conf
#找到[cinder]并在下面添加os_region_name = RegionOne
[cinder]
os_region_name = RegionOne
5.重啟openstack-nova-api服務
[root@controller ~]# systemctl restart openstack-nova-api.service
6.數據庫導入
[root@controller ~]# su -s /bin/sh -c "cinder-manage db sync" cinder
Option "logdir" from group "DEFAULT" is deprecated. Use option "log-dir" from group "DEFAULT".
[root@controller ~]# mysql -h controller -u cinder -pguojie.com -e 'use cinder;show tables' |wc -l
36
9.1.4 啟動服務
在控制節點啟動服務
[root@controller ~]# systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service --now
驗證：
[root@controller ~]# netstat -ntlup |grep :8776
tcp 0 0 0.0.0.0:8776 0.0.0.0:* LISTEN 21454/python2
[root@controller ~]# openstack volume service list
+------------------+------------+------+---------+-------+----------------------------+
| Binary | Host | Zone | Status | State | Updated At |
+------------------+------------+------+---------+-------+----------------------------+
| cinder-scheduler | controller | nova | enabled | up | 2025-05-30T01:56:06.000000 |
+------------------+------------+------+---------+-------+----------------------------+
9.2 存儲節點部署cinder
這里在存儲節點上添加一塊硬盤用于演示：
[root@cindre ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 50G 0 disk
├─sda1 8:1 0 1G 0 part /boot
└─sda2 8:2 0 49G 0 part /
sdb 8:16 0 50G 0 disk
sr0 11:0 1 1024M 0 rom
#這里是sdb
參看文檔：OpenStack Docs: Install and configure a storage node
9.2.1 安裝與配置
1.存儲節點安裝LVM相關軟件
[root@cindre ~]# yum -y install lvm2 device-mapper-persistent-data
2.啟動服務
[root@cindre ~]# systemctl enable lvm2-lvmetad.service --now
3.創建LVM
[root@cindre ~]# pvcreate /dev/sdb
Physical volume "/dev/sdb" successfully created.
[root@cindre ~]# vgcreate cinder_lvm /dev/sdb
Volume group "cinder_lvm" successfully created
驗證（這里如果你安裝系統是分區類型選了lvm，這里會有多個，我這里裝的時候選了標準分區它就沒有）：
[root@cindre ~]# pvs
PV VG Fmt Attr PSize PFree
/dev/sdb cinder_lvm lvm2 a-- <50.00g <50.00g
[root@cindre ~]# vgs
VG #PV #LV #SN Attr VSize VFree
cinder_lvm 1 0 0 wz--n- <50.00g <50.00g
4.配置LVM的過濾
[root@cindre ~]# vi /etc/lvm/lvm.conf
# 在142行插入如下的過濾器，這里表示接受sdb并拒絕其它磁盤，避免操作系統磁盤被影響。
142 filter = [ "a/sdb/", "r/.*/"]
5.安裝cinder相關軟件
[root@cindre ~]# yum install openstack-cinder targetcli python-keystone -y
6.配置cinder.conf配置文件
[root@cindre ~]# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak
283 my_ip = 172.173.10.112 #這里要寫成存儲節點的管理地址
288 glance_api_servers = http://controller:9292
400 auth_strategy = keystone
404 enabled_backends = lvm
1212 transport_url = rabbit://openstack:guojie.com@controller
1219 rpc_backend = rabbit
3782 connection = mysql+pymysql://cinder:guojie.com@controller/cinder
4009 [keystone_authtoken] # 自帶的，不用修改
4010 auth_uri = http://controller:5000
4011 auth_url = http://controller:35357
4012 memcached_servers = controller:11211
4013 auth_type = password
4014 project_domain_name = default
4015 user_domain_name = default
4016 project_name = service
4017 username = cinder
4018 password = guojie.com #注意修改授權密碼
4297 lock_path = /var/lib/cinder/tmp
# 在最后添加下面這一段
5174 [lvm]
5175 volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
5176 volume_group = cinder_lvm #注意改成自己前面配置的vg的名稱
5177 iscsi_protocol = iscsi
5178 iscsi_helper = lioadm
配置驗證：
[root@cindre ~]# egrep -v '^$|^#' /etc/cinder/cinder.conf
[DEFAULT]
my_ip = 172.173.10.112
glance_api_servers = http://controller:9292
auth_strategy = keystone
enabled_backends = lvm
transport_url = rabbit://openstack:guojie.com@controller
rpc_backend = rabbit
[backend]
[backend_defaults]
[barbican]
[brcd_fabric_example]
[cisco_fabric_example]
[coordination]
[cors]
[database]
connection = mysql+pymysql://cinder:guojie.com@controller/cinder
[fc-zone-manager]
[healthcheck]
[key_manager]
[keystone_authtoken]
auth_uri = http://controller:5000
auth_url = http://controller:35357
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = guojie.com
[matchmaker_redis]
[nova]
[oslo_concurrency]
lock_path = /var/lib/cinder/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_messaging_zmq]
[oslo_middleware]
[oslo_policy]
[oslo_reports]
[oslo_versionedobjects]
[profiler]
[ssl]
[lvm]
volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group = cinder_lvm
iscsi_protocol = iscsi
iscsi_helper = lioadm
9.2.2 啟動服務
1.在cinder存儲節點啟動服務
[root@cindre ~]# systemctl enable openstack-cinder-volume.service target.service --now
2.在控制節點上驗證
[root@controller ~]# openstack volume service list
完成之后dashboard就會多出個卷，如果沒有就退出重新登錄。
十、云平臺簡單使用
參考：啟動一個實例 — Installation Guide 文檔
10.1 網絡創建
[root@controller ~]# openstack network list
[root@controller ~]# openstack network create --share --external --provider-physical-network provider --provider-network-type flat provider
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | UP |
| availability_zone_hints | |
| availability_zones | |
| created_at | 2025-05-30T02:48:55Z |
| description | |
| dns_domain | None |
| id | cbd39bfd-28f2-455c-9b85-20cf78263797 |
| ipv4_address_scope | None |
| ipv6_address_scope | None |
| is_default | False |
| is_vlan_transparent | None |
| mtu | 1500 |
| name | provider |
| port_security_enabled | True |
| project_id | fbe4fead10f94b8187e7661246c0f5e6 |
| provider:network_type | flat |
| provider:physical_network | provider |
| provider:segmentation_id | None |
| qos_policy_id | None |
| revision_number | 3 |
| router:external | External |
| segments | None |
| shared | True |
| status | ACTIVE |
| subnets | |
| tags | |
| updated_at | 2025-05-30T02:48:55Z |
+---------------------------+--------------------------------------+
[root@controller ~]# openstack network list
+--------------------------------------+----------+---------+
| ID | Name | Subnets |
+--------------------------------------+----------+---------+
| cbd39bfd-28f2-455c-9b85-20cf78263797 | provider | |
+--------------------------------------+----------+---------+
10.2 創建子網
創建的網段對應我們eth1網卡的網絡:
[root@controller ~]# openstack subnet create --network provider --allocation-pool start=10.1.1.100,end=10.1.1.250 --dns-nameserver 223.5.5.5 --gateway 10.1.1.254 --subnet-range 10.1.1.0/24 provider
+-------------------------+--------------------------------------+
| Field | Value |
+-------------------------+--------------------------------------+
| allocation_pools | 10.1.1.100-10.1.1.250 |
| cidr | 10.1.1.0/24 |
| created_at | 2025-05-30T02:53:55Z |
| description | |
| dns_nameservers | 223.5.5.5 |
| enable_dhcp | True |
| gateway_ip | 10.1.1.254 |
| host_routes | |
| id | e705a12f-aeb2-4414-aafe-1a676a8c87f0 |
| ip_version | 4 |
| ipv6_address_mode | None |
| ipv6_ra_mode | None |
| name | provider |
| network_id | cbd39bfd-28f2-455c-9b85-20cf78263797 |
| project_id | fbe4fead10f94b8187e7661246c0f5e6 |
| revision_number | 0 |
| segment_id | None |
| service_types | |
| subnetpool_id | None |
| tags | |
| updated_at | 2025-05-30T02:53:55Z |
| use_default_subnet_pool | None |
+-------------------------+--------------------------------------+
驗證：
[root@controller ~]# openstack network list
+--------------------------------------+----------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+----------+--------------------------------------+
| cbd39bfd-28f2-455c-9b85-20cf78263797 | provider | e705a12f-aeb2-4414-aafe-1a676a8c87f0 |
+--------------------------------------+----------+--------------------------------------+
[root@controller ~]# openstack subnet list
+--------------------------------------+----------+--------------------------------------+-------------+
| ID | Name | Network | Subnet |
+--------------------------------------+----------+--------------------------------------+-------------+
| e705a12f-aeb2-4414-aafe-1a676a8c87f0 | provider | cbd39bfd-28f2-455c-9b85-20cf78263797 | 10.1.1.0/24 |
+--------------------------------------+----------+--------------------------------------+-------------+
10.3 創建虛擬機規格(flavor)
[root@controller ~]# openstack flavor list
[root@controller ~]# openstack flavor create --id 0 --vcpus 1 --ram 512 --disk 1 m1.nano
+----------------------------+---------+
| Field | Value |
+----------------------------+---------+
| OS-FLV-DISABLED:disabled | False |
| OS-FLV-EXT-DATA:ephemeral | 0 |
| disk | 1 |
| id | 0 |
| name | m1.nano |
| os-flavor-access:is_public | True |
| properties | |
| ram | 512 |
| rxtx_factor | 1.0 |
| swap | |
| vcpus | 1 |
+----------------------------+---------+
[root@controller ~]# openstack flavor list
+----+---------+-----+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+---------+-----+------+-----------+-------+-----------+
| 0 | m1.nano | 512 | 1 | 0 | 1 | True |
+----+---------+-----+------+-----------+-------+-----------+
10.4 創建虛擬機實例
正常管理虛擬機不應該使用admin用戶,我們在這里簡單創建測試 一下
1.查看鏡像,規格,網絡等信息
[root@controller ~]# openstack image list
+--------------------------------------+-----------------+--------+
| ID | Name | Status |
+--------------------------------------+-----------------+--------+
| 03a823ea-6883-4a4b-9629-1b4839f0644a | cirros | active |
+--------------------------------------+-----------------+--------+
[root@controller ~]# openstack network list
+--------------------------------------+----------+--------------------------------------+
| ID | Name | Subnets |
+--------------------------------------+----------+--------------------------------------+
| cbd39bfd-28f2-455c-9b85-20cf78263797 | provider | e705a12f-aeb2-4414-aafe-1a676a8c87f0 |
+--------------------------------------+----------+--------------------------------------+
[root@controller ~]# openstack flavor list
+----+---------+-----+------+-----------+-------+-----------+
| ID | Name | RAM | Disk | Ephemeral | VCPUs | Is Public |
+----+---------+-----+------+-----------+-------+-----------+
| 0 | m1.nano | 512 | 1 | 0 | 1 | True |
+----+---------+-----+------+-----------+-------+-----------+
2.創建實例
[root@controller ~]# openstack server create --flavor m1.nano --image cirros --nic net-id=cbd39bfd-28f2-455c-9b85-20cf78263797 vm01
+-------------------------------------+-----------------------------------------------+
| Field | Value |
+-------------------------------------+-----------------------------------------------+
| OS-DCF:diskConfig | MANUAL |
| OS-EXT-AZ:availability_zone | |
| OS-EXT-SRV-ATTR:host | None |
| OS-EXT-SRV-ATTR:hypervisor_hostname | None |
| OS-EXT-SRV-ATTR:instance_name | |
| OS-EXT-STS:power_state | NOSTATE |
| OS-EXT-STS:task_state | scheduling |
| OS-EXT-STS:vm_state | building |
| OS-SRV-USG:launched_at | None |
| OS-SRV-USG:terminated_at | None |
| accessIPv4 | |
| accessIPv6 | |
| addresses | |
| adminPass | wJ5piBzSJPEh |
| config_drive | |
| created | 2025-05-30T03:05:07Z |
| flavor | m1.nano (0) |
| hostId | |
| id | ce549054-5159-4ec4-8f4b-8195e8879c71 |
| image | cirros (03a823ea-6883-4a4b-9629-1b4839f0644a) |
| key_name | None |
| name | vm01 |
| progress | 0 |
| project_id | fbe4fead10f94b8187e7661246c0f5e6 |
| properties | |
| security_groups | name='default' |
| status | BUILD |
| updated | 2025-05-30T03:05:07Z |
| user_id | 4093e7a9f5454322ba9987581b564fe4 |
| volumes_attached | |
+-------------------------------------+-----------------------------------------------+
[root@controller ~]# openstack server list
+--------------------------------------+------+--------+---------------------+--------+---------+
| ID | Name | Status | Networks | Image | Flavor |
+--------------------------------------+------+--------+---------------------+--------+---------+
| ce549054-5159-4ec4-8f4b-8195e8879c71 | vm01 | ACTIVE | provider=10.1.1.113 | cirros | m1.nano |
+--------------------------------------+------+--------+---------------------+--------+---------+
[root@controller ~]# openstack console url show vm01
+-------+-------------------------------------------------------------------------------------+
| Field | Value |
+-------+-------------------------------------------------------------------------------------+
| type | novnc |
| url | http://172.173.10.110:6080/vnc_auto.html?token=43a88a22-f763-4216-ac00-ef52812d3348 |
+-------+-------------------------------------------------------------------------------------+
使用瀏覽器打開鏈接，測試虛擬機是否正常：
刪除：
[root@controller ~]# openstack server stop vm01 #停止實例
[root@controller ~]# openstack server delete vm01 #刪除實例
[root@controller ~]# openstack volume list #列出所有的卷
+--------------------------------------+------+-----------+------+-------------+
| ID | Name | Status | Size | Attached to |
+--------------------------------------+------+-----------+------+-------------+
| 36da451a-969c-4856-b340-6176daf19d42 | | available | 1 | |
+--------------------------------------+------+-----------+------+-------------+
[root@controller ~]# openstack volume delete 36da451a-969c-4856-b340-6176daf19d42 #刪除卷
10.4.2 通過通用鏡像創建CentOS7虛擬機
1.通用鏡像下載：CentOS Cloud Images
這里我們下載最新版本：
[root@controller ~]# wget http://cloud.centos.org/centos/7/images/CentOS-7-x86_64-GenericCloud-2211.qcow2
2.上傳鏡像到Glance
[root@controller ~]# source admin-openrc.sh
# 上傳
[root@controller ~]# glance image-create --name "CentOS-7-x86_64" --file CentOS-7-x86_64-GenericCloud-2211.qcow2 --disk-format qcow2 --min-ram 2048 --min-disk 20 --container-format bare --visibility public
+------------------+--------------------------------------+
| Property | Value |
+------------------+--------------------------------------+
| checksum | bc0d063116620ed1745fcd0c6e28afa9 |
| container_format | bare |
| created_at | 2025-06-11T07:41:16Z |
| disk_format | qcow2 |
| id | c9fdecf2-c9b7-46e4-89b9-56251c884518 |
| min_disk | 20 |
| min_ram | 2048 |
| name | CentOS-7-x86_64 |
| owner | acf4ba7bf0054f23840e9863120b2a2e |
| protected | False |
| size | 902889472 |
| status | active |
| tags | [] |
| updated_at | 2025-06-11T07:41:20Z |
| virtual_size | None |
| visibility | public |
+------------------+--------------------------------------+
# 查看
[root@controller ~]# openstack image list
+--------------------------------------+-----------------+--------+
| ID | Name | Status |
+--------------------------------------+-----------------+--------+
| 71081af8-b4fe-4d01-9ba3-b86efd3cbe74 | CentOS-7-x86_64 | active |
+--------------------------------------+-----------------+--------+
# 這里順帶把鏡像屬性設置以下，不然有可能虛擬機啟動會報：Booting from Hard Disk…GRUB
[root@controller ~]# openstack image set --property hw_disk_bus=ide --property hw_vif_model=e1000 <image_uuid>
3.創建虛擬機規格：
[root@controller ~]# openstack flavor create --id 0 --vcpus 1 --ram 2048 --disk 30 linux ##這里有可能ID和前面的測試鏡像沖突，可以換ID
+----------------------------+-------+
| Field | Value |
+----------------------------+-------+
| OS-FLV-DISABLED:disabled | False |
| OS-FLV-EXT-DATA:ephemeral | 0 |
| disk | 30 |
| id | 0 |
| name | linux |
| os-flavor-access:is_public | True |
| properties | |
| ram | 2048 |
| rxtx_factor | 1.0 |
| swap | |
| vcpus | 1 |
+----------------------------+-------+
4.由于下載的鏡像安裝之后它默認禁止密碼登錄，所以要做一些操作，在虛擬機啟動的時候自動初始化密碼等會兒才能登錄。
默認OpenStack的Dashboard修改虛擬機的密碼的功能是關閉的，你需要enable
控制節點上：
[root@controller ~]# vi /usr/share/openstack-dashboard/openstack_dashboard/local/local_settings.py
# 改完重啟阿帕奇
[root@controller ~]# systemctl restart httpd.service
修改所有計算節點的nova.conf配置文件，在[libvirt]下面加inject_password=True:
[root@compute ~]# vi /etc/nova/nova.conf
節點重啟nova服務：
[root@compute ~]# openstack-service restart nova
之后就可以了。
5.創建虛擬機，這里以web界面為例
腳本：
#!/bin/bash
passwd root<<EOF
Admin@123
Admin@123
EOF
把配置驅動也勾選上完成之后即可創建實例。
等待虛擬機啟動成功之后測試是否正常：
十一、安全組
11.1 創建安全組
11.2 應用安全組
遠程發現它禁止遠程。
11.3 配置虛擬機允許遠程
使用瀏覽器上的VNC登錄，修改ssh配置文件，修改如下兩個地方：
PasswordAuthentication yes #去掉注釋
。。。
PasswordAuthentication yes #去掉注釋
重啟遠程服務：
[root@vm01 ~]# systemctl restart sshd
測試：
ok，沒問題。
浙公網安備 33010602011771號
