如果想自己獲取應用程序的Call Stack，就需要查看Stack的內容。Stack Walker，在最近查看SSCLI源碼的時候發現這個東西是和Stack Frame緊密聯系在一起的。

Walking the Stack

We could conceivably attempt to unwind the stack ourselves using inline assembly. But stack frames can be organized in different ways, depending on compiler optimizations and calling conventions, so it could become complicated to do it that way. Once again, Microsoft has provided us with a tool to help us out. This time it is a function that we can call iteratively to walk the stack, frame by frame. That function is StackWalk64. It is part of the Debug Help Library (dbghelp.dll). As long as we provide it with the information that it needs to establish a starting "frame of reference", so to speak, it can examine our stack from there and reliably unwind it for us. Each time StackWalk64 is called, it gives back a STACKFRAME64 structure that can be reused as input for the next call to StackWalk64. It can be repeatedly called this way until the end of the stack is reached.

       從上面的Walking the Stack可以看到，查看App的Stack有兩種方法。使用內聯匯編或者是使用DbgHelp庫里面的StackWalk64方法。

       找到DbgHelp里面是StackWalk64：



BOOL

IMAGEAPI

StackWalk64(

DWORD	MachineType,
HANDLE	hProcess,
HANDLE	hThread,
LPSTACKFRAME64	StackFrame,
PVOID	ContextRecord,
PREAD_PROCESS_MEMORY_ROUTINE64	ReadMemoryRoutine,
PFUNCTION_TABLE_ACCESS_ROUTINE64	FunctionTableAccessRoutine,
PGET_MODULE_BASE_ROUTINE64	GetModuleBaseRoutine,
PTRANSLATE_ADDRESS_ROUTINE64	TranslateAddress

);



       可以參考MSDN里面：http://msdn2.microsoft.com/en-us/library/ms680650(VS.85).aspx的關于這個方法的詳細使用。

       Kevin Lynx也給做了關于使用這個方法來獲取調用堆棧的例子：

http://www.cppblog.com/kevinlynx/archive/2008/03/28/45628.html



這里，就給出一個采用內聯匯編來獲取App調用堆棧的例子，這個例子里面，由于調試生成的符號文件沒有加載好，故而Mudule的信息不能很好的顯示出來，不過這個例子很好的演示了使用內聯匯編來獲取Stack Frame，從而print出整個函數的調用堆棧來，同時也是一個很好的使用DbgHelp來獲取調試信息的例子：

#include "stdafx.h"

#include <windows.h>

#include <dbghelp.h>



#define INVALID_FP_RET_ADDR_VALUE 0x00000000



BOOL g_fSymInit;

HANDLE g_hProcess;





//address of the founction stack-call to walk.

BOOL DisplaySymbolDetails(DWORD dwAddress)

{

       DWORD64 displacement = 0;



       ULONG64 buffer[(sizeof(SYMBOL_INFO) +

    MAX_SYM_NAME*sizeof(TCHAR) +

    sizeof(ULONG64) - 1) /

    sizeof(ULONG64)];

       PSYMBOL_INFO pSymbol = (PSYMBOL_INFO)buffer;



       pSymbol->SizeOfStruct = sizeof(SYMBOL_INFO);

       pSymbol->MaxNameLen = MAX_SYM_NAME;





       if (SymFromAddr(g_hProcess,dwAddress,&displacement,pSymbol))

       {

              // Try to get the Module details

              IMAGEHLP_MODULE64 moduleinfo;

              moduleinfo.SizeOfStruct = sizeof(IMAGEHLP_MODULE64);

              if (SymGetModuleInfo64(g_hProcess,pSymbol->Address,&moduleinfo))

              {

                     printf("%s!",moduleinfo.ModuleName);

              }

              else

              {

                     printf("<ErrorModuleInfo_%d>!", GetLastError());

              }



              // now print the function name

              if (pSymbol->MaxNameLen > 0)

              {

                     printf("%s",pSymbol->Name);

              }

              else

              {

                     printf("<Unknown_Function>");

              }

       }

       else

       {

              printf(" <Unable to get symbol details_%d>", GetLastError());

       }



       return TRUE;

}





//采用內聯匯編獲取當前stack Frame地址和當前程序指令地址.

bool WalkTheStack()

{

       DWORD _ebp = INVALID_FP_RET_ADDR_VALUE;

       DWORD dwIPOfCurrentFunction = (DWORD)&WalkTheStack;



       // Get the current Frame pointer

       __asm

       {

              mov [_ebp], ebp

       }



       // We cannot walk the stack (yet!) without a frame pointer

       if (_ebp == INVALID_FP_RET_ADDR_VALUE)

              return false;



       printf("CurFP\t\t\tRetAddr\n");



       //current Frame Pointer

       DWORD *pCurFP = (DWORD *)_ebp;

       BOOL fFirstFP = TRUE;

       while (pCurFP != INVALID_FP_RET_ADDR_VALUE)

       {

              // pointer arithmetic works in terms of type pointed to. Thus,

              // "+1" below is equivalent of 4 bytes since we are doing DWORD

              // math.

              // Find Caller,next print.

              DWORD pRetAddrInCaller = (*((DWORD *)(pCurFP + 1)));

              printf("%p\t\t%p  ",pCurFP, (DWORD *)pRetAddrInCaller);



              if (g_fSymInit)

              {

                     if (fFirstFP)

                     {

                            fFirstFP = FALSE;

                     }



                     DisplaySymbolDetails(dwIPOfCurrentFunction);



                     // To get the name of the next function up the stack,

                     // we use the return address of the current frame

                     dwIPOfCurrentFunction = pRetAddrInCaller;

              }



              printf("\n");

              if (pRetAddrInCaller == INVALID_FP_RET_ADDR_VALUE)

              {

                     // StackWalk is over now...

                     break;

              }



              // move up the stack to our caller

              DWORD pCallerFP = *((DWORD *)pCurFP);

              pCurFP = (DWORD *)pCallerFP;

       }



       return true;

}



int _tmain(int argc, _TCHAR* argv[])

{

       // Initialize the debugger services to retrieve detailed stack info

       g_fSymInit = FALSE;

       g_hProcess = GetCurrentProcess();

       if (!SymInitialize(g_hProcess, NULL,TRUE))

       {

              printf("Unable to initialize symbols!\n\n");

       }

       g_fSymInit = TRUE;



       //SYMOPT_UNDNAME:All symbols are presented in undecorated form.

       //SYMOPT_INCLUDE_32BIT_MODULES:

//When debugging on 64-bit Windows, include any 32-bit modules.

       //SYMOPT_ALLOW_ABSOLUTE_SYMBOLS:

//Enables the use of symbols that are stored with absolute addresses. instead of RAVS forms.

       SymSetOptions(SYMOPT_UNDNAME|SYMOPT_INCLUDE_32BIT_MODULES|SYMOPT_ALLOW_ABSOLUTE_SYMBOLS);



       if (WalkTheStack() == false)

              printf("Stackwalk failed!\n");



       return 0;

}



      兩個程序種需要用到的比較重要的結構體，一個是關于某個方法Symbol信息的
typedef struct _SYMBOL_INFO，另外一個是關于模塊信息的,
typedef struct _IMAGEHLP_MODULE64.

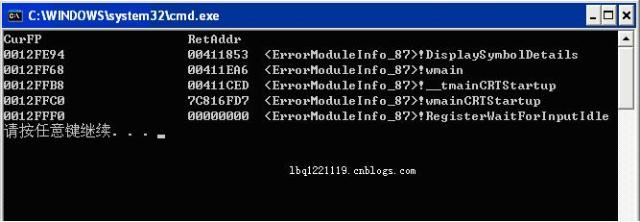

     下面是運行這個代碼打印出的調用代碼示意圖：
