調用接口一般采用兩種方式,webservice和webapi,此篇寫webapi建立及測試

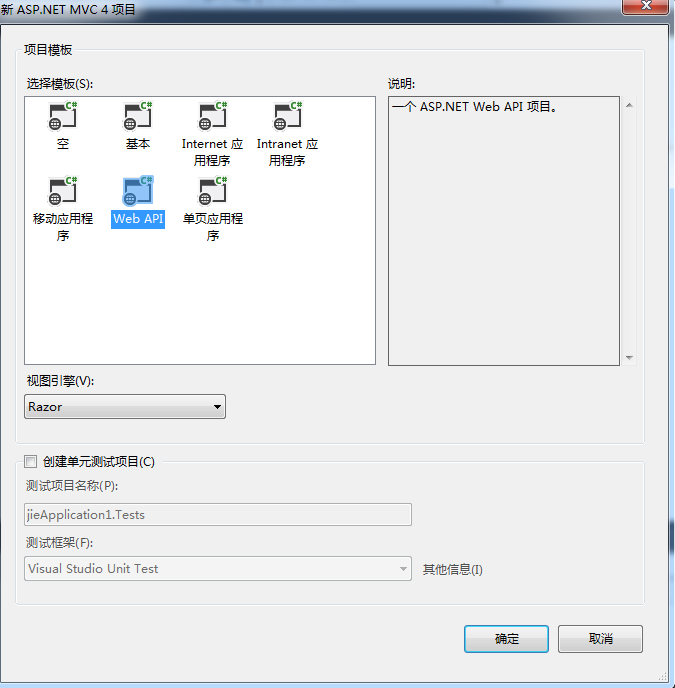

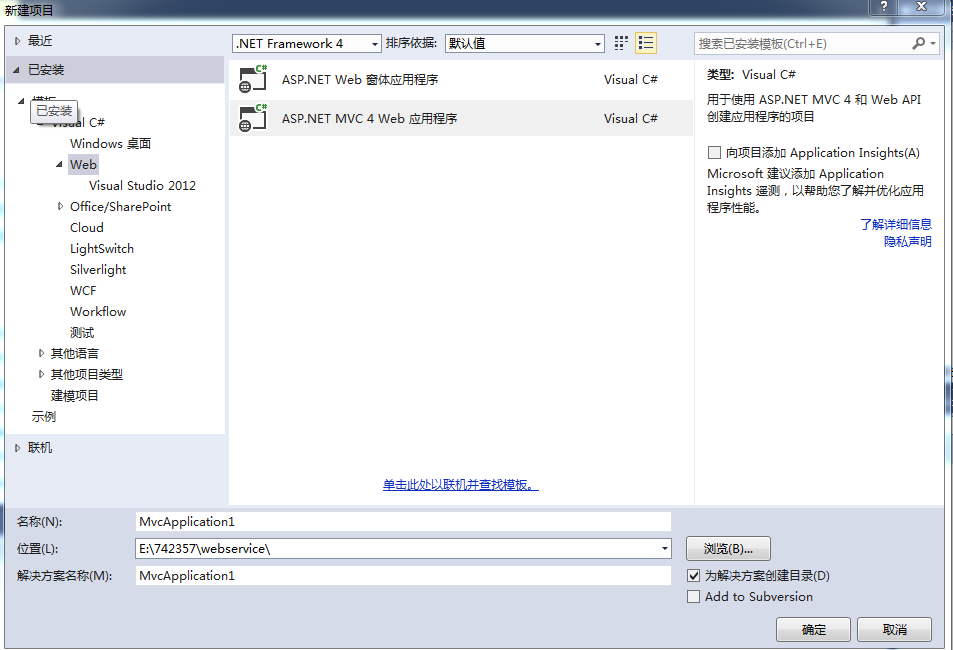

1.創建:

2.添加控制器到Controller文件夾,新建Api文件夾,將該控制器文件放入Api下,打開App_Start文件夾下webapiconfig,修改路由,
public static void Register(HttpConfiguration config) { config.Formatters.JsonFormatter.SupportedMediaTypes.Add(new MediaTypeHeaderValue("text/html")); config.Routes.MapHttpRoute( name: "DefaultApi", routeTemplate: "api/{controller}/{id}", defaults: new { id = RouteParameter.Optional } );
3.方法名定義注意點
a.如果方法名為post或者get,就是默認使用,在測試時,直接寫到控制器LQInfo,然后傳遞方式設置為post即可,不需要寫方法;

b.如果自定義方法,選擇方式為get或者post,那么需要寫到具體方法getcode();

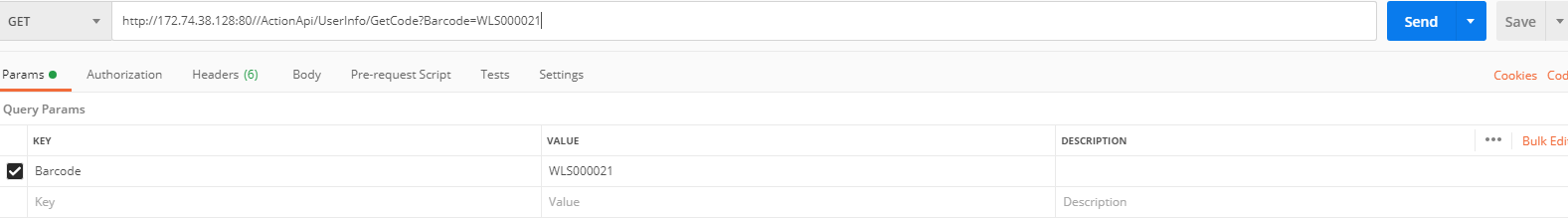

在用 winform調用測試時,也需要寫到方法:
private void button1_Click(object sender, EventArgs e) { string ashxSite = "http://localhost:80//ActionApi"; var client = new RestClient(ashxSite); var request = new RestRequest("/UserInfo/GetCode", Method.GET); request.AddParameter("Barcode", "WLS000021"); var response = client.Execute(request); // 從 WebAPI 獲取 textBox2.Text = response.Content; }
4.參數注意點
a.如果參數只為一個:
[HttpPost] public string GetCode(string Barcode) { try { using (OracleConnection conn = new OracleConnection(connERP)) { string sql = @"select trim(a.t$mitm ) 編碼,trim(b.t$dsca) 名稱 from tablea a join tableb b on trim(a.t$pdno)=:a and a.t$mitm = b.t$item"; Object obj = conn.QueryFirstOrDefault(sql, new { a = Barcode }); if (obj != null) { string item = obj.ToString(); return item; } else return null; } } catch (Exception ex) { return "Error." + ex.Message; } }
b.從URL獲取參數值的方式的弊端是URL有長度限制,當超過瀏覽器的最大URL長度時請求將被瀏覽器拒絕,根本不會發出去。

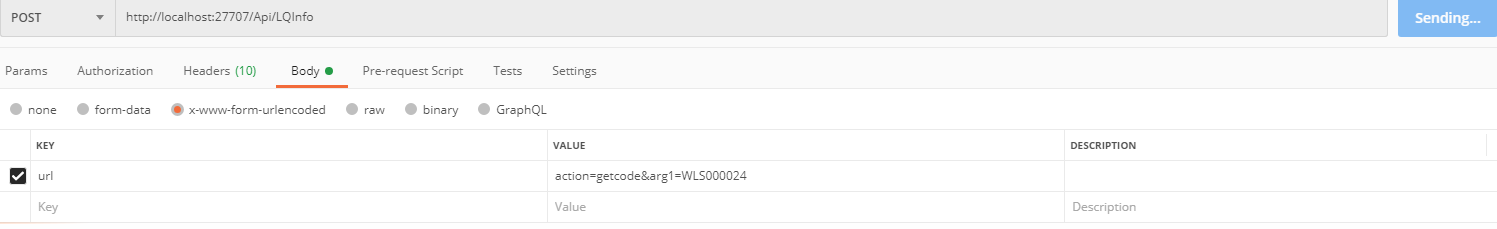

因此,當參數值過大時需要用[FromBody]參數進行傳輸,相當于一個類,將參數包含起來,使用postman測試時,參數列舉見圖3-a.
public class AX { public string url { get; set; } } public string Post([FromBody] AX arg ) { // 傳入的字符串:"action=search&arg1=" + user + "&arg2=" + ED_tiaoMa.getText().toString(); // 先用&分割,再用=分割 string ip = HttpContext.Current.Request.UserHostAddress; if (arg!= null && !string.IsNullOrEmpty(arg.url)) { log.DebugFormat("Post:{0}", arg.url); var tmps = arg.url.Split('&'); string action = string.Empty; string arg1 = string.Empty; string arg2 = string.Empty; string arg3 = string.Empty; string arg4 = string.Empty; foreach (var item in tmps) { var tmps2 = item.Split('='); var s = tmps2[0].Trim().ToLower(); //第一個參數 方法 var _value = tmps2[tmps2.Length - 1].Trim(); //最后一個參數 if (tmps2.Length < 2) _value = string.Empty; if ("action".Equals(s, StringComparison.OrdinalIgnoreCase)) action = _value; else if ("arg1".Equals(s, StringComparison.OrdinalIgnoreCase)) arg1 = _value; else if ("arg2".Equals(s, StringComparison.OrdinalIgnoreCase)) arg2 = _value; else if ("arg3".Equals(s, StringComparison.OrdinalIgnoreCase)) arg3 = _value; else if ("arg4".Equals(s, StringComparison.OrdinalIgnoreCase)) arg4 = _value; } log.DebugFormat("Post: {0} / {1} / {2} / {3} / {4} / {5}", action, arg1, arg2, arg3, arg4, ip); if (string.IsNullOrWhiteSpace(action)) return "不支持此方法!"; var a1 = action.Trim().ToLower(); switch (a1) { case "getcode": { try { using (OracleConnection conn = new OracleConnection(connErp)) { string sql = @"select trim(a.t$mitm ) 編碼,trim(b.t$dsca) 名稱 from tablea a join tableb b on trim(a.t$pdno)=:a and a.t$mitm = b.t$item"; Object obj = conn.QueryFirstOrDefault(sql, new { a = arg1 }); if (obj != null) { string item = obj.ToString(); return item; } else return null; } } catch (Exception ex) { return "Error." + ex.Message; } } return action; } } return "Error." + arg.url; }
VS附加到進程調試(不用發布,可被調用)

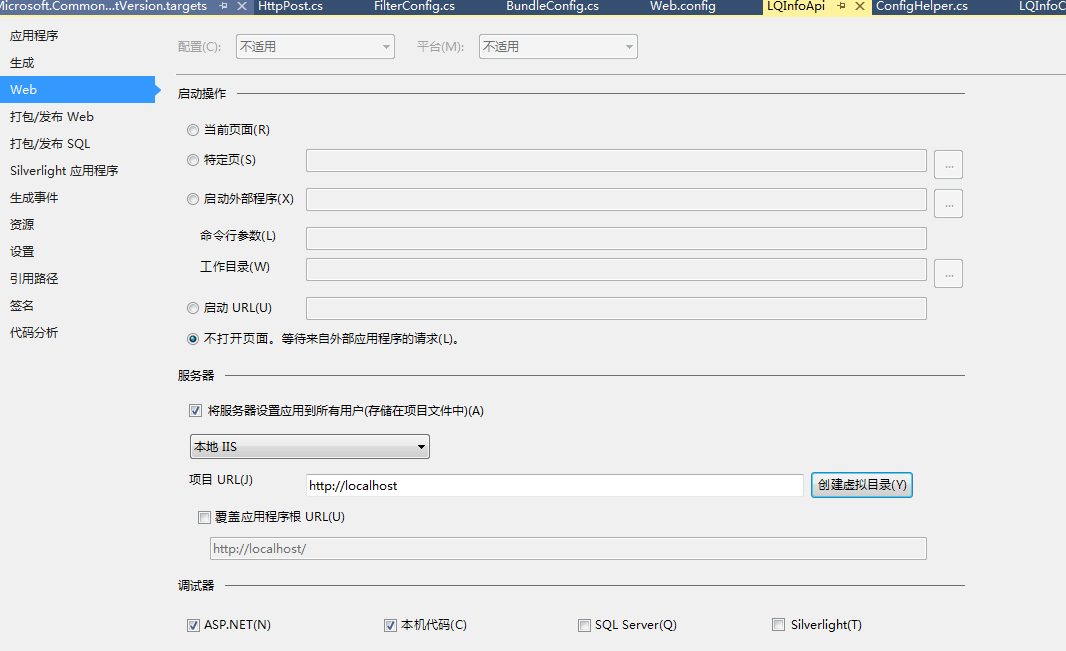

點擊調試-屬性

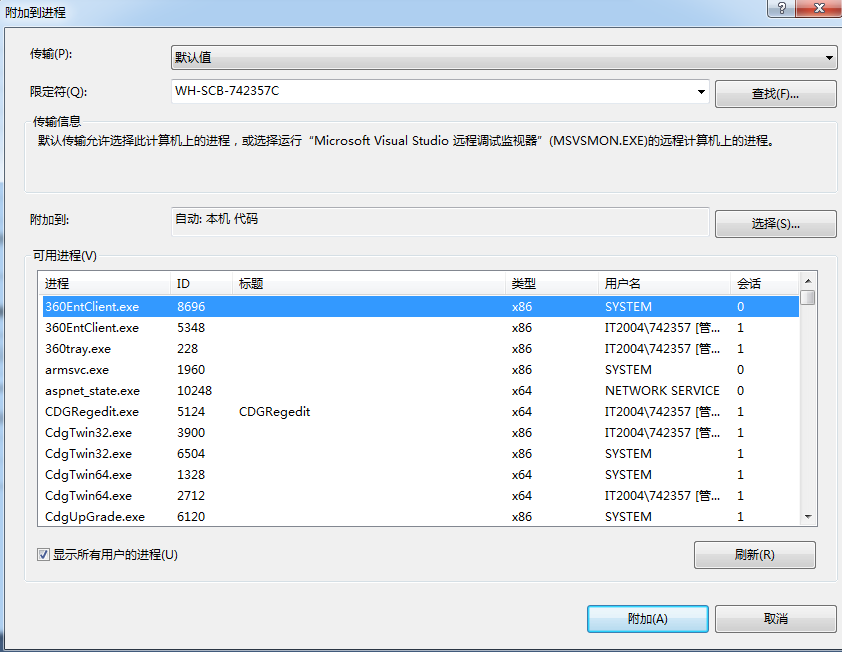

選擇調試—附加到進程,顯示所有用戶進程,找到w3wp進程,附加

進行生成,在postman調試
如果出現不進斷點情況,右下角帶感嘆號,但是訪問數據成功。檢查重裝電腦.net版本,對應應用程序。再試即可

【注】調用webapi時,便于他人解析,一般用JsonResult作為返回類型,
new JsonResult(){Data=""};
new JsonResult(){Data=lista};
