nhibernate學習之三級聯(Ternary Associations)篇
園子里面的兄弟們好，由于工作和身體的原因，幾天來都沒有寫有關nhibernate學習系列了。看了看前幾篇大家的回復，首先想要多謝兄弟們對小弟的關注和支持，可小弟水平有限，寫出來的也只是入門級的心得。只是有一個心愿，那就是拋磚引玉，希望能和大家更多更好的互動。技術無極限，而我更想要得是能在園子里面認識更多的兄弟，更多的朋友。對了，忘記了一點事情，那就是，兄弟們，節日快樂，哈哈哈。。。唧唧歪歪這么多，大家不要見笑，下面進入正題
1) 學習目標
通過進一步學習Nhibernate基礎知識，掌握用Nhiberate實現對級聯的支持，通過一個簡單的用戶角色權限系統來體驗nhibernate對級聯的強大支持。
2）開發環境和必要準備
開發環境為:windows 2003,Visual studio .Net 2005,Sql server 2005 developer edition
必要準備：學習前三篇nhibernate學習系列Nhibernate學習之起步篇-1 ,Nhibernate學習起步之many-to-one篇 ,Nhibernate學習之many-to-many篇
3)示例
業務需求：實現一個用戶角色權限系統，一個用戶只有一個角色，一個角色下有多個用戶，一個角色下有多個權限，一個權限也對應多個角色
要求: (1).創建一個角色 (2)在該角色上創建兩個個用戶3)創建兩個權限4)指定該角色上的權限列表5)獲得一個用戶的權限列表

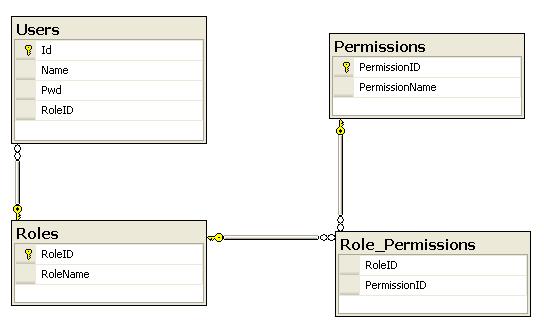

首先看關系數據庫關系圖:
4)實現步驟:
1.User.cs
using System;
using System.Collections.Generic;
using System.Text;
namespace NhibernateSample1
{
public class User
{
private int _id;
private string _name;
private string _pwd;
private Role _role;
/// <summary>
/// 編號
/// </summary>
public virtual int Id
{
get
{
return _id;
}
set
{
_id = value;
}
}
/// <summary>
/// 名稱
/// </summary>
public virtual string Name
{
get
{
return _name;
}
set
{
_name = value;
}
}
/// <summary>
/// 密碼
/// </summary>
public virtual string Pwd
{
get
{
return _pwd;
}
set
{
_pwd = value;
}
}
public virtual Role Role
{
get
{
return _role;
}
set
{
_role = value;
}
}
}
}
User.hbm.xml
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2">
<class name="NhibernateSample1.User,NhibernateSample1" table="Users" lazy="false">
<id name="Id" column="Id" unsaved-value="0">
<generator class="native" />
</id>
<property name="Name" column="Name" type="string" length="64" not-null="true" unique="true"></property>
<property name="Pwd" column="Pwd" type="string" length="64" not-null="true"></property>
<many-to-one name="Role" class="NhibernateSample1.Role,NhibernateSample1" column="RoleID"></many-to-one>
</class>
</hibernate-mapping>
2.Role.cs
using System;
using System.Collections.Generic;
using System.Text;
using System.Collections;
namespace NhibernateSample1
{
public class Role
{
int _roleID;
string _roleName;
IList _list = new ArrayList();
IList _permissionList = new ArrayList();
public virtual IList PermissionList
{
get
{
return _permissionList;
}
set
{
_permissionList = value;
}
}
public virtual int RoleID
{
get
{
return _roleID;
}
set
{
_roleID = value;
}
}
public virtual IList UserList
{
get
{
return _list;
}
set
{
_list = value;
}
}
public virtual string RoleName
{
get
{
return _roleName;
}
set
{
_roleName = value;
}
}
}
}
Role.hbm.xml
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2">
<class name="NhibernateSample1.Role,NhibernateSample1" table="Roles" lazy="false">
<id name="RoleID" column="RoleID" unsaved-value="0">
<generator class="native" />
</id>
<property name="RoleName" column="RoleName" type="string" length="64" not-null="true"></property>
<bag name="PermissionList" table="Role_Permissions" inverse="true" lazy="false" cascade="all">
<key column="RoleID"/>
<many-to-many class="NhibernateSample1.Permission,NhibernateSample1" column="PermissionID"></many-to-many>
</bag>
<bag name="UserList" table="Users" inverse="true" lazy="false" cascade="all">
<key column="RoleID"/>
<one-to-many class="NhibernateSample1.User,NhibernateSample1"></one-to-many>
</bag>
</class>
</hibernate-mapping>
3.Permission.cs
using System;
using System.Collections.Generic;
using System.Text;
using System.Collections;
namespace NhibernateSample1
{
public class Permission
{
int _permissionID;
string _permissionName;
IList _roleList = new ArrayList();
public virtual int PermissionID
{
get
{
return _permissionID;
}
set
{
_permissionID = value;
}
}
public virtual string PermissionName
{
get
{
return _permissionName;
}
set
{
_permissionName=value;
}
}
public virtual IList RoleList
{
get
{
return _roleList;
}
set
{
_roleList = value;
}
}
}
}
Permission.hbm.xml
<?xml version="1.0" encoding="utf-8" ?>
<hibernate-mapping xmlns="urn:nhibernate-mapping-2.2">
<class name="NhibernateSample1.Permission,NhibernateSample1" table="Permissions" lazy="false">
<id name="PermissionID" column="PermissionID" unsaved-value="0">
<generator class="native" />
</id>
<property name="PermissionName" column="PermissionName" type="string" length="64" not-null="true" unique="true"></property>
<bag name="RoleList" table="Role_Permissions" lazy="true">
<key column="PermissionID"/>
<many-to-many class="NhibernateSample1.Role,NhibernateSample1" column="RoleID"></many-to-many>
</bag>
</class>
</hibernate-mapping>
4。數據操作類
UserRolePermissionFixure
5。單元測試類
UnitTest1.cs
通過本篇的學習，將充分理解到nhibernate對級聯支持的強大。另外除了支持三級聯之外，他還支持異類關聯(Heterogeneous Associations) .給開發帶來了更多的靈活性和實用性。而且考慮到性能的問題，還添加了lazy這樣的延遲加載的功能，加載父親不必要一定要加載他的兒子集合。通過集合類映射，nhinernate輕松實現級聯，這相比較代碼生成來說，無疑是一個優點。
1) 學習目標
通過進一步學習Nhibernate基礎知識，掌握用Nhiberate實現對級聯的支持，通過一個簡單的用戶角色權限系統來體驗nhibernate對級聯的強大支持。
2）開發環境和必要準備
開發環境為:windows 2003,Visual studio .Net 2005,Sql server 2005 developer edition
必要準備：學習前三篇nhibernate學習系列Nhibernate學習之起步篇-1 ,Nhibernate學習起步之many-to-one篇 ,Nhibernate學習之many-to-many篇
3)示例
業務需求：實現一個用戶角色權限系統，一個用戶只有一個角色，一個角色下有多個用戶，一個角色下有多個權限，一個權限也對應多個角色
要求: (1).創建一個角色 (2)在該角色上創建兩個個用戶3)創建兩個權限4)指定該角色上的權限列表5)獲得一個用戶的權限列表
首先看關系數據庫關系圖:
4)實現步驟:
1.User.cs
using System;using System.Collections.Generic;using System.Text;namespace NhibernateSample1{
public class User {
private int _id; private string _name; private string _pwd; private Role _role; /// <summary> /// 編號 /// </summary> public virtual int Id { get { return _id; } set { _id = value; } } /// <summary> /// 名稱 /// </summary> public virtual string Name { get { return _name; } set { _name = value; } } /// <summary> /// 密碼 /// </summary> public virtual string Pwd { get { return _pwd; } set { _pwd = value; } } public virtual Role Role { get { return _role; } set { _role = value; } } }}<?xml version="1.0" encoding="utf-8" ?><hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"> <class name="NhibernateSample1.User,NhibernateSample1" table="Users" lazy="false"> <id name="Id" column="Id" unsaved-value="0"> <generator class="native" /> </id> <property name="Name" column="Name" type="string" length="64" not-null="true" unique="true"></property> <property name="Pwd" column="Pwd" type="string" length="64" not-null="true"></property> <many-to-one name="Role" class="NhibernateSample1.Role,NhibernateSample1" column="RoleID"></many-to-one> </class></hibernate-mapping>using System;using System.Collections.Generic;using System.Text;using System.Collections;namespace NhibernateSample1{ public class Role { int _roleID; string _roleName; IList _list = new ArrayList(); IList _permissionList = new ArrayList(); public virtual IList PermissionList { get { return _permissionList; } set { _permissionList = value; } } public virtual int RoleID { get { return _roleID; } set { _roleID = value; } } public virtual IList UserList { get { return _list; } set { _list = value; } } public virtual string RoleName { get { return _roleName; } set { _roleName = value; } } }}<?xml version="1.0" encoding="utf-8" ?><hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"> <class name="NhibernateSample1.Role,NhibernateSample1" table="Roles" lazy="false"> <id name="RoleID" column="RoleID" unsaved-value="0"> <generator class="native" /> </id> <property name="RoleName" column="RoleName" type="string" length="64" not-null="true"></property> <bag name="PermissionList" table="Role_Permissions" inverse="true" lazy="false" cascade="all"> <key column="RoleID"/> <many-to-many class="NhibernateSample1.Permission,NhibernateSample1" column="PermissionID"></many-to-many> </bag> <bag name="UserList" table="Users" inverse="true" lazy="false" cascade="all"> <key column="RoleID"/> <one-to-many class="NhibernateSample1.User,NhibernateSample1"></one-to-many> </bag> </class></hibernate-mapping>using System;using System.Collections.Generic;using System.Text;using System.Collections;namespace NhibernateSample1{ public class Permission { int _permissionID; string _permissionName; IList _roleList = new ArrayList(); public virtual int PermissionID { get { return _permissionID; } set { _permissionID = value; } } public virtual string PermissionName { get { return _permissionName; } set { _permissionName=value; } } public virtual IList RoleList { get { return _roleList; } set { _roleList = value; } } }}<?xml version="1.0" encoding="utf-8" ?><hibernate-mapping xmlns="urn:nhibernate-mapping-2.2"> <class name="NhibernateSample1.Permission,NhibernateSample1" table="Permissions" lazy="false"> <id name="PermissionID" column="PermissionID" unsaved-value="0"> <generator class="native" /> </id> <property name="PermissionName" column="PermissionName" type="string" length="64" not-null="true" unique="true"></property> <bag name="RoleList" table="Role_Permissions" lazy="true"> <key column="PermissionID"/> <many-to-many class="NhibernateSample1.Role,NhibernateSample1" column="RoleID"></many-to-many> </bag> </class></hibernate-mapping>UserRolePermissionFixureUnitTest1.cs
