SpringBoot 集成積木報表
參考原文：SpringBoot 集成積木報表
作者：翻斗大樂園
前言
積木報表是jeecg的一款開源但代碼不開源的一款自定義報表，可以基于網頁靈活調整報表的布局、樣式等內容，無需編程，專為企業數據分析、報表制作而設計；降低管理人員匯總制作報表的門檻，解決各類日常管理和匯報的難題。但是因為代碼不開源所以，很多公司商用時會因為積木報表logo、tilte、路由等陷入尷尬局面，本文基于SpringBoot實現整合積木報表，實現自有化報表項目集成。
文章末尾附帶源碼。因為有代碼展示，所以建議PC端打開瀏覽。
搭建SpringBoot項目
1：搭建springboot項目maven框架結構

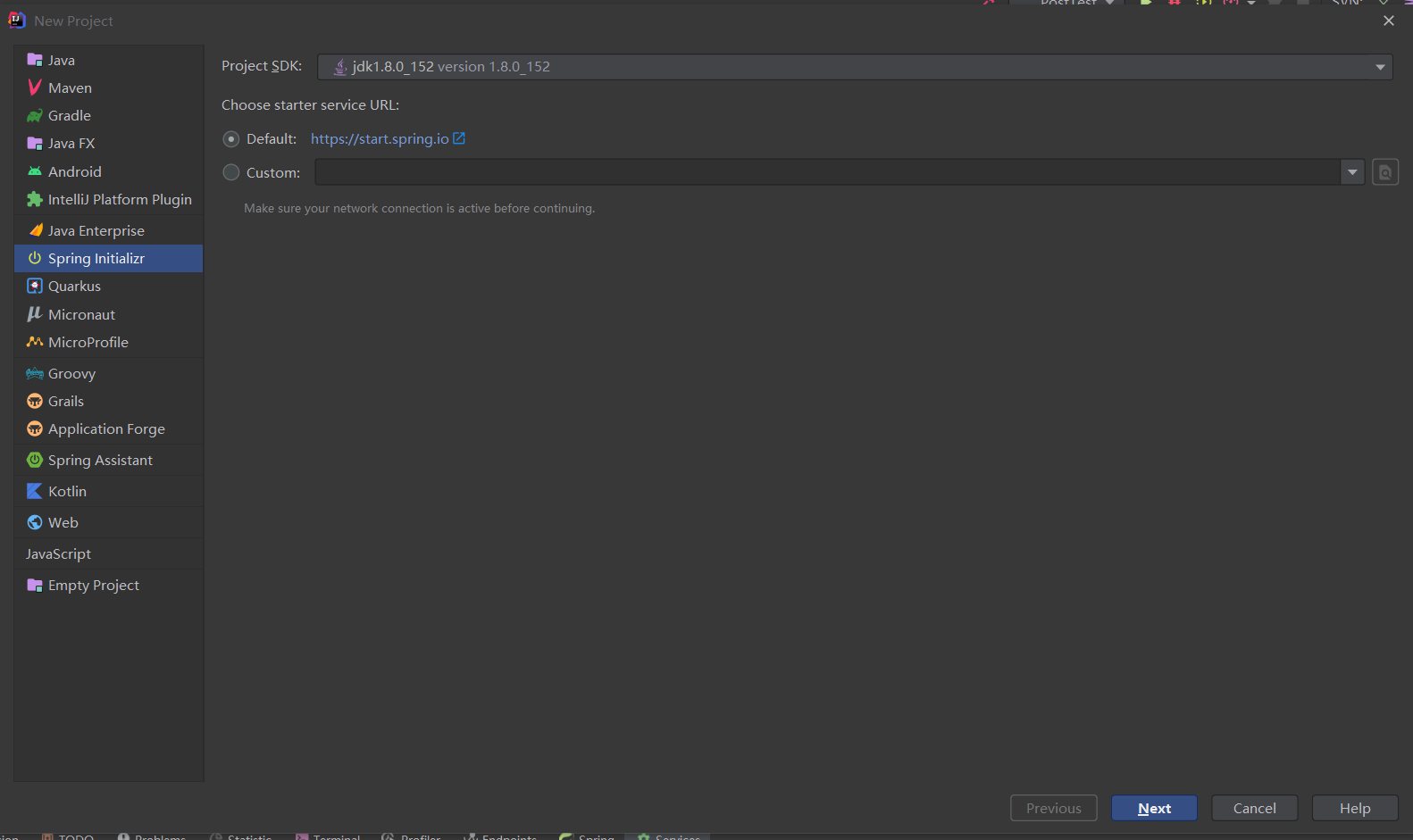

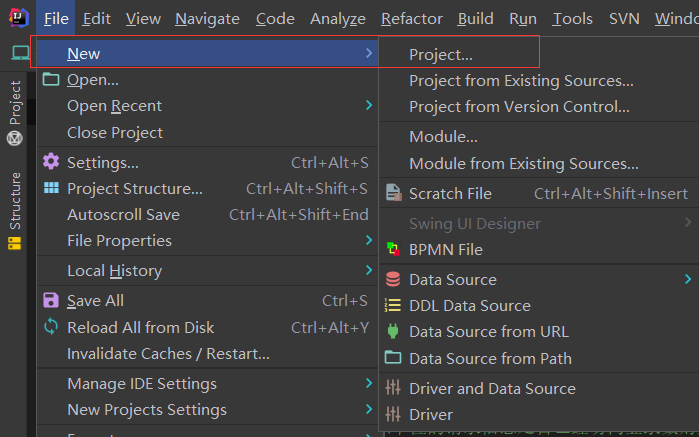

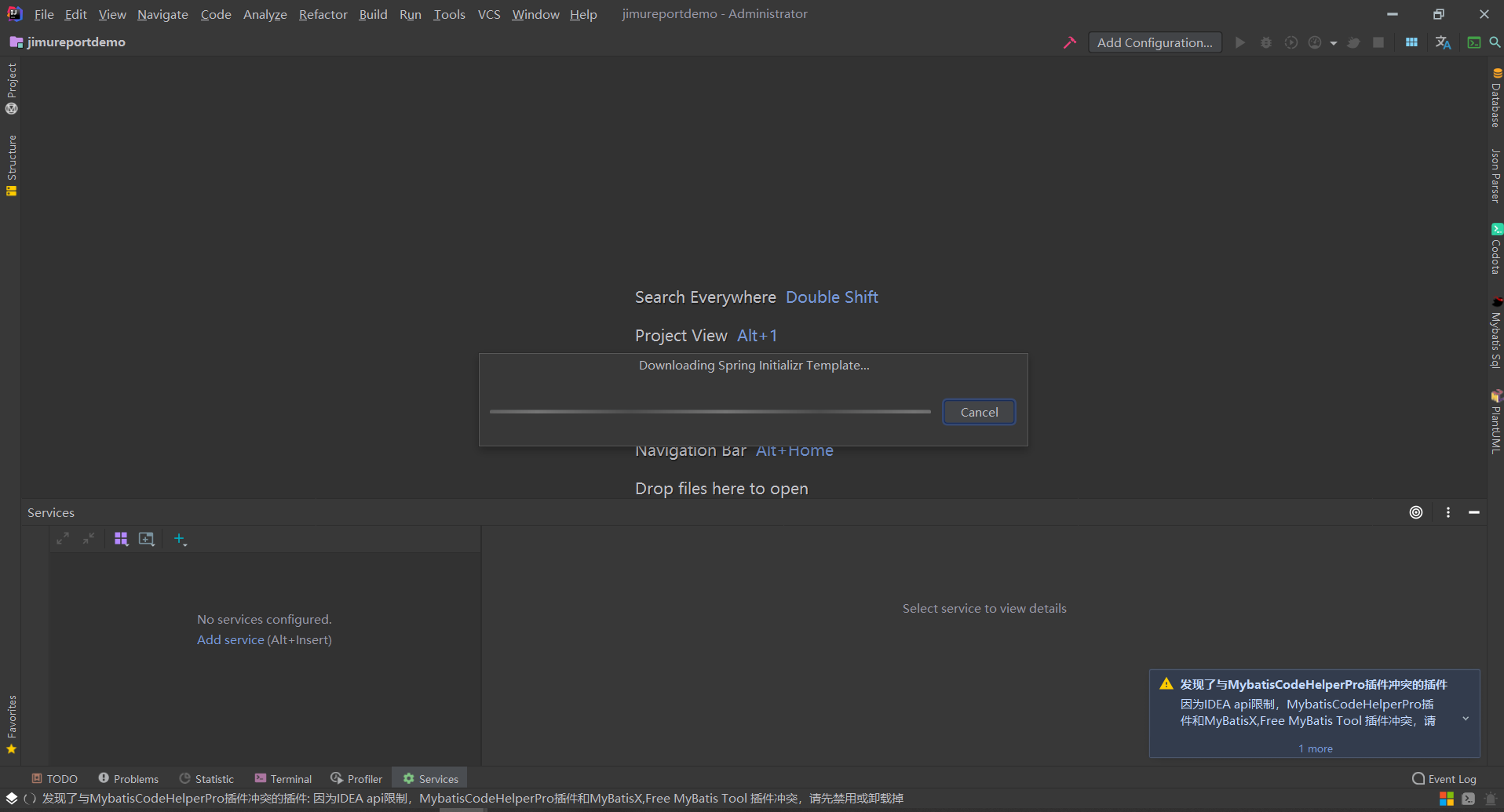

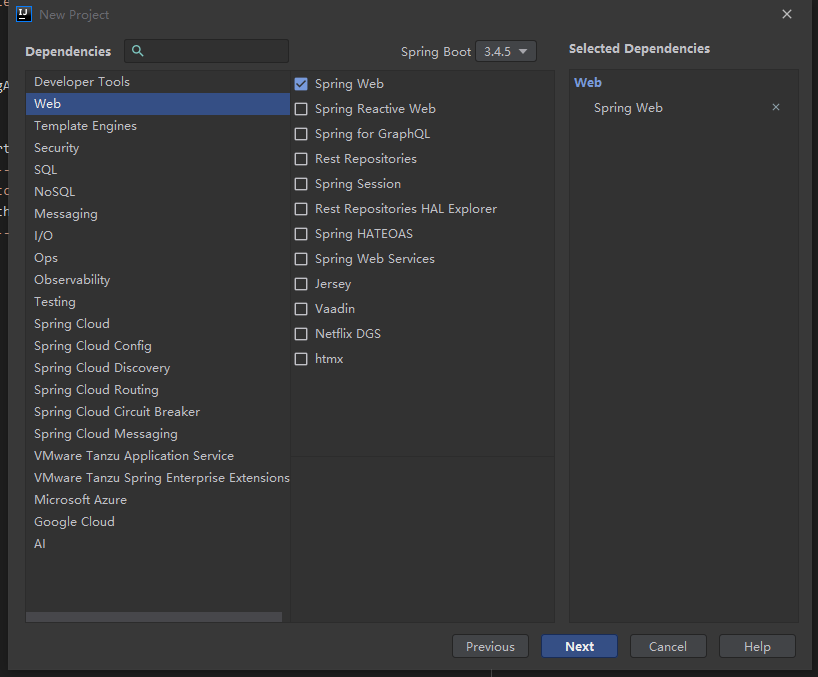

⑴、idea中選擇File-New-Project，選擇Spring Initializr、選擇對應的JDK版本、點擊Next

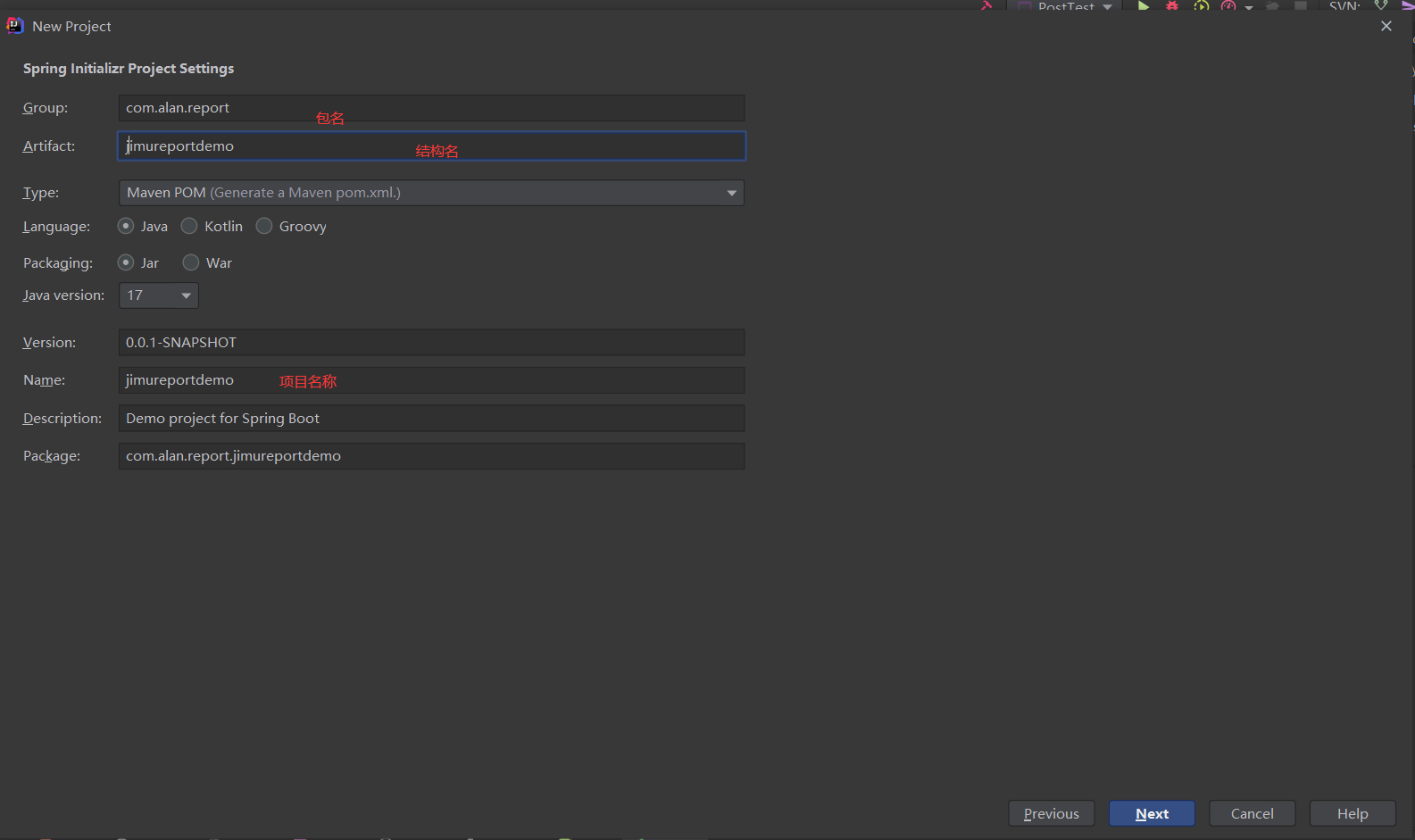

⑵、輸入項目名稱，包名等 點擊Next

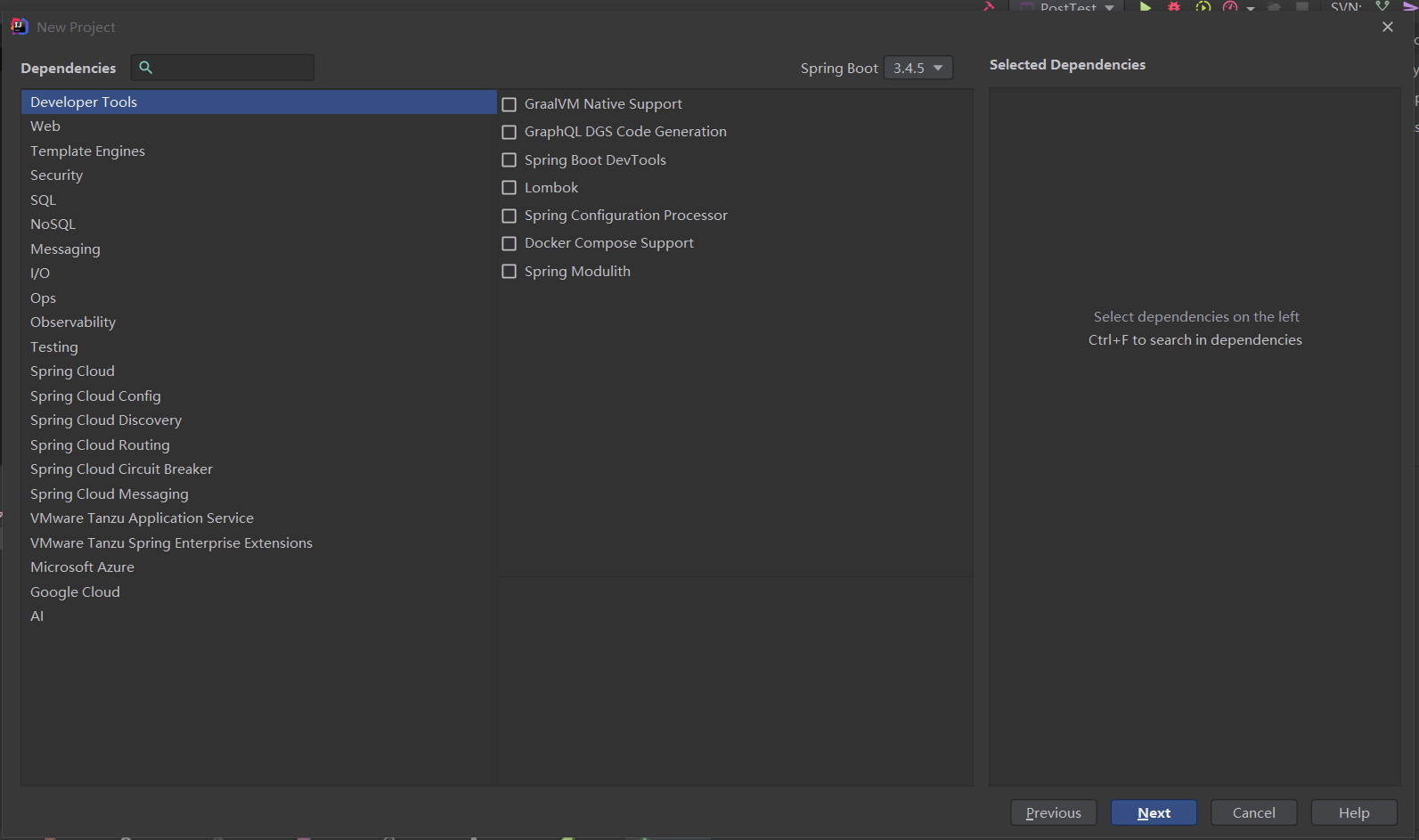

⑶、跳過選擇默認依賴這一步，直接Next

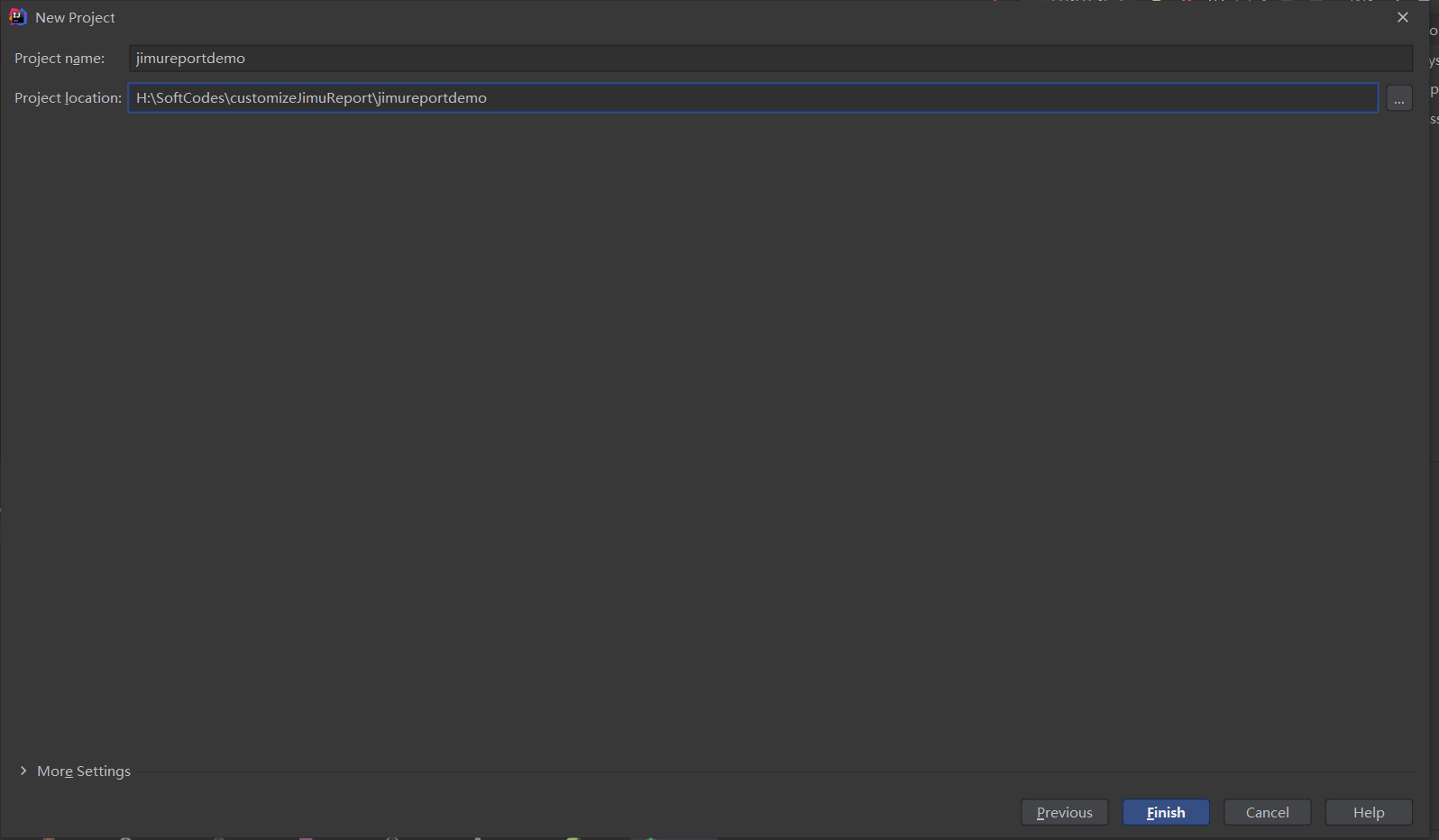

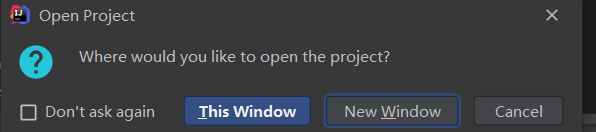

⑷、選擇項目存放路徑，然后點擊Finish 至此SpringBoot項目創建結束。

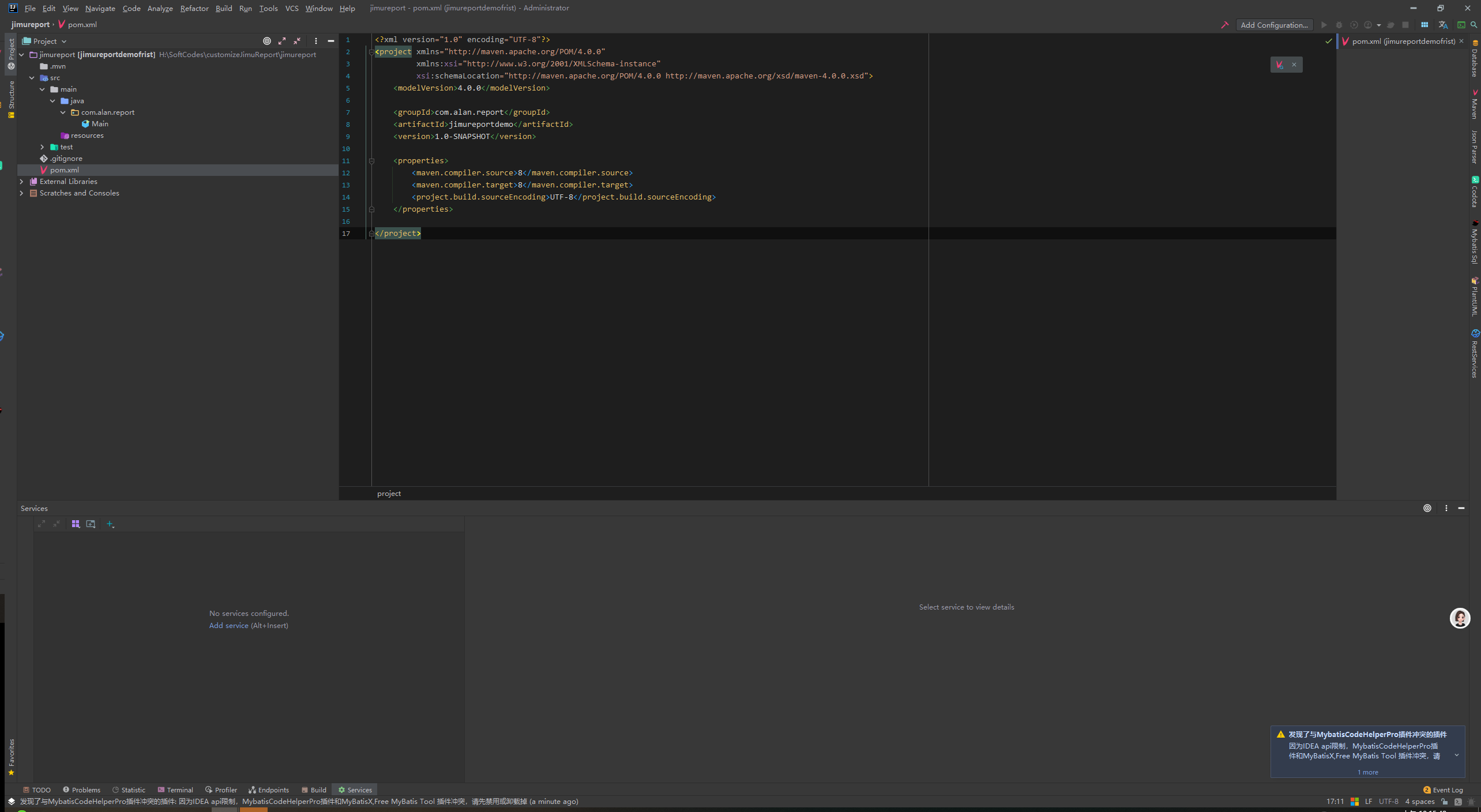

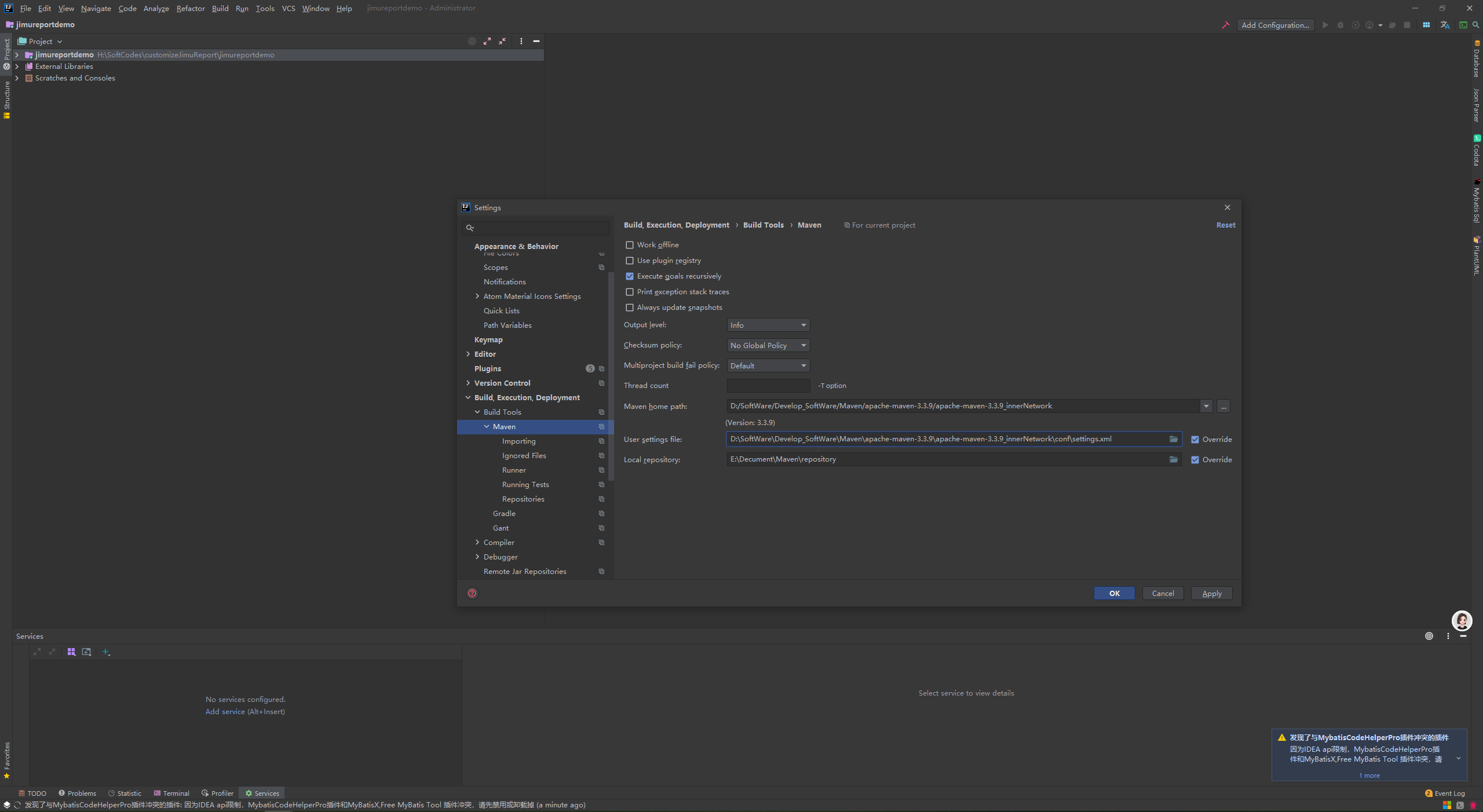

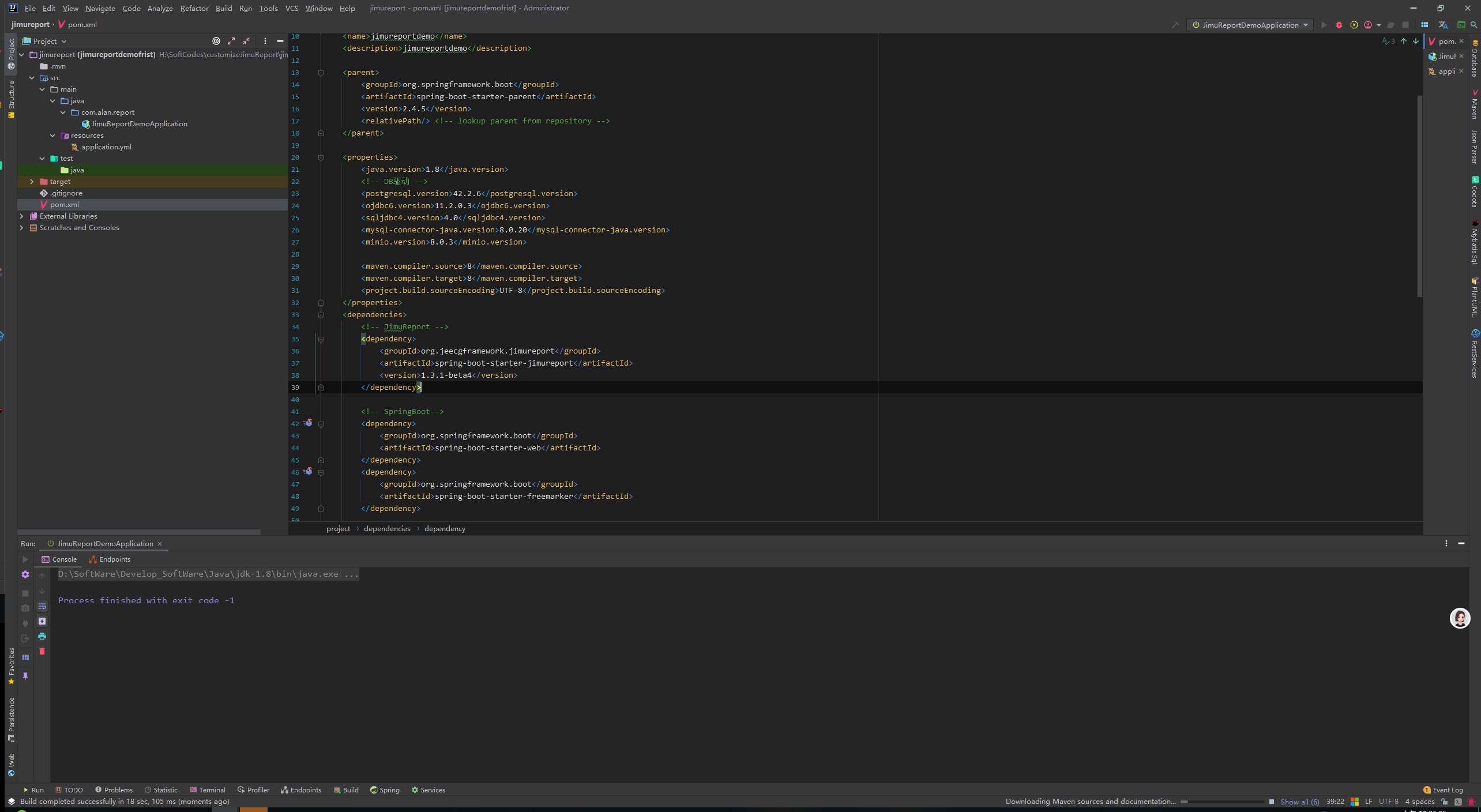

2. 配置Maven依賴 刪除多余配置依賴，只保留項目配置依賴
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.alan.report</groupId> <artifactId>jimureportdemo</artifactId> <version>1.0-SNAPSHOT</version> <name>jimureportdemo</name> <description>jimureportdemo</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.5</version> <relativePath/> <!-- lookup parent from repository --> </parent> <properties> <java.version>1.8</java.version> <!-- DB驅動 --> <postgresql.version>42.2.6</postgresql.version> <ojdbc6.version>11.2.0.3</ojdbc6.version> <sqljdbc4.version>4.0</sqljdbc4.version> <mysql-connector-java.version>8.0.20</mysql-connector-java.version> <minio.version>8.0.3</minio.version> <maven.compiler.source>8</maven.compiler.source> <maven.compiler.target>8</maven.compiler.target> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties> <dependencies> <!-- JimuReport --> <dependency> <groupId>org.jeecgframework.jimureport</groupId> <artifactId>spring-boot-starter-jimureport</artifactId> <version>1.3.1-beta4</version> </dependency> <!-- SpringBoot--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-freemarker</artifactId> </dependency> <!-- minio oss--> <dependency> <groupId>io.minio</groupId> <artifactId>minio</artifactId> <version>${minio.version}</version> <optional>true</optional> </dependency> <!-- 數據庫驅動 --> <!--mysql--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>${mysql-connector-java.version}</version> <scope>runtime</scope> </dependency> <!--Spring-Data-JPA依賴--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-resources-plugin</artifactId> <version>2.6</version> </plugin> </plugins> </build> </project>

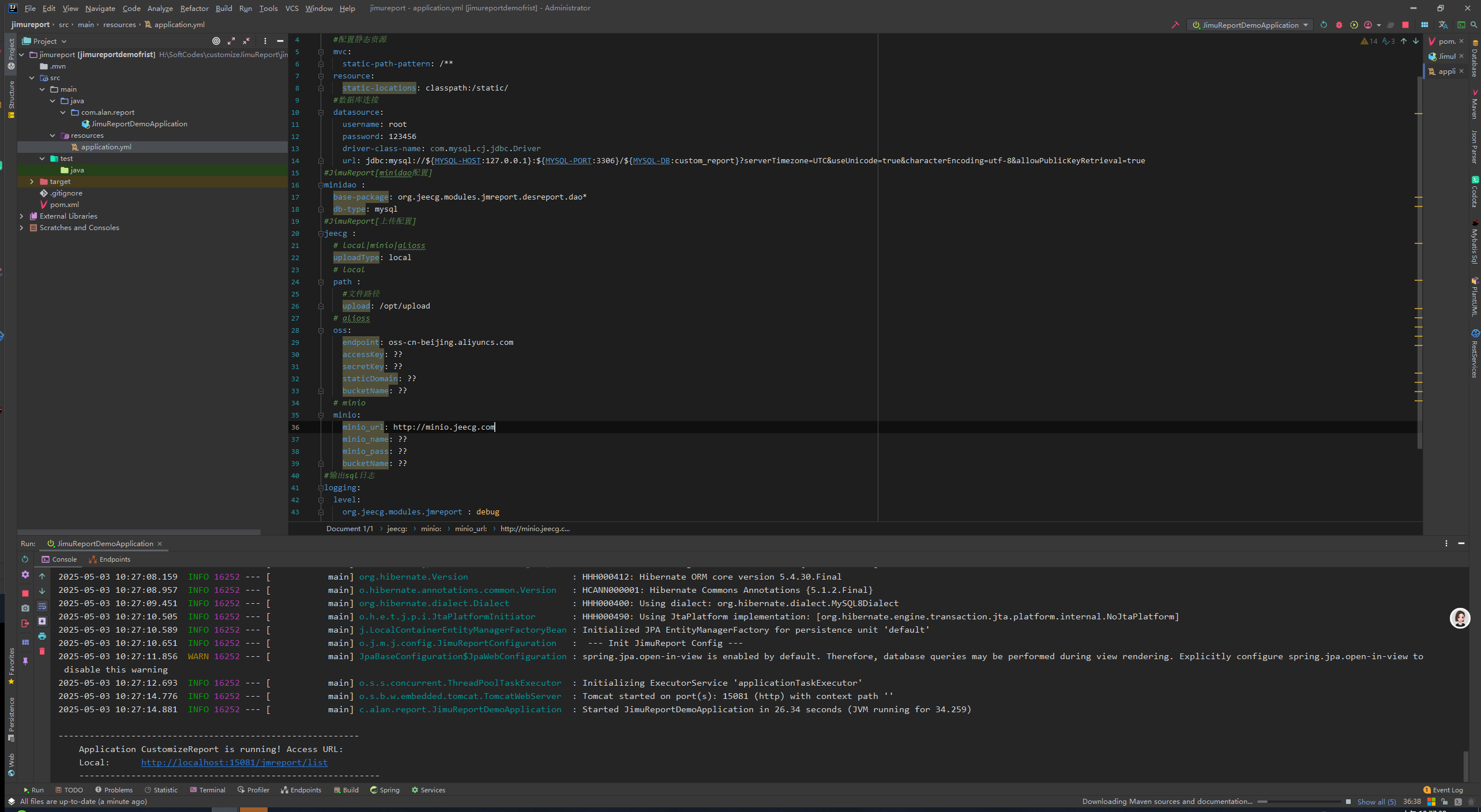

3. 配置yml文件
server:
port: 15081
spring:
#配置靜態資源
mvc:
static-path-pattern: /**
resource:
static-locations: classpath:/static/
#數據庫連接
datasource:
username: root
password: 123456
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://${MYSQL-HOST:127.0.0.1}:${MYSQL-PORT:3306}/${MYSQL-DB:custom_report}?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&allowPublicKeyRetrieval=true
#JimuReport[minidao配置]
minidao :
base-package: org.jeecg.modules.jmreport.desreport.dao*
db-type: mysql
#JimuReport[上傳配置]
jeecg :
# local|minio|alioss
uploadType: local
# local
path :
#文件路徑
upload: /opt/upload
# alioss
oss:
endpoint: oss-cn-beijing.aliyuncs.com
accessKey: ??
secretKey: ??
staticDomain: ??
bucketName: ??
# minio
minio:
minio_url: http://minio.jeecg.com
minio_name: ??
minio_pass: ??
bucketName: ??
#輸出sql日志
logging:
level:
org.jeecg.modules.jmreport : debug
4. 啟動類添加掃包注解
package com.alan.report; /*** *@title JimuReportDemoApplication *@description *@author Administrator *@version 1.0.0 *@create 2025-05-03 上午 10:21 **/ import org.jeecg.modules.jmreport.common.util.oConvertUtils; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.context.ConfigurableApplicationContext; import org.springframework.core.env.Environment; /** * @ClassName: JimuReportDemoApplication * @Description: 自定義報表啟動類 * @Author: Alan_liu * @Date: 2025-05-03 10:21 * @Version: 1.0 **/ @SpringBootApplication(scanBasePackages = {"org.jeecg.modules.jmreport", "com.alan.report"}) public class JimuReportDemoApplication { public static void main(String[] args) { ConfigurableApplicationContext application = SpringApplication.run(JimuReportDemoApplication.class, args); Environment env = application.getEnvironment(); String port = env.getProperty("server.port"); String path = oConvertUtils.getString(env.getProperty("server.servlet.context-path")); System.out.print("\n----------------------------------------------------------\n\t" + "Application CustomizeReport is running! Access URL:\n\t" + "Local: \t\thttp://localhost:" + port + path + "/jmreport/list\n\t" + "----------------------------------------------------------"); } }

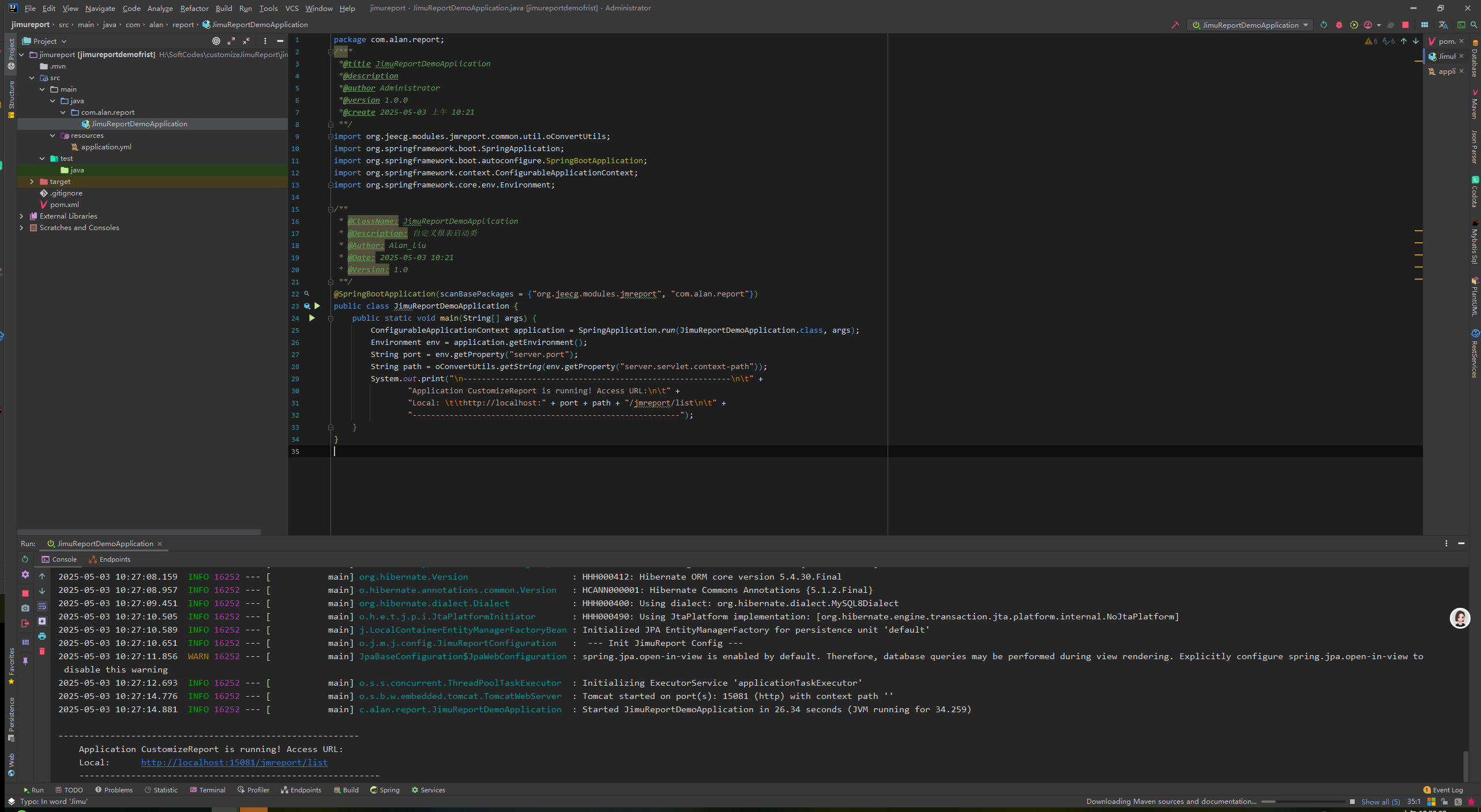

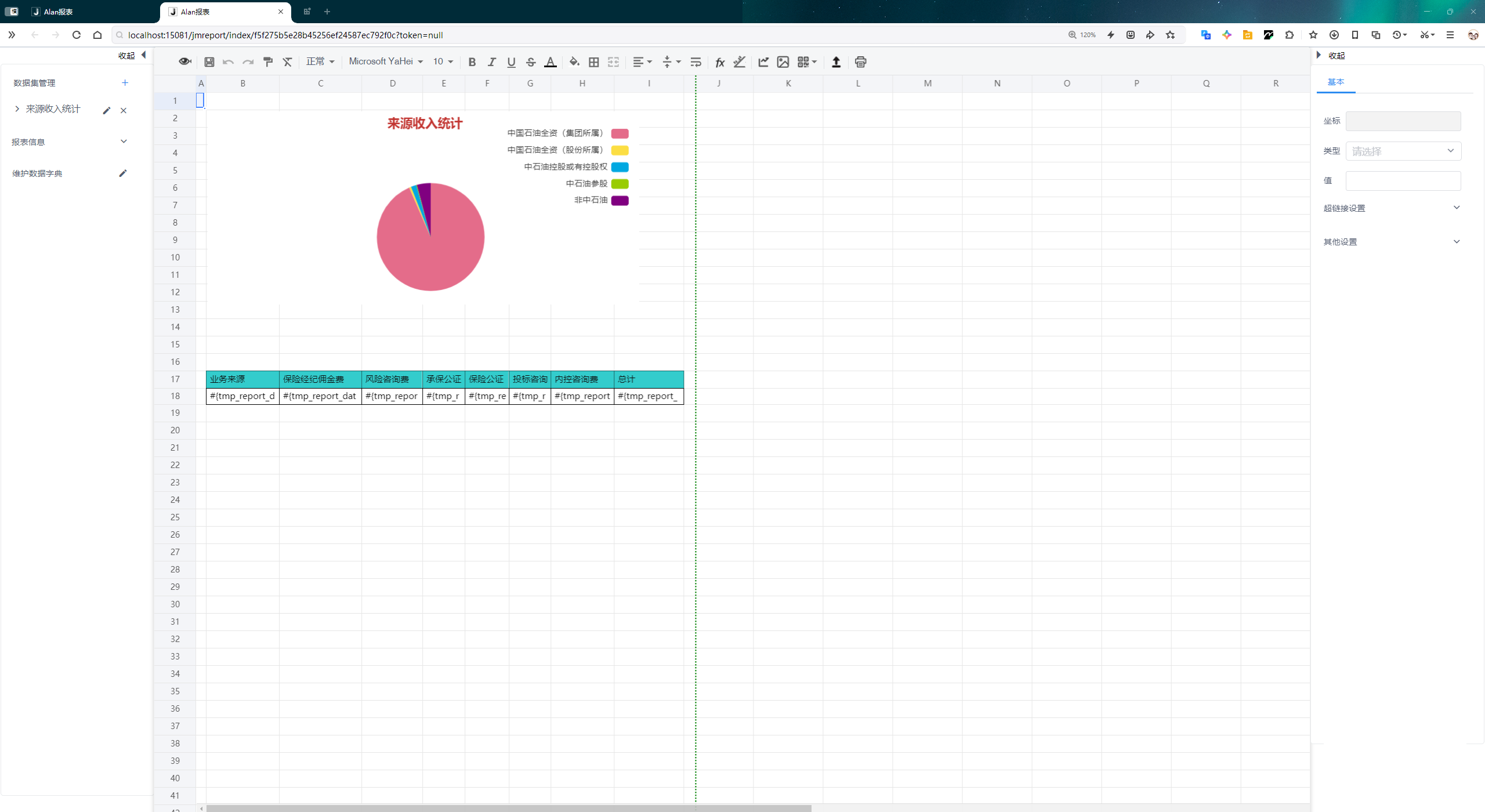

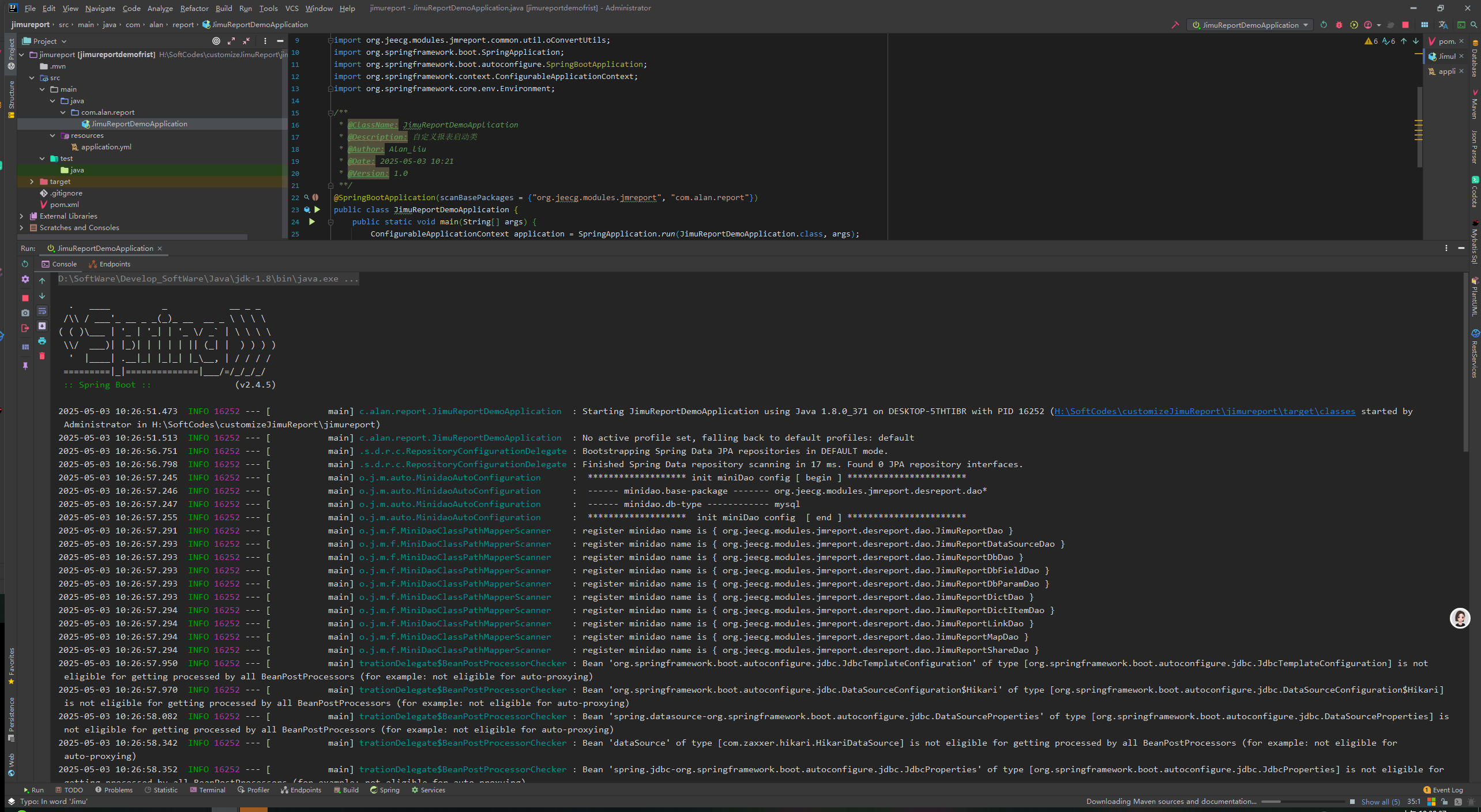

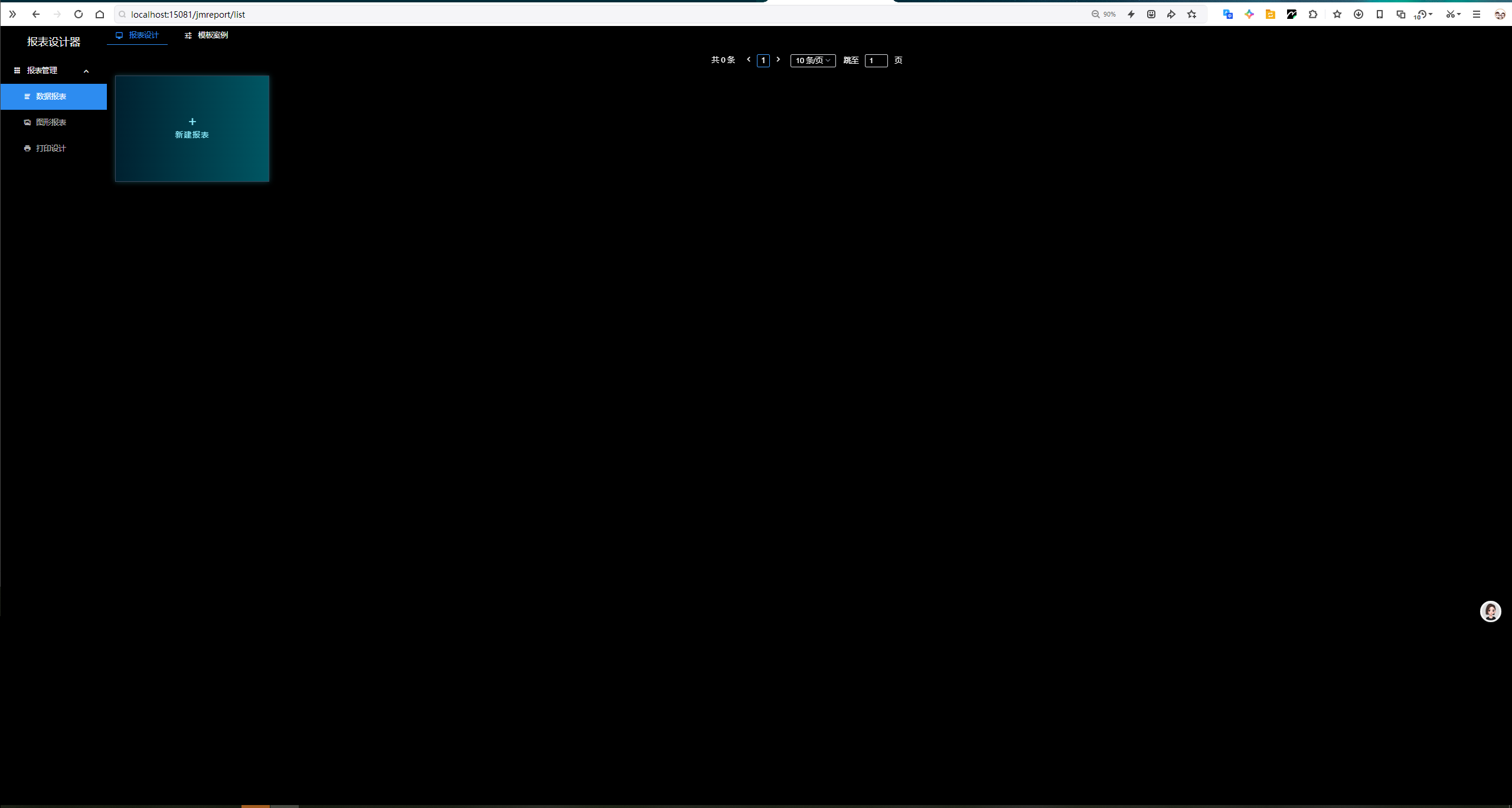

5. 啟動項目 訪問打印的鏈接，即可訪問報表設計頁面
D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\bin\java.exe -XX:TieredStopAtLevel=1 -noverify -Dspring.output.ansi.enabled=always -javaagent:H:\SoftWare\Idea202103\lib\idea_rt.jar=56893:H:\SoftWare\Idea202103\bin -Dcom.sun.management.jmxremote -Dspring.jmx.enabled=true -Dspring.liveBeansView.mbeanDomain -Dspring.application.admin.enabled=true -Dfile.encoding=UTF-8 -classpath D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\charsets.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\deploy.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\access-bridge-64.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\cldrdata.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\dnsns.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\jaccess.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\jfxrt.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\localedata.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\nashorn.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\sunec.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\sunjce_provider.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\sunmscapi.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\sunpkcs11.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\ext\zipfs.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\javaws.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\jce.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\jfr.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\jfxswt.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\jsse.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\management-agent.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\plugin.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\resources.jar;D:\SoftWare\Develop_SoftWare\Java\jdk-1.8\jre\lib\rt.jar;H:\SoftCodes\customizeJimuReport\jimureport\target\classes;E:\Decument\Maven\repository\org\jeecgframework\jimureport\spring-boot-starter-jimureport\1.3.1-beta4\spring-boot-starter-jimureport-1.3.1-beta4.jar;E:\Decument\Maven\repository\org\jeecgframework\minidao-spring-boot-starter\1.7.3\minidao-spring-boot-starter-1.7.3.jar;E:\Decument\Maven\repository\org\jeecgframework\minidao-pe\1.7.3\minidao-pe-1.7.3.jar;E:\Decument\Maven\repository\commons-logging\commons-logging\1.2\commons-logging-1.2.jar;E:\Decument\Maven\repository\org\apache\commons\commons-lang3\3.11\commons-lang3-3.11.jar;E:\Decument\Maven\repository\commons-collections\commons-collections\3.2.1\commons-collections-3.2.1.jar;E:\Decument\Maven\repository\org\aspectj\aspectjrt\1.9.6\aspectjrt-1.9.6.jar;E:\Decument\Maven\repository\opensymphony\ognl\2.6.11\ognl-2.6.11.jar;E:\Decument\Maven\repository\com\github\jsqlparser\jsqlparser\3.2\jsqlparser-3.2.jar;E:\Decument\Maven\repository\com\alibaba\fastjson\1.2.75\fastjson-1.2.75.jar;E:\Decument\Maven\repository\org\jeecgframework\autopoi-web\1.3\autopoi-web-1.3.jar;E:\Decument\Maven\repository\org\jeecgframework\autopoi\1.3\autopoi-1.3.jar;E:\Decument\Maven\repository\org\apache\poi\poi\4.1.2\poi-4.1.2.jar;E:\Decument\Maven\repository\org\apache\commons\commons-collections4\4.4\commons-collections4-4.4.jar;E:\Decument\Maven\repository\org\apache\commons\commons-math3\3.6.1\commons-math3-3.6.1.jar;E:\Decument\Maven\repository\com\zaxxer\SparseBitSet\1.2\SparseBitSet-1.2.jar;E:\Decument\Maven\repository\org\apache\poi\poi-ooxml\4.1.2\poi-ooxml-4.1.2.jar;E:\Decument\Maven\repository\org\apache\commons\commons-compress\1.19\commons-compress-1.19.jar;E:\Decument\Maven\repository\com\github\virtuald\curvesapi\1.06\curvesapi-1.06.jar;E:\Decument\Maven\repository\org\apache\poi\poi-ooxml-schemas\4.1.2\poi-ooxml-schemas-4.1.2.jar;E:\Decument\Maven\repository\xerces\xercesImpl\2.9.1\xercesImpl-2.9.1.jar;E:\Decument\Maven\repository\xml-apis\xml-apis\1.3.04\xml-apis-1.3.04.jar;E:\Decument\Maven\repository\org\apache\poi\poi-scratchpad\4.1.2\poi-scratchpad-4.1.2.jar;E:\Decument\Maven\repository\org\apache\poi\ooxml-schemas\1.4\ooxml-schemas-1.4.jar;E:\Decument\Maven\repository\org\apache\xmlbeans\xmlbeans\3.0.1\xmlbeans-3.0.1.jar;E:\Decument\Maven\repository\com\google\zxing\core\3.3.1\core-3.3.1.jar;E:\Decument\Maven\repository\cn\hutool\hutool-crypto\5.3.8\hutool-crypto-5.3.8.jar;E:\Decument\Maven\repository\cn\hutool\hutool-core\5.3.8\hutool-core-5.3.8.jar;E:\Decument\Maven\repository\com\alibaba\druid\1.1.22\druid-1.1.22.jar;E:\Decument\Maven\repository\com\aliyun\oss\aliyun-sdk-oss\3.11.2\aliyun-sdk-oss-3.11.2.jar;E:\Decument\Maven\repository\org\apache\httpcomponents\httpclient\4.5.13\httpclient-4.5.13.jar;E:\Decument\Maven\repository\org\apache\httpcomponents\httpcore\4.4.14\httpcore-4.4.14.jar;E:\Decument\Maven\repository\commons-codec\commons-codec\1.15\commons-codec-1.15.jar;E:\Decument\Maven\repository\org\jdom\jdom2\2.0.6\jdom2-2.0.6.jar;E:\Decument\Maven\repository\org\codehaus\jettison\jettison\1.1\jettison-1.1.jar;E:\Decument\Maven\repository\stax\stax-api\1.0.1\stax-api-1.0.1.jar;E:\Decument\Maven\repository\com\aliyun\aliyun-java-sdk-core\4.5.10\aliyun-java-sdk-core-4.5.10.jar;E:\Decument\Maven\repository\com\google\code\gson\gson\2.8.6\gson-2.8.6.jar;E:\Decument\Maven\repository\javax\xml\bind\jaxb-api\2.3.1\jaxb-api-2.3.1.jar;E:\Decument\Maven\repository\javax\activation\javax.activation-api\1.2.0\javax.activation-api-1.2.0.jar;E:\Decument\Maven\repository\org\jacoco\org.jacoco.agent\0.8.5\org.jacoco.agent-0.8.5-runtime.jar;E:\Decument\Maven\repository\org\ini4j\ini4j\0.5.4\ini4j-0.5.4.jar;E:\Decument\Maven\repository\io\opentracing\opentracing-api\0.33.0\opentracing-api-0.33.0.jar;E:\Decument\Maven\repository\io\opentracing\opentracing-util\0.33.0\opentracing-util-0.33.0.jar;E:\Decument\Maven\repository\io\opentracing\opentracing-noop\0.33.0\opentracing-noop-0.33.0.jar;E:\Decument\Maven\repository\com\aliyun\aliyun-java-sdk-ram\3.1.0\aliyun-java-sdk-ram-3.1.0.jar;E:\Decument\Maven\repository\com\aliyun\aliyun-java-sdk-kms\2.11.0\aliyun-java-sdk-kms-2.11.0.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-web\2.4.5\spring-boot-starter-web-2.4.5.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter\2.4.5\spring-boot-starter-2.4.5.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot\2.4.5\spring-boot-2.4.5.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-autoconfigure\2.4.5\spring-boot-autoconfigure-2.4.5.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-logging\2.4.5\spring-boot-starter-logging-2.4.5.jar;E:\Decument\Maven\repository\ch\qos\logback\logback-classic\1.2.3\logback-classic-1.2.3.jar;E:\Decument\Maven\repository\ch\qos\logback\logback-core\1.2.3\logback-core-1.2.3.jar;E:\Decument\Maven\repository\org\apache\logging\log4j\log4j-to-slf4j\2.13.3\log4j-to-slf4j-2.13.3.jar;E:\Decument\Maven\repository\org\apache\logging\log4j\log4j-api\2.13.3\log4j-api-2.13.3.jar;E:\Decument\Maven\repository\org\slf4j\jul-to-slf4j\1.7.30\jul-to-slf4j-1.7.30.jar;E:\Decument\Maven\repository\jakarta\annotation\jakarta.annotation-api\1.3.5\jakarta.annotation-api-1.3.5.jar;E:\Decument\Maven\repository\org\springframework\spring-core\5.3.6\spring-core-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-jcl\5.3.6\spring-jcl-5.3.6.jar;E:\Decument\Maven\repository\org\yaml\snakeyaml\1.27\snakeyaml-1.27.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-json\2.4.5\spring-boot-starter-json-2.4.5.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\datatype\jackson-datatype-jdk8\2.11.4\jackson-datatype-jdk8-2.11.4.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\datatype\jackson-datatype-jsr310\2.11.4\jackson-datatype-jsr310-2.11.4.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\module\jackson-module-parameter-names\2.11.4\jackson-module-parameter-names-2.11.4.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-tomcat\2.4.5\spring-boot-starter-tomcat-2.4.5.jar;E:\Decument\Maven\repository\org\apache\tomcat\embed\tomcat-embed-core\9.0.45\tomcat-embed-core-9.0.45.jar;E:\Decument\Maven\repository\org\glassfish\jakarta.el\3.0.3\jakarta.el-3.0.3.jar;E:\Decument\Maven\repository\org\apache\tomcat\embed\tomcat-embed-websocket\9.0.45\tomcat-embed-websocket-9.0.45.jar;E:\Decument\Maven\repository\org\springframework\spring-web\5.3.6\spring-web-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-beans\5.3.6\spring-beans-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-webmvc\5.3.6\spring-webmvc-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-aop\5.3.6\spring-aop-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-context\5.3.6\spring-context-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-expression\5.3.6\spring-expression-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-freemarker\2.4.5\spring-boot-starter-freemarker-2.4.5.jar;E:\Decument\Maven\repository\org\freemarker\freemarker\2.3.31\freemarker-2.3.31.jar;E:\Decument\Maven\repository\org\springframework\spring-context-support\5.3.6\spring-context-support-5.3.6.jar;E:\Decument\Maven\repository\io\minio\minio\8.0.3\minio-8.0.3.jar;E:\Decument\Maven\repository\com\carrotsearch\thirdparty\simple-xml-safe\2.7.1\simple-xml-safe-2.7.1.jar;E:\Decument\Maven\repository\com\google\guava\guava\29.0-jre\guava-29.0-jre.jar;E:\Decument\Maven\repository\com\google\guava\failureaccess\1.0.1\failureaccess-1.0.1.jar;E:\Decument\Maven\repository\com\google\guava\listenablefuture\9999.0-empty-to-avoid-conflict-with-guava\listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar;E:\Decument\Maven\repository\com\google\code\findbugs\jsr305\3.0.2\jsr305-3.0.2.jar;E:\Decument\Maven\repository\org\checkerframework\checker-qual\2.11.1\checker-qual-2.11.1.jar;E:\Decument\Maven\repository\com\google\errorprone\error_prone_annotations\2.3.4\error_prone_annotations-2.3.4.jar;E:\Decument\Maven\repository\com\google\j2objc\j2objc-annotations\1.3\j2objc-annotations-1.3.jar;E:\Decument\Maven\repository\com\squareup\okhttp3\okhttp\3.14.9\okhttp-3.14.9.jar;E:\Decument\Maven\repository\com\squareup\okio\okio\1.17.2\okio-1.17.2.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\core\jackson-annotations\2.11.4\jackson-annotations-2.11.4.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\core\jackson-core\2.11.4\jackson-core-2.11.4.jar;E:\Decument\Maven\repository\com\fasterxml\jackson\core\jackson-databind\2.11.4\jackson-databind-2.11.4.jar;E:\Decument\Maven\repository\mysql\mysql-connector-java\8.0.20\mysql-connector-java-8.0.20.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-data-jpa\2.4.5\spring-boot-starter-data-jpa-2.4.5.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-aop\2.4.5\spring-boot-starter-aop-2.4.5.jar;E:\Decument\Maven\repository\org\aspectj\aspectjweaver\1.9.6\aspectjweaver-1.9.6.jar;E:\Decument\Maven\repository\org\springframework\boot\spring-boot-starter-jdbc\2.4.5\spring-boot-starter-jdbc-2.4.5.jar;E:\Decument\Maven\repository\com\zaxxer\HikariCP\3.4.5\HikariCP-3.4.5.jar;E:\Decument\Maven\repository\org\springframework\spring-jdbc\5.3.6\spring-jdbc-5.3.6.jar;E:\Decument\Maven\repository\jakarta\transaction\jakarta.transaction-api\1.3.3\jakarta.transaction-api-1.3.3.jar;E:\Decument\Maven\repository\jakarta\persistence\jakarta.persistence-api\2.2.3\jakarta.persistence-api-2.2.3.jar;E:\Decument\Maven\repository\org\hibernate\hibernate-core\5.4.30.Final\hibernate-core-5.4.30.Final.jar;E:\Decument\Maven\repository\org\jboss\logging\jboss-logging\3.4.1.Final\jboss-logging-3.4.1.Final.jar;E:\Decument\Maven\repository\org\javassist\javassist\3.27.0-GA\javassist-3.27.0-GA.jar;E:\Decument\Maven\repository\net\bytebuddy\byte-buddy\1.10.22\byte-buddy-1.10.22.jar;E:\Decument\Maven\repository\antlr\antlr\2.7.7\antlr-2.7.7.jar;E:\Decument\Maven\repository\org\jboss\jandex\2.2.3.Final\jandex-2.2.3.Final.jar;E:\Decument\Maven\repository\com\fasterxml\classmate\1.5.1\classmate-1.5.1.jar;E:\Decument\Maven\repository\org\dom4j\dom4j\2.1.3\dom4j-2.1.3.jar;E:\Decument\Maven\repository\org\hibernate\common\hibernate-commons-annotations\5.1.2.Final\hibernate-commons-annotations-5.1.2.Final.jar;E:\Decument\Maven\repository\org\glassfish\jaxb\jaxb-runtime\2.3.4\jaxb-runtime-2.3.4.jar;E:\Decument\Maven\repository\jakarta\xml\bind\jakarta.xml.bind-api\2.3.3\jakarta.xml.bind-api-2.3.3.jar;E:\Decument\Maven\repository\org\glassfish\jaxb\txw2\2.3.4\txw2-2.3.4.jar;E:\Decument\Maven\repository\com\sun\istack\istack-commons-runtime\3.0.12\istack-commons-runtime-3.0.12.jar;E:\Decument\Maven\repository\com\sun\activation\jakarta.activation\1.2.2\jakarta.activation-1.2.2.jar;E:\Decument\Maven\repository\org\springframework\data\spring-data-jpa\2.4.8\spring-data-jpa-2.4.8.jar;E:\Decument\Maven\repository\org\springframework\data\spring-data-commons\2.4.8\spring-data-commons-2.4.8.jar;E:\Decument\Maven\repository\org\springframework\spring-orm\5.3.6\spring-orm-5.3.6.jar;E:\Decument\Maven\repository\org\springframework\spring-tx\5.3.6\spring-tx-5.3.6.jar;E:\Decument\Maven\repository\org\slf4j\slf4j-api\1.7.30\slf4j-api-1.7.30.jar;E:\Decument\Maven\repository\org\springframework\spring-aspects\5.3.6\spring-aspects-5.3.6.jar com.alan.report.JimuReportDemoApplication . ____ _ __ _ _ /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \ ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \ \\/ ___)| |_)| | | | | || (_| | ) ) ) ) ' |____| .__|_| |_|_| |_\__, | / / / / =========|_|==============|___/=/_/_/_/ :: Spring Boot :: (v2.4.5) 2025-05-03 10:26:51.473 INFO 16252 --- [ main] c.alan.report.JimuReportDemoApplication : Starting JimuReportDemoApplication using Java 1.8.0_371 on DESKTOP-5THTIBR with PID 16252 (H:\SoftCodes\customizeJimuReport\jimureport\target\classes started by Administrator in H:\SoftCodes\customizeJimuReport\jimureport) 2025-05-03 10:26:51.513 INFO 16252 --- [ main] c.alan.report.JimuReportDemoApplication : No active profile set, falling back to default profiles: default 2025-05-03 10:26:56.751 INFO 16252 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data JPA repositories in DEFAULT mode. 2025-05-03 10:26:56.798 INFO 16252 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 17 ms. Found 0 JPA repository interfaces. 2025-05-03 10:26:57.245 INFO 16252 --- [ main] o.j.m.auto.MinidaoAutoConfiguration : ******************* init miniDao config [ begin ] *********************** 2025-05-03 10:26:57.246 INFO 16252 --- [ main] o.j.m.auto.MinidaoAutoConfiguration : ------ minidao.base-package ------- org.jeecg.modules.jmreport.desreport.dao* 2025-05-03 10:26:57.247 INFO 16252 --- [ main] o.j.m.auto.MinidaoAutoConfiguration : ------ minidao.db-type ------------ mysql 2025-05-03 10:26:57.255 INFO 16252 --- [ main] o.j.m.auto.MinidaoAutoConfiguration : ******************* init miniDao config [ end ] *********************** 2025-05-03 10:26:57.291 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDao } 2025-05-03 10:26:57.293 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDataSourceDao } 2025-05-03 10:26:57.293 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDbDao } 2025-05-03 10:26:57.293 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDbFieldDao } 2025-05-03 10:26:57.293 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDbParamDao } 2025-05-03 10:26:57.293 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDictDao } 2025-05-03 10:26:57.294 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportDictItemDao } 2025-05-03 10:26:57.294 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportLinkDao } 2025-05-03 10:26:57.294 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportMapDao } 2025-05-03 10:26:57.294 INFO 16252 --- [ main] o.j.m.f.MiniDaoClassPathMapperScanner : register minidao name is { org.jeecg.modules.jmreport.desreport.dao.JimuReportShareDao } 2025-05-03 10:26:57.950 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.boot.autoconfigure.jdbc.JdbcTemplateConfiguration' of type [org.springframework.boot.autoconfigure.jdbc.JdbcTemplateConfiguration] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:57.970 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.boot.autoconfigure.jdbc.DataSourceConfiguration$Hikari' of type [org.springframework.boot.autoconfigure.jdbc.DataSourceConfiguration$Hikari] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.082 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'spring.datasource-org.springframework.boot.autoconfigure.jdbc.DataSourceProperties' of type [org.springframework.boot.autoconfigure.jdbc.DataSourceProperties] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.342 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'dataSource' of type [com.zaxxer.hikari.HikariDataSource] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.352 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'spring.jdbc-org.springframework.boot.autoconfigure.jdbc.JdbcProperties' of type [org.springframework.boot.autoconfigure.jdbc.JdbcProperties] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.411 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jdbcTemplate' of type [org.springframework.jdbc.core.JdbcTemplate] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.417 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.boot.autoconfigure.jdbc.NamedParameterJdbcTemplateConfiguration' of type [org.springframework.boot.autoconfigure.jdbc.NamedParameterJdbcTemplateConfiguration] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.430 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'namedParameterJdbcTemplate' of type [org.springframework.jdbc.core.namedparam.NamedParameterJdbcTemplate] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.440 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#9' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.461 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportShareDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.464 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#8' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.468 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportMapDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.473 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#7' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.477 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportLinkDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.480 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#6' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.482 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDictItemDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.489 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#5' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.491 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDictDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.496 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#4' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.499 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDbParamDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.502 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#3' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.504 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDbFieldDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.506 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#2' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.508 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDbDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.511 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589#1' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.513 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDataSourceDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.517 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean '(inner bean)#5183d589' of type [org.jeecgframework.minidao.aop.MiniDaoHandler] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:58.521 INFO 16252 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'jimuReportDao' of type [org.jeecgframework.minidao.factory.MiniDaoBeanFactory] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying) 2025-05-03 10:26:59.731 INFO 16252 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 15081 (http) 2025-05-03 10:26:59.768 INFO 16252 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat] 2025-05-03 10:26:59.769 INFO 16252 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.45] 2025-05-03 10:27:00.240 INFO 16252 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext 2025-05-03 10:27:00.240 INFO 16252 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 8375 ms 2025-05-03 10:27:01.496 INFO 16252 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Starting... 2025-05-03 10:27:07.750 INFO 16252 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Start completed. 2025-05-03 10:27:07.920 INFO 16252 --- [ main] o.hibernate.jpa.internal.util.LogHelper : HHH000204: Processing PersistenceUnitInfo [name: default] 2025-05-03 10:27:08.159 INFO 16252 --- [ main] org.hibernate.Version : HHH000412: Hibernate ORM core version 5.4.30.Final 2025-05-03 10:27:08.957 INFO 16252 --- [ main] o.hibernate.annotations.common.Version : HCANN000001: Hibernate Commons Annotations {5.1.2.Final} 2025-05-03 10:27:09.451 INFO 16252 --- [ main] org.hibernate.dialect.Dialect : HHH000400: Using dialect: org.hibernate.dialect.MySQL8Dialect 2025-05-03 10:27:10.505 INFO 16252 --- [ main] o.h.e.t.j.p.i.JtaPlatformInitiator : HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform] 2025-05-03 10:27:10.589 INFO 16252 --- [ main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default' 2025-05-03 10:27:10.651 INFO 16252 --- [ main] o.j.m.j.config.JimuReportConfiguration : --- Init JimuReport Config --- 2025-05-03 10:27:11.856 WARN 16252 --- [ main] JpaBaseConfiguration$JpaWebConfiguration : spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning 2025-05-03 10:27:12.693 INFO 16252 --- [ main] o.s.s.concurrent.ThreadPoolTaskExecutor : Initializing ExecutorService 'applicationTaskExecutor' 2025-05-03 10:27:14.776 INFO 16252 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 15081 (http) with context path '' 2025-05-03 10:27:14.881 INFO 16252 --- [ main] c.alan.report.JimuReportDemoApplication : Started JimuReportDemoApplication in 26.34 seconds (JVM running for 34.259) ---------------------------------------------------------- Application CustomizeReport is running! Access URL: Local: http://localhost:15081/jmreport/list ----------------------------------------------------------
6. 報表設計器自定義修改

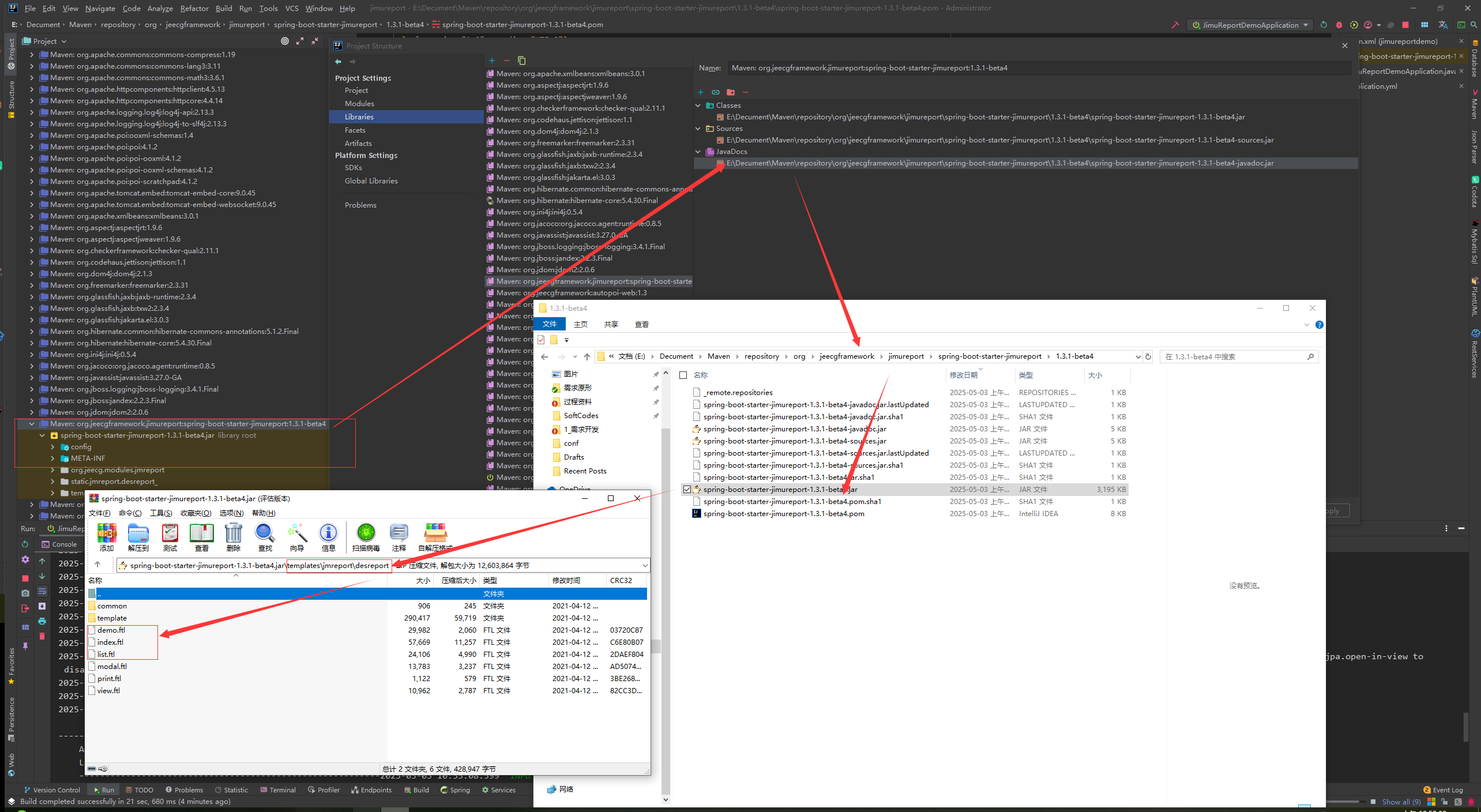

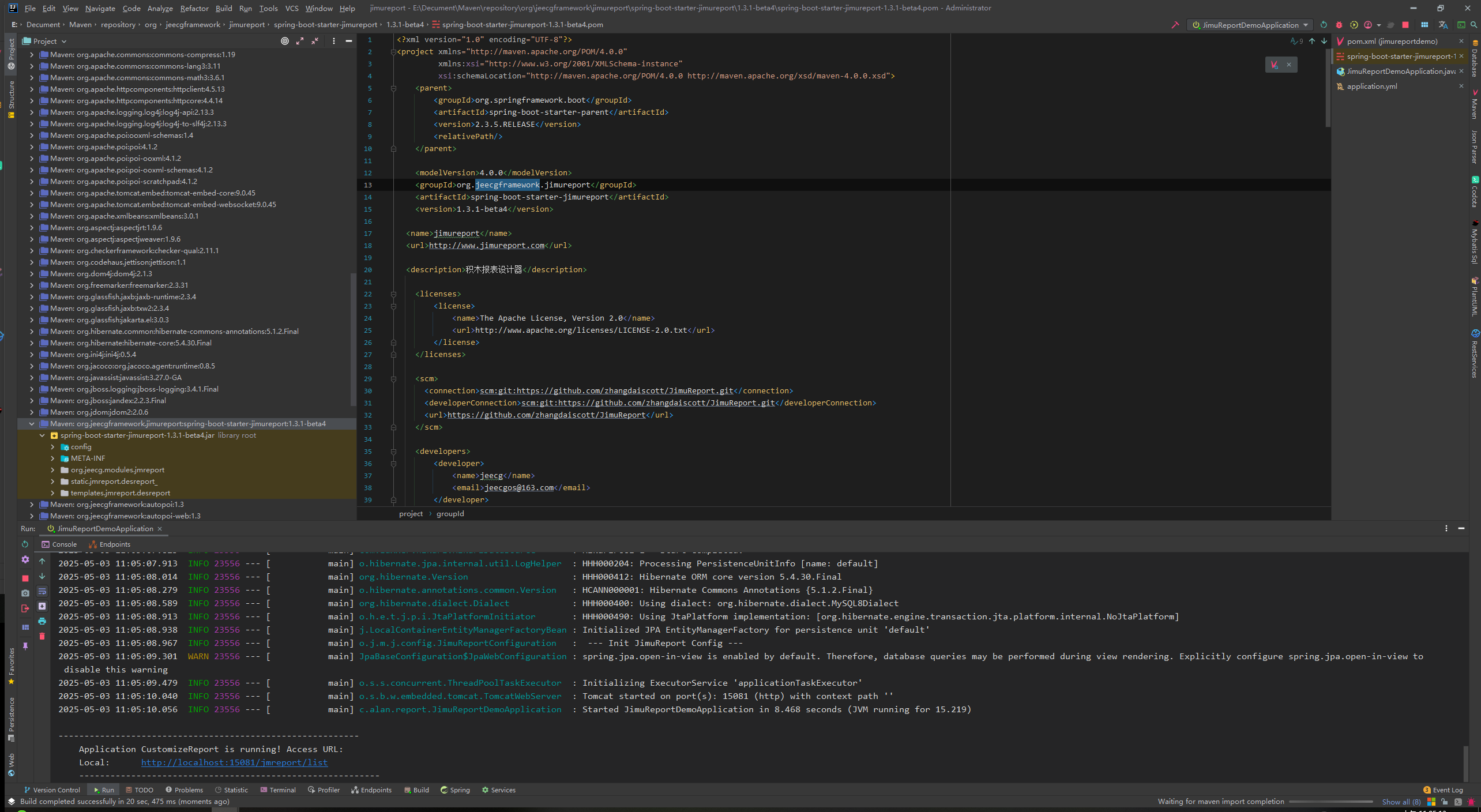

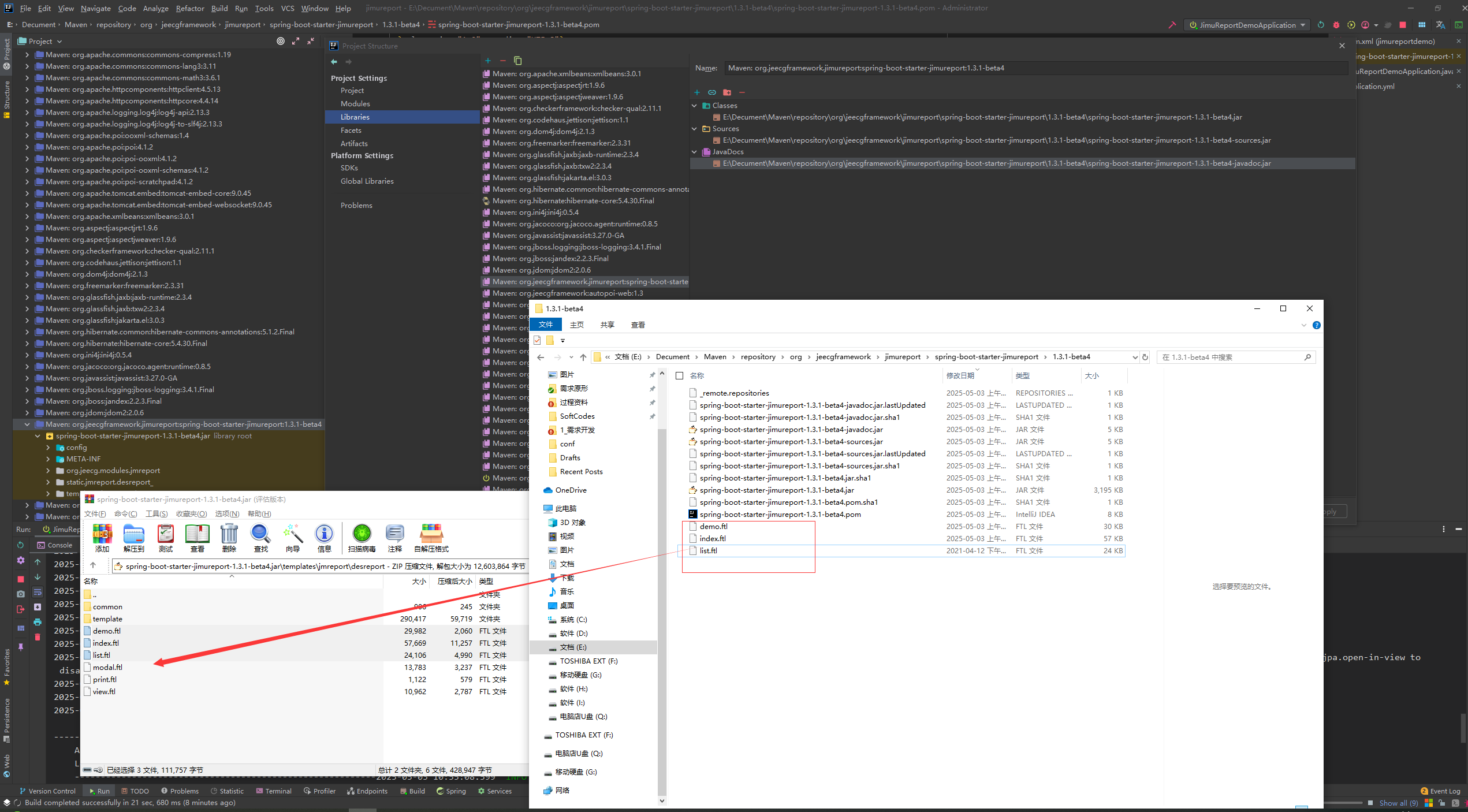

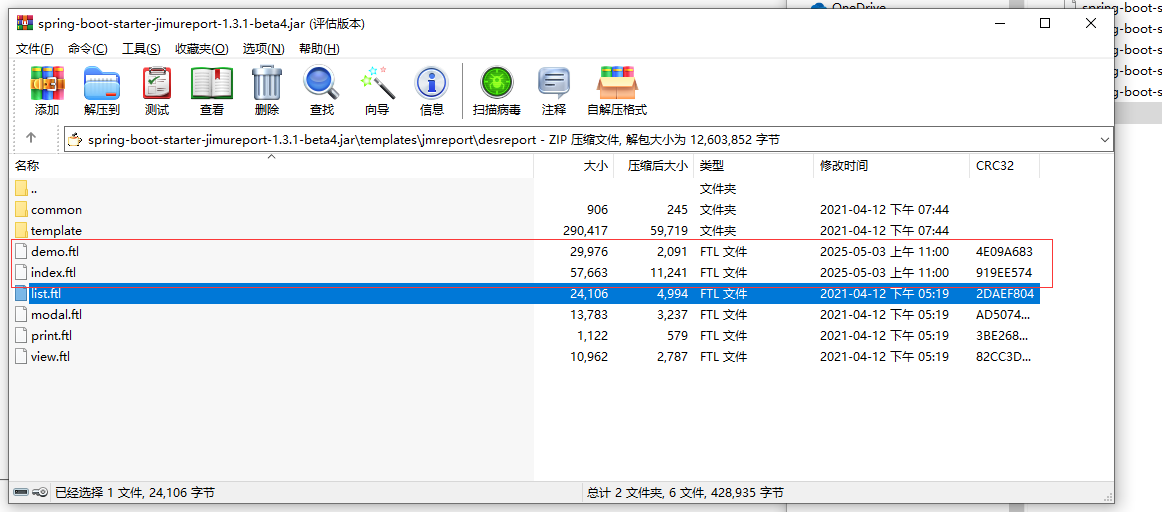

打開本地Maven倉庫 ,找到 org\jeecgframework\jimureport\spring-boot-starter-jimureport\1.3.1-beta4 積木jar包,打開templates目錄下jmreport目錄下desreport,編輯demo、index、list 三個ftl文件(右鍵內部編輯器打開)

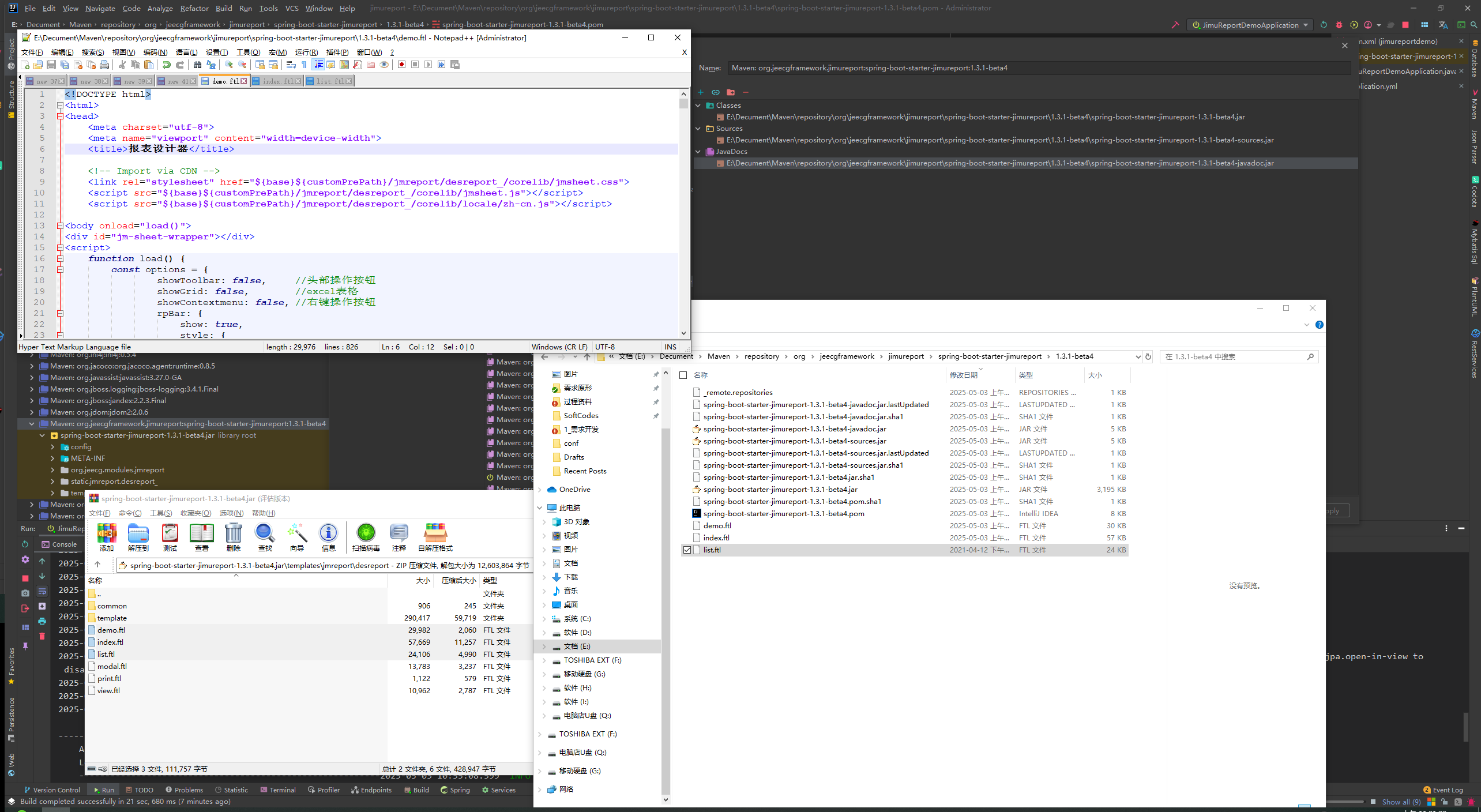

替換原積木title為需要的title名稱(例如：XXX報表設計器)
更新文件：
重啟應用：

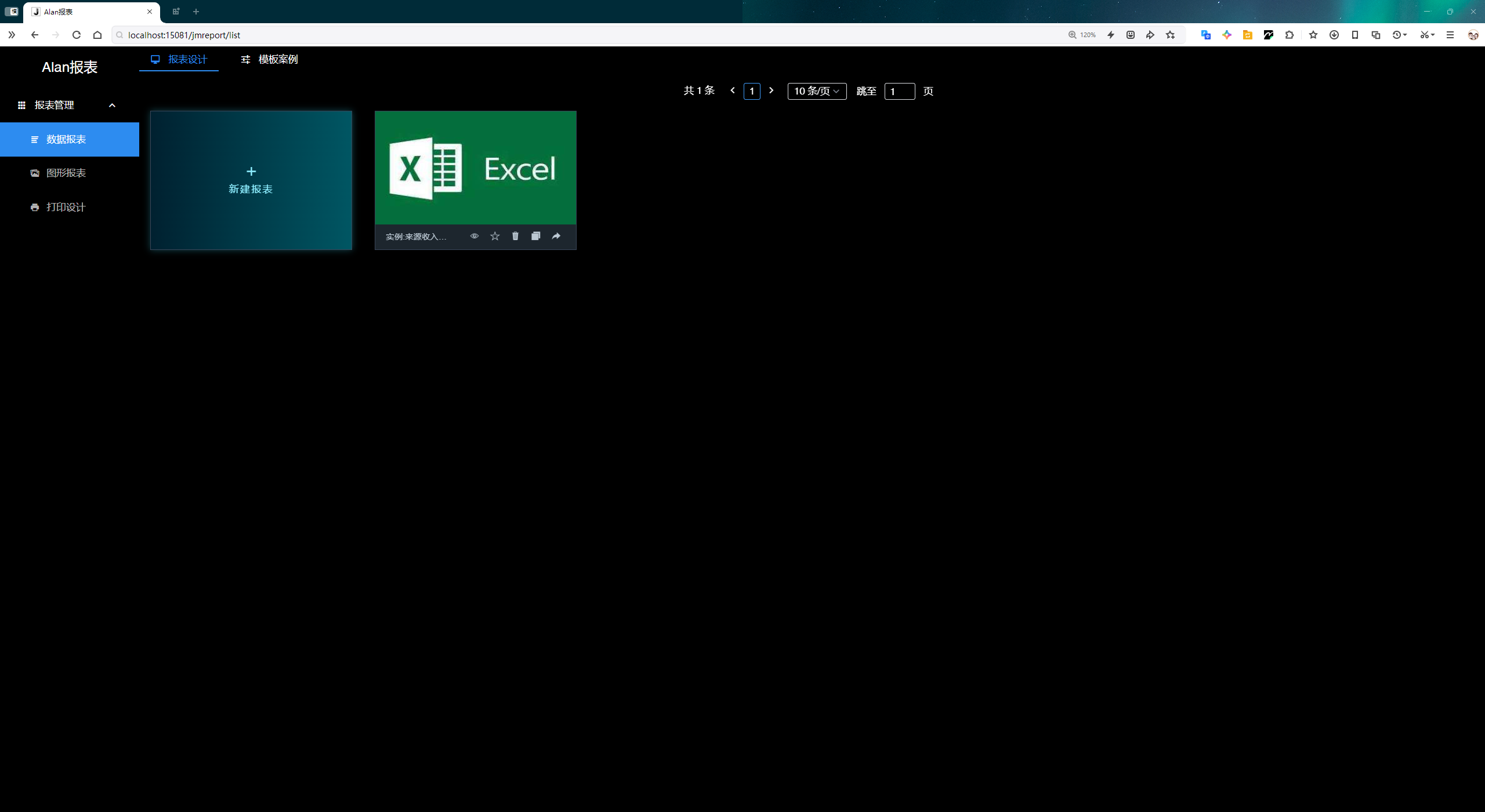

刷新界面：

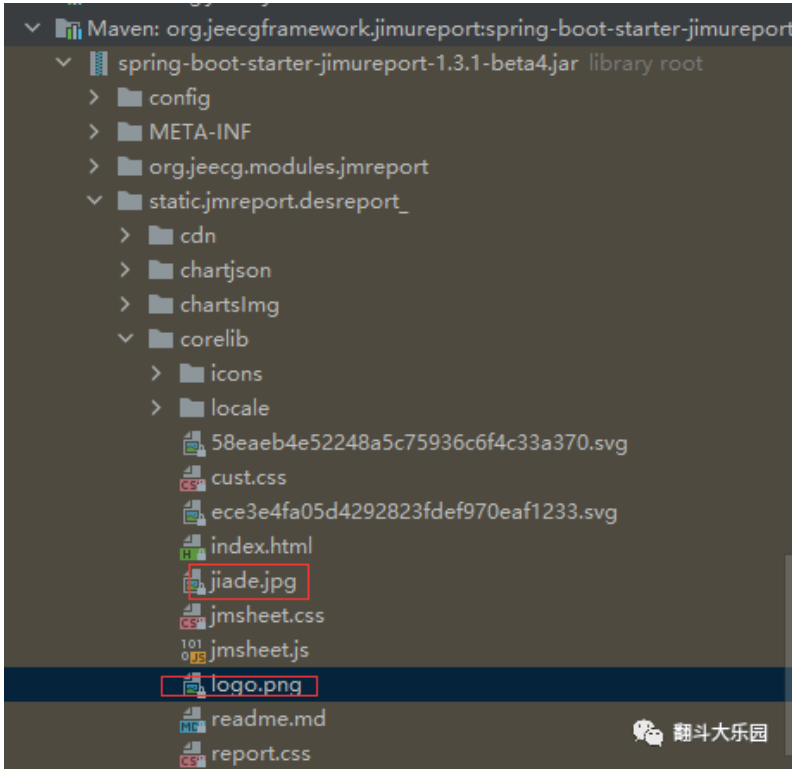

tile的logo與報表icon資源在 static目錄下jmreport目錄下desreport_目錄下的corelib目錄中
jiade.jpg 是報表icon、logo.png為title的logo
有需求可以自己替換

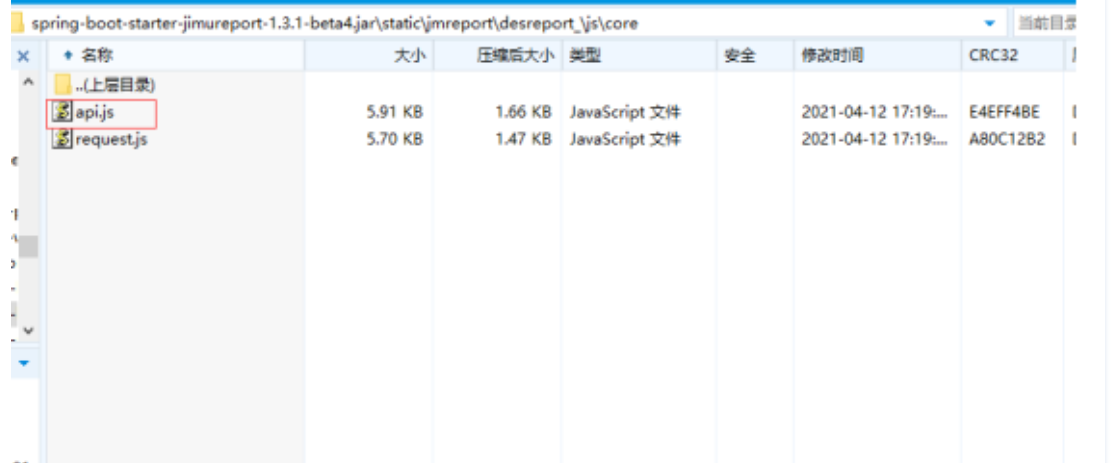

打開static目錄下jmreport目錄下desreport_目錄下js目錄下core目錄

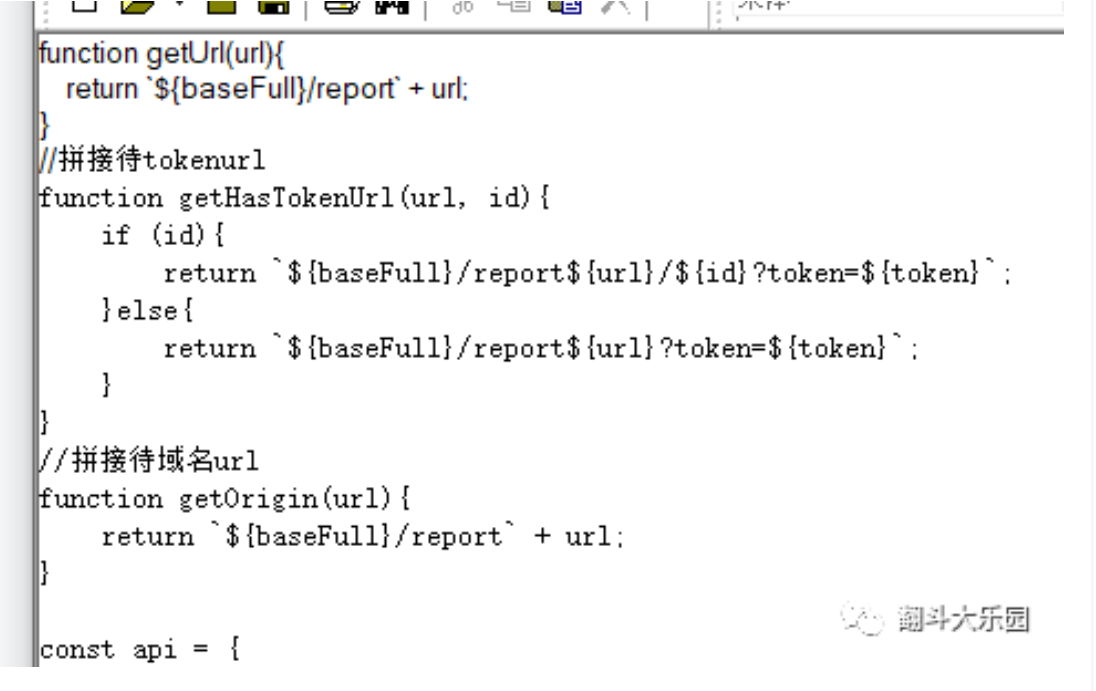

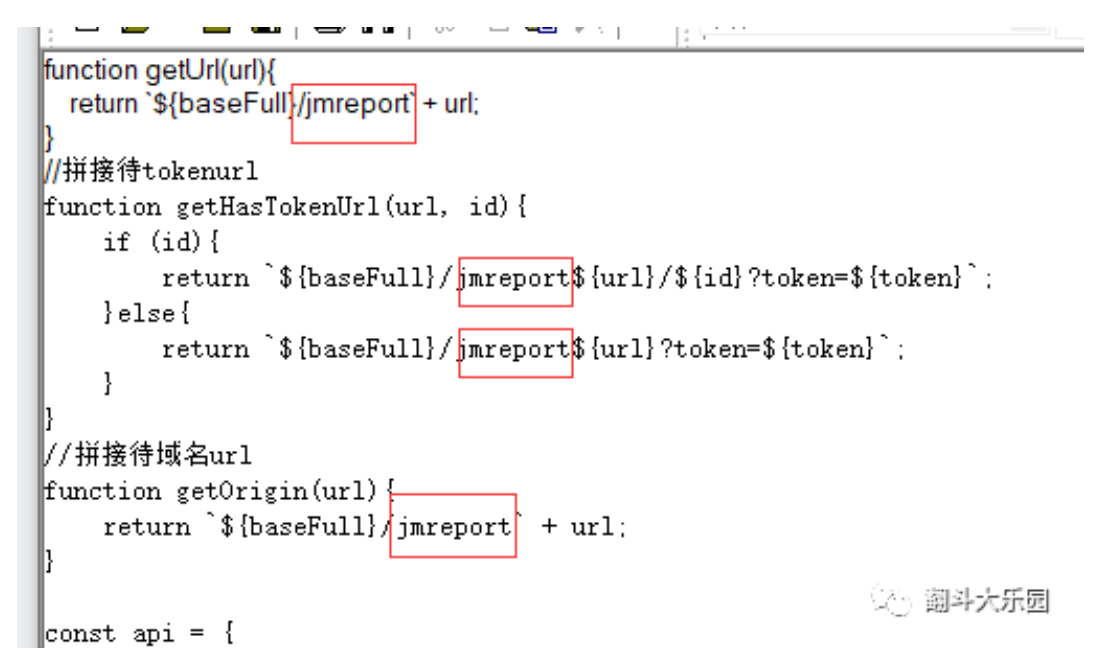

打開api.js
將對應的jmreport改為你需要展示的路由名稱(例如：report)
7. nginx配置代理
server {
# 需要被監聽的端口號，前提是此端口號沒有被占用
# 否則在重啟 Nginx 時會報錯
listen 8080;
# 服務名稱，無所謂
server_name report;
#監聽report請求
location /report {
# 后端的真實接口
proxy_pass http://ip:port/jmreport;
#proxy_redirect off;
proxy_set_header Host $proxy_host;
#proxy_set_header
#X-Real-IP $remote_addr;
#proxy_set_header
#X-Forwarded-For
#$proxy_add_x_forwarded_for;
#proxy_set_header
#Cookie $http_cookie;
#proxy_set_header
#X-Forwarded-For
#$proxy_add_x_forwarded_for;
#proxy_set_header Cookie $http_cookie;
}
#給靜態資源(js、css等)請求配置實際路由
location /jmreport {
proxy_pass http://ip:port/jmreport;
#proxy_redirect off;
proxy_set_header Host $proxy_host;
#proxy_set_header
#X-Real-IP $remote_addr;
#proxy_set_header
#X-Forwarded-For
#$proxy_add_x_forwarded_for;
#proxy_set_header
#Cookie $http_cookie;
#proxy_set_header
#X-Forwarded-For
#$proxy_add_x_forwarded_for;
#proxy_set_header
#Cookie $http_cookie;
}
}
訪問nginx配置的端口與路由，即可自動轉發自定義報表內容
JimuReport積木報表(免費報表工具)
官方訪問地址：https://github.com/jeecgboot/jimureport
官方示例代碼下載 地址：https://github.com/jeecgboot/jimureport.git
積木報表JimuReport，是一款免費的數據可視化報表，含報表、儀表盤和大屏設計，像搭建積木一樣完全在線設計！功能涵蓋：數據報表、打印設計、圖表報表、門戶設計、大屏設計等！
- Web版報表設計器，類Excel操作風格，通過拖拽完成報表設計，所見即所得.
- 大屏采用類word風格，可以隨意拖動組件，想怎么設計怎么設計，可以像百度和阿里一樣，設計出炫酷大屏！
- 從 v1.9+ 起推出 JimuBI 產品，她的牛叉之處，同時支持儀表盤、大屏、門戶 (支持交互)、移動.
- 秉承"簡單、易用、專業"的產品理念，極大的降低報表開發難度、縮短開發周期、節省成本.
- 領先的企業級Web報表，支持各種復雜報表，專注于解決企業報表難題.
- 積木BI 數據可視化，支持大屏設計和儀表盤，致力于更生動、更友好的形式呈現實時業務數據分析
技術文檔
- 官方網站： http://jimureport.com
- 在線體驗： http://jimureport.com/login
- 快速入門： 快速集成積木報表 | 開發文檔 | 視頻教程
- 技術支持： 發現bug，請在github上發issue
