[Asp.Net]GridView中根據前后列之間的關聯關系合并單元格

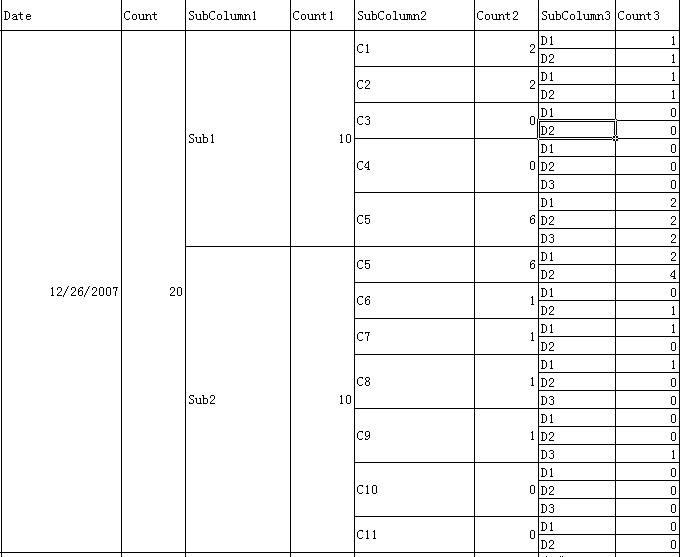

效果如下(合并同一列中相等且連續的N個單元格，但如果前一列沒有合并的話，則后一列也不合并)：
代碼如下：
1
合并多列#region 合并多列
2
/**//// <summary>
3
/// GridView合并
4 /// </summary>
5 /// <param name="gdv">GridView</param>
6 /// <param name="startColumnIndex">起始列Index</param>
7
/// <param name="endColumnIndex">結束列Index</param>
8 public static void MergeGridViewRows(GridView gdv, int startColumnIndex, int endColumnIndex)
9
{
10 if (gdv == null || endColumnIndex < startColumnIndex || gdv.Rows.Count < 2)
11 return;
12 if (startColumnIndex < 0 || endColumnIndex > gdv.Columns.Count - 1)
13 throw new ArgumentOutOfRangeException("列Index超出GridView可用列的范圍。");
14 EndColumnIndex = endColumnIndex;
15 MergeCellWithSubColumn(gdv, 0, 0, gdv.Rows.Count - 1);
16 }
17 private static int EndColumnIndex = 0;
18
19 /**//// <summary>
20 /// 合并當前列和后續列
21 /// </summary>
22 /// <param name="currentColumnIndex">當前列</param>
23 /// <param name="startRowIndex">起始行</param>
24 /// <param name="endRowIndex">結束行</param>
25 /// <summary>
26 private static void MergeCellWithSubColumn(GridView gdv, int currentColumnIndex, int startRowIndex, int endRowIndex)
27 {
28 if (currentColumnIndex > EndColumnIndex)//結束遞歸
29 return;
30 string preValue = GetCellValue(gdv,startRowIndex, currentColumnIndex);
31 string curValue = string.Empty;
32 int endIndex = startRowIndex;
33 for (int i = startRowIndex + 1; i <= endRowIndex + 1; i++)
34 {
35 if (i == endRowIndex + 1)
36 curValue = null;//完成最后一次合并
37 else
38 curValue = GetCellValue(gdv, i, currentColumnIndex);
39 if (curValue != preValue)
40 {
41 //合并當前列
42 MergeColumnCell(gdv, currentColumnIndex, endIndex, i - 1);
43 //合并后續列
44 MergeCellWithSubColumn(gdv, currentColumnIndex + 1, endIndex, i - 1);
45 endIndex = i;
46 preValue = curValue;
47 }
48 }
49 }
50
51 /**//// <summary>
52 /// 取得GridView中單個Cell的值
53 /// </summary>
54 /// <param name="gdv">GridView</param>
55 /// <param name="rowIndex">行Index</param>
56 /// <param name="columnIndex">列Index</param>
57 /// <returns></returns>
58 private static string GetCellValue(GridView gdv, int rowIndex, int columnIndex)
59 {
60 return gdv.Rows[rowIndex].Cells[columnIndex].Text;
61 }
62
63 /**//// <summary>
64 /// 合并同列中連續的N個單元格
65 /// 注意：這里只是隱藏后續的單元格，而沒有刪除單元格
66 /// 主要考慮到刪除后會如下兩種情況：
67 /// 1. PostBack后找不回來；
68 /// 2.通過rowIndex和columnIndex來定位單元格的過程會更復雜
69 /// </summary>
70 /// <param name="gdv">GridView</param>
71 /// <param name="columnIndex">列Index</param>
72 /// <param name="startRowIndex">起始行Index</param>
73 /// <param name="endRowIndex">結束行Index</param>
74 private static void MergeColumnCell(GridView gdv, int columnIndex, int startRowIndex, int endRowIndex)
75 {
76 gdv.Rows[startRowIndex].Cells[columnIndex].RowSpan = endRowIndex - startRowIndex + 1;
77 for (int i = startRowIndex + 1; i <= endRowIndex; i++)
78 gdv.Rows[i].Cells[columnIndex].Visible = false;
79
}
合并多列#region 合并多列2
/**//// <summary>3
/// GridView合并4
/// </summary>5
/// <param name="gdv">GridView</param>6
/// <param name="startColumnIndex">起始列Index</param>7
/// <param name="endColumnIndex">結束列Index</param>8
public static void MergeGridViewRows(GridView gdv, int startColumnIndex, int endColumnIndex)9
{10
if (gdv == null || endColumnIndex < startColumnIndex || gdv.Rows.Count < 2)11
return;12
if (startColumnIndex < 0 || endColumnIndex > gdv.Columns.Count - 1)13
throw new ArgumentOutOfRangeException("列Index超出GridView可用列的范圍。");14
EndColumnIndex = endColumnIndex;15
MergeCellWithSubColumn(gdv, 0, 0, gdv.Rows.Count - 1);16
}17
private static int EndColumnIndex = 0;18
19
/**//// <summary>20
/// 合并當前列和后續列21
/// </summary>22
/// <param name="currentColumnIndex">當前列</param>23
/// <param name="startRowIndex">起始行</param>24
/// <param name="endRowIndex">結束行</param>25
/// <summary>26
private static void MergeCellWithSubColumn(GridView gdv, int currentColumnIndex, int startRowIndex, int endRowIndex)27
{28
if (currentColumnIndex > EndColumnIndex)//結束遞歸29
return;30
string preValue = GetCellValue(gdv,startRowIndex, currentColumnIndex);31
string curValue = string.Empty;32
int endIndex = startRowIndex;33
for (int i = startRowIndex + 1; i <= endRowIndex + 1; i++)34
{35
if (i == endRowIndex + 1)36
curValue = null;//完成最后一次合并37
else38
curValue = GetCellValue(gdv, i, currentColumnIndex);39
if (curValue != preValue)40
{41
//合并當前列42
MergeColumnCell(gdv, currentColumnIndex, endIndex, i - 1);43
//合并后續列44
MergeCellWithSubColumn(gdv, currentColumnIndex + 1, endIndex, i - 1);45
endIndex = i;46
preValue = curValue;47
}48
}49
}50
51
/**//// <summary>52
/// 取得GridView中單個Cell的值53
/// </summary>54
/// <param name="gdv">GridView</param>55
/// <param name="rowIndex">行Index</param>56
/// <param name="columnIndex">列Index</param>57
/// <returns></returns>58
private static string GetCellValue(GridView gdv, int rowIndex, int columnIndex)59
{60
return gdv.Rows[rowIndex].Cells[columnIndex].Text;61
}62
63
/**//// <summary>64
/// 合并同列中連續的N個單元格65
/// 注意：這里只是隱藏后續的單元格，而沒有刪除單元格66
/// 主要考慮到刪除后會如下兩種情況：67
/// 1. PostBack后找不回來；68
/// 2.通過rowIndex和columnIndex來定位單元格的過程會更復雜69
/// </summary>70
/// <param name="gdv">GridView</param>71
/// <param name="columnIndex">列Index</param>72
/// <param name="startRowIndex">起始行Index</param>73
/// <param name="endRowIndex">結束行Index</param>74
private static void MergeColumnCell(GridView gdv, int columnIndex, int startRowIndex, int endRowIndex)75
{76
gdv.Rows[startRowIndex].Cells[columnIndex].RowSpan = endRowIndex - startRowIndex + 1;77
for (int i = startRowIndex + 1; i <= endRowIndex; i++)78
gdv.Rows[i].Cells[columnIndex].Visible = false;79
}使用：
GridView的PreRender事件中調用：MergeGridViewRows(gridView,0,5)
也可以將上面的代碼改成JS版本，在客戶端執行。
