K8S部署B(yǎng)OBAI 服務（Nvidia版）

目錄

• 一、GPU 節點部署 Driver && CUDA部署
  • 1、前提準備
    • 檢查機器上面有支持CUDA的NVIDIA GPU
    • 查看自己的系統是否支持
    • 驗證系統是否有GCC編譯環境
    • 驗證系統是否安裝了正確的內核頭文件和開發
  • 2、開始安裝
    • 禁用nouveau
    • 開始安裝驅動NVIDIA Driver (也可跳過，直接去安裝CUDA）
    • 開始安裝CUDA Toolkit
• 二、容器環境（Docker or Containerd)
  • 1、安裝 nvidia-container-toolkit
    • 說明：
    • With dnf: RHEL/CentOS, Fedora, Amazon Linux
  • 2、配置Runtime 為NVIDIA
    • Docker
    • Containerd
  • 三、K8S調用GPU
    • 說明：
    • 部署Plugin
• 三、部署服務
  • 1、部署Deekseek-v3
    • 示例yaml文件如下,僅供參考
  • 2、qwen-embedding模型部署
    • 示例yaml文件如下，僅供參考
  • 3、Tika部署
    • 示例yaml文件如下，僅供參考
  • 4、部署ASR
    • 示例yaml文件如下，僅供參考

一、GPU 節點部署 Driver && CUDA部署

官方安裝文檔

1、前提準備

檢查機器上面有支持CUDA的NVIDIA GPU

 lspci | grep -i nvidia

查看自己的系統是否支持

CUDA Installation Guide for Linux — Installation Guide for Linux 13.0 documentation The installation instructions for the CUDA Toolkit on Linux. https://docs.nvidia.com/cuda/cuda-installation-guide-linux/index.html#system-requirements

驗證系統是否有GCC編譯環境

gcc -v

驗證系統是否安裝了正確的內核頭文件和開發

sudo yum install kernel-devel-$(uname -r) kernel-headers-$(uname -r)

2、開始安裝

禁用nouveau

nouveau是一個第三方開源的Nvidia驅動，一般Linux安裝的時候默認會安裝這個驅動。 這個驅動會與Nvidia官方的驅動沖突，在安裝Nvidia驅動和和CUDA之前應先禁用nouveau。

# 查看系統是否正在使用nouveau
lsmod | grep nouveau

# 如果顯示內容，則禁用。以下是centos7的禁用方法


#新建一個配置文件
sudo vim /etc/modprobe.d/blacklist-nouveau.conf
#寫入以下內容
blacklist nouveau
options nouveau modeset=0
#保存并退出
:wq
#備份當前的鏡像
sudo mv /boot/initramfs-$(uname -r).img /boot/initramfs-$(uname -r).img.bak
#建立新的鏡像
sudo dracut /boot/initramfs-$(uname -r).img $(uname -r)
#重啟
sudo reboot
#最后輸入上面的命令驗證
lsmod | grep nouveau

開始安裝驅動NVIDIA Driver (也可跳過，直接去安裝CUDA）

??一定要確認NVIDIA Driver的版本適合自己的顯卡

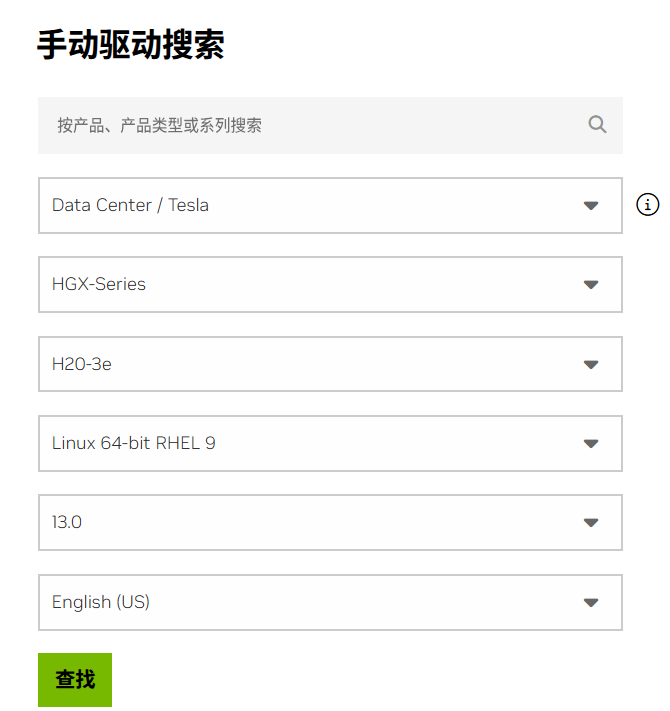

• 下載NVIDIA Driver

  首先到 NVIDIA 驅動下載 下載對應的顯卡驅動：

在下載前確認Driver是否支持自己的顯卡

• 安裝NVIDIA Driver

  rpm -ivh nvidia-driver-local-repo-rhel9-580.82.07-1.0-1.x86_64.rpm


• 驗證驅動是否安裝成功

  # 執行如下命令
  root@GPU1:~ nvidia-smi
  +---------------------------------------------------------------------------------------+
  | NVIDIA-SMI 535.161.08             Driver Version: 535.161.08   CUDA Version: 12.2     |
  |-----------------------------------------+----------------------+----------------------+
  | GPU  Name                 Persistence-M | Bus-Id        Disp.A | Volatile Uncorr. ECC |
  | Fan  Temp   Perf          Pwr:Usage/Cap |         Memory-Usage | GPU-Util  Compute M. |
  |                                         |                      |               MIG M. |
  |=========================================+======================+======================|
  |   0  Tesla T4                       On  | 00000000:3B:00.0 Off |                    0 |
  | N/A   51C    P0              29W /  70W |  12233MiB / 15360MiB |      0%      Default |
  |                                         |                      |                  N/A |
  +-----------------------------------------+----------------------+----------------------+
  |   1  Tesla T4                       On  | 00000000:86:00.0 Off |                    0 |
  | N/A   49C    P0              30W /  70W |   6017MiB / 15360MiB |      0%      Default |
  |                                         |                      |                  N/A |
  +-----------------------------------------+----------------------+----------------------+

  +---------------------------------------------------------------------------------------+
  | Processes:                                                                            |
  |  GPU   GI   CI        PID   Type   Process name                            GPU Memory |
  |        ID   ID                                                             Usage      |
  |=======================================================================================|
  |
  +---------------------------------------------------------------------------------------


  到這里我們的GPU的驅動就安裝好了，系統也可以正常的識別到GPU了。這里顯示的CUDA Version指的是當前驅動最大支持的CUDA版本。

開始安裝CUDA Toolkit

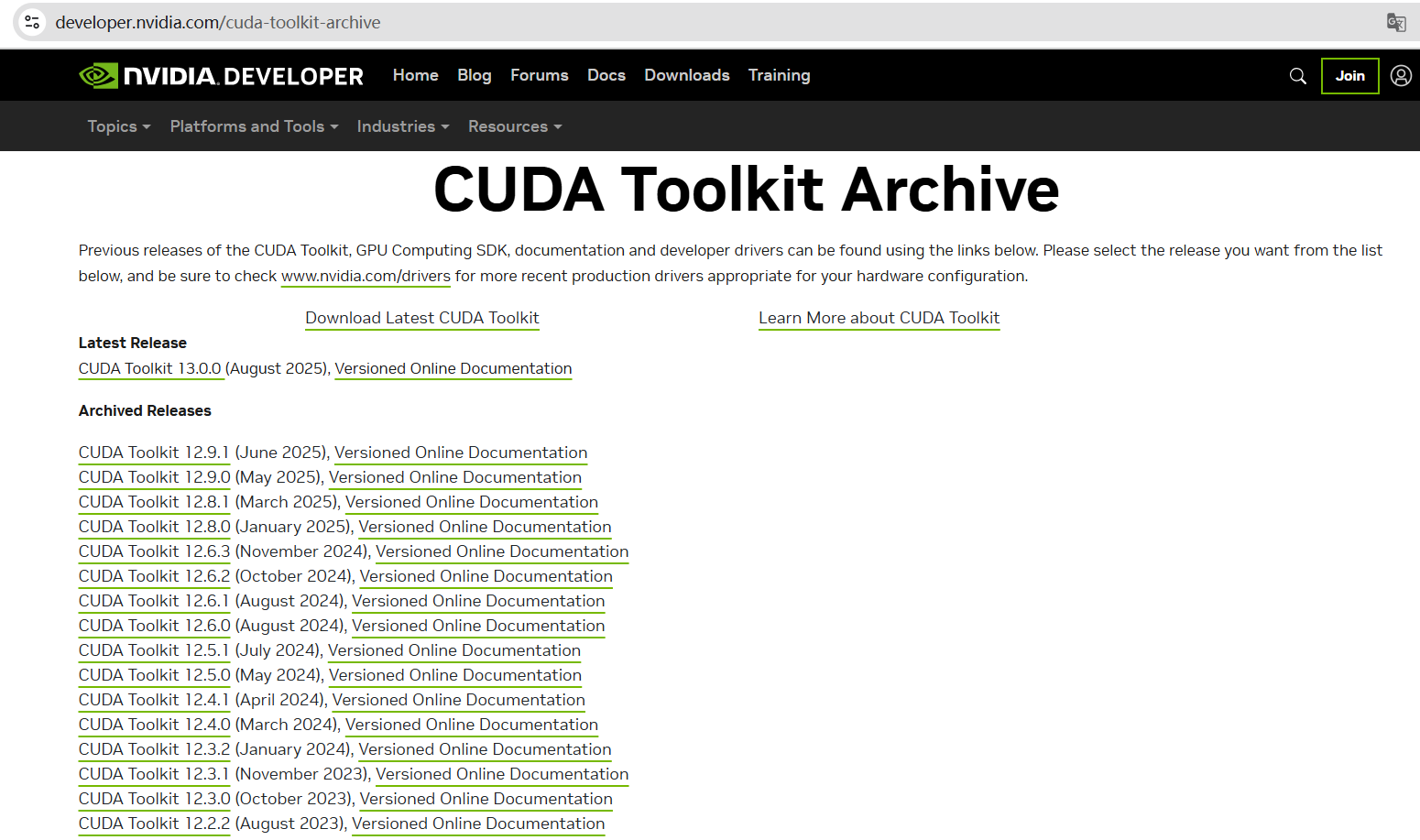

• 下載CUDA Toolkit

  首先下載CUDA Toolkit

選擇好自己的系統和版本

建議下載.run文件

• 安裝CUDA Toolkit

  wget https://developer.download.nvidia.com/compute/cuda/13.0.0/local_installers/cuda_13.0.0_580.65.06_linux.run
  sudo sh cuda_13.0.0_580.65.06_linux.run

  # 安裝成功的日志示例
  ===========
  = Summary =
  ===========

  Driver:   Installed
  Toolkit:  Installed in /usr/local/cuda-13.0/

  Please make sure that
   -   PATH includes /usr/local/cuda-13.0/bin
   -   LD_LIBRARY_PATH includes /usr/local/cuda-13.0/lib64, or, add /usr/local/cuda-13.0/lib64 to /etc/ld.so.conf and run ldconfig as root

  To uninstall the CUDA Toolkit, run cuda-uninstaller in /usr/local/cuda-13.0/bin
  To uninstall the NVIDIA Driver, run nvidia-uninstall
  Logfile is /var/log/cuda-installer.log



  下載并安裝即可，其實如果你沒有安裝NVIDIA Driver這一步會幫你安裝好適合你的NVIDIA Driver,比如這個會安裝580.65.06版本的Driver。

• 配置環境變量

  vim /etc/profile.d/cuda.sh

  # 編輯一個新文件，內容如下：

  # 添加 CUDA 13.0 到 PATH
  export PATH=/usr/local/cuda-13.0/bin:$PATH

  # 添加 CUDA 13.0的 lib64 到 LD_LIBRARY_PATH
  export LD_LIBRARY_PATH=/usr/local/cuda-13.0/lib64:$LD_LIBRARY_PATH


  保存，刷新配置文件

  source /etc/profile.d/cuda.sh


  檢查是否部署成功
  ```markdown
  # 如果輸出版本號即為成功
  (base) root@Colourdata-GPU:~# nvcc -V
  nvcc: NVIDIA (R) Cuda compiler driver
  Copyright (c) 2005-2025 NVIDIA Corporation
  Built on Fri_Feb_21_20:23:50_PST_2025
  Cuda compilation tools, release 12.8, V12.8.93
  Build cuda_12.8.r12.8/compiler.35583870_0




二、容器環境（Docker or Containerd)

官方地址

1、安裝 nvidia-container-toolkit

說明：

NVIDIA Container Toolkit 的主要作用是將 NVIDIA GPU 設備掛載到容器中。兼容docker、containerd、cri-o等。

With dnf: RHEL/CentOS, Fedora, Amazon Linux

# 配置生產存儲庫
curl -s -L https://nvidia.github.io/libnvidia-container/stable/rpm/nvidia-container-toolkit.repo | \
  sudo tee /etc/yum.repos.d/nvidia-container-toolkit.repo

# 安裝NVIDIA Container Toolkit 軟件包
export NVIDIA_CONTAINER_TOOLKIT_VERSION=1.17.8-1
  sudo dnf install -y \
      nvidia-container-toolkit-${NVIDIA_CONTAINER_TOOLKIT_VERSION} \
      nvidia-container-toolkit-base-${NVIDIA_CONTAINER_TOOLKIT_VERSION} \
      libnvidia-container-tools-${NVIDIA_CONTAINER_TOOLKIT_VERSION} \
      libnvidia-container1-${NVIDIA_CONTAINER_TOOLKIT_VERSION}

2、配置Runtime 為NVIDIA

Docker

# 配置runtime=doker
sudo nvidia-ctk runtime configure --runtime=docker

# 建議在 /etc/docker/daemon.json 里面檢查一下，并將默認runtime也修改為nvidia
(base) root@Colourdata-GPU:~# vim  /etc/docker/daemon.json
{
  "registry-mirrors": [
    "https://ihsxva0f.mirror.aliyuncs.com",
    "https://docker.m.daocloud.io",
    "https://registry.docker-cn.com"
  ],
  "exec-opts": ["native.cgroupdriver=systemd"],
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "10m",
    "max-file": "3"
  },
  "storage-driver": "overlay2",
  "default-runtime": "nvidia",
  "runtimes": {
    "nvidia": {
      "args": [],
      "path": "nvidia-container-runtime"
    }
  }
}

systemctl daemon-relod
systemctl restart docker

Containerd

# 配置runtime=containerd
sudo nvidia-ctk runtime configure --runtime=containerd


# 建議在 /etc/containerd/config.toml 里面檢查一下，并將默認runtime也修改為nvidia
# 修改好后重啟containerd
sudo systemctl restart containerd

以上部署完成，就可以配置K8S調用GPU了。

三、K8S調用GPU

說明：

device-plugin由NVIDIA提供，官網文檔。

部署Plugin

• 建議先給GPU節點打上標簽 gpu=true

• 部署服務

  # 下載地址，建議選擇新版本
  https://github.com/NVIDIA/k8s-device-plugin/blob/main/deployments/static/nvidia-device-plugin.yml

  # 發布服務
  root@test:~# kubectl apply -f nvidia-device-plugin.yml

  root@test:~# kubectl get po -l app=gpu -n bobai
  NAME                                   READY   STATUS    RESTARTS   AGE
  nvidia-device-plugin-daemonset-7nkjw   1/1     Running   0          10m


• 檢查服務是否部署成功

  # 如果可以看到nvidia gpu說明服務已經部署成功了
  root@test:~# kubectl describe node GPU | grep nvidia.com/gpu
    nvidia.com/gpu:     2



以上部署完成后，你的K8S集群就可以調用GPU了。

三、部署服務

1、部署Deekseek-v3

示例yaml文件如下,僅供參考

apiVersion: apps/v1
kind: Deployment
metadata:
  name: deepseek-v3
  namespace: bobai
spec:
  replicas: 1
  selector:
    matchLabels:
      app: deepseek-v3
  template:
    metadata:
      labels:
        app: deepseek-v3
    spec:
      containers:
      - command:
        - sh
        - -c
        - vllm serve  --port 8000 --trust-remote-code --served-model-name deepseek-v3 --dtype=fp8  --max-model-len 65536 --gpu-memory-utilization 0.95 /models/DeepSeek-V3
        name: deepseek-v3
        image: registry.cn-shanghai.aliyuncs.com/colourdata/bobai-dependency:vllm
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8000
        volumeMounts:
        - name: model-volume
          mountPath: /models
        resources:
          requests:
            nvidia.com/gpu: 8
            memory: "16Gi"
            cpu: "8"
          limits:
            nvidia.com/gpu: 8
            memory: "32Gi"
            cpu: "16"
        livenessProbe:
          tcpSocket:
            port: 8000
          initialDelaySeconds: 300
          periodSeconds: 10
          failureThreshold: 3
        readinessProbe:
          tcpSocket:
            port: 8000
          initialDelaySeconds: 300
          periodSeconds: 10
          failureThreshold: 3
      volumes:
      - name: model-volume
        hostPath:
          path: /models
          type: Directory

2、qwen-embedding模型部署

示例yaml文件如下，僅供參考

apiVersion: apps/v1
kind: Deployment
metadata:
  name: vllm-embedding
  namespace: bobai
spec:
  replicas: 1
  selector:
    matchLabels:
      app: vllm-embedding
  template:
    metadata:
      labels:
        app: vllm-embedding
    spec:
      containers:
      - command:
        - sh
        - -c
        - vllm serve  --port 8000 --trust-remote-code --served-model-name vllm-embedding  --max-model-len 4096 --gpu-memory-utilization 0.85 /models/Qwen3-Embedding-0.6B
        name: vllm-embedding
        image: registry.cn-shanghai.aliyuncs.com/colourdata/bobai-dependency:vllm
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8000

        volumeMounts:
        - name: model-volume
          mountPath: /models
        resources:
          limits:
            nvidia.com/gpu: 1
          requests:
            memory: "8Gi"
            cpu: "4"
          limits:
            memory: "16Gi"
            cpu: "8"
        livenessProbe:
          tcpSocket:
            port: 8000
          initialDelaySeconds: 30
          periodSeconds: 10
          failureThreshold: 3
        readinessProbe:
          tcpSocket:
            port: 8000
          initialDelaySeconds: 10
          periodSeconds: 5
          failureThreshold: 3
      volumes:
      - name: model-volume
        nfs:
          server: 192.168.2.250
          path: /data/bobai/models
      restartPolicy: Always

---
apiVersion: v1
kind: Service
metadata:
  name: vllm-embedding
  namespace: bobai
spec:
  type: ClusterIP
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 8000
  selector:
    app: vllm-embedding


3、Tika部署

示例yaml文件如下，僅供參考

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tika
  namespace: bobai
spec:
  replicas: 1
  selector:
    matchLabels:
      app: tika
  template:
    metadata:
      labels:
        app: tika
    spec:
      containers:
      - name: tika
        image: tika-ocr-cn:v1
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9998
        resources:
          requests:
            memory: "1Gi"
            cpu: "500m"
          limits:
            memory: "2Gi"
            cpu: "1"
        livenessProbe:
          tcpSocket:
            port: 9998
          initialDelaySeconds: 30
          periodSeconds: 10
          failureThreshold: 3
        readinessProbe:
          tcpSocket:
            port: 9998
          initialDelaySeconds: 10
          periodSeconds: 5
          failureThreshold: 3
      restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
  name: tika-service
  namespace: bobai
spec:
  type: ClusterIP
  selector:
    app: tika
  ports:
  - protocol: TCP
    port: 9998
    targetPort: 9998


4、部署ASR

示例yaml文件如下，僅供參考

apiVersion: apps/v1
kind: Deployment
metadata:
  name: openai-edge-tts
  namespace: bobai
spec:
  replicas: 1
  selector:
    matchLabels:
      app: openai-edge-tts
  template:
    metadata:
      labels:
        app: openai-edge-tts
    spec:
      containers:
      - name: openai-edge-tts
        image: travisvn/openai-edge-tts:latest
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 5050
        env:
        - name: API_KEY
          value: "Colourdata1234@"
        - name: PORT
          value: "5050"
        - name: DEFAULT_VOICE
          value: "en-US-AvaNeural"
        - name: DEFAULT_RESPONSE_FORMAT
          value: "mp3"
        - name: DEFAULT_SPEED
          value: "1.0"
        - name: DEFAULT_LANGUAGE
          value: "en-US"
        - name: REQUIRE_API_KEY
          value: "True"
        - name: REMOVE_FILTER
          value: "False"
        - name: EXPAND_API
          value: "True"
        resources:
          requests:
            memory: "512Mi"
            cpu: "500m"
          limits:
            memory: "1Gi"
            cpu: "1"
        livenessProbe:
          tcpSocket:
            port: 5050
          initialDelaySeconds: 30
          periodSeconds: 10
          failureThreshold: 3
        readinessProbe:
          tcpSocket:
            port: 5050
          initialDelaySeconds: 10
          periodSeconds: 5
          failureThreshold: 3
      restartPolicy: Always

---
apiVersion: v1
kind: Service
metadata:
  name: openai-edge-tts-service
  namespace: bobai
spec:
  type: ClusterIP
  selector:
    app: openai-edge-tts
  ports:
  - protocol: TCP
    port: 5050
    targetPort: 5050
