【Unity】類蜘蛛俠+刺客信條暗殺動作系統開發日志
新版輸入系統——斜向移動變快問題解決
生成對應的input管理腳本
Day 01——角色移動基類
CharacterMovementControlBase
using UnityEngine;
namespace Spiderman.Movement
{
[RequireComponent(typeof(CharacterController))]
public abstract class CharacterMovementControlBase : MonoBehaviour
{
// 角色控制器組件，用于處理角色移動相關的物理交互
private CharacterController _controller;
// 動畫組件，用于控制角色動畫播放
private Animator _animator;
// 地面檢測相關變量
protected bool _characterIsOnGround;
[Header("地面檢測相關變量")]
[SerializeField]protected float _groundDetectionPositionOffset; // 地面檢測位置偏移量
[SerializeField]protected float _detectionRang; // 地面檢測范圍
[SerializeField]protected LayerMask _whatIsGround; // 地面層掩碼
// 重力相關變量
protected readonly float CharacterGravity = -9.8f;
protected float _characterVerticalVelocity; // 角色垂直方向速度
protected float _fallOutDeltaTime; // 下落 delta 時間，用于計算重力作用的時間積累
protected float _fallOutTime = 0.15f; // 下落等待時間，控制跌落動畫播放時機
protected readonly float _characterVerticalMaxVelocity = 54f; // 角色最大垂直速度,低于這個值應用重力
protected Vector3 _characterVerticalDirection; // 角色Y軸移動方向，通過charactercontroller.move來實現y軸移動
// 初始化函數，在對象實例化后、Start 之前調用，獲取必要組件
protected virtual void Awake()
{
_controller = GetComponent<CharacterController>();
_animator = GetComponent<Animator>();
}
protected virtual void Start()
{
_fallOutDeltaTime = _fallOutTime;
}
private void Update()
{
SetCharacterGravity();
UpdateCharacterGravity();
}
/// <summary>
/// 地面檢測方法
/// </summary>
/// <returns>返回角色是否在地面的布爾值</returns>
private bool GroundDetection()
{
// 構建檢測位置：基于角色當前位置，調整 Y 軸偏移（用于地面檢測的位置修正）
Vector3 detectionPosition = new Vector3(
transform.position.x,
transform.position.y - _groundDetectionPositionOffset,
transform.position.z
);
// 球形檢測：檢查在指定位置、指定半徑范圍內，與 _whatIsGround 層的碰撞體是否存在相交
// 參數分別為：檢測中心、檢測半徑、地面層掩碼、忽略觸發器交互
return Physics.CheckSphere(
detectionPosition,
_detectionRang,
_whatIsGround,
QueryTriggerInteraction.Ignore
);
}
/// <summary>
/// 根據是否在地面設置對應的角色重力邏輯
/// </summary>
private void SetCharacterGravity()
{
// 檢測角色是否在地面
_characterIsOnGround = GroundDetection();
if (_characterIsOnGround)
{
//1.在地面
// 1.1 重置下落等待時間
_fallOutDeltaTime = _fallOutTime;
// 1.2 重置垂直速度（防止落地后持續累積速度）
if (_characterVerticalVelocity < 0)
{
_characterVerticalVelocity = -2f;
}
}
else
{
//2.不在地面
if (_fallOutDeltaTime > 0)
{
// 2.1 處理樓梯/小落差：等待 0.15 秒后再應用重力
_fallOutDeltaTime -= Time.deltaTime;
}
else
{
// 2.2 倒計時結束還沒有落地？那說明不是小落差，要開始應用重力
}
if (_characterVerticalVelocity < _characterVerticalMaxVelocity)
{
_characterVerticalVelocity += CharacterGravity * Time.deltaTime;
// 重力公式累積垂直速度
}
}
}
/// <summary>
/// 更新角色垂直方向移動（應用重力效果）
/// </summary>
private void UpdateCharacterGravity()
{
//這里只處理 y 軸重力
// x/z 由其他移動邏輯控制
Vector3 _characterVerticalDirection = new Vector3(0, _characterVerticalVelocity, 0);
// 通過 CharacterController 應用y軸移動
_controller.Move(_characterVerticalDirection * Time.deltaTime);
}
/// <summary>
/// 斜坡方向重置：檢測角色是否在坡上移動，防止下坡速度過快導致異常
/// </summary>
/// <param name="moveDirection">原始移動方向</param>
/// <returns>適配斜坡后的移動方向</returns>
private Vector3 SlopResetDirection(Vector3 moveDirection)
{
// 射線檢測參數配置
Vector3 rayOrigin = transform.position + transform.up * 0.5f; // 射線起點
Vector3 rayDirection = Vector3.down; // 射線方向
float maxDistance = _controller.height * 0.85f; // 射線最大距離
LayerMask targetLayer = _whatIsGround; // 檢測的目標地面層
QueryTriggerInteraction triggerInteraction = QueryTriggerInteraction.Ignore; // 忽略觸發器
// 執行向下的射線檢測
if (Physics.Raycast(rayOrigin, rayDirection, out RaycastHit hit, maxDistance, targetLayer, triggerInteraction))
{
// 點積判斷：檢測地面法線是否與角色上方向垂直（點積接近0表示垂直，非0則說明有坡度）
if (Vector3.Dot(transform.up, hit.normal) != 0)
{
// 將移動方向投影到斜坡平面
moveDirection = Vector3.ProjectOnPlane(moveDirection, hit.normal);
}
}
return moveDirection;
}
private void OnDrawGizmos()
{
// 設置gizmos顏色為紅色，使其更容易看到
Gizmos.color = Color.red;
Vector3 detectionPosition = new Vector3(
transform.position.x,
transform.position.y - _groundDetectionPositionOffset,
transform.position.z
);
Gizmos.DrawWireSphere(detectionPosition, _detectionRang);
}
}
}
PlayerMovementControl
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Movement
{
public class PlayerMovementControl : CharacterMovementControlBase
{
}
}
Day02 帶碰撞體相機腳本
GameInputManager
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class GameInputManager : MonoBehaviour
{
private GameInputAction _gameInputAction;
public Vector2 Movement => _gameInputAction.Player.Movement.ReadValue<Vector2>();
public Vector2 CameraLook => _gameInputAction.Player.CameraLook.ReadValue<Vector2>();
private void Awake()
{
_gameInputAction ??= new GameInputAction(); //是空的，則創建新的實例
}
private void OnEnable()
{
_gameInputAction.Enable();
}
private void OnDisable()
{
_gameInputAction.Disable();
}
}
TP_CameraControl
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class TP_CameraControl : MonoBehaviour
{
private GameInputManager _gameInputManager;
[Header("相機參數配置")]
[SerializeField] private Transform _lookTarget; //相機跟隨目標
[SerializeField] private float _controlSpeed; //相機移動速度
[SerializeField] private Vector2 _cameraVerticalMaxAngle; //相機上下旋轉角度限制
[SerializeField] private Vector2 _cameraHorizontalMaxAngle; //相機左右旋轉角度限制
[SerializeField] private float _smoothSpeed; //平滑速度
[SerializeField] private float _cameraDistance; //相機到跟隨目標的距離
[SerializeField] private float _cameraHeight; //相機高度
[SerializeField] private float _DistancemoothTime; //位置跟隨平滑時間
private Vector3 smoothDampVelocity = Vector3.zero; //旋轉阻尼
private Vector2 _input; // 輸入值
private Vector3 _cameraRotation; // 相機旋轉方向
private bool _cameraInputEnabled = true; // 相機輸入是否啟用
private void Awake()
{
// 獲取游戲輸入管理組件
_gameInputManager = GetComponent<GameInputManager>();
//隱藏光標
Cursor.lockState = CursorLockMode.Locked;
Cursor.visible = false;
}
private void Update()
{
// 檢測到按下ESC鍵或鼠標左鍵點擊窗口，則切換相機輸入狀態
HandleCameraInputToggle();
// 只有在相機輸入啟用時才處理輸入
if (_cameraInputEnabled)
{
// 實時處理相機輸入
CameraInput();
}
}
private void LateUpdate()
{
// 更新相機旋轉
UpdateCameraRotation();
// 更新相機位置
UpdateCameraPosition();
}
/// <summary>
/// 處理相機輸入，獲取并處理上下查看等輸入，限制垂直角度范圍
/// </summary>
private void CameraInput()
{
// 獲取相機xy軸輸入
_input.y += _gameInputManager.CameraLook.x * _controlSpeed;
_input.x -= _gameInputManager.CameraLook.y * _controlSpeed;
// 限制相機垂直方向角度范圍，垂直方向是繞 x 軸旋轉，所以平滑的是x軸輸入
_input.x = Mathf.Clamp(
_input.x,
_cameraVerticalMaxAngle.x,
_cameraVerticalMaxAngle.y
);
// 限制相機水平方向角度范圍，水平方向是繞 y 軸旋轉，所以限制的是y軸輸入
_input.y = Mathf.Clamp(
_input.y,
_cameraHorizontalMaxAngle.x,
_cameraHorizontalMaxAngle.y
);
}
/// <summary>
/// 更新相機旋轉
/// </summary>
private void UpdateCameraRotation()
{
var targetRotation = new Vector3(_input.x, _input.y, 0);
_cameraRotation = Vector3.SmoothDamp(
_cameraRotation,
targetRotation,
ref smoothDampVelocity,
_smoothSpeed
);
//更新相機歐拉角
transform.eulerAngles = _cameraRotation;
}
/// <summary>
/// 更新相機位置
/// </summary>
private void UpdateCameraPosition()
{
var newPos = _lookTarget.position
+ Vector3.back * _cameraDistance
+ Vector3.up * _cameraHeight;
// 平滑位置移動
transform.position = Vector3.Lerp(
transform.position,
newPos,
_DistancemoothTime
);
}
/// <summary>
/// 處理相機輸入狀態切換
/// </summary>
private void HandleCameraInputToggle()
{
// 檢測ESC鍵切換相機輸入狀態
if (Input.GetKeyDown(KeyCode.Escape))
{
_cameraInputEnabled = false;
// 顯示光標并解鎖
Cursor.lockState = CursorLockMode.None;
Cursor.visible = true;
}
// 檢測鼠標左鍵點擊窗口來恢復相機控制
if (Input.GetMouseButtonDown(0) && !_cameraInputEnabled)
{
_cameraInputEnabled = true;
// 隱藏光標并鎖定
Cursor.lockState = CursorLockMode.Locked;
Cursor.visible = false;
}
}
}
加入攝像機碰撞邏輯
GameInputManager繼承于單例模式
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using GGG.Tool.Singleton;
public class GameInputManager : Singleton<GameInputManager>
{
private GameInputAction _gameInputAction;
public Vector2 Movement => _gameInputAction.Player.Movement.ReadValue<Vector2>();
public Vector2 CameraLook => _gameInputAction.Player.CameraLook.ReadValue<Vector2>();
private void Awake()
{
base.Awake();
_gameInputAction ??= new GameInputAction(); //是空的，則創建新的實例
}
private void OnEnable()
{
_gameInputAction.Enable();
}
private void OnDisable()
{
_gameInputAction.Disable();
}
}
TP_CameraControl
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using GGG.Tool;
public class TP_CameraControl : MonoBehaviour
{
[Header("相機參數配置")]
[SerializeField] private Transform _lookTarget; //相機跟隨目標
[SerializeField] private float _controlSpeed; //相機移動速度
[SerializeField] private Vector2 _cameraVerticalMaxAngle; //相機上下旋轉角度限制
[SerializeField] private Vector2 _cameraHorizontalMaxAngle; //相機左右旋轉角度限制
[SerializeField] private float _smoothSpeed; //平滑速度
[SerializeField] private float _cameraDistance; //相機到跟隨目標的距離
[SerializeField] private float _cameraHeight; //相機高度
[SerializeField] private float _distanceSmoothTime; //位置跟隨平滑時間
private Vector3 smoothDampVelocity = Vector3.zero; //旋轉阻尼
private Vector2 _input; // 輸入值
private Vector3 _cameraRotation; // 相機旋轉方向
private bool _cameraInputEnabled = true; // 相機輸入是否啟用
private void Awake()
{
//隱藏光標
Cursor.lockState = CursorLockMode.Locked;
Cursor.visible = false;
}
private void Update()
{
// 檢測到按下ESC鍵或鼠標左鍵點擊窗口，則切換相機輸入狀態
HandleCameraInputToggle();
// 只有在相機輸入啟用時才處理輸入
if (_cameraInputEnabled)
{
// 實時處理相機輸入
CameraInput();
}
}
private void LateUpdate()
{
// 更新相機旋轉
UpdateCameraRotation();
// 更新相機位置
UpdateCameraPosition();
}
/// <summary>
/// 處理相機輸入，獲取并處理上下查看等輸入，限制垂直角度范圍
/// </summary>
private void CameraInput()
{
// 獲取相機xy軸輸入
_input.y += GameInputManager.MainInstance.CameraLook.x * _controlSpeed;
_input.x -= GameInputManager.MainInstance.CameraLook.y * _controlSpeed;
// 限制相機垂直方向角度范圍，垂直方向是繞 x 軸旋轉，所以平滑的是x軸輸入
_input.x = Mathf.Clamp(
_input.x,
_cameraVerticalMaxAngle.x,
_cameraVerticalMaxAngle.y
);
// 限制相機水平方向角度范圍，水平方向是繞 y 軸旋轉，所以限制的是y軸輸入
_input.y = Mathf.Clamp(
_input.y,
_cameraHorizontalMaxAngle.x,
_cameraHorizontalMaxAngle.y
);
}
/// <summary>
/// 更新相機旋轉
/// </summary>
private void UpdateCameraRotation()
{
var targetRotation = new Vector3(_input.x, _input.y, 0);
_cameraRotation = Vector3.SmoothDamp(
_cameraRotation,
targetRotation,
ref smoothDampVelocity,
_smoothSpeed
);
//更新相機歐拉角
transform.eulerAngles = _cameraRotation;
}
/// <summary>
/// 更新相機位置
/// </summary>
private void UpdateCameraPosition()
{
var newPos = _lookTarget.position
+ Vector3.back * _cameraDistance
+ Vector3.up * _cameraHeight;
// 平滑位置移動
transform.position = Vector3.Lerp(
transform.position,
newPos,
DevelopmentToos.UnTetheredLerp(_distanceSmoothTime)
);
}
/// <summary>
/// 處理相機輸入狀態切換
/// </summary>
private void HandleCameraInputToggle()
{
// 檢測ESC鍵切換相機輸入狀態
if (Input.GetKeyDown(KeyCode.Escape))
{
_cameraInputEnabled = false;
// 顯示光標并解鎖
Cursor.lockState = CursorLockMode.None;
Cursor.visible = true;
}
// 檢測鼠標左鍵點擊窗口來恢復相機控制
if (Input.GetMouseButtonDown(0) && !_cameraInputEnabled)
{
_cameraInputEnabled = true;
// 隱藏光標并鎖定
Cursor.lockState = CursorLockMode.Locked;
Cursor.visible = false;
}
}
}
Day03 Movement

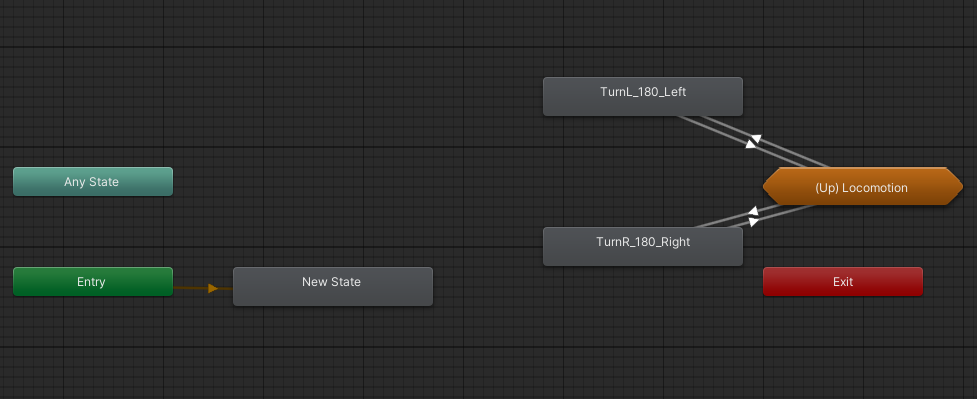

動畫部分
腳本
CharacterMovementControlBase
protected Vector3 _moveDirection; // 角色移動方向
/// <summary>
/// 腳本控制animator的根運動
/// </summary>
protected virtual void OnAnimatorMove()
{
_animator.ApplyBuiltinRootMotion();
UpdateCharacterMoveDirection(_animator.deltaPosition);
}
/// <summary>
/// 更新角色水平移動方向——繞y軸旋轉
/// </summary>
protected void UpdateCharacterMoveDirection(Vector3 direction)
{
_moveDirection = SlopResetDirection(direction);
_controller.Move(_moveDirection * Time.deltaTime);
}
GameInputManager
public bool Run => _gameInputAction.Player.Run.triggered;
PlayerMovementControl
using GGG.Tool;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Movement
{
public class PlayerMovementControl : CharacterMovementControlBase
{
[SerializeField] float moveSpeed = 1.5f;
// 角色旋轉角度（繞 Y 軸）
private float _rotationAngle;
// 旋轉角速度
private float _angleVelocity = 0;
// 旋轉平滑時間
[SerializeField] private float _rotationSmoothTime;
private Transform _mainCamera;
protected override void Awake()
{
base.Awake();
_mainCamera = Camera.main.transform;
}
private void LateUpdate()
{
UpdateAnimation();
CharacterRotationControl();
}
/// <summary>
/// 角色旋轉控制
/// </summary>
private void CharacterRotationControl()
{
// 不在地面時直接返回，不處理旋轉
if (!_characterIsOnGround)
return;
// 處理輸入存在時的旋轉角度計算
if (_animator.GetBool("HasInput"))
{
_rotationAngle =
Mathf.Atan2(
GameInputManager.MainInstance.Movement.x,
GameInputManager.MainInstance.Movement.y
) * Mathf.Rad2Deg
+ _mainCamera.eulerAngles.y; // 計算角色的旋轉角度（弧度轉角度）
}
// 滿足HasInput==true且處于“Motion”動畫標簽時，平滑更新角色旋轉
if (_animator.GetBool("HasInput") && _animator.AnimationAtTag("Motion"))
{
transform.eulerAngles = Vector3.up
* Mathf.SmoothDampAngle(
transform.eulerAngles.y,
_rotationAngle,
ref _angleVelocity,
_rotationSmoothTime
);
}
}
/// <summary>
/// 更新動畫
/// </summary>
private void UpdateAnimation()
{
if (!_characterIsOnGround)
return;
_animator.SetBool("HasInput", GameInputManager.MainInstance.Movement != Vector2.zero);
if (_animator.GetBool("HasInput"))
{
if (GameInputManager.MainInstance.Run)
{
//按下奔跑鍵
_animator.SetBool("Run",true);
}
//有輸入
// Run被開啟，那就Movement設置為2，否則設置為輸入的兩個軸的平方
var targetSpeed = _animator.GetBool("Run") ? 2f :GameInputManager.MainInstance.Movement.sqrMagnitude;
_animator.SetFloat(
"Movement",
targetSpeed / _animator.humanScale * moveSpeed,
0.25f,
Time.deltaTime
);
}
else
{
//無輸入
_animator.SetFloat("Movement", 0f, 0.25f, Time.deltaTime);
if (_animator.GetFloat("Movement") < 0.2f)
{
_animator.SetBool("Run", false);
}
}
}
}
}
Day04 事件管理器
GameEventManager
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using System;
using GGG.Tool;
using GGG.Tool.Singleton;
public class GameEventManager : SingletonNonMono<GameEventManager>
{
// 事件接口
private interface IEventHelp
{
}
// 事件類，實現 IEventHelp 接口，用于管理事件注冊、調用等邏輯
private class EventHelp : IEventHelp
{
// 存儲事件委托
private event Action _action;
// 構造函數，初始化時綁定初始事件邏輯
public EventHelp(Action action)
{
// 首次實例化時賦值，僅執行這一次初始綁定
_action = action;
}
// 增加事件注冊的方法，將新的事件邏輯追加到委托中
public void AddCall(Action action)
{
_action += action;
}
// 調用事件的方法，若有綁定邏輯則執行
public void Call()
{
_action?.Invoke();
}
// 移除事件的方法，將指定事件邏輯從委托中移除
public void Remove(Action action)
{
_action -= action;
}
}
private class EventHelp<T> : IEventHelp
{
// 存儲事件委托
private event Action<T> _action;
// 構造函數，初始化時綁定初始事件邏輯
public EventHelp(Action<T> action)
{
// 首次實例化時賦值，僅執行這一次初始綁定
_action = action;
}
// 增加事件注冊的方法，將新的事件邏輯追加到委托中
public void AddCall(Action<T> action)
{
_action += action;
}
// 調用事件的方法，若有綁定邏輯則執行
public void Call(T value)
{
_action?.Invoke(value);
}
// 移除事件的方法，將指定事件邏輯從委托中移除
public void Remove(Action<T> action)
{
_action -= action;
}
}
private class EventHelp<T1, T2> : IEventHelp
{
// 存儲事件委托
private event Action<T1, T2> _action;
// 構造函數，初始化時綁定初始事件邏輯
public EventHelp(Action<T1, T2> action)
{
// 首次實例化時賦值，僅執行這一次初始綁定
_action = action;
}
// 增加事件注冊的方法，將新的事件邏輯追加到委托中
public void AddCall(Action<T1, T2> action)
{
_action += action;
}
// 調用事件的方法，若有綁定邏輯則執行
public void Call(T1 value1, T2 value2)
{
_action?.Invoke(value1, value2);
}
// 移除事件的方法，將指定事件邏輯從委托中移除
public void Remove(Action<T1, T2> action)
{
_action -= action;
}
}
/// <summary>
/// 事件中心，用于管理事件注冊、調用
/// </summary>
private Dictionary<string, IEventHelp> _eventCenter = new Dictionary<string, IEventHelp>();
/// <summary>
/// 添加事件監聽
/// </summary>
/// <param name="eventName">事件名稱</param>
/// <param name="action">回調函數</param>
public void AddEventListening(string eventName, Action action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp)?.AddCall(action);
}
else
{
// 如果事件中心不存在叫這個名字的事件，new一個然后添加
_eventCenter.Add(eventName, new EventHelp(action));
}
}
public void AddEventListening<T>(string eventName, Action<T> action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T>)?.AddCall(action);
}
else
{
// 如果事件中心不存在叫這個名字的事件，new一個然后添加
_eventCenter.Add(eventName, new EventHelp<T>(action));
}
}
public void AddEventListening<T1, T2>(string eventName, Action<T1, T2> action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T1, T2>)?.AddCall(action);
}
else
{
// 如果事件中心不存在叫這個名字的事件，new一個然后添加
_eventCenter.Add(eventName, new EventHelp<T1, T2>(action));
}
}
/// <summary>
/// 調用事件
/// </summary>
/// <param name="eventName">事件名稱</param>
public void CallEvent(string eventName)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp)?.Call();
}
else
{
LogEventNotFound(eventName, "調用");
}
}
public void CallEvent<T>(string eventName, T value)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T>)?.Call(value);
}
else
{
LogEventNotFound(eventName, "調用");
}
}
public void CallEvent<T1, T2>(string eventName, T1 value, T2 value1)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T1, T2>)?.Call(value, value1);
}
else
{
LogEventNotFound(eventName, "調用");
}
}
/// <summary>
/// 移除事件監聽
/// </summary>
/// <param name="eventName">事件名稱</param>
/// <param name="action">要移除的事件回調</param>
public void RemoveEvent(string eventName, Action action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp)?.Remove(action);
}
else
{
LogEventNotFound(eventName, "移除");
}
}
public void RemoveEvent<T>(string eventName, Action<T> action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T>)?.Remove(action);
}
else
{
LogEventNotFound(eventName, "移除");
}
}
public void RemoveEvent<T1, T2>(string eventName, Action<T1, T2> action)
{
if (_eventCenter.TryGetValue(eventName, out var eventHelp))
{
(eventHelp as EventHelp<T1, T2>)?.Remove(action);
}
else
{
LogEventNotFound(eventName, "移除");
}
}
/// <summary>
/// 事件未找到時的統一日志輸出
/// </summary>
/// <param name="eventName">事件名稱</param>
/// <param name="operation">操作類型（移除、調用）</param>
private void LogEventNotFound(string eventName, string operation)
{
DevelopmentTools.WTF($"當前未找到{eventName}的事件，無法{operation}");
}
}

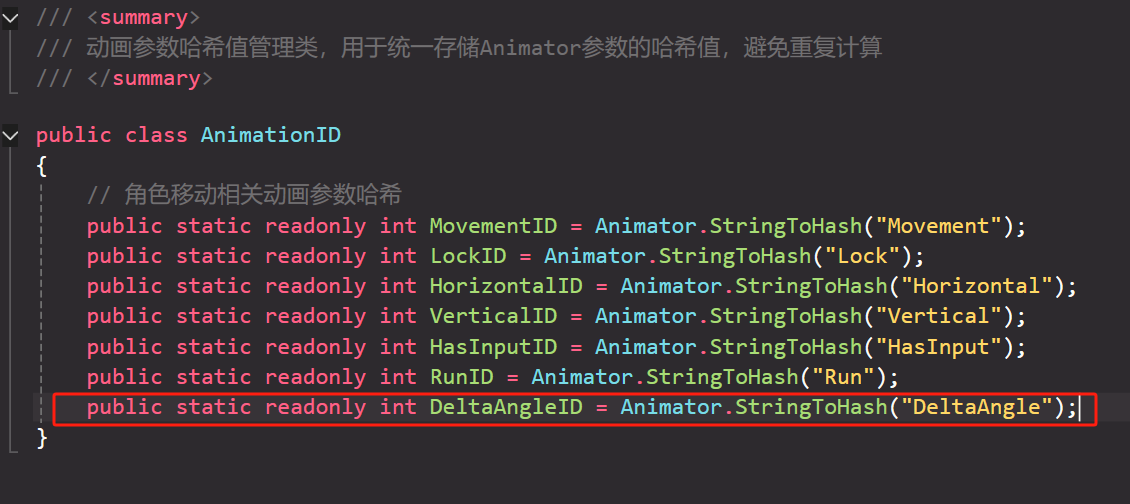

Day05 AnimationStringToHash
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// 動畫參數哈希值管理類，用于統一存儲Animator參數的哈希值，避免重復計算
/// </summary>
public class AnimationID
{
// 角色移動相關動畫參數哈希
public static readonly int MovementID = Animator.StringToHash("Movement");
public static readonly int LockID = Animator.StringToHash("Lock");
public static readonly int HorizontalID = Animator.StringToHash("Horizontal");
public static readonly int VerticalID = Animator.StringToHash("Vertical");
public static readonly int HasInputID = Animator.StringToHash("HasInput");
public static readonly int RunID = Animator.StringToHash("Run");
}
Day06 GameTimer
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// 計時器狀態枚舉，描述計時器不同工作階段
/// </summary>
public enum TimerState
{
NOTWORKERE, // 沒有工作（初始或重置后狀態）
WORKERING, // 工作中（計時進行時）
DONE // 工作完成（計時結束）
}
/// <summary>
/// 游戲計時器類，用于管理計時邏輯，支持啟動計時、更新計時、獲取狀態、重置等功能
/// </summary>
public class GameTimer
{
// 計時時長（剩余計時時間）
private float _startTime;
// 計時結束后要執行的任務（Action 委托）
private Action _task;
// 是否停止當前計時器標記
private bool _isStopTimer;
// 當前計時器的狀態
private TimerState _timerState;
/// <summary>
/// 構造函數，初始化時重置計時器
/// </summary>
public GameTimer()
{
ResetTimer();
}
/// <summary>
/// 1. 開始計時
/// </summary>
/// <param name="time">要計時的時長</param>
/// <param name="task">計時結束后要執行的任務（Action 委托）</param>
public void StartTimer(float time, Action task)
{
_startTime = time;
_task = task;
_isStopTimer = false;
_timerState = TimerState.WORKERING;
}
/// <summary>
/// 2. 更新計時器（通常在 MonoBehaviour 的 Update 里調用，驅動計時邏輯）
/// </summary>
public void UpdateTimer()
{
// 如果標記為停止，直接返回，不執行計時更新
if (_isStopTimer)
return;
// 遞減計時時間
_startTime -= Time.deltaTime;
// 計時時間小于 0，說明計時結束
if (_startTime < 0)
{
// 安全調用任務（如果任務不為 null 才執行）
_task?.Invoke();
// 更新狀態為已完成
_timerState = TimerState.DONE;
// 標記為停止，后續不再繼續計時更新
_isStopTimer = true;
}
}
/// <summary>
/// 3. 獲取當前計時器的狀態
/// </summary>
/// <returns>返回 TimerState 枚舉值，代表當前計時器狀態</returns>
public TimerState GetTimerState() => _timerState;
/// <summary>
/// 4. 重置計時器，恢復到初始狀態
/// </summary>
public void ResetTimer()
{
_startTime = 0f;
_task = null;
_isStopTimer = true;
_timerState = TimerState.NOTWORKERE;
}
}
TimerManager
using System;
using System.Collections;
using System.Collections.Generic;
using GGG.Tool;
using GGG.Tool.Singleton;
using UnityEngine;
using UnityEngine.UIElements;
/// <summary>
/// 計時器管理器，采用單例模式，負責管理空閑計時器隊列和工作中計時器列表，
/// 實現計時器的初始化、分配、回收及更新邏輯
/// </summary>
public class TimerManager : Singleton<TimerManager>
{
#region 私有字段
// 初始最大計時器數量，在 Inspector 中配置
[SerializeField] private int _initMaxTimerCount;
// 空閑計時器隊列，存儲可用的 GameTimer
private Queue<GameTimer> _notWorkingTimer = new Queue<GameTimer>();
// 工作中計時器列表，存儲正在計時的 GameTimer
private List<GameTimer> _workingTimer = new List<GameTimer>();
#endregion
#region 生命周期與初始化
protected override void Awake()
{
base.Awake();
InitTimerManager();
}
/// <summary>
/// 初始化計時器管理器，創建初始數量的空閑計時器
/// </summary>
private void InitTimerManager()
{
for (int i = 0; i < _initMaxTimerCount; i++)
{
CreateTimerInternal();
}
}
/// <summary>
/// 內部創建計時器并加入空閑隊列的方法
/// </summary>
private void CreateTimerInternal()
{
var timer = new GameTimer();
_notWorkingTimer.Enqueue(timer);
}
#endregion
#region 計時器分配與回收
/// <summary>
/// 嘗試獲取一個計時器，用于執行定時任務
/// </summary>
/// <param name="time">計時時長</param>
/// <param name="task">計時結束后執行的任務</param>
public void TryGetOneTimer(float time, Action task)
{
// 若空閑隊列為空，額外創建一個計時器
if (_notWorkingTimer.Count == 0)
{
CreateTimerInternal();
}
var timer = _notWorkingTimer.Dequeue();
timer.StartTimer(time, task);
_workingTimer.Add(timer);
}
/// <summary>
/// 回收計時器（可在 GameTimer 完成任務時調用，這里邏輯已內聯在更新里，也可擴展外部調用）
/// 注：當前通過 UpdateWorkingTimer 自動回收，此方法可留作擴展
/// </summary>
/// <param name="timer">要回收的計時器</param>
private void RecycleTimer(GameTimer timer)
{
timer.ResetTimer();
_notWorkingTimer.Enqueue(timer);
_workingTimer.Remove(timer);
}
#endregion
#region 計時器更新邏輯
private void Update()
{
UpdateWorkingTimer();
}
/// <summary>
/// 更新工作中計時器的狀態，處理計時推進和完成后的回收
/// </summary>
private void UpdateWorkingTimer()
{
// 遍歷副本，避免列表修改時迭代出錯
for (int i = _workingTimer.Count - 1; i >= 0; i--)
{
var timer = _workingTimer[i];
timer.UpdateTimer();
if (timer.GetTimerState() == TimerState.DONE)
{
RecycleTimer(timer);
}
}
}
#endregion
}
Day07 腳部拖尾特效的控制——奔跑時啟用
using UnityEngine;
using System.Collections;
public class ObjectVisibilityController : MonoBehaviour
{
// 在 Inspector 中手動拖入需要控制的子物體
public GameObject targetChild;
public Animator playerAnimator;
// 存儲當前目標狀態，用于判斷是否需要執行狀態切換
private bool _currentTargetState;
// 標記是否正在等待延遲，避免重復啟動協程
private bool _isWaiting = false;
private void Update()
{
// 獲取動畫狀態的當前值
bool desiredState = playerAnimator.GetBool(AnimationID.RunID);
// 如果狀態發生變化且不在等待狀態，則啟動延遲協程
if (desiredState != _currentTargetState && !_isWaiting)
{
StartCoroutine(ChangeStateAfterDelay(desiredState, 0.5f));
}
}
// 延遲改變狀態的協程
private IEnumerator ChangeStateAfterDelay(bool newState, float delay)
{
_isWaiting = true; // 標記為正在等待
yield return new WaitForSeconds(delay); // 等待指定秒數
// 應用新狀態
targetChild.SetActive(newState);
_currentTargetState = newState;
_isWaiting = false; // 重置等待標記
}
}
Day08 IKController——頭部IK跟隨相機(平滑控制)
IKController
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class IKController : MonoBehaviour
{
public Animator _animator;
//IK控制點
//四肢關節點
public Transform ik_LHand;
public Transform ik_RHand;
public Transform ik_LFoot;
public Transform ik_RFoot;
//頭部控制點,可以根據主相機的位置，讓玩家能夠從側視角下看到頭部偏轉。
public Transform Head_IKPoint;
[Header("IK 權重控制")]
[SerializeField] private float ikBlendSpeed = 5f; // IK權重變化速度
[SerializeField] private float headTurnSpeed = 5f; // 頭部轉向速度
[SerializeField] private float maxHeadAngle = 60f; // 頭部最大轉向角度
// IK相關私有變量
private float _currentHeadIKWeight = 0f; // 當前頭部IK權重
private Vector3 _currentLookTarget; // 緩存"當前正在看的點"
private bool _hasInitializedLookTarget = false; // 是否已初始化看向目標
private void OnAnimatorIK(int layerIndex)
{
// 四肢IK控制
if (ik_LHand != null)
IKControl(AvatarIKGoal.LeftHand, ik_LHand);
if (ik_RHand != null)
IKControl(AvatarIKGoal.RightHand, ik_RHand);
if (ik_LFoot != null)
IKControl(AvatarIKGoal.LeftFoot, ik_LFoot);
if (ik_RFoot != null)
IKControl(AvatarIKGoal.RightFoot, ik_RFoot);
// 頭部IK控制 - 使用平滑權重過渡
HandleHeadIK();
}
/// <summary>
/// 處理頭部IK控制 - 解決生硬切換問題
/// </summary>
private void HandleHeadIK()
{
if (Head_IKPoint == null)
return;
// 判斷是否應該啟用頭部IK
bool shouldUseHeadIK = _animator.GetFloat(AnimationID.MovementID) < 0.1f;
// 計算目標權重
float targetWeight = shouldUseHeadIK ? 1f : 0f;
// 平滑過渡權重 - 這是解決生硬切換的關鍵
_currentHeadIKWeight = Mathf.Lerp(_currentHeadIKWeight, targetWeight, ikBlendSpeed * Time.deltaTime);
// 如果權重大于0，執行頭部IK控制
if (_currentHeadIKWeight > 0.01f)
{
IKHeadControl(Head_IKPoint, headTurnSpeed, maxHeadAngle);
}
// 使用平滑權重而不是固定的1f
_animator.SetLookAtWeight(_currentHeadIKWeight);
// 如果已初始化目標位置，設置看向位置
if (_hasInitializedLookTarget)
{
_animator.SetLookAtPosition(_currentLookTarget);
}
}
/// <summary>
/// 頭部 IK 控制（平滑轉向 + 角度限制）
/// </summary>
/// <param name="target">要看的對象</param>
/// <param name="turnSpeed">插值速度</param>
/// <param name="maxAngle">最大允許夾角（度數）</param>
private void IKHeadControl(Transform target,
float turnSpeed = 5f,
float maxAngle = 60f)
{
// 初始化看向目標 - 防止第一次啟用時的突然跳轉
if (!_hasInitializedLookTarget)
{
_currentLookTarget = transform.position + transform.forward * 5f;
_hasInitializedLookTarget = true;
}
// 1. 計算最終想要看的點
Vector3 rawTargetPos;
Vector3 directionToCamera = target.position - transform.position;
bool isCameraInFront = Vector3.Dot(transform.forward, directionToCamera.normalized) > 0;
if (isCameraInFront)
{
// 相機在前面，看向相機
rawTargetPos = target.position;
}
else
{
// 相機在背后，看向相機視線向前延伸的點
rawTargetPos = target.position + target.forward * 10f;
}
// 2. 計算與正前方向的夾角
Vector3 dirToRawTarget = (rawTargetPos - transform.position).normalized;
float angle = Vector3.Angle(transform.forward, dirToRawTarget);
// 3. 如果角度在范圍內，才允許平滑轉向
if (angle <= maxAngle)
{
_currentLookTarget = Vector3.Lerp(_currentLookTarget, rawTargetPos,
turnSpeed * Time.deltaTime);
}
// 否則保持上一幀的 _currentLookTarget 不變（即不更新）
// 4. Debug繪制
Debug.DrawLine(transform.position, _currentLookTarget, Color.red);
Debug.DrawRay(target.position, target.forward * 10f, Color.blue);
// 注意：移除了這里的SetLookAtWeight和SetLookAtPosition調用
// 因為現在在HandleHeadIK()中統一處理
}
/// <summary>
/// 四肢IK控制
/// </summary>
/// <param name="ControlPosition"></param>
/// <param name="target"></param>
public void IKControl(AvatarIKGoal ControlPosition, Transform target)
{
_animator.SetIKPositionWeight(ControlPosition, 1);
_animator.SetIKPosition(ControlPosition, target.position);
_animator.SetIKRotationWeight(ControlPosition, 1);
_animator.SetIKRotation(ControlPosition, target.rotation);
}
}
Day09 角色切換——Spiderman To Spider
蜘蛛控制腳本——Rigging Animation
Spider
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Raycasting;
/*
* This class represents the actual spider. It is responsible for "glueing" it to the surfaces around it. This is accomplished by
* creating a fake gravitational force in the direction of the surface normal it is standing on. The surface normal is determined
* by spherical raycasting downwards, as well as forwards for wall-climbing.
*
* The torso of the spider will move and rotate depending on the height of the referenced legs to mimic "spinal movement".
*
* The spider does not move on its own. Therefore a controller should call the provided functions walk() and turn() for
* the desired control.
*/
[DefaultExecutionOrder(0)] // Any controller of this spider should have default execution -1
public class Spider : MonoBehaviour {
private Rigidbody rb;
[Header("Debug")]
public bool showDebug;
[Header("Movement")]
[Range(1, 10)]
public float walkSpeed;
[Range(1, 10)]
public float runSpeed;
[Range(1, 5)]
public float turnSpeed;
[Range(0.001f, 1)]
public float walkDrag;
[Header("Grounding")]
public CapsuleCollider capsuleCollider;
[Range(1, 10)]
public float gravityMultiplier;
[Range(1, 10)]
public float groundNormalAdjustSpeed;
[Range(1, 10)]
public float forwardNormalAdjustSpeed;
public LayerMask walkableLayer;
[Range(0, 1)]
public float gravityOffDistance;
[Header("IK Legs")]
public Transform body;
public IKChain[] legs;
[Header("Body Offset Height")]
public float bodyOffsetHeight;
[Header("Leg Centroid")]
public bool legCentroidAdjustment;
[Range(0, 100)]
public float legCentroidSpeed;
[Range(0, 1)]
public float legCentroidNormalWeight;
[Range(0, 1)]
public float legCentroidTangentWeight;
[Header("Leg Normal")]
public bool legNormalAdjustment;
[Range(0, 100)]
public float legNormalSpeed;
[Range(0, 1)]
public float legNormalWeight;
private Vector3 bodyY;
private Vector3 bodyZ;
[Header("Breathing")]
public bool breathing;
[Range(0.01f, 20)]
public float breathePeriod;
[Range(0, 1)]
public float breatheMagnitude;
[Header("Ray Adjustments")]
[Range(0.0f, 1.0f)]
public float forwardRayLength;
[Range(0.0f, 1.0f)]
public float downRayLength;
[Range(0.1f, 1.0f)]
public float forwardRaySize = 0.66f;
[Range(0.1f, 1.0f)]
public float downRaySize = 0.9f;
private float downRayRadius;
private Vector3 currentVelocity;
private bool isMoving = true;
private bool groundCheckOn = true;
private Vector3 lastNormal;
private Vector3 bodyDefaultCentroid;
private Vector3 bodyCentroid;
private SphereCast downRay, forwardRay;
private RaycastHit hitInfo;
private enum RayType { None, ForwardRay, DownRay };
private struct groundInfo {
public bool isGrounded;
public Vector3 groundNormal;
public float distanceToGround;
public RayType rayType;
public groundInfo(bool isGrd, Vector3 normal, float dist, RayType m_rayType) {
isGrounded = isGrd;
groundNormal = normal;
distanceToGround = dist;
rayType = m_rayType;
}
}
private groundInfo grdInfo;
private void Awake() {
//Make sure the scale is uniform, since otherwise lossy scale will not be accurate.
float x = transform.localScale.x; float y = transform.localScale.y; float z = transform.localScale.z;
if (Mathf.Abs(x - y) > float.Epsilon || Mathf.Abs(x - z) > float.Epsilon || Mathf.Abs(y - z) > float.Epsilon) {
Debug.LogWarning("The xyz scales of the Spider are not equal. Please make sure they are. The scale of the spider is defaulted to be the Y scale and a lot of values depend on this scale.");
}
rb = GetComponent<Rigidbody>();
//Initialize the two Sphere Casts
downRayRadius = downRaySize * getColliderRadius();
float forwardRayRadius = forwardRaySize * getColliderRadius();
downRay = new SphereCast(transform.position, -transform.up, downRayLength * getColliderLength(), downRayRadius, transform, transform);
forwardRay = new SphereCast(transform.position, transform.forward, forwardRayLength * getColliderLength(), forwardRayRadius, transform, transform);
//Initialize the bodyupLocal as the spiders transform.up parented to the body. Initialize the breathePivot as the body position parented to the spider
bodyY = body.transform.InverseTransformDirection(transform.up);
bodyZ = body.transform.InverseTransformDirection(transform.forward);
bodyCentroid = body.transform.position + getScale() * bodyOffsetHeight * transform.up;
bodyDefaultCentroid = transform.InverseTransformPoint(bodyCentroid);
}
void FixedUpdate() {
//** Ground Check **//
grdInfo = GroundCheck();
//** Rotation to normal **//
float normalAdjustSpeed = (grdInfo.rayType == RayType.ForwardRay) ? forwardNormalAdjustSpeed : groundNormalAdjustSpeed;
Vector3 slerpNormal = Vector3.Slerp(transform.up, grdInfo.groundNormal, 0.02f * normalAdjustSpeed);
Quaternion goalrotation = getLookRotation(Vector3.ProjectOnPlane(transform.right, slerpNormal), slerpNormal);
// Save last Normal for access
lastNormal = transform.up;
//Apply the rotation to the spider
if (Quaternion.Angle(transform.rotation,goalrotation)>Mathf.Epsilon) transform.rotation = goalrotation;
// Dont apply gravity if close enough to ground
if (grdInfo.distanceToGround > getGravityOffDistance()) {
rb.AddForce(-grdInfo.groundNormal * gravityMultiplier * 0.0981f * getScale()); //Important using the groundnormal and not the lerping normal here!
}
}
void Update() {
//** Debug **//
if (showDebug) drawDebug();
Vector3 Y = body.TransformDirection(bodyY);
//Doesnt work the way i want it too! On sphere i go underground. I jiggle around when i go down my centroid moves down to.(Depends on errortolerance of IKSolver)
if (legCentroidAdjustment) bodyCentroid = Vector3.Lerp(bodyCentroid, getLegsCentroid(), Time.deltaTime * legCentroidSpeed);
else bodyCentroid = getDefaultCentroid();
body.transform.position = bodyCentroid;
if (legNormalAdjustment) {
Vector3 newNormal = GetLegsPlaneNormal();
//Use Global X for pitch
Vector3 X = transform.right;
float angleX = Vector3.SignedAngle(Vector3.ProjectOnPlane(Y, X), Vector3.ProjectOnPlane(newNormal, X), X);
angleX = Mathf.LerpAngle(0, angleX, Time.deltaTime * legNormalSpeed);
body.transform.rotation = Quaternion.AngleAxis(angleX, X) * body.transform.rotation;
//Use Local Z for roll. With the above global X for pitch, this avoids any kind of yaw happening.
Vector3 Z = body.TransformDirection(bodyZ);
float angleZ = Vector3.SignedAngle(Y, Vector3.ProjectOnPlane(newNormal, Z), Z);
angleZ = Mathf.LerpAngle(0, angleZ, Time.deltaTime * legNormalSpeed);
body.transform.rotation = Quaternion.AngleAxis(angleZ, Z) * body.transform.rotation;
}
if (breathing) {
float t = (Time.time * 2 * Mathf.PI / breathePeriod) % (2 * Mathf.PI);
float amplitude = breatheMagnitude * getColliderRadius();
Vector3 direction = body.TransformDirection(bodyY);
body.transform.position = bodyCentroid + amplitude * (Mathf.Sin(t) + 1f) * direction;
}
// Update the moving status
if (transform.hasChanged) {
isMoving = true;
transform.hasChanged = false;
}
else isMoving = false;
}
//** Movement methods**//
private void move(Vector3 direction, float speed) {
// TODO: Make sure direction is on the XZ plane of spider! For this maybe refactor the logic from input from spidercontroller to this function.
//Only allow direction vector to have a length of 1 or lower
float magnitude = direction.magnitude;
if (magnitude > 1) {
direction = direction.normalized;
magnitude = 1f;
}
// Scale the magnitude and Clamp to not move more than down ray radius (Makes sure the ground is not lost due to moving too fast)
if (direction != Vector3.zero) {
float directionDamp = Mathf.Pow(Mathf.Clamp(Vector3.Dot(direction / magnitude, transform.forward), 0, 1), 2);
float distance = 0.0004f * speed * magnitude * directionDamp * getScale();
distance = Mathf.Clamp(distance, 0, 0.99f * downRayRadius);
direction = distance * (direction / magnitude);
}
//Slerp from old to new velocity using the acceleration
currentVelocity = Vector3.Slerp(currentVelocity, direction, 1f - walkDrag);
//Apply the resulting velocity
transform.position += currentVelocity;
}
public void turn(Vector3 goalForward) {
//Make sure goalForward is orthogonal to transform up
goalForward = Vector3.ProjectOnPlane(goalForward, transform.up).normalized;
if (goalForward == Vector3.zero || Vector3.Angle(goalForward, transform.forward) < Mathf.Epsilon) {
return;
}
goalForward = Vector3.ProjectOnPlane(goalForward, transform.up);
transform.rotation = Quaternion.RotateTowards(transform.rotation, Quaternion.LookRotation(goalForward, transform.up), turnSpeed);
}
//** Movement methods for public access**//
// It is advised to call these on a fixed update basis.
public void walk(Vector3 direction) {
if (direction.magnitude < Mathf.Epsilon) return;
move(direction, walkSpeed);
}
public void run(Vector3 direction) {
if (direction.magnitude < Mathf.Epsilon) return;
move(direction, runSpeed);
}
//** Ground Check Method **//
private groundInfo GroundCheck() {
if (groundCheckOn) {
if (forwardRay.castRay(out hitInfo, walkableLayer)) {
return new groundInfo(true, hitInfo.normal.normalized, Vector3.Distance(transform.TransformPoint(capsuleCollider.center), hitInfo.point) - getColliderRadius(), RayType.ForwardRay);
}
if (downRay.castRay(out hitInfo, walkableLayer)) {
return new groundInfo(true, hitInfo.normal.normalized, Vector3.Distance(transform.TransformPoint(capsuleCollider.center), hitInfo.point) - getColliderRadius(), RayType.DownRay);
}
}
return new groundInfo(false, Vector3.up, float.PositiveInfinity, RayType.None);
}
//** Helper methods**//
/*
* Returns the rotation with specified right and up direction
* May have to make more error catches here. Whatif not orthogonal?
*/
private Quaternion getLookRotation(Vector3 right, Vector3 up) {
if (up == Vector3.zero || right == Vector3.zero) return Quaternion.identity;
// If vectors are parallel return identity
float angle = Vector3.Angle(right, up);
if (angle == 0 || angle == 180) return Quaternion.identity;
Vector3 forward = Vector3.Cross(right, up);
return Quaternion.LookRotation(forward, up);
}
//** Torso adjust methods for more realistic movement **//
// Calculate the centroid (center of gravity) given by all end effector positions of the legs
private Vector3 getLegsCentroid() {
if (legs == null || legs.Length == 0) {
Debug.LogError("Cant calculate leg centroid, legs not assigned.");
return body.transform.position;
}
Vector3 defaultCentroid = getDefaultCentroid();
// Calculate the centroid of legs position
Vector3 newCentroid = Vector3.zero;
float k = 0;
for (int i = 0; i < legs.Length; i++) {
newCentroid += legs[i].getEndEffector().position;
k++;
}
newCentroid = newCentroid / k;
// Offset the calculated centroid
Vector3 offset = Vector3.Project(defaultCentroid - getColliderBottomPoint(), transform.up);
newCentroid += offset;
// Calculate the normal and tangential translation needed
Vector3 normalPart = Vector3.Project(newCentroid - defaultCentroid, transform.up);
Vector3 tangentPart = Vector3.ProjectOnPlane(newCentroid - defaultCentroid, transform.up);
return defaultCentroid + Vector3.Lerp(Vector3.zero, normalPart, legCentroidNormalWeight) + Vector3.Lerp(Vector3.zero, tangentPart, legCentroidTangentWeight);
}
// Calculate the normal of the plane defined by leg positions, so we know how to rotate the body
private Vector3 GetLegsPlaneNormal() {
if (legs == null) {
Debug.LogError("Cant calculate normal, legs not assigned.");
return transform.up;
}
if (legNormalWeight <= 0f) return transform.up;
Vector3 newNormal = transform.up;
Vector3 toEnd;
Vector3 currentTangent;
for (int i = 0; i < legs.Length; i++) {
//normal += legWeight * legs[i].getTarget().normal;
toEnd = legs[i].getEndEffector().position - transform.position;
currentTangent = Vector3.ProjectOnPlane(toEnd, transform.up);
if (currentTangent == Vector3.zero) continue; // Actually here we would have a 90degree rotation but there is no choice of a tangent.
newNormal = Quaternion.Lerp(Quaternion.identity, Quaternion.FromToRotation(currentTangent, toEnd), legNormalWeight) * newNormal;
}
return newNormal;
}
//** Getters **//
public float getScale() {
return transform.lossyScale.y;
}
public bool getIsMoving() {
return isMoving;
}
public Vector3 getCurrentVelocityPerSecond() {
return currentVelocity / Time.fixedDeltaTime;
}
public Vector3 getCurrentVelocityPerFixedFrame() {
return currentVelocity;
}
public Vector3 getGroundNormal() {
return grdInfo.groundNormal;
}
public Vector3 getLastNormal() {
return lastNormal;
}
public float getColliderRadius() {
return getScale() * capsuleCollider.radius;
}
public float getNonScaledColliderRadius() {
return capsuleCollider.radius;
}
public float getColliderLength() {
return getScale() * capsuleCollider.height;
}
public Vector3 getColliderCenter() {
return transform.TransformPoint(capsuleCollider.center);
}
public Vector3 getColliderBottomPoint() {
return transform.TransformPoint(capsuleCollider.center - capsuleCollider.radius * new Vector3(0, 1, 0));
}
public Vector3 getDefaultCentroid() {
return transform.TransformPoint(bodyDefaultCentroid);
}
public float getGravityOffDistance() {
return gravityOffDistance * getColliderRadius();
}
//** Setters **//
public void setGroundcheck(bool b) {
groundCheckOn = b;
}
//** Debug Methods **//
private void drawDebug() {
//Draw the two Sphere Rays
downRay.draw(Color.green);
forwardRay.draw(Color.blue);
//Draw the Gravity off distance
Vector3 borderpoint = getColliderBottomPoint();
Debug.DrawLine(borderpoint, borderpoint + getGravityOffDistance() * -transform.up, Color.magenta);
//Draw the current transform.up and the bodys current Y orientation
Debug.DrawLine(transform.position, transform.position + 2f * getColliderRadius() * transform.up, new Color(1, 0.5f, 0, 1));
Debug.DrawLine(transform.position, transform.position + 2f * getColliderRadius() * body.TransformDirection(bodyY), Color.blue);
//Draw the Centroids
DebugShapes.DrawPoint(getDefaultCentroid(), Color.magenta, 0.1f);
DebugShapes.DrawPoint(getLegsCentroid(), Color.red, 0.1f);
DebugShapes.DrawPoint(getColliderBottomPoint(), Color.cyan, 0.1f);
}
#if UNITY_EDITOR
void OnDrawGizmosSelected() {
if (!showDebug) return;
if (UnityEditor.EditorApplication.isPlaying) return;
if (!UnityEditor.Selection.Contains(transform.gameObject)) return;
Awake();
drawDebug();
}
#endif
}
SpiderController
using UnityEngine;
using System.Collections;
using Raycasting;
/*
* This class needs a reference to the Spider class and calls the walk and turn functions depending on player input.
* So in essence, this class translates player input to spider movement. The input direction is relative to a camera and so a
* reference to one is needed.
*/
[DefaultExecutionOrder(-1)] // Make sure the players input movement is applied before the spider itself will do a ground check and possibly add gravity
public class SpiderController : MonoBehaviour {
public Spider spider;
[Header("Camera")]
public SmoothCamera smoothCam;
void FixedUpdate() {
//** Movement **//
Vector3 input = getInput();
if (Input.GetKey(KeyCode.LeftShift)) spider.run(input);
else spider.walk(input);
Quaternion tempCamTargetRotation = smoothCam.getCamTargetRotation();
Vector3 tempCamTargetPosition = smoothCam.getCamTargetPosition();
spider.turn(input);
smoothCam.setTargetRotation(tempCamTargetRotation);
smoothCam.setTargetPosition(tempCamTargetPosition);
}
void Update() {
//Hold down Space to deactivate ground checking. The spider will fall while space is hold.
spider.setGroundcheck(!Input.GetKey(KeyCode.Space));
}
private Vector3 getInput() {
Vector3 up = spider.transform.up;
Vector3 right = spider.transform.right;
Vector3 input = Vector3.ProjectOnPlane(smoothCam.getCameraTarget().forward, up).normalized * Input.GetAxis("Vertical") + (Vector3.ProjectOnPlane(smoothCam.getCameraTarget().right, up).normalized * Input.GetAxis("Horizontal"));
Quaternion fromTo = Quaternion.AngleAxis(Vector3.SignedAngle(up, spider.getGroundNormal(), right), right);
input = fromTo * input;
float magnitude = input.magnitude;
return (magnitude <= 1) ? input : input /= magnitude;
}
}
IKStepManager
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/*
* This class holds references to each IKStepper of the legs and manages the stepping of them.
* So instead of each leg managing its stepping on its own, this class acts as the brain and decides when each leg should step.
* It uses the step checking function in the IKStepper to determine if a step is wanted for a leg, and then handles it by calling
* the step function in the IKStepper when the time is right to step.
*/
[DefaultExecutionOrder(+1)] // Make sure all the stepping logic is called after the IK was solved in each IKChain
public class IKStepManager : MonoBehaviour {
public bool printDebugLogs;
public Spider spider;
public enum StepMode { AlternatingTetrapodGait, QueueWait, QueueNoWait }
/*
* Note the following about the stepping modes:
*
* Alternating Tetrapod Gait: This mode is inspired by a real life spider walk.
* The legs are assigned one of two groups, A or B.
* Then a timer switches between these groups on the timeinterval "stepTime".
* Every group only has a specific frame at which stepping is allowed in each interval
* With this, legs in the same group will always step at the same time if they need to step,
* and will never step while the other group is.
* If dynamic step time is selected, the average of each legs dyanamic step time is used.
* This mode does not use the asynchronicity specified in each legs, since the asyncronicty is already given
* by the groups.
*
* Queue Wait: This mode stores the legs that want to step in a queue and performs the stepping in the order of the queue.
* This mode will always prioritize the next leg in the queue and will wait until it is able to step.
* This however can and will inhibit the other legs from stepping if the waiting period is too long.
* Unlike the above mode, this mode uses the asyncronicity defined in each leg to determine whether a leg is
* allowed to step or not. Each leg will be inhibited to step as long as these async legs are stepping.
*
* Queue No Wait: This mode is analog to the above with the exception of not waiting for each next leg in the queue.
* The legs will still be iterated through in queue order but if a leg is not able to step,
* we still continue iterating and perform steps for the following legs if they are able to.
* So to be more specific, this is not a queue in the usual sense. It is a list of legs that need stepping,
* which will be iterated through in order and if the k-th leg is allowed to step, it will step
* and the k-th element of this list will be removed.
*/
[Header("Step Mode")]
public StepMode stepMode;
//Order is important here as this is the order stepCheck is performed, giving the first elements more priority in case of a same frame step desire
[Header("Legs for Queue Modes")]
public List<IKStepper> ikSteppers;
private List<IKStepper> stepQueue;
private Dictionary<int, bool> waitingForStep;
[Header("Legs for Gait Mode")]
public List<IKStepper> gaitGroupA;
public List<IKStepper> gaitGroupB;
private List<IKStepper> currentGaitGroup;
private float nextSwitchTime;
[Header("Steptime")]
public bool dynamicStepTime = true;
public float stepTimePerVelocity;
[Range(0, 1.0f)]
public float maxStepTime;
public enum GaitStepForcing { NoForcing, ForceIfOneLegSteps, ForceAlways }
[Header("Debug")]
public GaitStepForcing gaitStepForcing;
private void Awake() {
/* Queue Mode Initialization */
stepQueue = new List<IKStepper>();
// Remove all inactive IKSteppers
int k = 0;
foreach (var ikStepper in ikSteppers.ToArray()) {
if (!ikStepper.allowedTargetManipulationAccess()) ikSteppers.RemoveAt(k);
else k++;
}
// Initialize the hash map for step waiting with false
waitingForStep = new Dictionary<int, bool>();
foreach (var ikStepper in ikSteppers) {
waitingForStep.Add(ikStepper.GetInstanceID(), false);
}
/* Alternating Tetrapod Gait Initialization */
// Remove all inactive IKSteppers from the Groups
k = 0;
foreach (var ikStepper in gaitGroupA.ToArray()) {
if (!ikStepper.allowedTargetManipulationAccess()) gaitGroupA.RemoveAt(k);
else k++;
}
k = 0;
foreach (var ikStepper in gaitGroupB.ToArray()) {
if (!ikStepper.allowedTargetManipulationAccess()) gaitGroupB.RemoveAt(k);
else k++;
}
// Start with Group A and set switch time to step time
currentGaitGroup = gaitGroupA;
nextSwitchTime = maxStepTime;
}
private void LateUpdate() {
if (stepMode == StepMode.AlternatingTetrapodGait) AlternatingTetrapodGait();
else QueueStepMode();
}
private void QueueStepMode() {
/* Perform the step checks for all legs not already waiting to step.
* If a step is needed, enqueue them.
*/
foreach (var ikStepper in ikSteppers) {
// Check if Leg isnt already waiting for step.
if (waitingForStep[ikStepper.GetInstanceID()] == true) continue;
//Now perform check if a step is needed and if so enqueue the element
if (ikStepper.stepCheck()) {
stepQueue.Add(ikStepper);
waitingForStep[ikStepper.GetInstanceID()] = true;
if (printDebugLogs) Debug.Log(ikStepper.name + " is enqueued to step at queue position " + stepQueue.Count);
}
}
if (printDebugLogs) printQueue();
/* Iterate through the step queue in order and check if legs are eligible to step.
* If legs are able to step, let them step.
* If not, we have two cases: If the current mode selected is the QueueWait mode, then stop the iteration.
* If the current mode selected is the QueueNoWait mode, simply continue with the iteration.
*/
int k = 0;
foreach (var ikStepper in stepQueue.ToArray()) {
if (ikStepper.allowedToStep()) {
ikStepper.getIKChain().unpauseSolving();
ikStepper.step(calculateStepTime(ikStepper));
// Remove the stepping leg from the list:
waitingForStep[ikStepper.GetInstanceID()] = false;
stepQueue.RemoveAt(k);
if (printDebugLogs) Debug.Log(ikStepper.name + " was allowed to step and is thus removed.");
}
else {
if (printDebugLogs) Debug.Log(ikStepper.name + " is not allowed to step.");
// Stop iteration here if Queue Wait mode is selected
if (stepMode == StepMode.QueueWait) {
if (printDebugLogs) Debug.Log("Wait selected, thus stepping ends for this frame.");
break;
}
k++; // Increment k by one here since i did not remove the current element from the list.
}
}
/* Iterate through all the legs that are still in queue, and therefore werent allowed to step.
* For them pause the IK solving while they are waiting.
*/
foreach (var ikStepper in stepQueue) {
ikStepper.getIKChain().pauseSolving();
}
}
private void AlternatingTetrapodGait() {
// If the next switch time isnt reached yet, do nothing.
if (Time.time < nextSwitchTime) return;
/* Since switch time is reached, switch groups and set new switch time.
* Note that in the case of dynamic step time, it would not make sense to have each leg assigned its own step time
* since i want the stepping to be completed at the same time in order to switch to next group again.
* Thus, i simply calculate the average step time of the current group and use it for all legs.
* TODO: Add a random offset to the steptime of each leg to imitate nature more closely and use the max value as the next switch time
*/
currentGaitGroup = (currentGaitGroup == gaitGroupA) ? gaitGroupB : gaitGroupA;
float stepTime = calculateAverageStepTime(currentGaitGroup);
nextSwitchTime = Time.time + stepTime;
if (printDebugLogs) {
string text = ((currentGaitGroup == gaitGroupA) ? "Group: A" : "Group B") + " StepTime: " + stepTime;
Debug.Log(text);
}
/* Now perform the stepping for the current gait group.
* A leg in the gait group will only step if a step is needed.
* However, for debug purposes depending on which force mode is selected the other legs can be forced to step anyway.
*/
if (gaitStepForcing == GaitStepForcing.ForceAlways) {
foreach (var ikStepper in currentGaitGroup) ikStepper.step(stepTime);
}
else if (gaitStepForcing == GaitStepForcing.ForceIfOneLegSteps) {
bool b = false;
foreach (var ikStepper in currentGaitGroup) {
b = b || ikStepper.stepCheck();
if (b == true) break;
}
if (b == true) foreach (var ikStepper in currentGaitGroup) ikStepper.step(stepTime);
}
else {
foreach (var ikStepper in currentGaitGroup) {
if (ikStepper.stepCheck()) ikStepper.step(stepTime);
}
}
}
private float calculateStepTime(IKStepper ikStepper) {
if (dynamicStepTime) {
float k = stepTimePerVelocity * spider.getScale(); // At velocity=1, this is the steptime
float velocityMagnitude = ikStepper.getIKChain().getEndeffectorVelocityPerSecond().magnitude;
return (velocityMagnitude == 0) ? maxStepTime : Mathf.Clamp(k / velocityMagnitude, 0, maxStepTime);
}
else return maxStepTime;
}
private float calculateAverageStepTime(List<IKStepper> ikSteppers) {
if (dynamicStepTime) {
float stepTime = 0;
foreach (var ikStepper in ikSteppers) {
stepTime += calculateStepTime(ikStepper);
}
return stepTime / ikSteppers.Count;
}
else return maxStepTime;
}
private void printQueue() {
if (stepQueue == null) return;
string queueText = "[";
if (stepQueue.Count != 0) {
foreach (var ikStepper in stepQueue) {
queueText += ikStepper.name + ", ";
}
queueText = queueText.Substring(0, queueText.Length - 2);
}
queueText += "]";
Debug.Log("Queue: " + queueText);
}
}
切換角色
CharacterSwitcher
using UnityEngine;
using System.Collections;
public class CharacterSwitcher : MonoBehaviour
{
[Header("角色設置")]
public GameObject character1;
public GameObject character2;
[Header("切換按鍵")]
public KeyCode switchKey = KeyCode.Tab;
[Header("當前狀態")]
public bool isCharacter1Active = true;
[Header("角色2專用相機")]
public Camera camera2;
[Header("切換延遲")]
public float switchDelay = 0.5f; // 等待時間
private bool isSwitching = false; // 正在等待切換
private void Start()
{
if (character1 == null || character2 == null)
{
Debug.LogError("請在Inspector中指定兩個角色的GameObject！");
return;
}
character1.SetActive(isCharacter1Active);
character2.SetActive(!isCharacter1Active);
if (camera2 != null)
camera2.gameObject.SetActive(!isCharacter1Active);
}
private void Update()
{
if (Input.GetKeyDown(switchKey) && !isSwitching)
SwitchCharacter();
}
/* 供外部腳本調用的接口同樣延遲 */
public void SwitchCharacter()
{
if (character1 == null || character2 == null || isSwitching)
return;
isSwitching = true;
/* 立即凍結當前角色，防止繼續移動 */
FreezeMovement(GetActiveCharacter());
/* 延遲真正切換 */
StartCoroutine(DelayedSwitch());
}
public void SwitchToSpecificCharacter(bool switchToCharacter1)
{
if (isCharacter1Active == switchToCharacter1 || isSwitching)
return;
isSwitching = true;
FreezeMovement(GetActiveCharacter());
StartCoroutine(DelayedSwitch(switchToCharacter1));
}
/* 0.5 秒后真正切換 */
private IEnumerator DelayedSwitch(bool? targetState = null)
{
yield return new WaitForSeconds(switchDelay);
bool nextState = targetState ?? !isCharacter1Active;
isCharacter1Active = nextState;
character1.SetActive(isCharacter1Active);
character2.SetActive(!isCharacter1Active);
if (camera2 != null)
camera2.gameObject.SetActive(!isCharacter1Active);
Debug.Log($"切換到: {(isCharacter1Active ? "角色1" : "角色2")}");
isSwitching = false;
}
/* 簡單凍結：把 Rigidbody 設為 Kinematic，關閉 CharacterController */
private void FreezeMovement(GameObject go)
{
if (go.TryGetComponent(out Rigidbody rb))
{
rb.velocity = Vector3.zero;
rb.angularVelocity = Vector3.zero;
rb.isKinematic = true;
}
if (go.TryGetComponent(out CharacterController cc))
cc.enabled = false;
}
public GameObject GetActiveCharacter()
{
return isCharacter1Active ? character1 : character2;
}
}
Day10 對象池管理——音頻管理
對象池管理
GamePoolManager
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using GGG.Tool.Singleton;
using GGG.Tool;
public class GamePoolManager : Singleton<GamePoolManager>
{
// 1. 緩存配置項類
[System.Serializable]
private class PoolItem
{
public string ItemName; // 對象名稱，用于標識
public GameObject Item; // 要緩存的游戲對象
public int InitMaxCount; // 初始最大緩存數量
}
// 2. 緩存配置列表
[SerializeField]
private List<PoolItem> _configPoolItem = new List<PoolItem>();
private Dictionary<string, Queue<GameObject>> _poolCenter = new Dictionary<string, Queue<GameObject>>();
//對象池父對象
private GameObject _poolItemParent;
private void Start()
{
_poolItemParent = new GameObject("PoolItemParent");
//放到GamePoolManager的子級，統一管理
_poolItemParent.transform.SetParent(this.transform);
InitPool();
}
private void InitPool()
{
// 1. 我們判斷外部配置是不是空的。
if (_configPoolItem.Count == 0)
return;
for (var i = 0; i < _configPoolItem.Count; i++)
{
for (int j = 0; j < _configPoolItem[i].InitMaxCount; j++)
{
var item = Instantiate(_configPoolItem[i].Item);
// 將對象設置為不可見
item.SetActive(false);
// 設置為PoolItemParent的子物體
item.transform.SetParent(_poolItemParent.transform);
// 判斷池子中有沒有存在這個對象的
if (!_poolCenter.ContainsKey(_configPoolItem[i].ItemName))
{
// 如果當前對象池中沒有對應名稱的池子，那么我們需要創建一個
_poolCenter.Add(
_configPoolItem[i].ItemName,
new Queue<GameObject>()
);
_poolCenter[_configPoolItem[i].ItemName].Enqueue(item);
}
else
{
_poolCenter[_configPoolItem[i].ItemName].Enqueue(item);
}
}
}
Debug.Log(_poolCenter.Count);
Debug.Log(_poolCenter["ATKSound"].Count);
}
/// <summary>
/// 從對象池中嘗試獲取指定名稱的對象，并設置其位置和旋轉信息
/// </summary>
/// <param name="name">要獲取的對象池名稱（用于標識特定類型的對象）</param>
/// <param name="position">對象激活后的世界坐標位置</param>
/// <param name="rotation">對象激活后的世界空間旋轉角度</param>
public void TryGetPoolItem(string name, Vector3 position, Quaternion rotation)
{
// 檢查對象池容器中是否存在指定名稱的對象池
if (_poolCenter.ContainsKey(name))
{
// 從對應名稱的對象池隊列中取出隊首的對象（出隊操作）
var item = _poolCenter[name].Dequeue();
// 設置對象的位置信息
item.transform.position = position;
// 設置對象的旋轉信息
item.transform.rotation = rotation;
// 激活對象
item.SetActive(true);
// 將使用后的對象重新放回隊列尾部（實現對象復用，避免頻繁創建銷毀）
_poolCenter[name].Enqueue(item);
}
else
{
// 當請求的對象池不存在時
Debug.Log(message: $"當前請求的對象池{name}不存在");
}
}
/// <summary>
/// 從對象池中嘗試獲取指定名稱的對象（重載方法，不指定位置和旋轉）
/// </summary>
/// <param name="name">要獲取的對象池名稱</param>
/// <returns>獲取到的游戲對象，若對象池不存在則返回null</returns>
public GameObject TryGetPoolItem(string name)
{
// 檢查對象池容器中是否存在指定名稱的對象池
if (_poolCenter.ContainsKey(name))
{
// 從對應名稱的對象池隊列中取出隊首的對象
var item = _poolCenter[name].Dequeue();
// 激活對象
item.SetActive(true);
// 將使用后的對象重新放回隊列尾部
_poolCenter[name].Enqueue(item);
return item;
}
// 當請求的對象池不存在時
Debug.Log(message: $"當前請求的對象池{name}不存在");
return null;
}
}
新建一個音頻預制體，作為對象池的物品
對象池物品基類
PoolItemBase
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// 對象池物品接口
/// </summary>
public interface IPoolItem
{
void Spawn(); // 當對象從對象池取出、激活時執行的邏輯，比如初始化狀態、顯示特效等
void Recycle(); // 當對象回收到對象池時執行的邏輯，比如重置狀態、隱藏對象等
}
/// <summary>
/// 對象池物品基類，繼承自MonoBehaviour并實現IPoolItem接口
/// 作為具體對象池物品（如子彈、道具等）的抽象父類，封裝通用邏輯
/// </summary>
public abstract class PoolItemBase : MonoBehaviour, IPoolItem
{
private void OnEnable()
{
Spawn();
}
private void OnDisable()
{
Recycle();
}
public virtual void Spawn()
{
}
public virtual void Recycle()
{
}
}
對象池中的物品——音頻
PoolItemSound
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// 聲音類型枚舉
/// </summary>
public enum SoundType
{
ATK, // 攻擊
HIT, // 受擊
BLOCK, // 格擋
FOOT // 腳步
}
/// <summary>
/// 聲音對象池物品類
/// 用于管理音效播放對象的激活、回收，復用AudioSource
/// </summary>
public class PoolItemSound : PoolItemBase
{
// 音頻源
private AudioSource _audioSource;
[SerializeField] SoundType _soundType;
private void Awake()
{
_audioSource = GetComponent<AudioSource>();
}
/// <summary>
/// 音效對象從對象池取出時的邏輯
/// </summary>
public override void Spawn()
{
//PlaySound(_soundType);
}
private void PlaySound(SoundType _soundType)
{
}
}
音頻ScriptableObject
AssetsSoundSO
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Assets
{
// 自定義創建Asset的菜單，方便在Unity編輯器右鍵創建該資源
[CreateAssetMenu(fileName = "Sound", menuName = "CreateActions/Assets/Sound", order = 0)]
public class AssetsSoundSO : ScriptableObject
{
// 序列化的內部類，用于配置聲音類型和對應的音頻片段數組
[System.Serializable]
private class SoundConfig
{
public SoundType SoundType; // 聲音類型，需有對應的枚舉定義（代碼里未展示，需確保存在）
public AudioClip[] AudioClips; // 該類型聲音對應的音頻片段數組
}
// 聲音配置列表，可在Inspector中配置不同類型聲音及其音頻片段
[SerializeField]
private List<SoundConfig> _configSound = new List<SoundConfig>();
}
}
然后在AssetsSoundSO中加入函數：根據聲音類型獲取對應的音頻片段
/// <summary>
/// 根據聲音類型獲取對應的音頻片段
/// </summary>
/// <param name="_soundType"></param>
/// <returns></returns>
public AudioClip GetAudioClip(SoundType _soundType)
{
if(_configSound == null || _configSound.Count == 0)
return null;
switch (_soundType)
{
//隨機返回對應類型的音頻片段
case SoundType.ATK:
return _configSound[0].AudioClips[Random.Range(0, _configSound[0].AudioClips.Length)];
case SoundType.HIT:
return _configSound[1].AudioClips[Random.Range(0, _configSound[1].AudioClips.Length)];
case SoundType.BLOCK:
return _configSound[2].AudioClips[Random.Range(0, _configSound[2].AudioClips.Length)];
case SoundType.FOOT:
return _configSound[3].AudioClips[Random.Range(0, _configSound[3].AudioClips.Length)];
}
return null;
}
音頻預制體的播放邏輯
在PoolItemSound中加入音效播放及其回收邏輯
using Spiderman.Assets;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
/// <summary>
/// 聲音類型枚舉
/// </summary>
public enum SoundType
{
ATK, // 攻擊
HIT, // 受擊
BLOCK, // 格擋
FOOT // 腳步
}
/// <summary>
/// 聲音對象池物品類
/// 用于管理音效播放對象的激活、回收，復用AudioSource
/// </summary>
public class PoolItemSound : PoolItemBase
{
// 音頻源
private AudioSource _audioSource;
[SerializeField] SoundType _soundType;
[SerializeField] AssetsSoundSO _soundAssets;
private void Awake()
{
_audioSource = GetComponent<AudioSource>();
}
/// <summary>
/// 音效對象從對象池取出
/// </summary>
public override void Spawn()
{
//被激活的時候播放音效
PlaySound();
}
/// <summary>
/// 播放音效
/// </summary>
private void PlaySound()
{
_audioSource.clip = _soundAssets.GetAudioClip(_soundType);
_audioSource.Play();
// 回收音效對象
StartRecycle();
}
/// <summary>
/// 音效對象回收
/// </summary>
private void StartRecycle()
{
// 延遲0.3秒后停止播放
TimerManager.MainInstance.TryGetOneTimer(0.3f, DisableSelf);
}
/// <summary>
/// 定時任務：停止播放
/// </summary>
private void DisableSelf()
{
_audioSource.Stop();
gameObject.SetActive(false);
}
}
然后在聲音預制體中拖入該腳本PoolItemSound
注意勾選Assets和對應的Type
Day11 Animation Event動畫事件
讓音頻播放與Animation聯動起來
腳本AnimationEvent掛在角色身上
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Event
{
public class AnimationEvent : MonoBehaviour
{
private void PlaySound(string _soundName)
{
//選取對象池中的音效對象
GamePoolManager.MainInstance.TryGetPoolItem(_soundName,transform.position,Quaternion.identity);
}
}
}
在關鍵幀加入事件調用PlaySound函數：
目前進度：
Day12 踩在地面上的腳步聲音
一開始我試過用動畫事件，但是混合樹會讓動畫事件也混合，聲音播放會重疊，因此選擇用腳本控制，但這種方法聲音和動畫的匹配度不夠精準，暫時想不到更好的，慢慢調節參數也能實現基本的腳步聲，后面會去學習更好的方法
PlayerMovementControl
// 腳步聲的播放定時器
private float _nextFootTime;
[SerializeField] private float _slowFootTime;
[SerializeField] private float _fastFootTime;
/// <summary>
/// 更新動畫
/// </summary>
private void UpdateAnimation()
{
if (!_characterIsOnGround)
return;
_animator.SetBool(AnimationID.HasInputID, GameInputManager.MainInstance.Movement != Vector2.zero);
if (_animator.GetBool(AnimationID.HasInputID))
{
if (GameInputManager.MainInstance.Run)
{
//按下奔跑鍵
_animator.SetBool(AnimationID.RunID, true);
}
//有輸入
// Run被開啟，那就Movement設置為2，否則設置為輸入的兩個軸的平方
var targetSpeed = _animator.GetBool(AnimationID.RunID) ? 2f :GameInputManager.MainInstance.Movement.sqrMagnitude;
// 平滑更新animator中的移動參數Movement
_animator.SetFloat(
AnimationID.MovementID,
targetSpeed,
0.25f,
Time.deltaTime
);
// 腳步聲的設置
SetCharacterFootSound();
/// <summary>
/// 角色腳步聲的設置
/// </summary>
private void SetCharacterFootSound()
{
// 三個條件同時滿足：
// 1. 角色當前在地面上（_characterIsOnGround為true）
// 2. 動畫控制器中的移動參數大于0.5（有明顯移動）
// 3. 當前播放的動畫包含"Motion"標簽（移動類動畫）
if (_characterIsOnGround &&
_animator.GetFloat(AnimationID.MovementID) > 0.5f &&
_animator.AnimationAtTag("Motion"))
{
// 所有條件滿足時，定時播放腳步聲
_nextFootTime -= Time.deltaTime;
if (_nextFootTime <= 0f)
{
PlayFootSound();
}
}
else
{
_nextFootTime = 0f;
}
}
/// <summary>
/// 播放腳步聲
/// </summary>
private void PlayFootSound()
{
// 從對象池管理器GamePoolManager中獲取腳步聲音的實例
// 參數說明：
// "FootSound"：對象池中的資源標識
// transform.position：在角色當前位置播放聲音
// Quaternion.identity：使用默認旋轉（聲音通常不需要旋轉）
GamePoolManager.MainInstance.TryGetPoolItem(
"FootSound",
transform.position,
Quaternion.identity);
// 根據當前移動速度決定下次腳步聲的間隔時間
_nextFootTime = (_animator.GetFloat(AnimationID.MovementID) > 1.1f)
? _fastFootTime
: _slowFootTime;
}
Day13 TurnBackRun折返跑
Animator
動畫跳轉
腳本部分
PlayerMovementControl
// 角色期望朝向
private Vector3 _characterTargetDirection;
/// <summary>
/// 角色旋轉控制
/// </summary>
private void CharacterRotationControl(){
}
// 滿足HasInput==true且處于“Motion”動畫標簽時，平滑更新角色旋轉
if (_animator.GetBool(AnimationID.HasInputID) && _animator.AnimationAtTag("Motion"))
{
//更新角色朝向
transform.eulerAngles = Vector3.up
* Mathf.SmoothDampAngle(
transform.eulerAngles.y,
_rotationAngle,
ref _angleVelocity,
_rotationSmoothTime
);
//角色期望朝向(水平方向，繞 Y 軸的四元數 * 向前方向)
_characterTargetDirection = Quaternion.Euler(0, _rotationAngle, 0) * Vector3.forward;
}
// 計算角色的增量角
var deltaAngle = DevelopmentTools.GetDeltaAngle(transform, _characterTargetDirection);
// 傳入DeltaAngle參數
_animator.SetFloat(AnimationID.DeltaAngleID, deltaAngle);
}
這里會用到一個封裝好的工具函數GetDeltaAngle"獲取增量角"：
/// <summary> /// 獲取增量角 /// </summary> /// <param name="currentTransform">當前角色的Transform</param> /// <param name="targetDirection">目標移動方向</param> /// <returns></returns> public static float GetDeltaAngle(Transform currentTransform, Vector3 targetDirection) { //當前角色朝向的角度 float angleCurrent = Mathf.Atan2(currentTransform.forward.x, currentTransform.forward.z) * Mathf.Rad2Deg; //目標方向的角度也就是希望角色轉過去的那個方向的角度 float targetAngle = Mathf.Atan2(targetDirection.x, targetDirection.z) * Mathf.Rad2Deg; return Mathf.DeltaAngle(angleCurrent, targetAngle); }
AnimationID.DeltaAngleID 別忘了設置
注意：
_rotationSmoothTime這里需要改成0.5以上，太小的值會過快更新當前朝向，導致在計算增量角的時候異常，但是_rotationSmoothTime過大會犧牲轉向的靈活度，會帶來的操作粘滯感，需要后面考慮更好的折返跑邏輯，或角色轉向通過混合樹來控制
Day14 移動重置連招 和 加入變招
重置連招
PlayerCombatControl
private void Update()
{
CharacterBaseAttackInput();
OnEndCombo();
}
#region 重置連招狀態
/// <summary>
/// 重置連招狀態（索引、冷卻時間）
/// </summary>
private void ResetComboInfo()
{
_currentComboIndex = 0;
_maxColdTime = 0f;
_hitIndex = 0;
}
/// <summary>
/// 移動的時候重置Combo索引
/// </summary>
private void OnEndCombo()
{
if(_animator.AnimationAtTag("Motion") && _canAttackInput)
{
ResetComboInfo();
}
}
#endregion
切手技——輕重攻擊混合
PlayerCombatControl
// 角色連招配置（Inspector 可配置）
[Header("角色輕擊連招配置")]
[SerializeField] private CharacterComboSO _lightCombo; // 輕擊連招
[Header("角色重擊連招配置")]
[SerializeField] private CharacterComboSO _heavyCombo; // 重擊連招
private int _currentComboCount; // 當前連招動作總數
private void Update()
{
CharacterBaseAttackInput();
OnEndCombo();
}
在CharacterBaseAttackInput()中加入切手技
#region 基礎攻擊輸入
/// <summary>
/// 角色基礎攻擊輸入處理
/// </summary>
private void CharacterBaseAttackInput()
{
if (!CanBaseAttackInput())
return;
if (GameInputManager.MainInstance.LAttack) // 發起基礎攻擊——輕擊
{
// 切換/重置基礎連招
if (_currentCombo == null || _currentCombo != _lightCombo)
{
ChangeComboState(_lightCombo);
}
// 執行連招動作
ExecuteComboAction();
}
else if (GameInputManager.MainInstance.RAttack) // 發起變招攻擊——重擊
{
// 切換到重擊連招
ChangeComboState(_heavyCombo);
// 在重擊的Combo連招表中選取不同的動作，用于變招
// case幾就是輕擊多少下
switch (_currentComboCount)
{
case 0:
// R
case 1:
// LR
_currentComboIndex = 0;
break;
case 2:
// LLR
_currentComboIndex = 1;
break;
case 3:
// LLLR
_currentComboIndex = 2;
break;
case 4:
// LLLLR
_currentComboIndex = 3;
break;
}
// 執行連招動作
ExecuteComboAction();
// 重擊會重置連招總數
_currentComboCount = 0;
}
}
#region 切換連招狀態
/// <summary>
/// 切換連招狀態——輕擊||重擊
/// </summary>
/// <param name="newCombo"></param>
private void ChangeComboState(CharacterComboSO newCombo)
{
if(newCombo != _currentCombo)
{
_currentCombo = newCombo;
//每次切換都要重置Combo索引
ResetComboInfo();
}
}
#endregion
面板：
Day15 受擊
數值管控
CharacterHealthBase
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Health
{
public abstract class CharacterHealthBase : MonoBehaviour
{
// 共同邏輯說明：
// - 都有受傷、被處決、格擋等函數
// - 都維護生命值信息及當前攻擊者等狀態
protected Animator _animator;
// 當前的攻擊者
protected Transform _currentAttacker;
private void Awake()
{
_animator = GetComponent<Animator>();
}
protected virtual void OnEnable()
{
GameEventManager.MainInstance.AddEventListening<float, string, string, Transform, Transform>("觸發傷害", OnCharacterHitEventHandler);
}
protected virtual void OnDisable()
{
GameEventManager.MainInstance.RemoveEvent<float, string, string, Transform, Transform>("觸發傷害", OnCharacterHitEventHandler);
}
#region 受擊相關行為
/// <summary>
/// 角色受擊行為處理
/// </summary>
/// <param name="damage"> 受到的傷害值 </param>
/// <param name="hitName">攻擊名稱（可用于區分不同攻擊類型表現）</param>
/// <param name="parryName">格擋相關名稱（若有對應格擋邏輯可依據此處理）</param>
protected virtual void CharacterHitAction(float damage, string hitName, string parryName)
{
}
/// <summary>
/// 處理角色受到傷害的邏輯，需在子類中完善扣除生命值等具體實現
/// </summary>
/// <param name="damage">受到的傷害值</param>
protected virtual void TakeDamage(float damage)
{
// TODO: 去扣除生命值
}
#endregion
#region 攻擊者設置邏輯
/// <summary>
/// 設置當前的攻擊者
/// </summary>
/// <param name="attacker">攻擊者的 Transform</param>
private void SetAttacker(Transform attacker)
{
if (_currentAttacker == null || _currentAttacker != attacker)
{
// 標記當前攻擊者
_currentAttacker = attacker;
}
}
#endregion
#region 事件處理邏輯
/// <summary>
/// 角色受擊事件處理器，用于響應外部傳來的受擊事件
/// 做初步校驗后，調用相關方法處理受擊流程
/// </summary>
/// <param name="damage">受到的傷害值</param>
/// <param name="hitName">攻擊名稱</param>
/// <param name="parryName">格擋相關名稱</param>
/// <param name="attack">攻擊者的 Transform</param>
/// <param name="self">自身角色的 Transform（用于校驗是否是自身受擊）</param>
private void OnCharacterHitEventHandler(float damage, string hitName, string parryName, Transform attack, Transform self)
{
// 如果傳來的self不是當前對象，說明不是自身在受擊
if (self != transform)
{
return;
}
// 否則打的就是自己
#region 處理受擊邏輯
SetAttacker(attack); // 標記當前攻擊者
CharacterHitAction(damage, hitName, parryName); // 處理受擊行為表現
TakeDamage(damage); // 處理傷害扣除邏輯
#endregion
}
#endregion
}
}
EnemyHealthControl
using Spiderman.Health;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace Spiderman.Health
{
public class EnemyHealthControl : CharacterHealthBase
{
protected override void CharacterHitAction(float damage, string hitName, string parrName)
{
// 1.先判斷角色的耐力值是否大于0，大于0就應該是格擋而不是直接受傷
if (damage <= 30f)
{
// 不是破防動作：進行格擋或者閃避。
}
else
{
// 是破防動作：播放受傷動畫
_animator.Play(hitName, layer: 0, normalizedTime: 0f);
// 播放音效
GamePoolManager.MainInstance.TryGetPoolItem(
name: "HitSound",
transform.position,
Quaternion.identity
);
}
}
}
}
攻擊事件
#region 攻擊事件
/// <summary>
/// 攻擊事件
/// </summary>
private void ATKEvent()
{
// 傷害觸發
// 攻擊音效觸發（從對象池中取用）
}
#endregion
攻擊相關檢測
PlayerCombatControl
private Transform _mainCamera;
private void Awake()
{
_animator = GetComponent<Animator>();
_mainCamera = Camera.main.transform;
}
// 檢測的方向
private Vector3 _detectDirection;
[Header("攻擊檢測")]
[SerializeField] private float _detectionRange; // 攻擊檢測范圍
[SerializeField] private float _detectionDistance; // 攻擊檢測距離
private Transform _currentEnemy; // 當前檢測到的敵人
Update()
// 更新檢測方向
UpdateDetectDirection();
FixedUpdate()
private void FixedUpdate()
{
DetectionTarget();
}
#region 攻擊檢測
/// <summary>
/// 檢測目標敵人
/// </summary>
private void DetectionTarget()
{
if (Physics.SphereCast(
GetDetectionOrigin(),
_detectionRange,
_detectDirection,
out RaycastHit hit,
_detectionDistance,
layerMask: 1 << 13,
QueryTriggerInteraction.Ignore))
{
_currentEnemy = hit.collider.transform;
}
}
/// <summary>
/// 調試用：繪制檢測范圍
/// </summary>
private void OnDrawGizmos()
{
// 檢測中心在檢測原點 + 檢測方向 * 檢測距離
Vector3 sphereCenter = GetDetectionOrigin() + _detectDirection * _detectionDistance;
// 半徑為檢測范圍
Gizmos.DrawWireSphere(sphereCenter, _detectionRange);
}
/// <summary>
/// 獲取檢測原點
/// </summary>
private Vector3 GetDetectionOrigin()
{
// 檢測原點：角色位置 + 向上偏移 0.7f
return transform.position + transform.up * 0.7f;
}
/// <summary>
/// 更新檢測方向
/// </summary>
private void UpdateDetectDirection()
{
// 檢測方向：相機水平方向的輸入移動量
_detectDirection =
_mainCamera.forward * GameInputManager.MainInstance.Movement.y +
_mainCamera.right * GameInputManager.MainInstance.Movement.x;
// 檢測方向不含豎直方向，清零
// (如果后面要上擊和下擊，可以再加上豎直方向)
_detectDirection.Set(_detectDirection.x, 0f, _detectDirection.z);
// 歸一化檢測方向
_detectDirection = _detectDirection.normalized;
}
#endregion
觸發傷害
PlayerCombatControl
Update()
private void Update()
{
// 更新檢測方向
UpdateDetectDirection();
CharacterBaseAttackInput();
OnEndCombo();
// 觸發傷害
TriggerDamage();
}
#region 觸發傷害
private void TriggerDamage()
{
// 1. 要確保有目標。
// 2. 要確保敵人處于我們可觸發傷害的距離和角度
// 3. 去呼叫事件中心，幫我調用觸發傷害這個函數
#region 無法觸發傷害的情況
// 無目標敵人
if (_currentEnemy == null)
return;
// 目標敵人不在有效角度內
// 角色朝向 和 角色到當前敵人向量的點積 ：是否在有效角度內（閾值 0.85，越接近 1 越好）
if (Vector3.Dot(transform.forward, DirectionForTarget(transform, _currentEnemy)) < 0.85f)
return;
// 距離超過閾值
if (DistanceForTarget(_currentEnemy, transform) > 1.3f)
return;
#endregion
//條件都滿足，才可以觸發傷害
#region 可以觸發傷害的情況
if (_animator.AnimationAtTag("Attack"))
{
//基礎攻擊
// 從連擊數據中獲取傷害相關參數
float damageValue = _currentCombo.TryGetComboDamage(_currentComboIndex);
string hitName = _currentCombo.TryGetOneHitName(_currentComboIndex, _hitIndex);
string parryName = _currentCombo.TryGetOneParryName(_currentComboIndex, _hitIndex);
// 調用事件中心觸發傷害事件
GameEventManager.MainInstance.CallEvent(
"觸發傷害",
damageValue, // value: 傷害值
hitName, // value1: 受傷動畫名
parryName, // value2: 格擋動畫名
transform, // value3: 攻擊者（自己）
_currentEnemy // value4: 當前被攻擊者（敵人）
);
// 備注：這里傳的受傷動畫是單個動畫片段
}
else
{
//處決攻擊
// 處決是一個完整的被處決動作，同一動畫期間會觸發多次傷害
}
#endregion
}
/// <summary>
/// 自身到目標的單位向量
/// </summary>
/// <param name="target">目標</param>
/// <param name="self">自身</param>
/// <returns></returns>
public Vector3 DirectionForTarget(Transform target, Transform self)
{
return (self.position - target.position).normalized;
}
/// <summary>
/// 自身到目標之間的距離
/// </summary>
/// <param name="target"></param>
/// <param name="self"></param>
/// <returns></returns>
public float DistanceForTarget(Transform target, Transform self)
{
return Vector3.Distance(self.position, target.position);
}
#endregion
敵人必須在玩家的正前方，才能觸發傷害
private void Update()
{
// 更新檢測方向
UpdateDetectDirection();
CharacterBaseAttackInput();
OnEndCombo();
// 觸發傷害
TriggerDamage();
// 角色朝向目標敵人
LookTargetOnAttack();
}
#region 讓玩家朝向目標敵人的位置
/// <summary>
/// 讓玩家朝向目標敵人
/// </summary>
private void LookTargetOnAttack()
{
if(_currentEnemy == null)
{
return;
}
// 獲取Layer 0層的當前動畫狀態信息
AnimatorStateInfo currentState = _animator.GetCurrentAnimatorStateInfo(0);
// 當前動畫狀態是攻擊動畫，且動畫未播放到后半段
if (_animator.AnimationAtTag("Attack") && currentState.normalizedTime < 0.5f)
{
// 讓當前對象平滑朝向目標敵人的位置
transform.Look(_currentEnemy.position, 50f);
}
}
#region 工具函數
/// <summary>
/// 看向目標
/// </summary>
/// <param name="transform"></param>
/// <param name="target"></param>
/// <param name="timer">平滑時間(如果是單擊某個按鍵觸發那么值最好設置100以上。)</param>
public void Look(Transform transform, Vector3 target, float timer)
{
var direction = (target - transform.position).normalized;
direction.y = 0f;
Quaternion lookRotation = Quaternion.LookRotation(direction);
transform.rotation = Quaternion.Slerp(transform.rotation, lookRotation, UnTetheredLerp(timer));
}
/// <summary>
/// 不受幀數影響的Lerp
/// </summary>
/// <param name="time">平滑時間(盡量設置為大于10的值)</param>
public float UnTetheredLerp(float time = 10f)
{
return 1 - Mathf.Exp(-time * Time.deltaTime);
}
#endregion
#endregion
修改一下攻擊事件函數，并在動畫面板中修改AnimationEvent，音效觸發直接調用這個攻擊事件函數即可觸發相應的傷害和音效，而不只是單單觸發音效
#region 攻擊事件
/// <summary>
/// 攻擊事件
/// </summary>
private void ATKEvent()
{
// 傷害觸發
TriggerDamage();
// 命中索引更新
UpdateHitIndex();
// 攻擊音效觸發（從對象池中取用）
GamePoolManager.MainInstance.TryGetPoolItem(
"ATKSound",
transform.position,
Quaternion.identity);
}
#endregion
#region 更新命中索引
/// <summary>
/// 更新命中索引
/// </summary>
private void UpdateHitIndex()
{
_hitIndex++;
int maxCount = _currentCombo.TryGetHitOrParryMaxCount(_currentComboIndex);
if (_hitIndex == maxCount)
{
_hitIndex = 0;
}
}
#endregion
Player
直接在Animation Event中調用這個事件即可
配置受擊Combo
對比一下之前的播放攻擊音效方式
讓人物被打的時候面朝攻擊者
CharacterHealthBase
protected virtual void Update()
{
OnHitLookAttacker(); // 角色受擊時面向攻擊者
}
#region 角色受擊時面向攻擊者
/// <summary>
/// 角色受擊時面向攻擊者
/// </summary>
private void OnHitLookAttacker()
{
// 沒有當前攻擊者，直接返回
if (_currentAttacker == null)
return;
// 獲取當前動畫狀態信息（Layer 0）
AnimatorStateInfo currentState = _animator.GetCurrentAnimatorStateInfo(0);
// 條件：處于受擊（Hit）或格擋（Parry）動畫階段，且動畫標準化時間小于 0.5
bool isHitOrParryState = _animator.AnimationAtTag("Hit")
|| (_animator.AnimationAtTag("Parry")
&& currentState.normalizedTime < 0.5f);
if (isHitOrParryState)
{
// 讓當前對象朝向攻擊者位置，平滑時間參數 50f
transform.Look(_currentAttacker.position, 50f);
}
}
#endregion
和敵人距離太遠，角色不朝向敵人
PlayerCombatControl.cs
LookTargetOnAttack()
// 和敵人距離超過閾值,不進行朝向
if (DistanceForTarget(_currentEnemy, transform) > 5.0f)
return;
Day16 正面處決
添加處決相關事件：觸發處決、觸發處決傷害
CharacterHealthBase
protected virtual void OnEnable()
{
GameEventManager.MainInstance.AddEventListening<float, string, string, Transform, Transform>
("觸發傷害", OnCharacterHitEventHandler);
GameEventManager.MainInstance.AddEventListening<string, Transform, Transform>
("觸發處決", OnCharacterFinishAttackEventHandler);
GameEventManager.MainInstance.AddEventListening<float>
("觸發處決傷害", TriggerDamageEventHandler);
}
protected virtual void OnDisable()
{
GameEventManager.MainInstance.RemoveEvent<float, string, string, Transform, Transform>
("觸發傷害", OnCharacterHitEventHandler);
GameEventManager.MainInstance.RemoveEvent<string, Transform, Transform>
("觸發處決", OnCharacterFinishAttackEventHandler);
GameEventManager.MainInstance.RemoveEvent<float>
("觸發處決傷害", TriggerDamageEventHandler);
}
觸發處決傷害事件 和 處決事件
CharacterHealthBase
#region FinishAttack
/// <summary>
/// 角色處決事件
/// </summary>
/// <param name="hitName"></param>
/// <param name="attacker"></param>
/// <param name="self"></param>
private void OnCharacterFinishAttackEventHandler(string hitName, Transform attacker, Transform self)
{
// 如果傳來的self不是當前對象，說明不是自身在受擊
if (self != transform)
{
return;
}
// 否則打的就是自己
#region 處理受擊邏輯
SetAttacker(attacker); // 標記當前攻擊者
// 處理傷害扣除邏輯
#endregion
}
/// <summary>
/// 處決動畫的觸發傷害事件
/// </summary>
/// <param name="damage"></param>
private void TriggerDamageEventHandler(float damage)
{
TakeDamage(damage);
}
#endregion
處決的邏輯
PlayerCombatControl.cs
[Header("角色處決連招配置")]
[SerializeField] private CharacterComboSO _finishCombo; // 處決
CanBaseAttackInput()處決時不允許基礎攻擊
PlayerCombatControl.cs
/// <summary>
/// 判斷是否允許發起基礎攻擊
/// </summary>
/// <returns>允許攻擊返回 true，否則 false</returns>
private bool CanBaseAttackInput()
{
// 不能攻擊輸入時不允許攻擊
if (!_canAttackInput)
return false;
// 正在受擊（Hit 標簽動畫）不允許攻擊
if (_animator.AnimationAtTag("Hit"))
return false;
// 正在格擋（Parry 標簽動畫）不允許攻擊
if (_animator.AnimationAtTag("Parry"))
return false;
// 正在處決（Finish 標簽動畫）不允許攻擊
if(_animator.AnimationAtTag("Finish"))
return false;
return true;
}
#endregion
是否執行處決、處決的輸入邏輯
PlayerCombatControl.cs
#region 處決
/// <summary>
/// 是否允許執行處決攻擊
/// </summary>
private bool CanSpecialAttack()
{
// 處于 "Finish" 標簽動畫時，不允許
if (_animator.AnimationAtTag("Finish"))
return false;
// 沒有當前敵人時，不允許
if (_currentEnemy == null)
return false;
return true;
}
/// <summary>
/// 處理角色處決攻擊的輸入響應邏輯
/// </summary>
private void CharacterFinishAttackInput()
{
// 不滿足處決攻擊條件時，直接返回
if (!CanSpecialAttack())
return;
// 檢測到處決輸入時，執行處決流程
if (GameInputManager.Instance.FinishAttack)
{
// 1. 隨機選取處決連招索引
_currentComboIndex = Random.Range(0, _finishCombo.TryGetComboMaxCount());
// 2. 播放對應的處決動畫
string finishAnim = _finishCombo.TryGetOneComboAction(_currentComboIndex);
_animator.Play(finishAnim);
// 3. 調用事件中心，觸發敵人的處決事件
string hitName = _finishCombo.TryGetOneHitName(_currentComboIndex, 0);
GameEventManager.MainInstance.CallEvent(
"觸發處決",
hitName,
transform,
_currentEnemy
// 4. 調用定時器事件：更新連招狀態信息，防止索引越界
TimerManager.Instance.TryGetOneTimer(
_finishCombo.TryGetColdTime(_currentComboIndex), //這里原先寫的是固定的0.5f
UpdateComboInfo);
);
}
}
#endregion
觸發傷害（普通攻擊和處決攻擊）
PlayerCombatControl.cs
TriggerDamage()
region 可以觸發傷害的情況
else
{ // 同一處決動畫期間會觸發多次傷害
//處決攻擊
// 從處決數據中獲取連招傷害相關參數
float damageValue = _finishCombo.TryGetComboDamage(_currentComboIndex);
// 調用觸發處決傷害事件
GameEventManager.MainInstance.CallEvent("觸發處決傷害", damageValue);
}
把處決輸入放進update
private void Update()
{
// 更新檢測方向
UpdateDetectDirection();
// 基礎攻擊輸入
CharacterBaseAttackInput();
// 移動的時候結束連招(重置Combo索引)
OnEndCombo();
// 角色朝向目標敵人
LookTargetOnAttack();
// 處決攻擊輸入
CharacterFinishAttackInput();
}
處決期間同步角色位置
PlayerCombatControl.cs
#region 位置同步
/// <summary>
/// 處決期間玩家位置同步
/// </summary>
private void MatchPosition()
{
// 無當前敵人時直接返回
if (_currentEnemy == null)
return;
// Animator 未初始化時跳過
if (_animator == null)
return;
// 處于 "Finish" 標簽動畫時，執行旋轉與匹配流程
if (_animator.AnimationAtTag("Finish"))
{
// 讓角色朝向敵人的反方向（根據需求確認邏輯是否正確）
transform.rotation = Quaternion.LookRotation(-_currentEnemy.forward);
// 執行連招匹配邏輯，使用默認時間參數
RunningMatch(_finishCombo);
}
}
/// <summary>
/// 執行動畫目標匹配流程，處理位置與權重配置
/// </summary>
/// <param name="combo">連招配置數據</param>
/// <param name="startTime">匹配起始標準化時間</param>
/// <param name="endTime">匹配結束標準化時間</param>
private void RunningMatch(CharacterComboSO combo, float startTime = 0f, float endTime = 0.01f)
{
// 當前不在動畫匹配狀態 且 動畫未處于過渡 時，觸發 MatchTarget
if (!_animator.isMatchingTarget && !_animator.IsInTransition(0))
{
// 計算目標位置偏移（根據當前連招索引）
float positionOffset = combo.TryGetComboPositionOffset(_currentComboIndex);
Vector3 targetPosition = _currentEnemy.position - transform.forward * positionOffset;
// 構建 MatchTarget 參數
Quaternion targetRotation = Quaternion.identity;
AvatarTarget avatarTarget = AvatarTarget.Body;
MatchTargetWeightMask weightMask = new MatchTargetWeightMask(Vector3.one, 0f);
// 執行動畫位置匹配
_animator.MatchTarget(
targetPosition,
targetRotation,
avatarTarget,
weightMask,
startTime,
endTime
);
}
}
#endregion
放到update()
private void Update()
{
// 更新檢測方向
UpdateDetectDirection();
// 基礎攻擊輸入
CharacterBaseAttackInput();
// 移動的時候結束連招(重置Combo索引)
OnEndCombo();
// 角色朝向目標敵人
LookTargetOnAttack();
// 處決期間玩家位置同步
MatchPosition();
// 處決攻擊輸入
CharacterFinishAttackInput();
}
處決動畫
玩家
敵人
創建處決技能SO
技能
技能表
動畫行為腳本——處決時忽略碰撞體
IgnoreCollider
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class IgnoreCollider : StateMachineBehaviour
{
[SerializeField]
private int _selfLayer; // 自身所在的層
[SerializeField]
private int[] _targetLayers; // 要處理碰撞忽略的目標層數組
/// <summary>
/// 當進入動畫狀態時調用，處理層碰撞忽略
/// </summary>
/// <param name="animator">動畫組件</param>
/// <param name="stateInfo">動畫狀態信息</param>
/// <param name="layerIndex">層索引</param>
override public void OnStateEnter(Animator animator, AnimatorStateInfo stateInfo, int layerIndex)
{
// 遍歷目標層數組，設置忽略自身層與目標層的碰撞
foreach (int targetLayer in _targetLayers)
{
Physics.IgnoreLayerCollision(_selfLayer, targetLayer, true);
}
}
/// <summary>
/// 當退出動畫狀態時調用，恢復層碰撞（取消忽略）
/// </summary>
/// <param name="animator">動畫組件</param>
/// <param name="stateInfo">動畫狀態信息</param>
/// <param name="layerIndex">層索引</param>
override public void OnStateExit(Animator animator, AnimatorStateInfo stateInfo, int layerIndex)
{
// 遍歷目標層數組，恢復自身層與目標層的碰撞（設置為不忽略）
foreach (int targetLayer in _targetLayers)
{
Physics.IgnoreLayerCollision(_selfLayer, targetLayer, false);
}
}
}
需要根據實際的Layer去填寫
修改bug——處決時其他敵人也受到傷害的問題
CharacterHealthBase
GameEventManager.MainInstance.AddEventListening<float,Transform>
("觸發處決傷害", TriggerDamageEventHandler);
GameEventManager.MainInstance.RemoveEvent<float,Transform>
("觸發處決傷害", TriggerDamageEventHandler);
/// <summary>
/// 處決動畫的觸發傷害事件
/// </summary>
/// <param name="damage"></param>
private void TriggerDamageEventHandler(float damage, Transform self)
{
// 如果傳來的self不是當前對象，說明不是自身在受擊
if(self != transform)
return;
// 處理傷害扣除邏輯
TakeDamage(damage);
// 播放受擊音效
GamePoolManager.Instance.TryGetPoolItem("HitSound", transform.position, Quaternion.identity);
}
PlayerCombatControl
region 觸發傷害（普通攻擊和處決攻擊）
private void TriggerDamage()
else
{ // 同一處決動畫期間會觸發多次傷害
//處決攻擊
// 從處決數據中獲取連招傷害相關參數
float damageValue = _finishCombo.TryGetComboDamage(_currentComboIndex);
// 調用觸發處決傷害事件
GameEventManager.MainInstance.CallEvent("觸發處決傷害", damageValue, _currentEnemy);
Debug.Log("觸發處決傷害");
}
Day17 背后處決
玩家
敵人
加一個動畫參數
技能表
背后處決邏輯
PlayerCombatControl
[Header("角色背后處決連招配置")]
[SerializeField] private CharacterComboSO _assassinCombo; // 背后處決連招
處決期間位置同步MatchPosition()：加上背后的目標位置匹配
else if (_animator.AnimationAtTag("Assassin"))//當前在普通攻擊動畫
{
transform.rotation = Quaternion.LookRotation(_currentEnemy.forward); // 背對敵人
RunningMatch(_assassinCombo);
}
#region 暗殺
/// <summary>
/// 是否允許執行暗殺邏輯的條件判斷
/// </summary>
private bool CanAssassin()
{
// 1. 無目標時不允許
if (_currentEnemy == null)
return false;
// 2. 距離超過 2f 時不允許
float distance = DevelopmentTools.DistanceForTarget(_currentEnemy, transform);
if (distance > 2f)
return false;
// 3. 在敵人前方/在敵人背后但角度差超過 60° 時不允許(和敵人同向的時候，是很小的銳角)
float angle = Vector3.Angle(transform.forward, _currentEnemy.forward);
if (angle > 60f)
return false;
// 4. 正在播放暗殺動畫時不允許（避免重復觸發）
if (_animator.AnimationAtTag("Assassin"))
return false;
return true;
}
/// <summary>
/// 處理角色暗殺輸入的響應邏輯
/// </summary>
private void CharacterAssassinInput()
{
// 不滿足暗殺條件時直接返回
if (!CanAssassin())
return;
// 檢測到 "取出武器/觸發暗殺" 輸入時執行邏輯
if (GameInputManager.Instance.FinishAttack)
{
// 1. 隨機選取暗殺連招索引
_currentComboIndex = Random.Range(
0,
_assassinCombo.TryGetComboMaxCount()
);
// 2. 播放對應的暗殺動畫
string animationState = _assassinCombo.TryGetOneComboAction(_currentComboIndex);
_animator.Play(animationState, 0, 0f);
// 3. 獲取暗殺動畫的命中名稱，用于事件傳遞
string hitName = _assassinCombo.TryGetOneHitName(_currentComboIndex, 0);
// 4. 調用事件中心，觸發敵人的處決/暗殺事件
GameEventManager.MainInstance.CallEvent(
"觸發處決",
hitName,
transform,
_currentEnemy
);
// 5. 重置連招狀態，防止索引越界
ResetComboInfo();
}
}
#endregion
修改之前的正面處決條件，加上角度限制
/// <summary>
/// 是否允許執行處決攻擊
/// </summary>
private bool CanSpecialAttack()
{
// 處于 "Finish" 標簽動畫時，不允許
if (_animator.AnimationAtTag("Finish"))
return false;
// 沒有當前敵人時，不允許
if (_currentEnemy == null)
return false;
// 當前連招總數小于2時，不允許
if(_currentComboCount < 2)
return false;
// 在敵人后方或側面時，不允許(和敵人同向的時候，是很小的銳角，慢慢放大這個角就是側面，所以小于某個超過90度的角即可，這里取120度)
float angle = Vector3.Angle(transform.forward, _currentEnemy.forward);
if (angle < 120f)
return false;
return true;
}
Bug修復——讓處決的Combo索引單獨控制
// 處決執行狀態變量
private int _finishComboIndex; // 處決連招動作索引
/// <summary>
/// 處理角色暗殺輸入的響應邏輯
/// </summary>
private void CharacterAssassinInput()
{
// 不滿足暗殺條件時直接返回
if (!CanAssassin())
return;
// 檢測到 "取出武器/觸發暗殺" 輸入時執行邏輯
if (GameInputManager.Instance.FinishAttack)
{
// 1. 隨機選取暗殺連招索引
_finishComboIndex = Random.Range(
0,
_assassinCombo.TryGetComboMaxCount()
);
// 2. 播放對應的暗殺動畫
string animationState = _assassinCombo.TryGetOneComboAction(_finishComboIndex);
_animator.Play(animationState, 0, 0f);
// 3. 獲取暗殺動畫的命中名稱，用于事件傳遞
string hitName = _assassinCombo.TryGetOneHitName(_finishComboIndex, 0);
// 4. 調用事件中心，觸發敵人的處決/暗殺事件
GameEventManager.MainInstance.CallEvent(
"觸發處決",
hitName,
transform,
_currentEnemy
);
// 5. 重置連招狀態，防止索引越界
ResetComboInfo();
}
}
region 觸發傷害（普通攻擊和處決攻擊）
private void TriggerDamage()
else
{ // 同一處決動畫期間會觸發多次傷害
//處決攻擊
// 從處決數據中獲取連招傷害相關參數
float damageValue = _finishCombo.TryGetComboDamage(_finishComboIndex);
// 調用觸發處決傷害事件
GameEventManager.MainInstance.CallEvent("觸發處決傷害", damageValue,_currentEnemy);
Debug.Log("觸發處決傷害");
}
#endregion
#region 位置同步
/// <summary>
/// 處決期間玩家位置同步
/// </summary>
private void MatchPosition()
{
if (_currentEnemy == null)
return;
if (!_animator)
return;
if (_animator.AnimationAtTag("Finish"))//當前在處決動畫
{
transform.rotation = Quaternion.LookRotation(-_currentEnemy.forward); // 面對敵人
RunningMatch(_finishCombo,_finishComboIndex);
}
else if (_animator.AnimationAtTag("Assassin"))//當前在普通攻擊動畫
{
transform.rotation = Quaternion.LookRotation(_currentEnemy.forward); // 背對敵人
RunningMatch(_assassinCombo, _finishComboIndex);
}
}
private void RunningMatch(CharacterComboSO combo,int comboIndex, float startTime = 0f, float endTime = 0.01f)
{
if (!_animator.isMatchingTarget && !_animator.IsInTransition(0))//當前不在匹配,同時不處于過渡狀態
{
_animator.MatchTarget(
_currentEnemy.position + (-transform.forward * combo.TryGetComboPositionOffset(comboIndex)),
Quaternion.identity,
AvatarTarget.Body,
new MatchTargetWeightMask(Vector3.one, 0f),
startTime,
endTime
);
}
}
#endregion
/// <summary>
/// 重置連招狀態（索引、冷卻時間）
/// </summary>
private void ResetComboInfo()
{
_currentComboIndex = 0;
_maxColdTime = 0f;
_hitIndex = 0;
_finishComboIndex = 0;
}
/// <summary>
/// 處理角色處決攻擊的輸入響應邏輯
/// </summary>
private void CharacterFinishAttackInput()
{
// 不滿足處決攻擊條件時，直接返回
if (!CanSpecialAttack())
return;
// 檢測到處決輸入時，執行處決流程
if (GameInputManager.Instance.FinishAttack)
{
// 1. 隨機選取處決連招索引
_finishComboIndex = Random.Range(0, _finishCombo.TryGetComboMaxCount());
// 2. 播放對應的處決動畫
string finishAnim = _finishCombo.TryGetOneComboAction(_finishComboIndex);
_animator.Play(finishAnim);
// 3. 調用事件中心，觸發敵人的處決事件
string hitName = _finishCombo.TryGetOneHitName(_finishComboIndex, 0);
GameEventManager.MainInstance.CallEvent(
"觸發處決",
hitName,
transform,
_currentEnemy
);
// 4. 調用定時器事件：更新連招狀態信息，防止索引越界
TimerManager.Instance.TryGetOneTimer(
_finishCombo.TryGetColdTime(_finishComboIndex), //這里原先寫的是固定的0.5f
UpdateComboInfo);
// 5. 重置連招狀態，防止索引越界
ResetComboInfo();
}
}
敵人AI
這個還沒看明白，時間不太夠，后面做
Foot IK
方案：實際走的是斜面(不渲染)，footik識別的是階梯本身(渲染)
優點：相機平滑，角色走路平滑，只對腳部進行ik
隨機待機動畫系統
using UnityEngine;
[RequireComponent(typeof(Animator))]
public class RandomIdleAnimation : MonoBehaviour
{
[SerializeField] private int IdleNum = 9;
private Animator animator;
private float idleTimeCounter = 0f;
private bool isInIdleState = false;
private const float idleThreshold = 5f;
private const string idleStateName = "Idle";
private const string blendTreeParameter = "IdleType";
void Start()
{
animator = GetComponent<Animator>();
}
void Update()
{
// 檢查當前是否處于Idle狀態
bool isCurrentStateIdle = IsInIdleState();
if (isCurrentStateIdle)
{
idleTimeCounter += Time.deltaTime;
isInIdleState = true;
if (idleTimeCounter >= idleThreshold)
{
RandomizeIdleAnimation();
idleTimeCounter = 0f;
}
}
else
{
// 離開Idle狀態時重置
idleTimeCounter = 0f;
isInIdleState = false;
}
}
// 檢查是否處于Idle狀態
private bool IsInIdleState()
{
if (animator.layerCount == 0)
return false;
AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0);
// 使用IsName方法檢查狀態名稱，這比哈希值比較更可靠
return stateInfo.IsName(idleStateName) && !animator.IsInTransition(0);
}
private void RandomizeIdleAnimation()
{
int randomInt = Random.Range(0, IdleNum);
animator.SetFloat(blendTreeParameter, randomInt);
}
}
演示效果(倍速處理)
開啟物理碰撞交互
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class ColliderInteraction : MonoBehaviour
{
private void OnControllerColliderHit(ControllerColliderHit hit)
{
if(hit.transform.TryGetComponent(out Rigidbody rigidbody))
{
// 只要接觸到的碰撞體是rigidbody，就給它施加一個向前的力
rigidbody.AddForce(transform.forward * 20f,ForceMode.Force);
}
}
}
加上手部扶墻的程序動畫剛好完美推門(不過要記得的刪去非法角度的判斷)
注意，開啟物理碰撞之后，之前的扶墻物體需要把Kinematic打開，讓他固定住不受外力，不然墻倒了
不過推門還是盡量做單獨的animator動畫比較好，用扶墻的程序動畫看著還行，但還是用固定的動畫不容易出戲
浙公網安備 33010602011771號
