用hc-05d模塊實現usb轉ttl模塊功能
hc-05d模塊特點
hc-05d是支持spp和ble,固件是主從一體的,默認情況下進入透?jìng)髂J?br>
默認波特率是9600
bleak和pybluez是Python中兩個不同的藍牙通信庫
pybluez:僅支持經典藍牙(BR/EDR),如藍牙2.x/3.x/4.x
bleak:專為低功耗藍牙(BLE/Bluetooth 4.0+)設計
目標板波特率是115200,故將hc05d模塊波特率改為115200
用python實現的
代碼
點擊查看代碼
import sys
import asyncio
from bleak import BleakScanner, BleakClient
from PyQt5.QtWidgets import (QApplication, QMainWindow, QVBoxLayout, QHBoxLayout,
QPushButton, QListWidget, QTextEdit, QLabel,
QWidget, QLineEdit, QComboBox, QFrame)
from PyQt5.QtCore import QTimer
from PyQt5.QtGui import QFont
class BLEClientApp(QMainWindow):
def __init__(self):
super().__init__()
self.client = None
self.write_char = None
self.setWindowTitle("BLE Client")
self.setGeometry(100, 100, 800, 600)
self.setup_ui()
def setup_ui(self):
central_widget = QWidget()
main_layout = QVBoxLayout()
# 控制面板
control_panel = QHBoxLayout()
self.scan_btn = QPushButton("Scan")
self.connect_btn = QPushButton("Connect")
self.disconnect_btn = QPushButton("Disconnect")
control_panel.addWidget(self.scan_btn)
control_panel.addWidget(self.connect_btn)
control_panel.addWidget(self.disconnect_btn)
# 發送面板
send_panel = QHBoxLayout()
self.send_input = QLineEdit()
self.encoding_combo = QComboBox()
self.encoding_combo.addItems(["utf-8", "ascii", "latin1"])
self.send_btn = QPushButton("Send")
send_panel.addWidget(self.send_input, 4)
send_panel.addWidget(self.encoding_combo, 1)
send_panel.addWidget(self.send_btn, 1)
# 設備列表和數據展示
self.device_list = QListWidget()
# 接收數據區域
received_data_layout = QVBoxLayout()
received_data_layout.addWidget(QLabel("Received Data:"))
self.data_display = QTextEdit()
self.data_display.setReadOnly(True)
# 創建清除按鈕區域
clear_button_layout = QHBoxLayout()
clear_button_layout.addStretch() # 添加彈性空間使按鈕靠右
self.clear_btn = QPushButton("Clear")
self.clear_btn.setFixedWidth(80) # 設置固定寬度
clear_button_layout.addWidget(self.clear_btn)
# 將數據展示區域和清除按鈕添加到接收數據布局
received_data_layout.addWidget(self.data_display)
received_data_layout.addLayout(clear_button_layout)
self.status_label = QLabel("Status: Disconnected")
# 布局組裝
main_layout.addLayout(control_panel)
main_layout.addWidget(QLabel("Devices:"))
main_layout.addWidget(self.device_list)
main_layout.addLayout(received_data_layout)
main_layout.addWidget(QLabel("Send Data:"))
main_layout.addLayout(send_panel)
main_layout.addWidget(self.status_label)
central_widget.setLayout(main_layout)
self.setCentralWidget(central_widget)
# 事件綁定
self.scan_btn.clicked.connect(self.start_scan)
self.connect_btn.clicked.connect(self.connect_to_device)
self.disconnect_btn.clicked.connect(self.disconnect_device)
self.send_btn.clicked.connect(self.send_data)
self.clear_btn.clicked.connect(self.clear_data_display) # 綁定清除按鈕
# 異步事件循環
self.loop = asyncio.get_event_loop()
self.timer = QTimer()
self.timer.timeout.connect(self.process_events)
self.timer.start(100)
def process_events(self):
self.loop.stop()
self.loop.run_forever()
def log_message(self, message):
self.data_display.append(message)
def clear_data_display(self):
"""清空接收數據區域"""
self.data_display.clear()
def start_scan(self):
self.device_list.clear()
self.log_message("Scanning...")
async def scan():
devices = await BleakScanner.discover()
for d in devices:
self.device_list.addItem(f"{d.name or 'Unknown'} - {d.address}")
self.log_message(f"Found {len(devices)} devices")
asyncio.run_coroutine_threadsafe(scan(), self.loop)
def connect_to_device(self):
selected = self.device_list.currentItem()
if not selected:
self.log_message("No device selected")
return
device_address = selected.text().split(" - ")[-1]
self.log_message(f"Connecting to {device_address}...")
async def connect():
try:
self.client = BleakClient(device_address)
await self.client.connect()
self.status_label.setText(f"Connected: {device_address}")
# 查找特征
for service in self.client.services:
for char in service.characteristics:
if "write" in char.properties:
self.write_char = char
max_length = char.max_write_without_response if hasattr(char, 'max_write_without_response') else None
self.log_message(f"Writable: {char.uuid} (Max length: {max_length})")
if "notify" in char.properties:
await self.client.start_notify(
char.uuid,
lambda s, d: self.log_message(
f"{bytes(d).decode('utf-8', errors='replace')}"
)
)
self.log_message(f"Characteristic properties: {char.properties}")
self.log_message(f"Descriptors: {char.descriptors}")
except Exception as e:
self.log_message(f"Connection error: {str(e)}")
asyncio.run_coroutine_threadsafe(connect(), self.loop)
def disconnect_device(self):
if not self.client:
return
async def disconnect():
await self.client.disconnect()
self.status_label.setText("Disconnected")
self.client = None
self.write_char = None
asyncio.run_coroutine_threadsafe(disconnect(), self.loop)
def send_data(self):
if not self.client or not self.write_char:
self.log_message("Not ready for sending")
return
text = self.send_input.text()
if not text:
return
encoding = self.encoding_combo.currentText()
async def send():
try:
data = text.encode(encoding, errors='replace')
# 獲取特征值的最大寫入長度
max_length = self.write_char.max_write_without_response if hasattr(self.write_char, 'max_write_without_response') else 20
if max_length is None:
max_length = 20 # 默認值
self.log_message(f"Data length: {len(data)}, Max write length: {max_length}")
# 如果數據長度小于等于最大長度,直接發送
if len(data) <= max_length:
await self.client.write_gatt_char(self.write_char.uuid, data)
self.log_message(f"TX: {text} ({encoding})")
else:
# 分塊發送數據
for i in range(0, len(data), max_length):
chunk = data[i:i+max_length]
await self.client.write_gatt_char(self.write_char.uuid, chunk)
self.log_message(f"Sent chunk {i//max_length + 1}: {chunk.hex()}")
self.log_message(f"TX: {text} ({encoding}) [Sent in {((len(data)-1)//max_length)+1} chunks]")
except Exception as e:
self.log_message(f"Send error: {str(e)}")
#self.log_message("Send")
asyncio.run_coroutine_threadsafe(send(), self.loop)
if __name__ == "__main__":
app = QApplication(sys.argv)
window = BLEClientApp()
window.show()
sys.exit(app.exec_())
vs code軟件

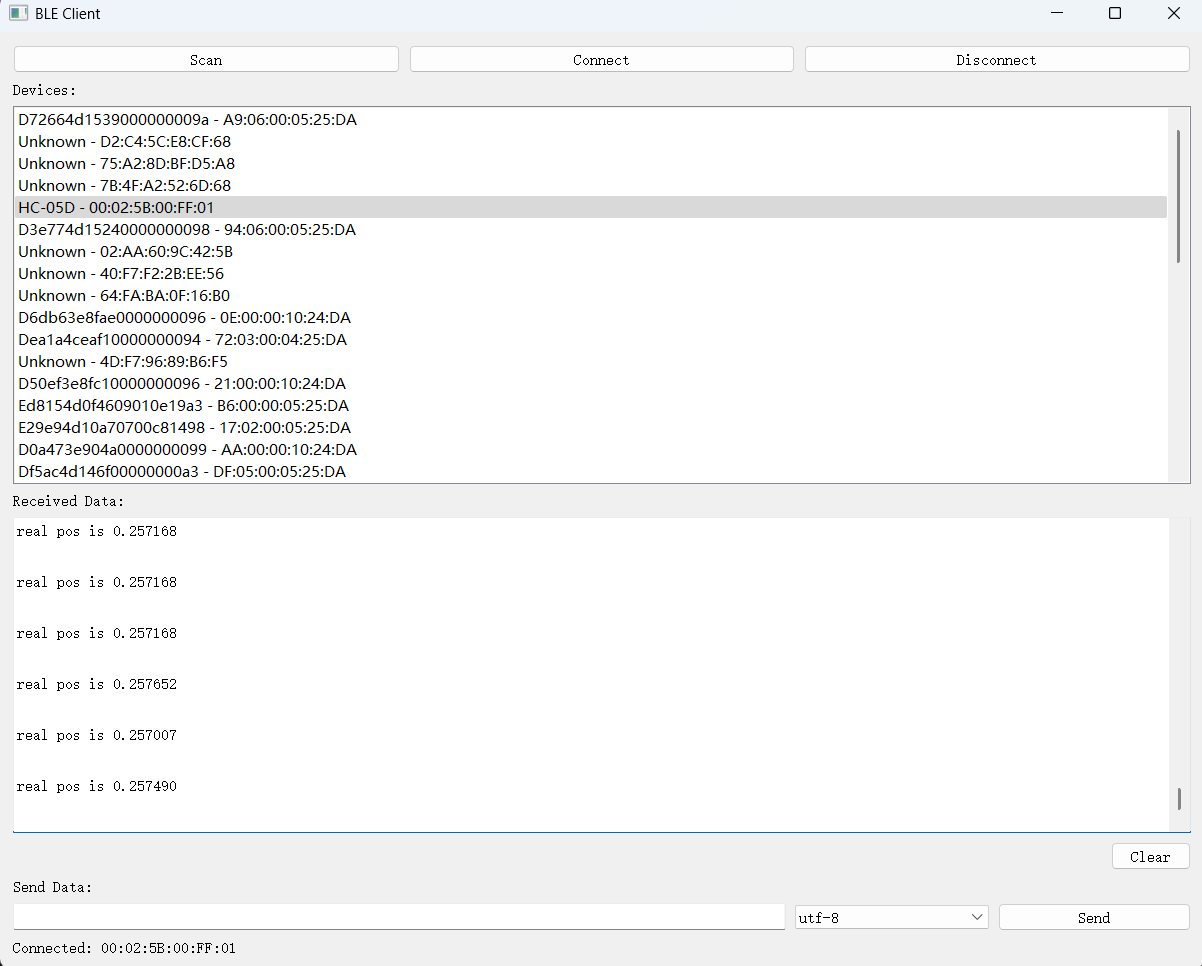

運行示例

打包成windows下exe文件
搜不到藍牙,還不知道為什么
