WSL2 安裝

• 如何在 Windows 上安裝 WSL2

sudo apt install esptool
sudo apt install linux-tools-generic hwdata
sudo update-alternatives --install /usr/local/bin/usbip usbip /usr/lib/linux-tools/*-generic/usbip 20

Docker安裝和配置

一鍵安裝腳本

curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun

配置

cat /etc/docker/daemon.json
{
  "registry-mirrors" : ["https://docker.registry.cyou",
	"https://docker-cf.registry.cyou",
	"https://dockercf.jsdelivr.fyi",
	"https://docker.jsdelivr.fyi",
	"https://dockertest.jsdelivr.fyi",
	"https://mirror.aliyuncs.com",
	"https://dockerproxy.com",
	"https://mirror.baidubce.com",
	"https://docker.m.daocloud.io",
	"https://docker.nju.edu.cn",
	"https://docker.mirrors.sjtug.sjtu.edu.cn",
	"https://docker.mirrors.ustc.edu.cn",
	"https://mirror.iscas.ac.cn",
	"https://docker.rainbond.cc",
	"https://do.nark.eu.org",
	"https://dc.j8.work",
	"https://dockerproxy.com",
	"https://gst6rzl9.mirror.aliyuncs.com",
	"https://registry.docker-cn.com",
	"http://hub-mirror.c.163.com",
	"http://mirrors.ustc.edu.cn/",
	"https://mirrors.tuna.tsinghua.edu.cn/",
	"http://mirrors.sohu.com/"
	],
	 "insecure-registries" : [
	    "registry.docker-cn.com",
	    "docker.mirrors.ustc.edu.cn"
	    ],
	"debug": true,
	"experimental": false
}

sudo systemctl daemon-reload
sudo systemctl restart docker

測試Docker

sudo docker pull hello-world
Using default tag: latest


latest: Pulling from library/hello-world
Digest: sha256:ec153840d1e635ac434fab5e377081f17e0e15afab27beb3f726c3265039cfff
Status: Image is up to date for hello-world:latest
docker.io/library/hello-world:latest

sudo docker run hello-world
[sudo] password for cmf:

Hello from Docker!
This message shows that your installation appears to be working correctly.

To generate this message, Docker took the following steps:
 1. The Docker client contacted the Docker daemon.
 2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
    (amd64)
 3. The Docker daemon created a new container from that image which runs the
    executable that produces the output you are currently reading.
 4. The Docker daemon streamed that output to the Docker client, which sent it
    to your terminal.

To try something more ambitious, you can run an Ubuntu container with:
 $ docker run -it ubuntu bash

Share images, automate workflows, and more with a free Docker ID:
 https://hub.docker.com/

For more examples and ideas, visit:
 https://docs.docker.com/get-started/

設置以非 root 用戶身份管理 Docker

• Docker Engine 的 Linux 安裝后步驟


創建docker組。

sudo groupadd docker

將您的用戶添加到docker組。

 sudo usermod -aG docker $USER

注銷并重新登錄WSL2，在Windows Cmd下執行。

wsl --shutdown

還可以運行以下命令來激活對組的更改：

 newgrp docker

驗證是否可以在沒有sudo的情況下運行命令。

docker run hello-world

Hello from Docker!
This message shows that your installation appears to be working correctly.

To generate this message, Docker took the following steps:
 1. The Docker client contacted the Docker daemon.
 2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
    (amd64)
 3. The Docker daemon created a new container from that image which runs the
    executable that produces the output you are currently reading.
 4. The Docker daemon streamed that output to the Docker client, which sent it
    to your terminal.

To try something more ambitious, you can run an Ubuntu container with:
 $ docker run -it ubuntu bash

Share images, automate workflows, and more with a free Docker ID:
 https://hub.docker.com/

For more examples and ideas, visit:
 https://docs.docker.com/get-started/

拉取Docker鏡像

cat docker-compose.yml
version: "3.8"

services:
  esp-idf:
    image: espressif/idf
    container_name: esp-idf-builder
    working_dir: /project
    volumes:
      - .:/project
    environment:
      - HOME=/tmp
      - IDF_GIT_SAFE_DIR=/project
    tty: true
    stdin_open: true

docker compose up

VsCode

• Visual Studio Code Download

需要安裝的插件

• Dev Containers
• Remote Development
• ESP-IDF

Code

git clone https://github.com/espressif/esp-idf.git

使用hello_world為示例工程

cp -rf esp-idf/examples/get-started/hello_world .

使用vscode打開hello_world工程

cd hello_world
code .

在VsCode的菜單欄選擇 查看 > 命令面板，在彈出的對話框中輸入ESP-IDF: Add docker container configuration。

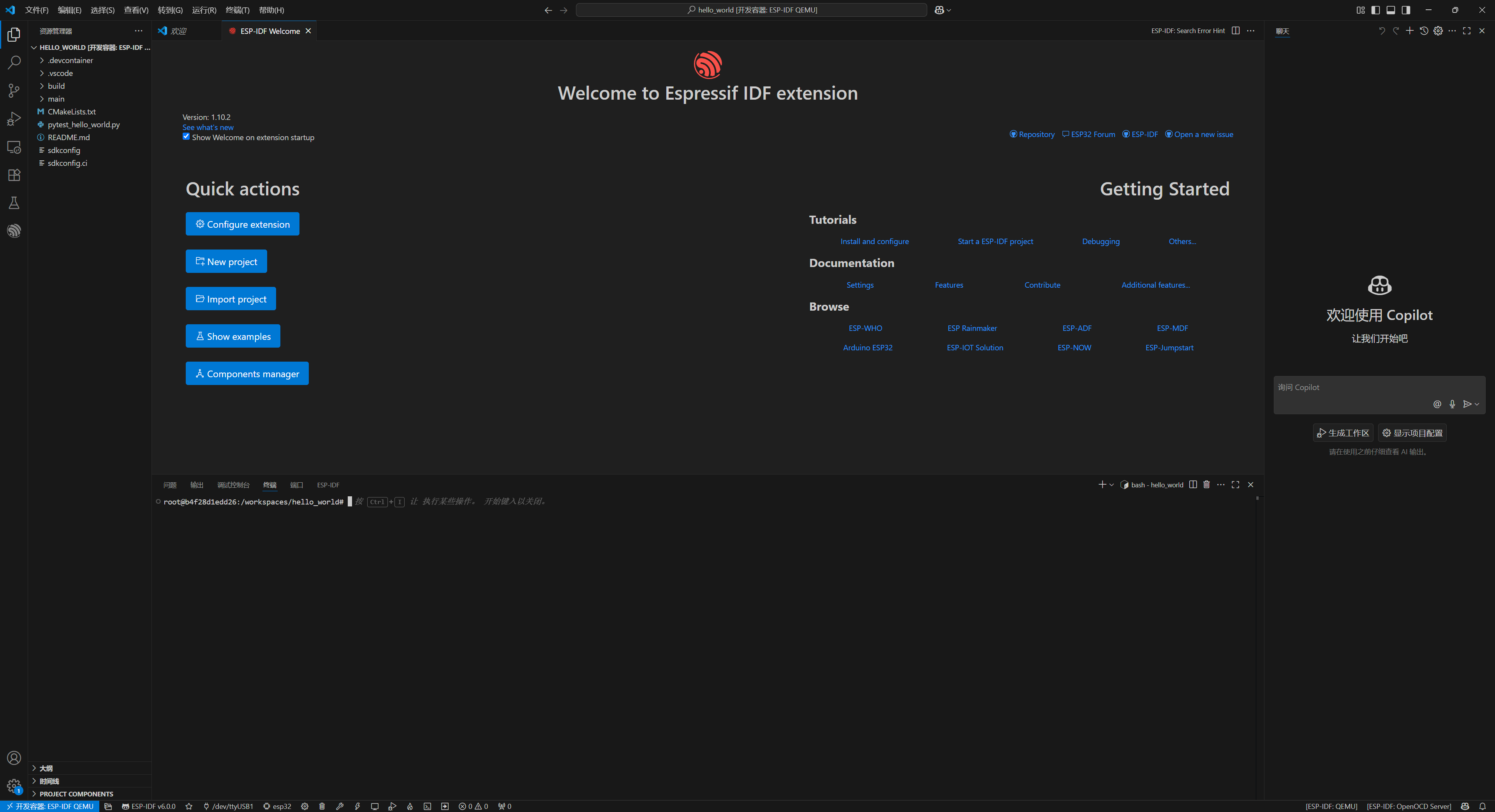

然后當前項目的 .devcontainer 文件夾就會自動生成了。下一步在點擊左下角的連接->在容器中重新打開。

在 Docker 容器中使用外部 USB 轉串口設備

Windows中下載并安裝usbipd-win工具

dmesg可以看到wsl2中已經識別到了一個ttyACM0，這時我們在回到VsCode。

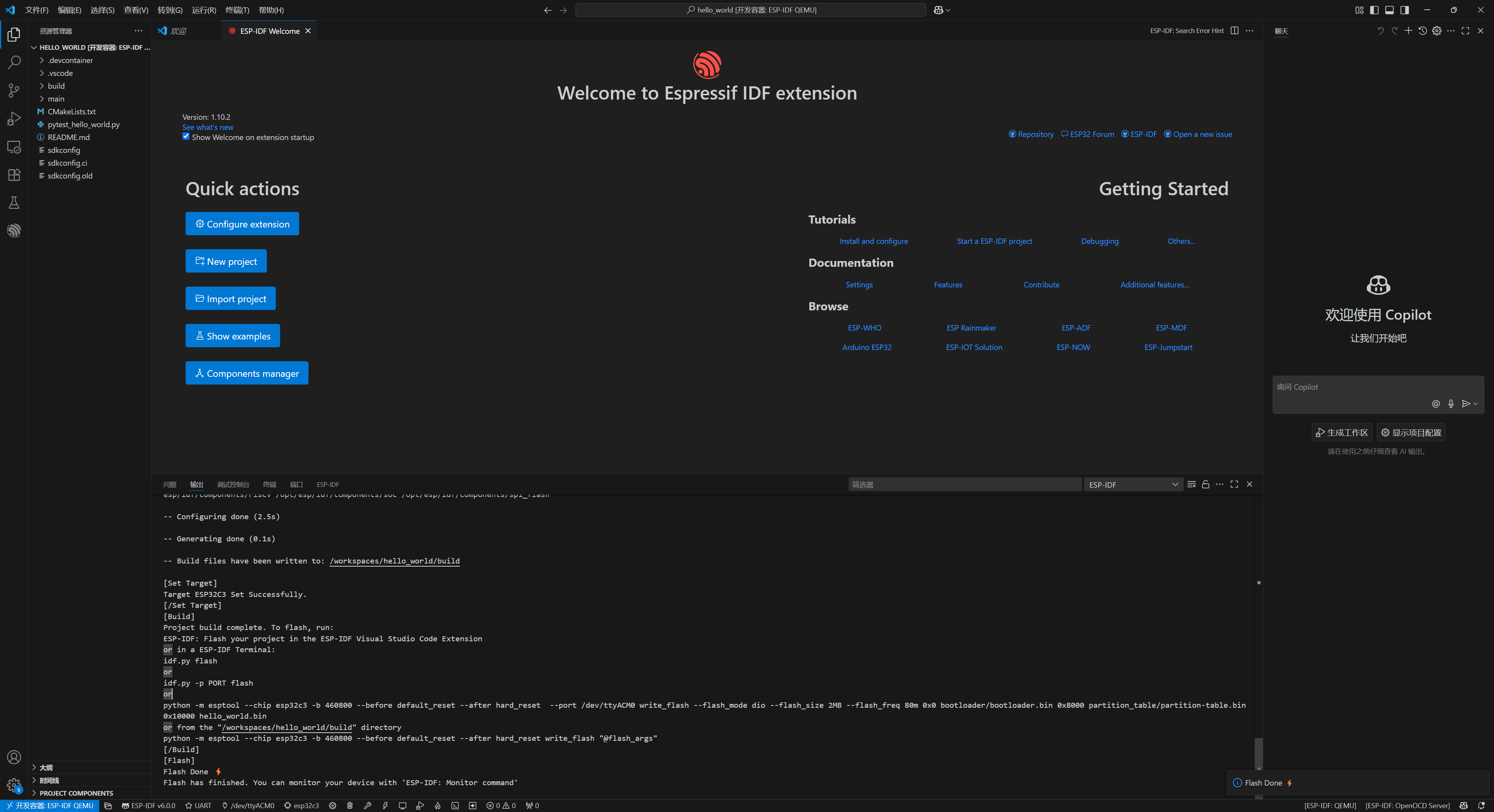

在下面一行配置中，串口配置端口就選擇ttyACM0，設備目標自行根據開發板選擇，然后就可以點擊Build Project，看我這里編譯成功了！
接下載再試試燒錄。

我選擇的用UART燒錄，看打印信息是燒錄成功了，具體我們點擊Monitor Devict試下。

優雅！

參考資料

• 使用Docker容器的ESP32開發環境搭建
• Docker官方文檔
• 如何在 Windows 上安裝 WSL2
• 如何將USB 設備連接到 WSL 2 上運行的 Linux 分發版
