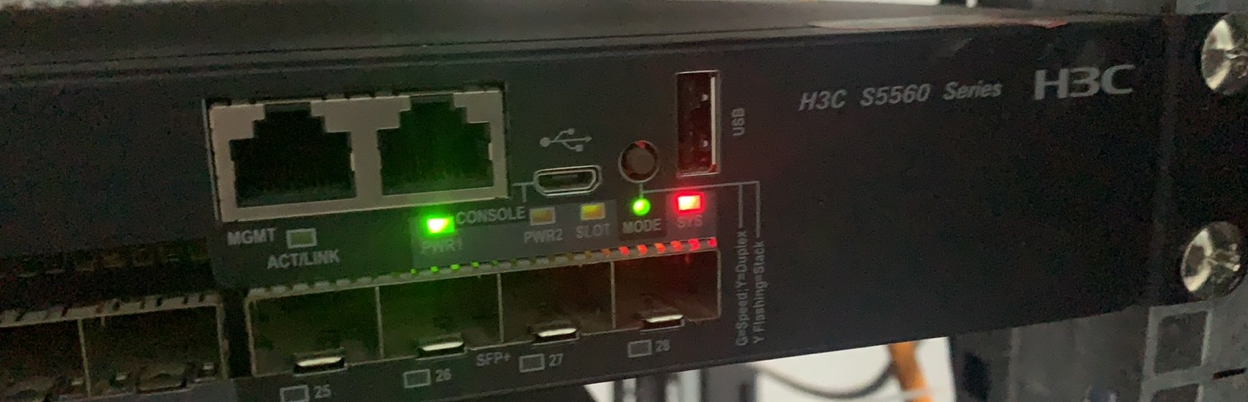

H3C交換機前面板sys信號燈紅色

查看電源和風扇配置：

 1 <h3c-S5560>display power
 2  Slot 1:
 3  PowerID State    Mode   Current(A)  Voltage(V)  Power(W)
 4  1       Normal   AC        --          --          --
 5  2       Absent   --        --          --          --
 6
 7
 8 [h3c-S5560]display fan
 9  Slot 1:
10  Fan 1:
11  State    : FanDirectionFault
12  Airflow Direction: Power-to-port
13  Prefer Airflow Direction: Port-to-power
14  Fan 2:
15  State    : FanDirectionFault
16  Airflow Direction: Power-to-port
17  Prefer Airflow Direction: Port-to-power

檢查交換機風扇配置信息發現交換機風扇的實際氣流方向為：Airflow Direction: Power-to-port（風道風向是電源側進風、端口側出風）；而配置用戶下看到風扇模塊的優選氣流方向為：Prefer Airflow Direction: Port-to-power（端口側進風、電源側出風），兩者不一致（交換機風扇反轉），導致交換機風扇狀態為：FanDirectionFault（風扇方向錯誤），風扇信號燈告警，交換機SYS信號燈告警。

處理方法：

fan prefer-direction命令用來配置用戶期望的風扇模塊的風道風向。undo fan prefer-direction命令用來恢復缺省情況。當風扇模塊的風道風向和設備當前期望的風道風向不一致的時候，系統會打印Trap和Log信息提醒用戶。缺省情況下，設備的期望風道風向為電源側進風、端口側出風（power-to-port）。

或者更改用戶期望的風道風向為power-to-port，保存配置，sys信號燈恢復綠色。

 1 <h3c-S5560>system-view
 2 System View: return to User View with Ctrl+Z.
 3 [h3c-S5560]fan pre
 4 [h3c-S5560]fan prefer-direction slot
 5 [h3c-S5560]fan prefer-direction slot 1
 6 [h3c-S5560]fan prefer-direction slot 1 ?
 7   port-to-power  From port to power
 8   power-to-port  From power to port
 9
10 [h3c-S5560]fan prefer-direction slot 1 pow
11 [h3c-S5560]fan prefer-direction slot 1 power-to-port
12 [h3c-S5560]dis fan
13  Slot 1:
14  Fan 1:
15  State    : Normal
16  Airflow Direction: Power-to-port
17  Prefer Airflow Direction: Power-to-port
18  Fan 2:
19  State    : Normal
20  Airflow Direction: Power-to-port
21  Prefer Airflow Direction: Power-to-port
22
23
24 [h3c-S5560]save
